تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP2139CB-1.5EVALZEVAL BOARD FOR ADP2139 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 800mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2139 |
|
|
ADP2139CB-3.3EVALZEVAL BOARD FOR ADP2139 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2139 |
|
|
ADP2139CB-0.8EVALZEVAL BOARD FOR ADP2139 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V | 800mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2139 |
|

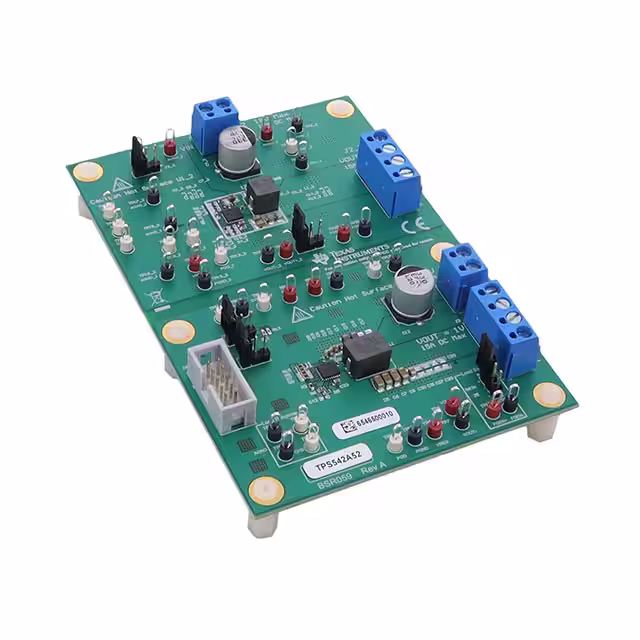

TPS542A52EVM-059EVAL BOARD FOR TPS542A52 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 5.5V | 15A | 4V ~ 18V | Buck | 1MHz | Board(s) | TPS542A52 |
|

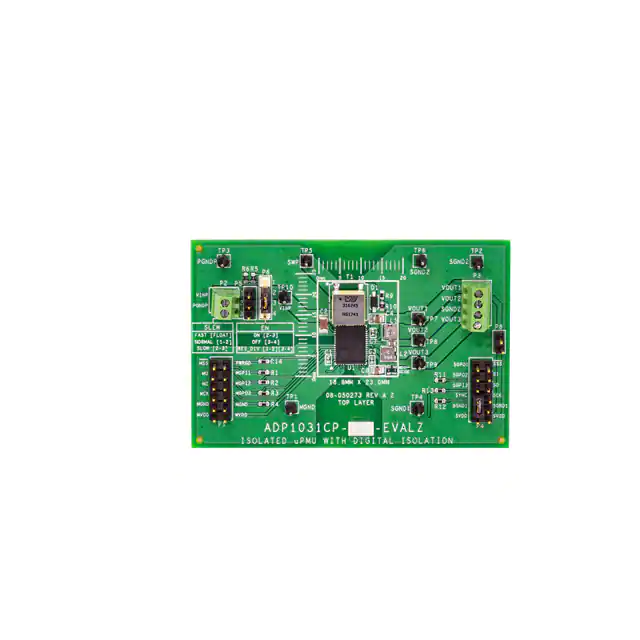

ADP1031CP-1-EVALZEVAL BOARD FOR ADP10311 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 3 Isolated Outputs | - | 5.15V, 24V, -15V | - | 4.5V ~ 60V | Flyback | - | Board(s) | ADP1031-1 |
|
DC2899AEVAL BOARD FOR LTM4655 |
1 |
|
برگه مشخصات |
µModule® | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | -12V, -12V | 2.5A, 2.5A | 13V ~ 28V | Inverting | 1.2MHz | Board(s) | LTM4655 |
|
|
ISL78235EVAL2ZEVAL BOARD FOR ISL78235 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 5A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL78235 |
|

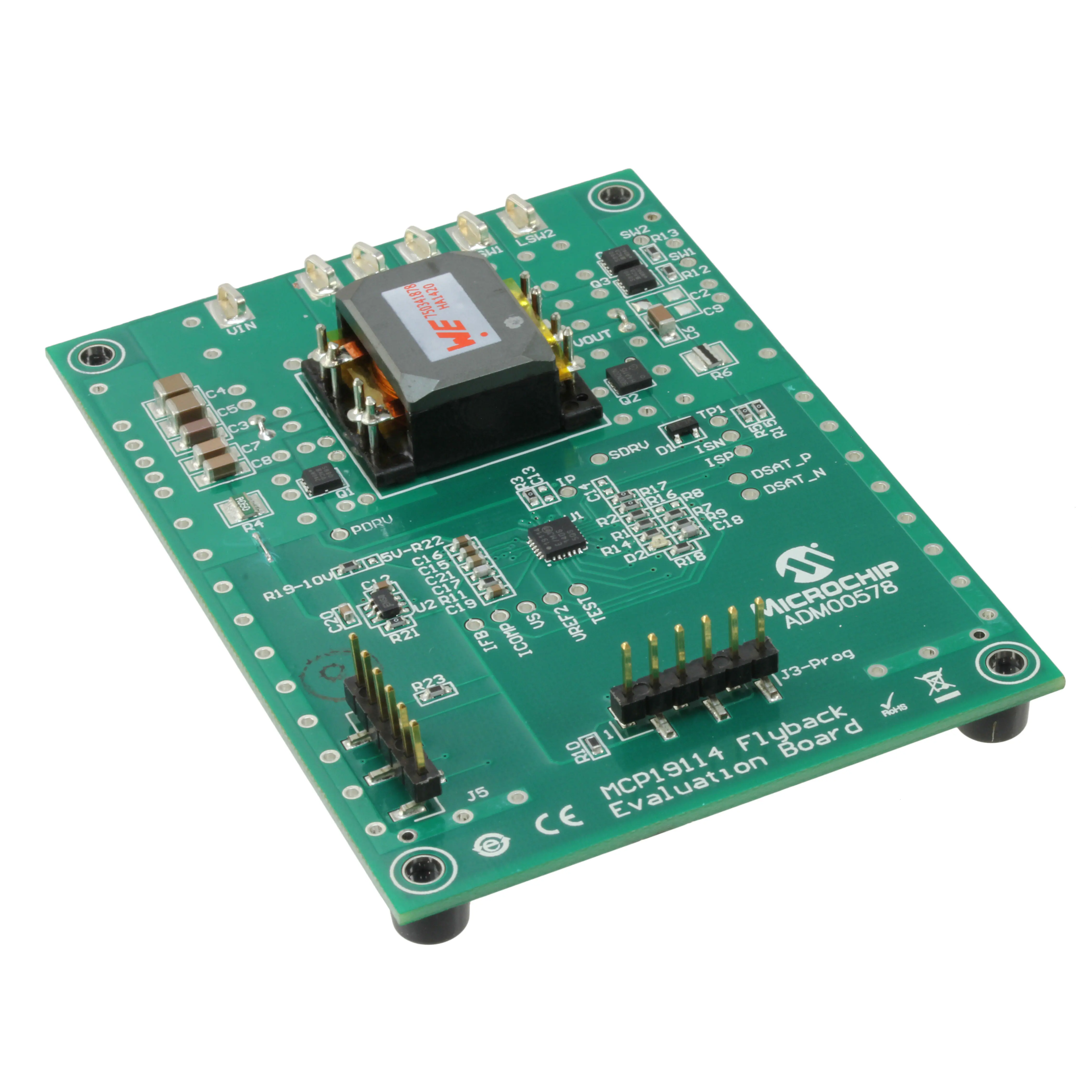

ADM00578EVAL BOARD FOR MCP19114 |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | - | - | 8V ~ 14V | Flyback | - | Board(s) | MCP19114 |
|
DC3061AEVAL BOARD FOR LTM4701 |
7 |
|
برگه مشخصات |
µModule® | Bulk | Active | - | - | - | - | 10A | - | - | - | Board(s) | LTM4701 |
|

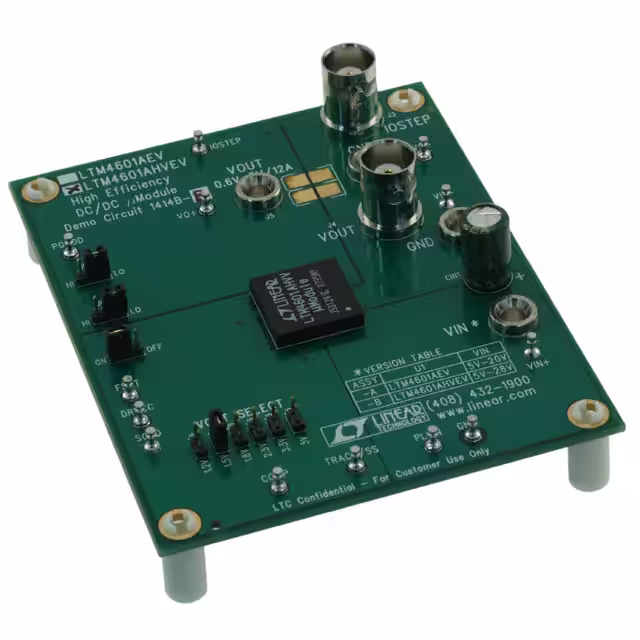

DC1414B-BEVAL BOARD FOR LTM4601AHV |
2 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, or 5V | 12A | 5V ~ 28V | Buck | 850kHz | Board(s) | LTM4601AHV |
|
DC1597AEVAL BOARD FOR LTM8031 |
1 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 5V ~ 36V | Buck | 750kHz | Board(s) | LTM8031 |
|

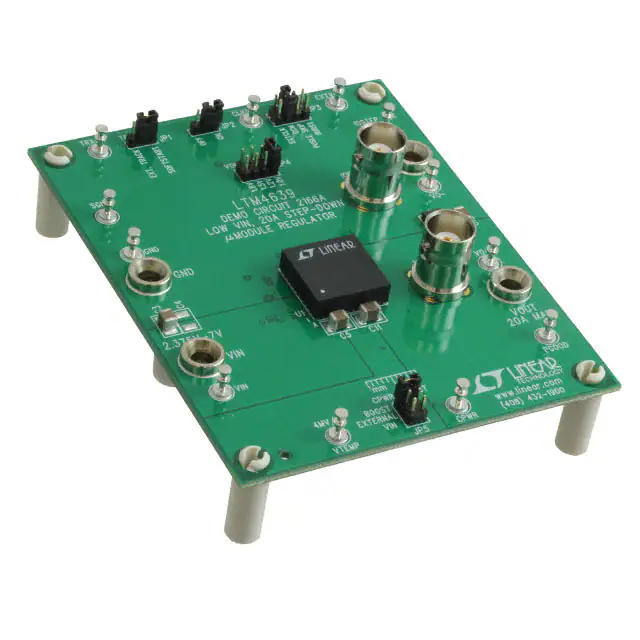

DC2166AEVAL BOARD FOR LTM4639 |
1 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V or 1.8V | 20A | 2.375V ~ 7V | Buck | 500kHz | Board(s) | LTM4639 |
|

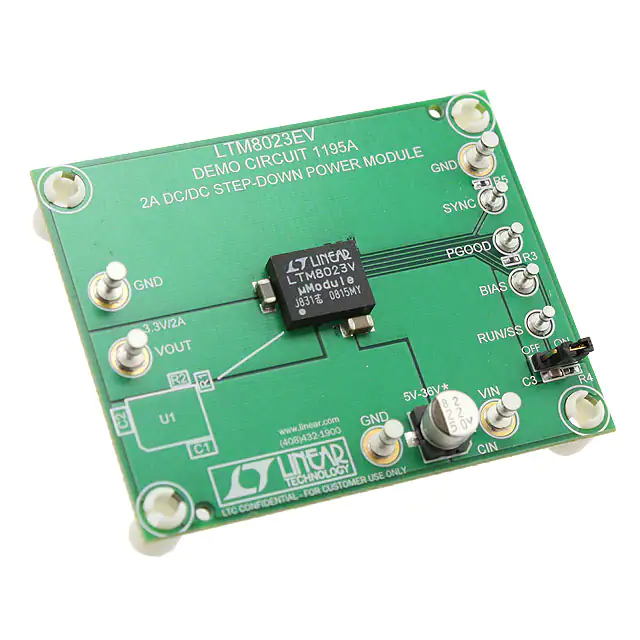

DC1195AEVAL BOARD FOR LTM8023 |
0 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 5V ~ 36V | Buck | 600kHz | Board(s) | LTM8023 |
|

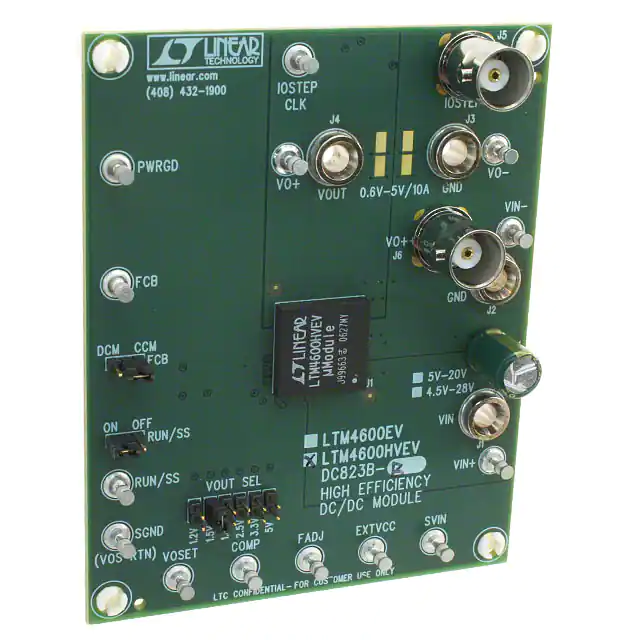

DC823B-BEVAL BOARD FOR LTM4600HV |
0 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, or 5V | 10A | 4.5V ~ 28V | Buck | 1.35MHz | Board(s) | LTM4600HV |
|
DC1245AEVAL BOARD FOR LTM4616 |
0 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 8A, 8A | 2.7V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTM4616 |
|
DC2268A-BEVAL BOARD FOR LTM4620A |
0 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 13A, 13A | 5.5V ~ 16V | Buck | 750kHz | Board(s) | LTM4620A |
|

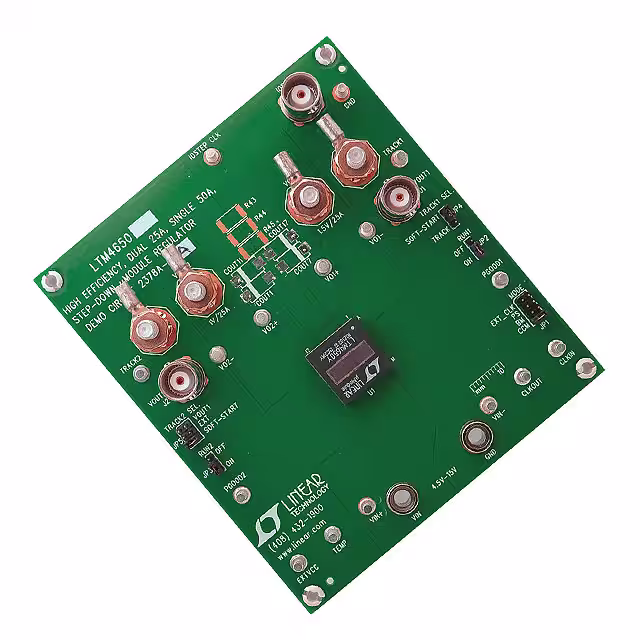

DC2378A-AEVAL BOARD FOR LTM4650 |
0 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.5V | 25A, 25A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4650 |
|

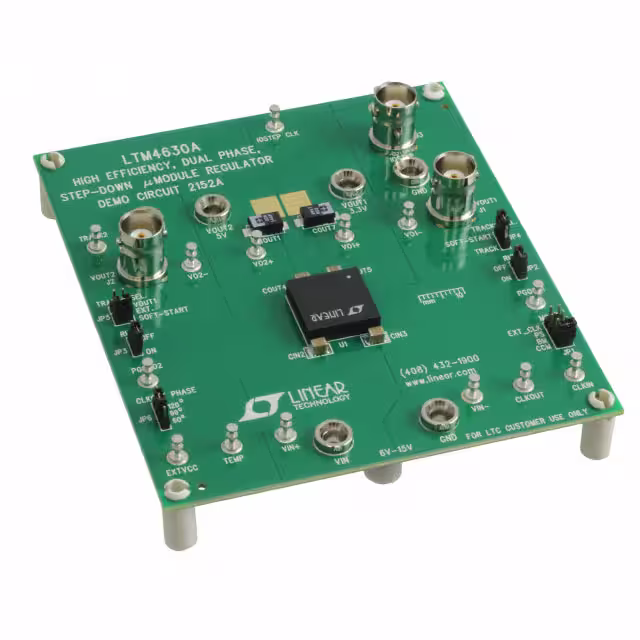

DC2152AEVAL BOARD FOR LTM4630A |
0 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 18A, 18A | 6V ~ 15V | Buck | 600kHz | Board(s) | LTM4630A |
|
DC2721A-BEVAL BOARD FOR LTM4625 |
0 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | -0.6V ~ -5.5V | 3A | 4V ~ 15V | Buck-Boost | 1MHz | Board(s) | LTM4625 |
|
DC2501AEVAL BOARD FOR LTM8002 |
0 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 6V ~ 40V | Buck | 1MHz | Board(s) | LTM8002 |
