تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

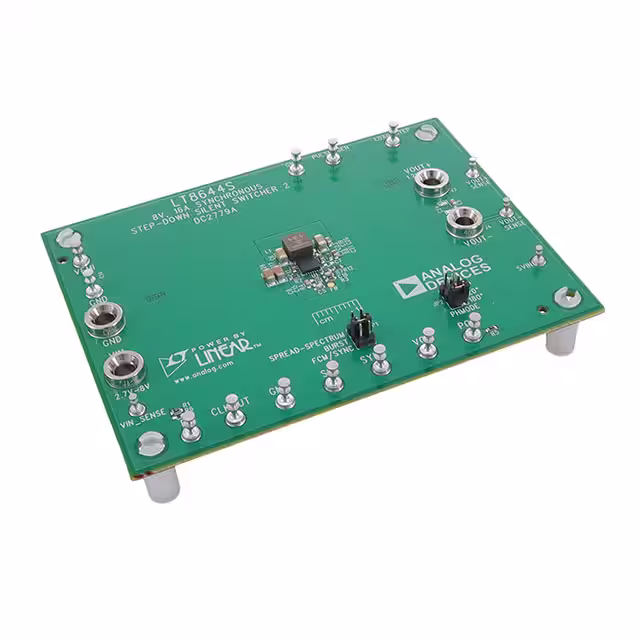

DC2779AEVAL BOARD FOR LT8644S |
0 |
|
برگه مشخصات |
Silent Switcher®2 | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.18V ~ 1.22V | 16A | 2.7V ~ 8V | Buck | 2MHz | Board(s) | LT8644S |
|
I367X-C01-EVK-S0EVAL BOARD FOR I3A, I6A, RGA |
9 |
|
برگه مشخصات |
- | Tray | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | i3A, i6A, RGA |
|
DC3054A-AEVAL BOARD FOR LTC3307B |
8 |
|
برگه مشخصات |
Silent Switcher® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.25V ~ 5.5V | Buck | 6.6MHz | Board(s) | LTC3307B |
|
BM2P0161-EVK-001EVAL BOARD FOR BM2P0161 |
3 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | 7.5 W | 15V | 500mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P0161 |
|
REF5BR3995BZ16W1TOBO1EVAL BOARD FOR ICE5BR3995BZ |
3 |
|
برگه مشخصات |
CoolSET™ | Bulk | Active | AC/DC, Non-Isolated | 3 Non-Isolated Outputs | 16 W | 5V, 12V, 15V | 900mA, 300mA, 150mA | 85 ~ 264 VAC | Flyback | - | Board(s) | ICE5BR3995BZ |
|

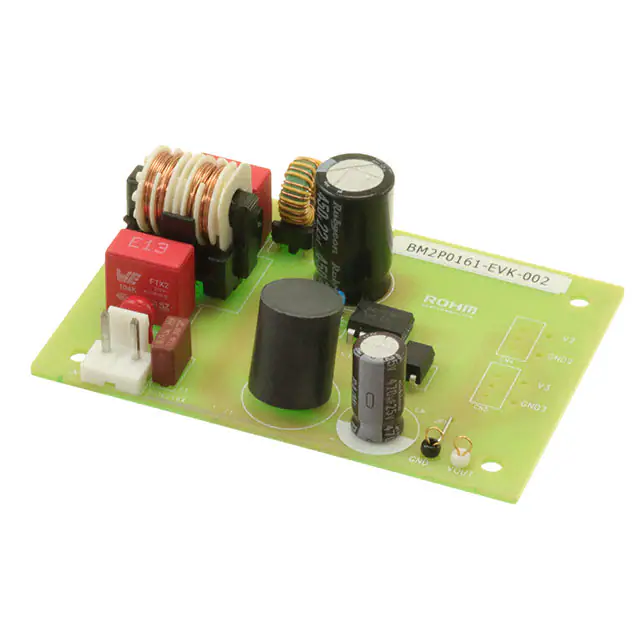

BM2P0161-EVK-002EVAL BOARD FOR BM2P0161 |
2 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | 6 W | 12V | 500mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P0161 |
|

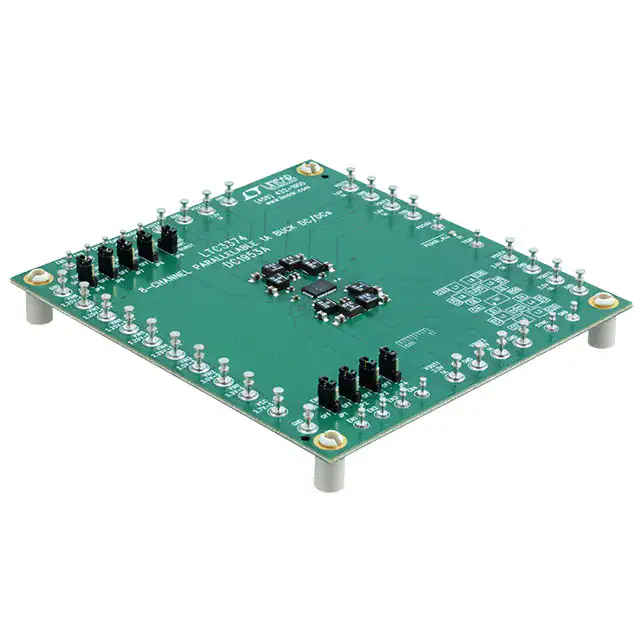

DC1953AEVAL BOARD FOR LTC3374 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 8 Non-Isolated Outputs | - | 1V, 1.2V, 1.5V, 1.8V, 2V, 2.5V, 3V, 3.3V | 1A, 1A, 1A, 1A, 1A, 1A, 1A, 1A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3374 |
|

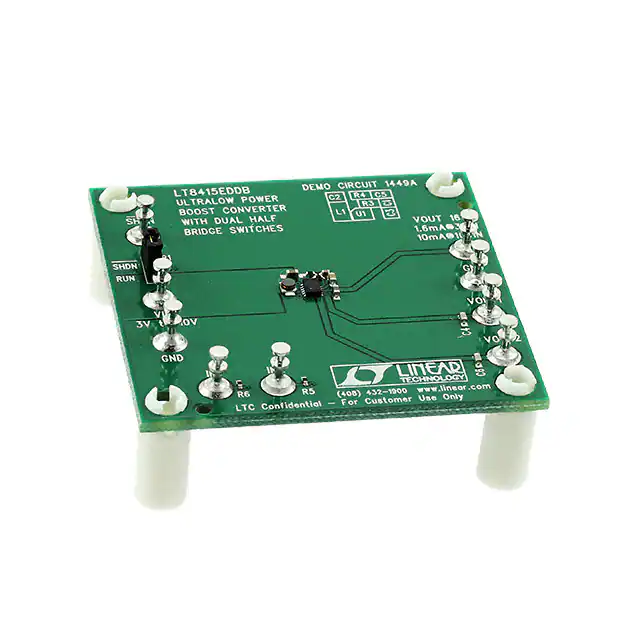

DC1449AEVAL BOARD FOR LT8415 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 16V | 10mA | 3V ~ 10V | Boost | - | Board(s) | LT8415 |
|
DC1570A-AEVAL BOARD FOR LT36633.3 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 7.5V ~ 36V | Buck | 1MHz | Board(s) | LT3663-3.3 |
|

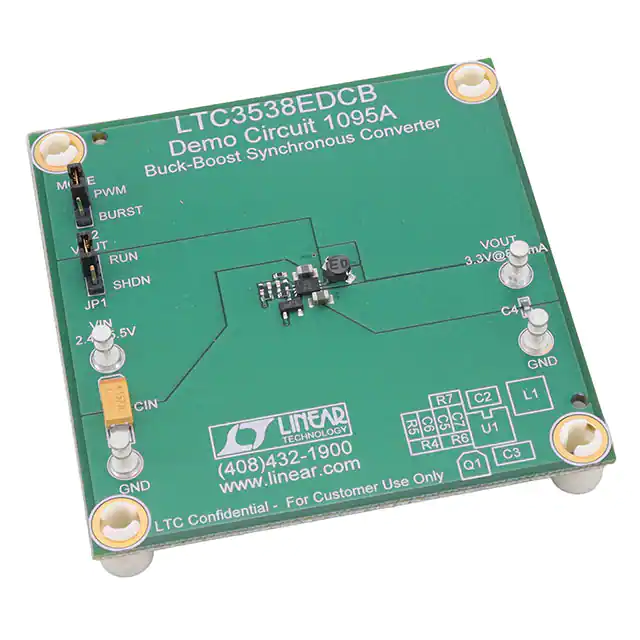

DC1095AEVAL BOARD FOR LTC3538 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 2.4V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | LTC3538 |
|

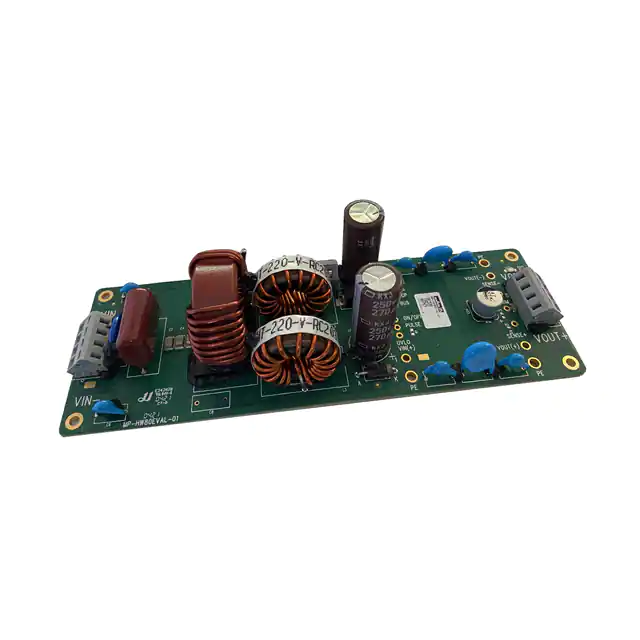

MP-QW80EVAL-01EVAL BOARD FOR IRQW80 |
8 |
|
برگه مشخصات |
- | Tray | Active | DC/DC Converter | 1 Isolated Output | 150 W | 12V, 24V, 54V | 12.5A, 6.25A, 2.8A | 16V ~ 160V | - | 210kHz | Board(s) | IRQ-W80 |
|

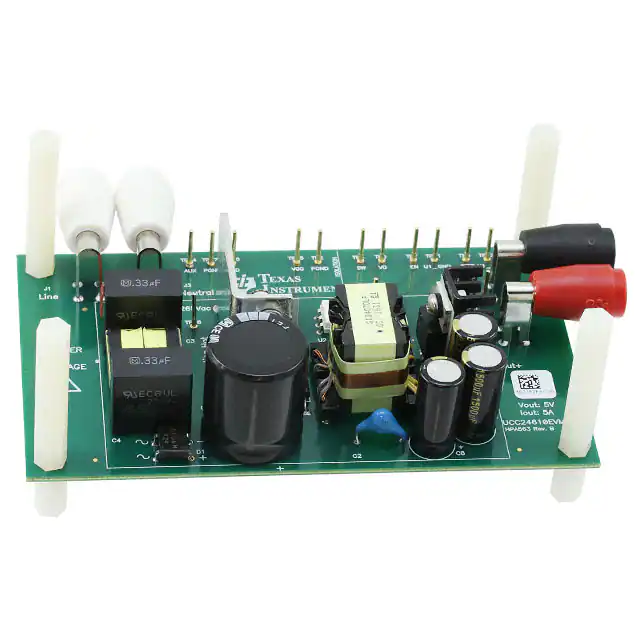

UCC24610EVM-563EVAL BOARD FOR UCC24610 |
5 |
|
برگه مشخصات |
GREEN Rectifier™ | Box | Active | AC/DC, Secondary Side | 1 Isolated Output | 25 W | 5V | 5A | 85 ~ 265 VAC | Flyback | 30kHz | Board(s) | UCC24610 |
|

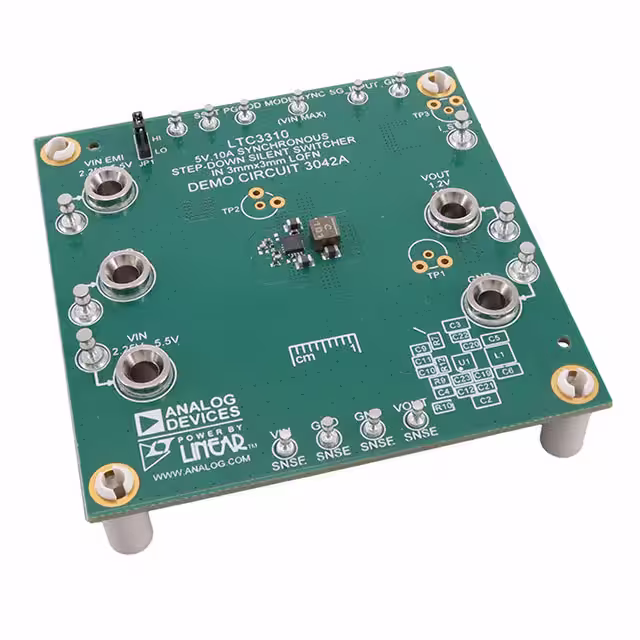

DC3042AEVAL BOARD FOR LTC3310 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 10A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3310 |
|

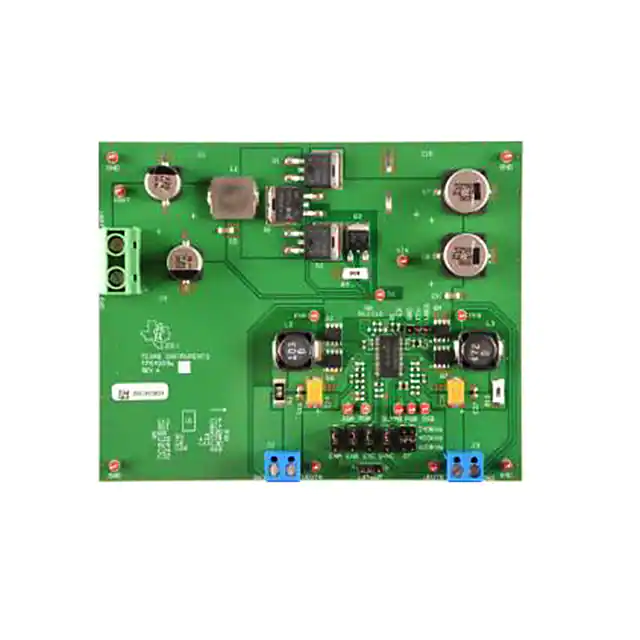

TPS43330EVMEVAL BOARD FOR TPS43330 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | - | - | 2V ~ 40V | Buck-Boost | 150kHz ~ 600kHz | Board(s) | TPS43330 |
|

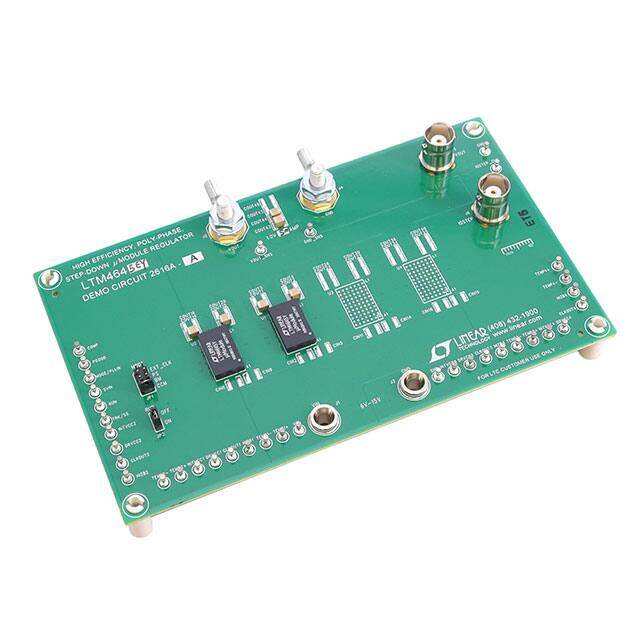

DC2616A-AEVAL BOARD FOR LTM4645 |
2 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 50A | 6V ~ 15V | Buck | 600kHz | Board(s) | LTM4645 |
|
ROA170163/BEVAL BOARD FOR PMU8318 |
12 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | 33 W | 0.6V, 5.5V | 6A | 4.5V ~ 17V | Boost | 350kHz | Board(s) | PMU8318 |
|

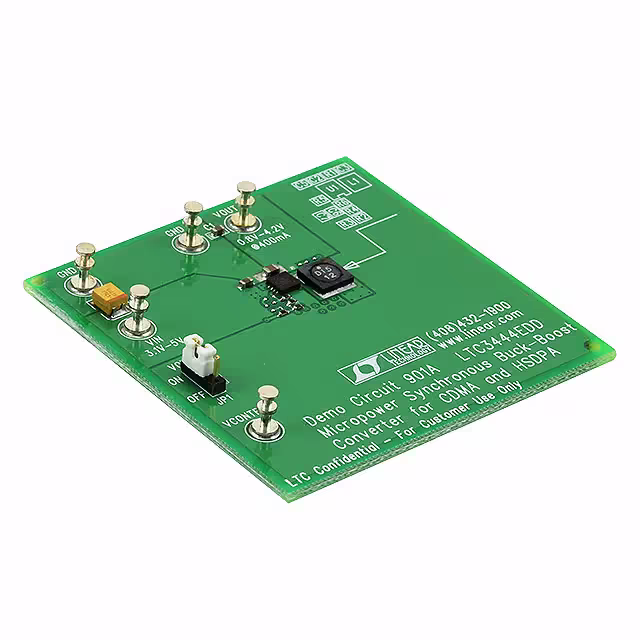

DC901AEVAL BOARD FOR LTC3444 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.8V ~ 4.2V | 400mA | 3.1V ~ 5V | Buck-Boost | 1.5MHz | Board(s) | LTC3444 |
|

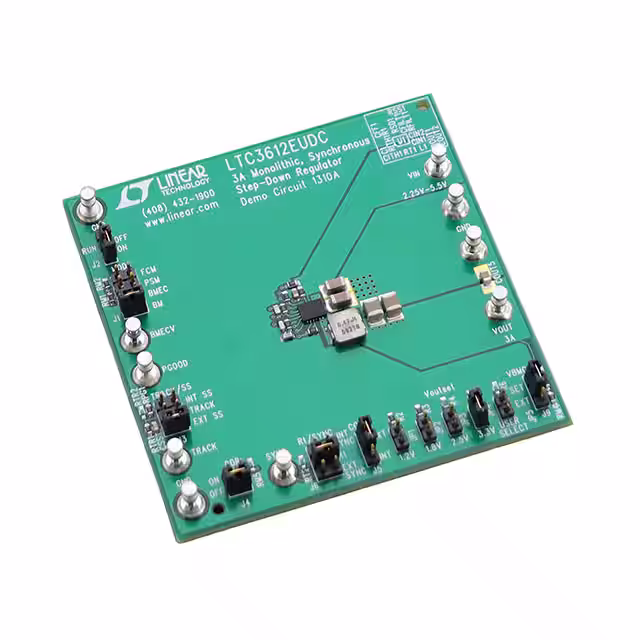

DC1310AEVAL BOARD FOR LTC3612 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 2.25V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3612 |
|

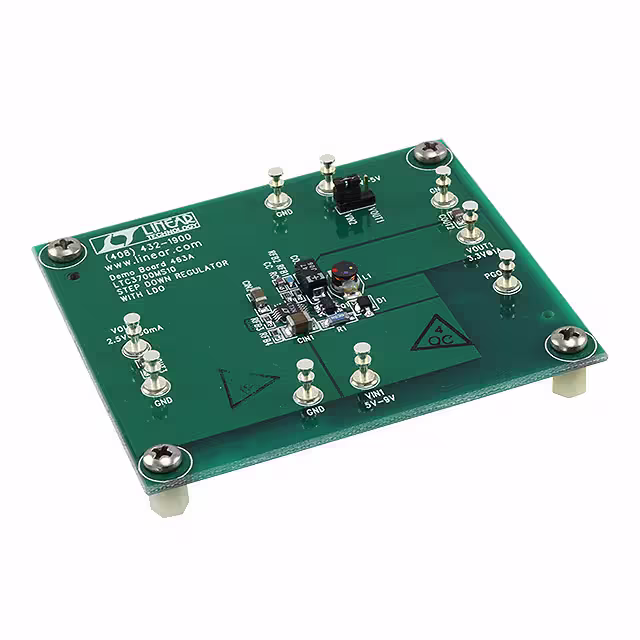

DC463AEVAL BOARD FOR LTC3700 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 2.5V, 3.3V | 1A, 150mA | 5V ~ 9V | Buck | 550kHz | Board(s) | LTC3700 |
|

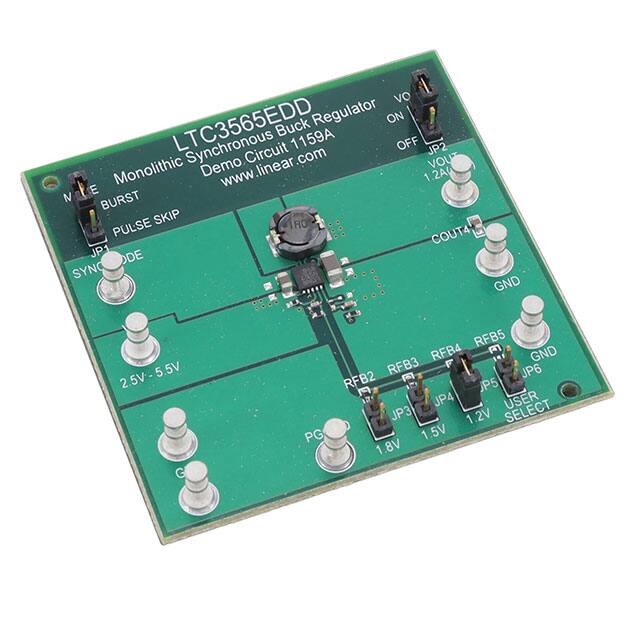

DC1159AEVAL BOARD FOR LTC3565 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 1.25A | 2.5V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3565 |
