سنسور فشار، مبدل
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | برنامه های کاربردی | نوع فشار | فشار عملیاتی | نوع خروجی | خروجی | دقت | ولتاژ - منبع تغذیه | اندازه پورت | سبک بندری | ویژگی ها | سبک خاتمه | حداکثر فشار | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DUXL20DSENSOR 0.72PSID 0.08" .03V |
0 |
|
- |
DUXL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.72PSI (4.98kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 3V ~ 8V | Male - 0.08" (2.03mm) Tube, Dual | Barbed | - | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
SCC15ASMTSENSOR 15PSIA .095V |
0 |
|
برگه مشخصات |
SCC SMT | 8-SMD Module | Tube | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 40 mV ~ 95 mV | ±0.005% | - | - | No Port | Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
SCC30ASMTSENSOR 30PSIA .15V |
0 |
|
برگه مشخصات |
SCC SMT | 8-SMD Module | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | ±0.005% | - | - | No Port | Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

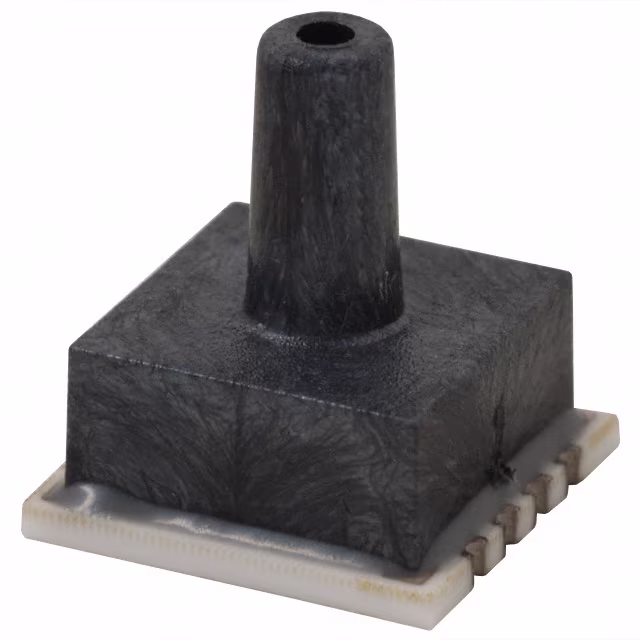

SCCP100GSMTPSENSOR 100PSIG 0.08" .225V |
0 |
|
برگه مشخصات |
SCC SMT | 8-SMD Module | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 85 mV ~ 225 mV | ±1% | - | Male - 0.08" (2.05mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
SCCP15ASMTLPSENSOR 15PSIA 0.09" .095V |
0 |
|
برگه مشخصات |
SCC SMT | 8-SMD Module | Tube | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 40 mV ~ 95 mV | ±1% | - | Male - 0.09" (2.29mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

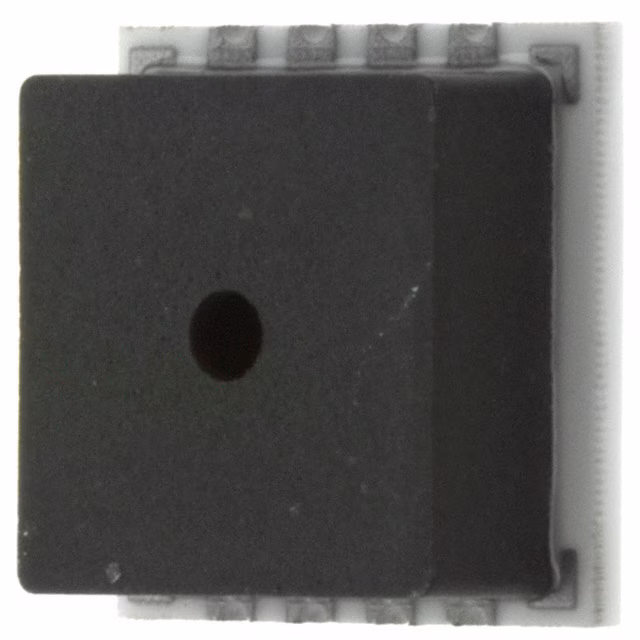

SX150ASMTSENSOR 150PSIA .105V |
0 |
|
- |
SX SMT | 8-SMD Module | Tube | Obsolete | Board Mount | Absolute | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 105 mV (5V) | ±0.5% | 12V | - | No Port | - | SMD (SMT) Tab | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
XPC01GTCSENSOR 1PSIG 0.19" .018V |
0 |
|
برگه مشخصات |
XPC | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube | Barbed | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPC150GTCSENSOR 150PSIG 0.19" .09V |
0 |
|
برگه مشخصات |
XPC | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube | Barbed | Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
XPC15ATCSENSOR 15PSIA 0.19" .09V |
0 |
|
برگه مشخصات |
XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube | Barbed | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
XPCL04DTCSENSOR 0.15PSID 0.19" .025V |
0 |
|
برگه مشخصات |
XPCL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPCL10DTCSENSOR 0.36PSID 0.19" .02V |
0 |
|
برگه مشخصات |
XPCL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPCL10DTHSENSOR 0.36PSID 0.19" .02V |
0 |
|
برگه مشخصات |
XPCL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
XPX01DSENSOR 1PSID .075V |
0 |
|
برگه مشخصات |
XPX | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 75 mV (5V) | ±1% | 3V ~ 12V | - | No Port | - | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
XPX100DTSENSOR 100PSID 0.19" .295V |
0 |
|
برگه مشخصات |
XPX | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 295 mV (5V) | ±1% | 3V ~ 12V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | - | PC Pin | 250PSI (1723.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

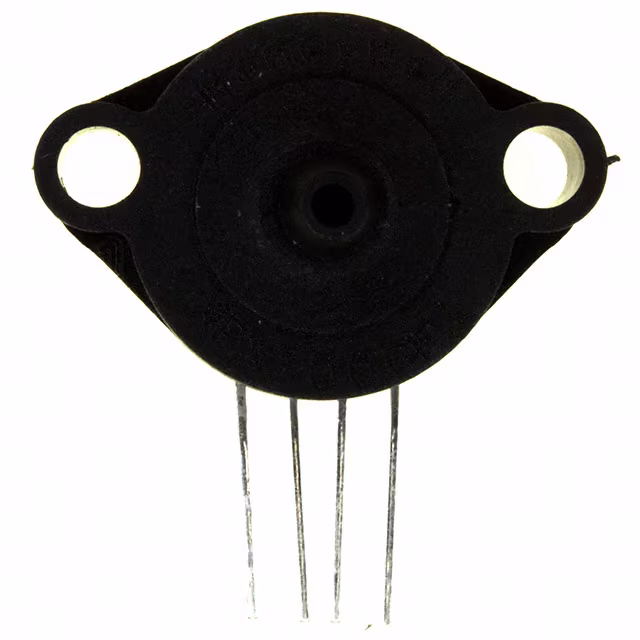

XPX100GFSSENSOR 100PSIG 0.19" .295V |
0 |
|
برگه مشخصات |
XPX | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 295 mV (5V) | ±1% | 3V ~ 12V | Male - 0.19" (4.83mm) Tube | Barbed | - | PC Pin | 250PSI (1723.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPX150DSENSOR 150PSID .2625V |
0 |
|
برگه مشخصات |
XPX | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 262.5 mV (5V) | ±1% | 3V ~ 12V | - | No Port | - | PC Pin | 250PSI (1723.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
243PC15MSENSOR 15PSID 1/8"NPT 6V |
0 |
|
برگه مشخصات |
240PC | Module | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Analog Voltage | 1 V ~ 6 V | ±1.5% | 7V ~ 16V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Wire Leads | ±50PSI (±344.74kPa) | -40°C ~ 85°C | - | - | - | - |
|
MPXV7025GC6T1PRESSURE SENSOR AXIAL PORT 8-SOP |
0 |
|
برگه مشخصات |
MPXV7025 | 8-SMD, Gull Wing, Top Port | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | PCB | - | - | - | - | Surface Mount | - |
|
MPXV6115VC6T1SENSOR 16.68PSI 0.13" 4.6V |
0 |
|
برگه مشخصات |
MPXV6115V | 8-SMD, Gull Wing, Top Port | Tape & Reel (TR) | Obsolete | Board Mount | Vacuum | -16.68PSI (-115kPa) | Analog Voltage | 0.2 V ~ 4.6 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | -58.02PSI (-400kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
MPXHZ6250A6T1SENSOR 36.26PSIA 4.9V 8SSOP |
0 |
|
برگه مشخصات |
MPXHZ6250A | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 2.9PSI ~ 36.26PSI (20kPa ~ 250kPa) | Analog Voltage | 0.3 V ~ 4.9 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | Gull Wing | 145.04PSI (1000kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
