سنسور فشار، مبدل
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | برنامه های کاربردی | نوع فشار | فشار عملیاتی | نوع خروجی | خروجی | دقت | ولتاژ - منبع تغذیه | اندازه پورت | سبک بندری | ویژگی ها | سبک خاتمه | حداکثر فشار | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXV7025GPSENSOR 3.63PSIC 0.13" 4.7V 8SOP |
0 |
|
برگه مشخصات |
MPXV7025 | 8-SMD, Gull Wing, Side Port | Tube | Obsolete | Board Mount | Compound | ±3.63PSI (±25kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.18mm) Tube | Barbed | Temperature Compensated | Gull Wing | ±29.01PSI (±200kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
NPC-1210-10WG/DSENSOR 0.36PSID 0.13" .05V |
0 |
|
برگه مشخصات |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.5% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NPC-1210-005G/DSENSOR 5PSID 0.13" 0.1V |
0 |
|
برگه مشخصات |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 15PSI (103.42kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
NPC-1220-005G/DSENSOR 5PSID 0.12" .05V |
0 |
|
برگه مشخصات |
NPC-1220 | 8-DIP Module | Bulk | Active | Board Mount | Differential/Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.1% | - | Male - 0.12" (3.04mm) Tube | Barbless | Temperature Compensated | PC Pin | 15PSI (103.42kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
40PC150G1ASENSOR 150PSIG 0.18" 4.5V |
0 |
|
برگه مشخصات |
40PC | 6-DIP Module | Tray | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.18" (4.57mm) Tube | Barbless | Amplified Output | PC Pin | 300PSI (2068.43kPa) | -45°C ~ 125°C | - | - | Through Hole | - |
|
CPC01GFCSENSOR 1PSIG 0.15" .018V |
0 |
|
برگه مشخصات |
CPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15" (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

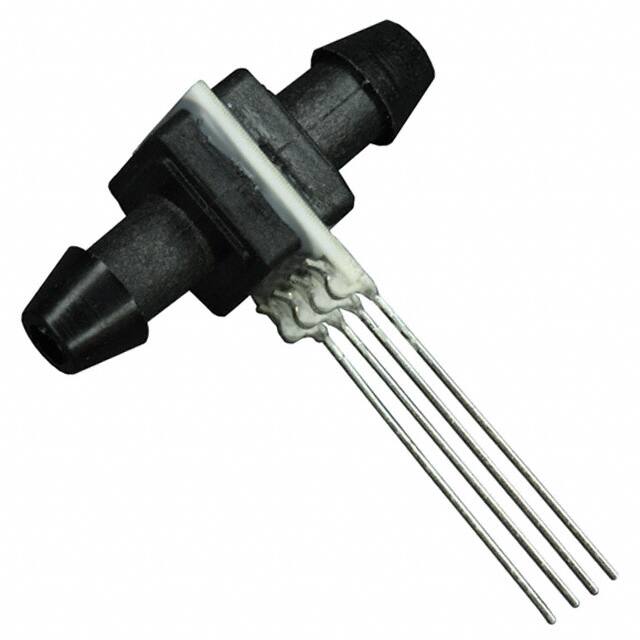

CPXL10DFSENSOR 0.36PSID 0.16" .0785V |
0 |
|
برگه مشخصات |
CPXL | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 78.5 mV (5V) | ±2% | 3V ~ 12V | Male - 0.16" (4.06mm) Tube, Dual | Barbed | - | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
DCXL20DSSENSOR 0.72PSID 0.19" .02V |
0 |
|
- |
DCXL-DS | 6-SIP Module | Bulk | Obsolete | Board Mount | Differential | 0.72PSI (4.98kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

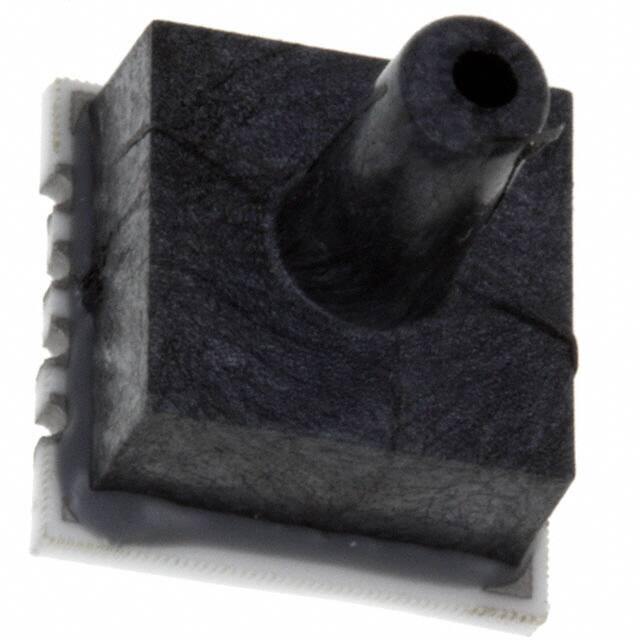

SCCP15ASMTPSENSOR 15PSIA 0.08" .095V |
0 |
|
برگه مشخصات |
SCC SMT | 8-SMD Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 40 mV ~ 95 mV | ±1% | - | Male - 0.08" (2.05mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

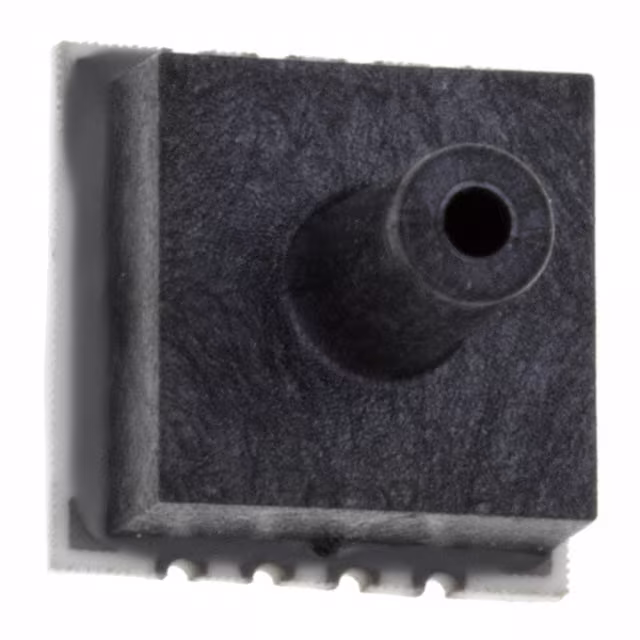

SCCP30GSMTPSENSOR 30PSIG 0.08" .15V |
0 |
|
برگه مشخصات |
SCC SMT | 8-SMD Module | Bulk | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | ±1% | - | Male - 0.08" (2.05mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

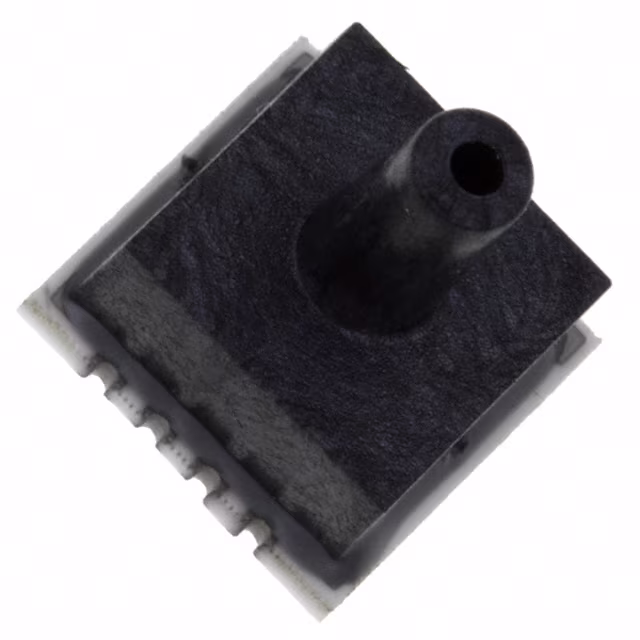

SXP100GSMTPSENSOR 100PSIG 0.08" .15V |
0 |
|
- |
SX SMT | 8-SMD Module | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.5% | 12V | Male - 0.08" (2.05mm) Tube | Barbless | - | SMD (SMT) Tab | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

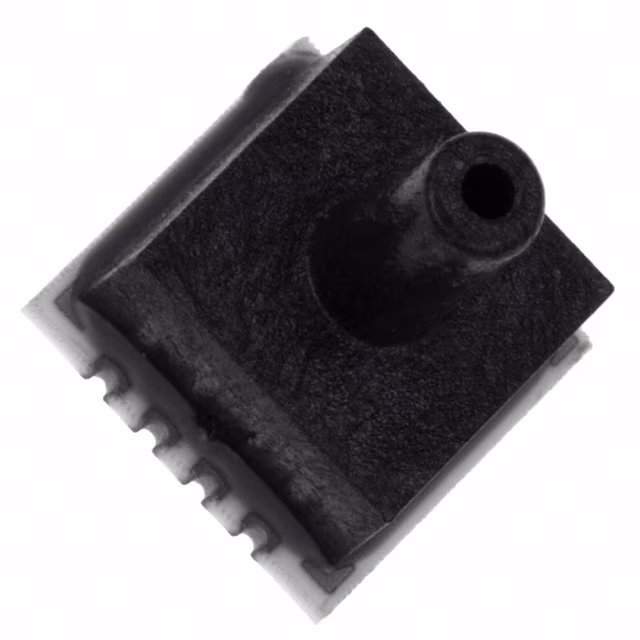

SXP15ASMTPSENSOR 15PSIA 0.08" .1125V |
0 |
|
- |
SX SMT | 8-SMD Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 112.5 mV (5V) | ±0.5% | 12V | Male - 0.08" (2.05mm) Tube | Barbless | - | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
BMP085SENSOR 15.95PSIA 19BIT 8LCC |
0 |
|
برگه مشخصات |
- | 8-CLCC | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) | I2C | 16 ~ 19 b | ±2% | 1.62V ~ 3.6V | - | No Port | - | SMD (SMT) Tab | 145.04PSI (1000kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-LCC |
|
325541009-50SENSOR 203.05PSIA 16BIT |
0 |
|
برگه مشخصات |
- | 8-SMD Module | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 203.05PSI (1400kPa) | Digital | 16 b | ±0.232PSI (±1.6kPa) | 2.2V ~ 3.6V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 435.11PSI (3000kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
325535009-50SENSOR PRESURE 14 BAR 16BIT |
0 |
|
برگه مشخصات |
- | Module | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | PCB | - | - | - | - | - | - |
|
IPT0001G33RSENSOR 1PSIG 0.26" 24BIT |
0 |
|
برگه مشخصات |
- | Module | Bulk | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | SPI | 24 b | ±0.1% | 4V ~ 12V | Male - 0.26" (6.71mm) Tube | Barbless | Temperature Compensated | Connector | 3PSI (20.68kPa) | -40°C ~ 85°C | - | - | - | - |
|
IPT0002D33RSENSOR 2PSID 0.26" 24BIT |
0 |
|
برگه مشخصات |
- | Module | Bulk | Active | Board Mount | Differential | 2PSI (13.79kPa) | SPI | 24 b | ±0.1% | 4V ~ 12V | Male - 0.26" (6.71mm) Tube | Barbless | Temperature Compensated | Connector | 6PSI (41.37kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
IPT0005G33RSENSOR 5PSIG 0.26" 24BIT |
0 |
|
برگه مشخصات |
- | Module | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | SPI | 24 b | ±0.1% | 4V ~ 12V | Male - 0.26" (6.71mm) Tube | Barbless | Temperature Compensated | Connector | 15PSI (103.42kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
IPT0020G33RSENSOR 20PSIG 0.26" 24BIT |
0 |
|
برگه مشخصات |
- | Module | Bulk | Active | Board Mount | Vented Gauge | 20PSI (137.9kPa) | SPI | 24 b | ±0.1% | 4V ~ 12V | Male - 0.26" (6.71mm) Tube | Barbless | Temperature Compensated | Connector | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | - | - |
|
IPT0050A33RSENSOR 50PSIA 0.26" 24BIT |
0 |
|
برگه مشخصات |
- | Module | Bulk | Active | Board Mount | Absolute | 50PSI (344.74kPa) | SPI | 24 b | ±0.04% | 4V ~ 12V | Male - 0.26" (6.71mm) Tube | Barbless | Temperature Compensated | Connector | 150PSI (1034.21kPa) | -40°C ~ 85°C | - | - | - | - |
