سنسور فشار، مبدل
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | برنامه های کاربردی | نوع فشار | فشار عملیاتی | نوع خروجی | خروجی | دقت | ولتاژ - منبع تغذیه | اندازه پورت | سبک بندری | ویژگی ها | سبک خاتمه | حداکثر فشار | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASDXAVX001PGAA5SENSOR 1PSIG 0.09" 4.5V |
0 |
|
برگه مشخصات |
ASDX | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube | Barbless | Temperature Compensated | PC Pin | 2PSI (13.79kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|

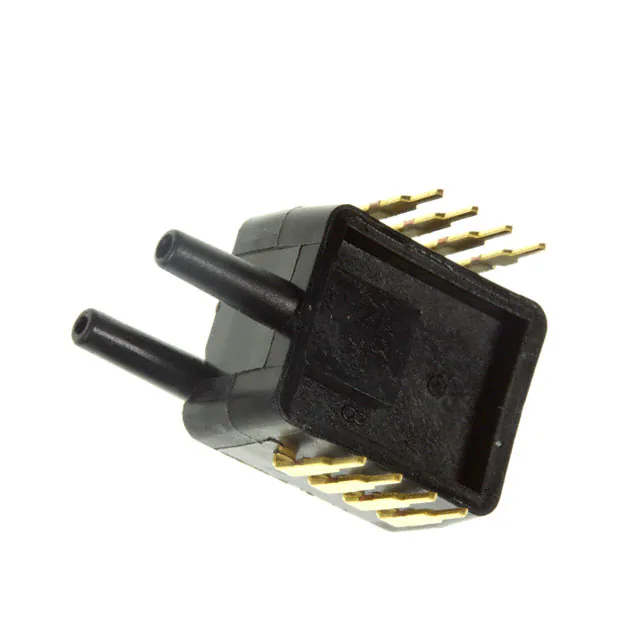

ASDXRRX001PDAA5SENSOR 1PSID 0.09" 4.5V |
0 |
|
برگه مشخصات |
ASDX | 8-DIP Module | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±2PSI (±13.79kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
KP124SENSOR 16.68PSIA 4.7V |
0 |
|
برگه مشخصات |
- | 8-SMD Module | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
KP126SENSOR 16.68PSIA 4.5V DSOF8 |
0 |
|
برگه مشخصات |
- | 8-SMD Module | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 5.8PSI ~ 16.68PSI (40kPa ~ 115kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.145PSI (±1kPa) | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|

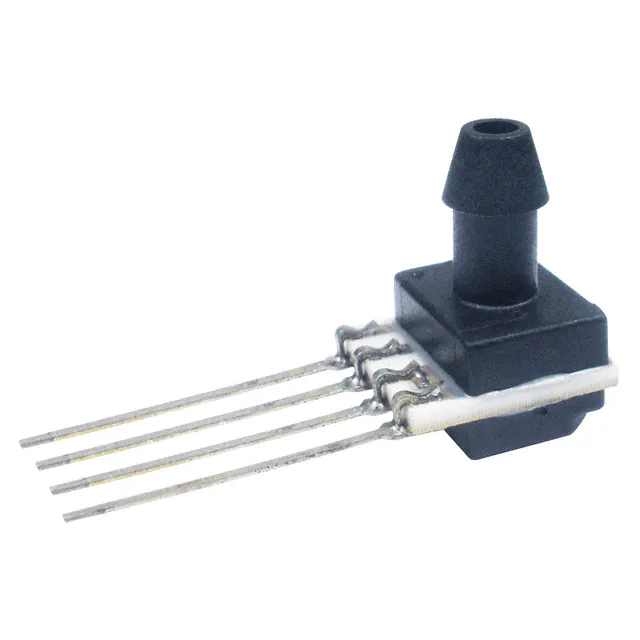

SSCSANN001BGAA5SENSOR 14.5PSIG 0.19" 4.5V 4SIP |
0 |
|
برگه مشخصات |
TruStability® SSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

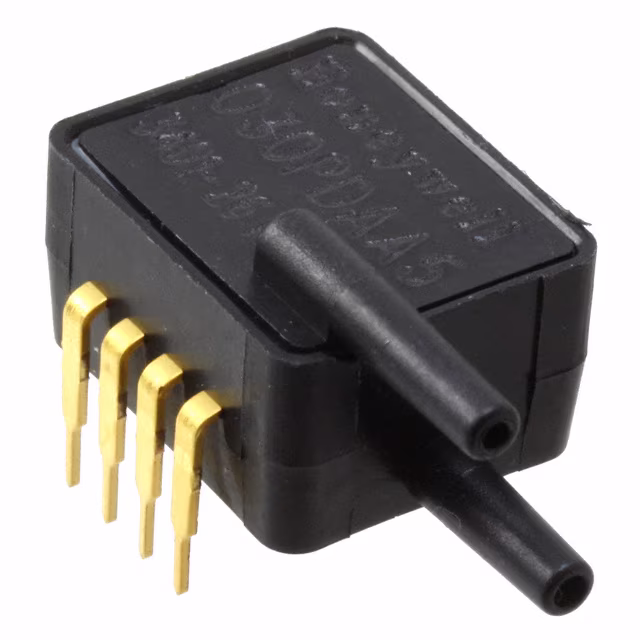

ASDXRRX030PDAA5SENSOR 30PSID 0.09" 4.5V |
0 |
|
برگه مشخصات |
ASDX | 8-DIP Module | Bulk | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
|
MP3V5004GVPSENSOR 0.57PSIG 0.13" 3V 8SOP |
0 |
|
برگه مشخصات |
MP3V5004 | 8-SMD Module | Tray | Obsolete | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 0.6 V ~ 3 V | ±2.5% | 2.7V ~ 3.3V | Male - 0.13" (3.17mm) Tube | Barbed | Temperature Compensated | SMD (SMT) Tab | 2.32PSI (16kPa) | 0°C ~ 85°C | - | - | Surface Mount | 8-SOP |
|
MP3V5010GC6USENSOR 1.45PSIG 0.13" 3.1V 8SOP |
0 |
|
برگه مشخصات |
MP3V5010 | 8-SMD, Gull Wing, Top Port | Tube | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.1 V ~ 3.1 V | ±5% | 2.7V ~ 3.3V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
MP3V5010GPSENSOR 1.45PSIG 0.13" 3.1V 8SOP |
0 |
|
برگه مشخصات |
MP3V5010 | 8-SMD, Gull Wing, Side Port | Tray | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.1 V ~ 3.1 V | ±5% | 2.7V ~ 3.3V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
|
MP3V5010GVPSENSOR 1.45PSIG 0.13" 3.1V 8SOP |
0 |
|
برگه مشخصات |
MP3V5010 | 8-SMD Module | Tray | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.1 V ~ 3.1 V | ±5% | 2.7V ~ 3.3V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
MP3V5050DPSENSOR 7.25PSID 0.13" 2.82V 8SOP |
0 |
|
برگه مشخصات |
MP3V5050 | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side | Tray | Obsolete | Board Mount | Differential | 7.25PSI (50kPa) | Analog Voltage | 0.06 V ~ 2.82 V | ±2.5% | 2.7V ~ 3.3V | Male - 0.13" (3.3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
|
MP3V5050VC6T1SENSOR 7.25PSI 0.13" 2.82V 8SOP |
0 |
|
برگه مشخصات |
MP3V5050 | 8-SMD, Gull Wing, Top Port | Tape & Reel (TR) | Obsolete | Board Mount | Vacuum | -7.25PSI (-50kPa) | Analog Voltage | 0.06 V ~ 2.82 V | ±2.5% | 2.7V ~ 3.3V | Male - 0.13" (3.17mm) Tube | Barbless | Amplified Output, Temperature Compensated | Gull Wing | -29.01PSI (-200kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
MP3V5100GC6USENSOR 7.25PSI 0.13" 2.82V |
0 |
|
برگه مشخصات |
MP3V5100 | 8-SMD, Gull Wing, Top Port | Tube | Obsolete | Board Mount | Vacuum | -7.25PSI (-50kPa) | Analog Voltage | 0.06 V ~ 2.82 V | ±2.5% | 2.7V ~ 3.3V | Male - 0.13" (3.17mm) Tube | Barbless | Amplified Output, Temperature Compensated | Gull Wing | -58.02PSI (-400kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
MP3V5100GPSENSOR 7.25PSI 0.13" 2.82V 8SOP |
0 |
|
برگه مشخصات |
MP3V5100 | 8-SMD, Gull Wing, Side Port | Tray | Obsolete | Board Mount | Vacuum | -7.25PSI (-50kPa) | Analog Voltage | 0.06 V ~ 2.82 V | ±2.5% | 2.7V ~ 3.3V | Male - 0.13" (3.17mm) Tube | Barbed | Amplified Output, Temperature Compensated | Gull Wing | -58.02PSI (-400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
|
MP3V7007DPSENSOR 1.02PSID 0.13" 2.82V 8SOP |
0 |
|
برگه مشخصات |
MP3V7007 | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side | Tray | Obsolete | Board Mount | Differential | ±1.02PSI (±7kPa) | Analog Voltage | 0.06 V ~ 2.82 V | ±5% | 2.7V ~ 3.3V | Male - 0.13" (3.3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | ±10.88PSI (±75kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
|
MP3V7007GPSENSOR 1.02PSIC 0.13" 2.82V 8SOP |
0 |
|
برگه مشخصات |
MP3V7007 | 8-SMD, Gull Wing, Side Port | Tray | Obsolete | Board Mount | Compound | ±1.02PSI (±7kPa) | Analog Voltage | 0.06 V ~ 2.82 V | ±5% | 2.7V ~ 3.3V | Male - 0.13" (3.17mm) Tube | Barbed | Amplified Output, Temperature Compensated | Gull Wing | ±10.88PSI (±75kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
MPVZ5050GW7USENSOR 7.25PSIG 0.22" 4.7V |
0 |
|
برگه مشخصات |
MPVZ5050G | 8-DIP Module | Tray | Obsolete | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Analog Voltage | 0.2 V ~ 4.7 V | - | 4.75V ~ 5.25V | Male - 0.22" (5.59mm) Tube | Barbless | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPVZ7025G6USENSOR 3.63PSIC 4.7V |
0 |
|
برگه مشخصات |
MPXV7025 | 8-SMD Module | Tray | Obsolete | Board Mount | Compound | ±3.63PSI (±25kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | SMD (SMT) Tab | ±29.01PSI (±200kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
MPVZ7025GPSENSOR 3.63PSIC 0.13" 4.7V 8SOP |
0 |
|
برگه مشخصات |
MPXV7025 | 8-SMD, Gull Wing, Side Port | Tray | Obsolete | Board Mount | Compound | ±3.63PSI (±25kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | ±29.01PSI (±200kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
|
MPX2050GSXSENSOR 7.25PSIG 0.19" .04V |
0 |
|
برگه مشخصات |
MPX2050 | 4-SIP Module | Tray | Obsolete | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.19" (4.92mm) Tube | Barbed | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
