مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCA600F-48-TAC/DC CONVERTER 48V 624W |
114 |
|
برگه مشخصات |
PCA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 88 ~ 370 VDC | 48V | - | - | - | - | - | 13 A | - | - | - | - | - | 624W | ITE (Commercial), Medical | 4 kV | 93% | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) | CE, CSA, cURus, D-Mark, UL |
|

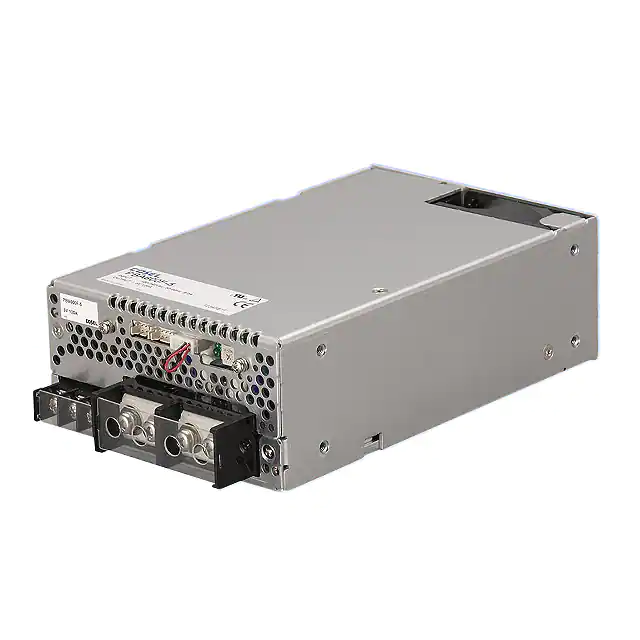

PBA600F-36AC/DC CONVERTER 36V 600W |
47 |
|
برگه مشخصات |
PBA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 18 A | - | - | - | - | - | 600W | ITE (Commercial) | - | 84% | - | DC Input Capable, Universal Input | Chassis Mount | - | CE, cURus, TUV |
|

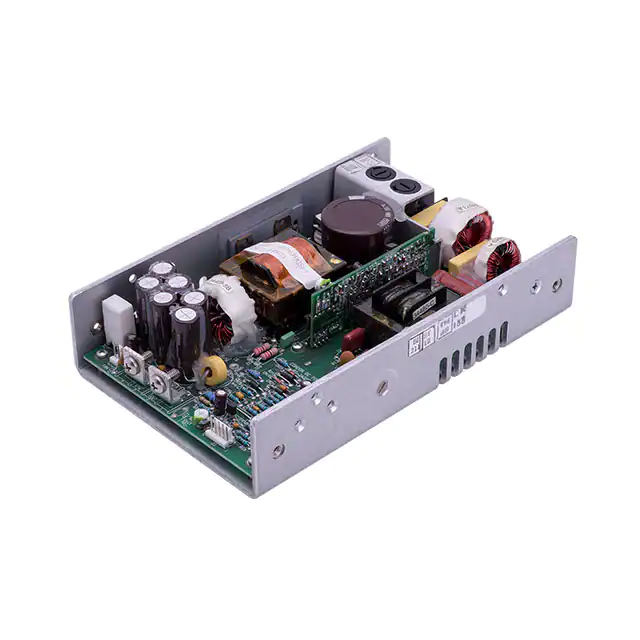

GPFM250-48GAC/DC CONVERTER 48V 180W |
41 |
|
برگه مشخصات |
GPFM250 (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 3.8 A | - | - | - | - | - | 180W (250W Forced Air) | Medical | - | 75% | 0°C ~ 50°C | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 5.00" W x 1.75" H (203.2mm x 127.0mm x 44.5mm) | CE, cURus, TUV |
|
|
GPFM250-24GAC/DC CONVERTER 24V 180W |
28 |
|
برگه مشخصات |
GPFM250 (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 180W (250W Forced Air) | Medical | - | 75% | 0°C ~ 50°C | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 5.00" W x 1.75" H (203.2mm x 127.0mm x 44.5mm) | CE, cURus, TUV |
|

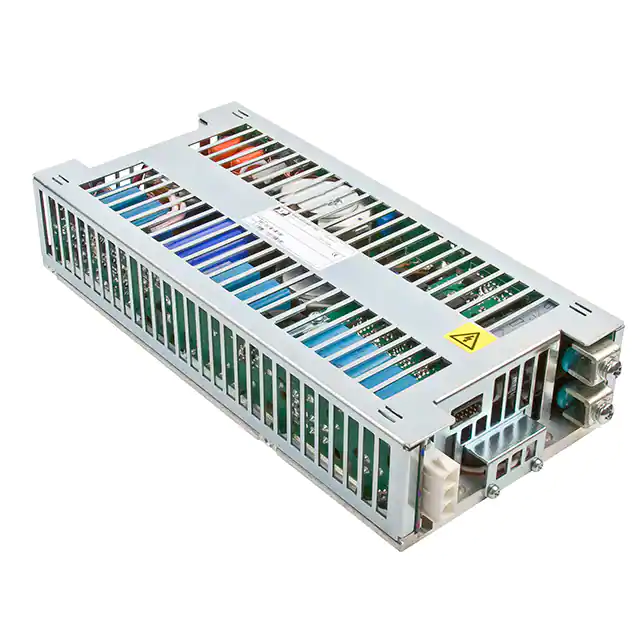

CCH400PS24AC/DC CONVERTER 24V 411W |
201 |
|
برگه مشخصات |
CCH400 (400W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 17 A | - | - | - | - | - | 411W | ITE (Commercial) | 3 kV | 90% | -40°C ~ 85°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.43" L x 4.02" W x 1.69" H (214.1mm x 102.1mm x 42.9mm) | CB, TUV, UL |
|
|
CCH400PS28AC/DC CONVERTER 28V 409W |
57 |
|
برگه مشخصات |
CCH400 (400W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 14.5 A | - | - | - | - | - | 409W | ITE (Commercial) | 3 kV | 90% | -40°C ~ 85°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.43" L x 4.02" W x 1.69" H (214.1mm x 102.1mm x 42.9mm) | CB, TUV, UL |
|
MHP650PS28-EFAC/DC CONVERTER 28V 644W |
26 |
|
برگه مشخصات |
MHP (650W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 23 A | - | - | - | - | - | 644W | Medical | 4 kV | 84% | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.18" L x 4.00" W x 2.50" H (233.2mm x 101.6mm x 63.5mm) | CB |
|
HWS300-24/HDAC/DC CONVERTER 24V 300W |
69 |
|
برگه مشخصات |
HWS/HD (300W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 14 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | 85% | -40°C ~ 71°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.50" L x 2.40" W x 3.23" H (165.1mm x 61.0mm x 82.0mm) | CE |
|
RFE1000-24-YAC/DC CONVERTER 24V 960W |
41 |
|
برگه مشخصات |
RFE (1000) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 40 A | - | - | - | - | - | 960W | ITE (Commercial) | 3 kV | 86% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.00" L x 5.00" W x 1.60" H (305.0mm x 127.0mm x 41.0mm) | CE |
|
TF1500A60KAC/DC CONVERTER 60V 1500W |
28 |
|
برگه مشخصات |
TF1500 (1500W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC, 127 ~ 370 VDC | 60V | - | - | - | - | - | 25 A | - | - | - | - | - | 1500W | ITE (Commercial) | 3 kV | 93% | -25°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 11.02" L x 5.00" W x 2.52" H (279.9mm x 127.0mm x 64.0mm) | CE, cURus, TUV |
|
SHP1000PS24AC/DC CONVERTER 24V 1000W |
274 |
|
برگه مشخصات |
SHP (1000W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 50 A | - | - | - | - | - | 1000W | ITE (Commercial) | 3 kV | 85% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.55" L x 5.90" W x 2.40" H (242.6mm x 149.8mm x 61.0mm) | CB |
|
RSP-3000-48AC/DC CONVERTER 48V 3000W |
74 |
|
برگه مشخصات |
RSP-3000 (3000W) | Box | Active | Enclosed | 1 | 180 ~ 264 VAC, 254 ~ 370 VDC | 48V | - | - | - | - | - | 62.5 A | - | - | - | - | - | 3000W | ITE (Commercial) | 3 kV | 91.5% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off | Chassis Mount | 10.94" L x 7.00" W x 2.50" H (278.0mm x 177.8mm x 63.5mm) | CB, CE, cURus, TUV |
|
|
CCH600PS12AC/DC CONVERTER 12V 603W |
117 |
|
برگه مشخصات |
CCH600 (600W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 50 A | - | - | - | - | - | 603W | ITE (Commercial) | 3 kV | 90% | -40°C ~ 85°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.43" L x 4.02" W x 1.69" H (214.1mm x 102.1mm x 42.9mm) | CB, TUV, UL |
|
|
CCH600PS28AC/DC CONVERTER 28V 605W |
71 |
|
برگه مشخصات |
CCH600 (600W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 21.5 A | - | - | - | - | - | 605W | ITE (Commercial) | 3 kV | 90% | -40°C ~ 85°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.43" L x 4.02" W x 1.69" H (214.1mm x 102.1mm x 42.9mm) | CB, TUV, UL |
|
SWS1000L-3AC/DC CONVERTER 3.3V 1000W |
39 |
|
برگه مشخصات |
SWS1000L (1000W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 3.3V | - | - | - | - | - | 200 A | - | - | - | - | - | 1000W | Medical | 4 kV | 77% | -20°C ~ 74°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.45" L x 5.91" W x 2.40" H (240.0mm x 150.0mm x 61.0mm) | CE, cURus, TUV |
|
HWS600-48AC/DC CONVERTER 48V 600W |
62 |
|
برگه مشخصات |
HWS (600W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 13 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | 85% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Universal Input | Chassis Mount | 6.50" L x 3.94" W x 3.23" H (165.1mm x 100.1mm x 82.0mm) | CE |
|
|
HWS600-12AC/DC CONVERTER 12V 600W |
59 |
|
برگه مشخصات |
HWS (600W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 53 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | 83% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Universal Input | Chassis Mount | 6.50" L x 3.94" W x 3.23" H (165.1mm x 100.1mm x 82.0mm) | CE |
|
CUS1500M-48AC/DC CONVERTER 48V 1536W |
27 |
|
برگه مشخصات |
CUS1500M (1500W) | Box | Active | Enclosed | 1 | 85 ~ 265 VAC, 120 ~ 340 VDC | 48V | - | - | - | - | - | 32 A | - | - | - | - | - | 1536W | ITE (Commercial), Medical | 4 kV | 88% | -20°C ~ 60°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 10.28" L x 5.00" W x 2.48" H (261.0mm x 127.0mm x 63.0mm) | CE |
|
HPS3000-9AC/DC CONVERTER 48V 3000W |
38 |
|
برگه مشخصات |
HPS3000 (3000W) | Tray | Active | Front End | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 62 A | - | - | - | - | - | 3000W | ITE (Commercial) | - | 90% | -10°C ~ 40°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Standby Output, Universal Input | Rack Mount | 12.90" L x 4.20" W x 1.57" H (327.7mm x 106.7mm x 39.9mm) | CB |
|
FPS1000-48AC/DC CONVERTER 48V 1000W |
52 |
|
برگه مشخصات |
FPS1000 (1000W) | Bulk | Active | Front End | 1 | 85 ~ 265 VAC, 120 ~ 360 VDC | 48V | - | - | - | - | - | 21 A | - | - | - | - | - | 1000W | ITE (Commercial) | 3 kV | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Rack Mount | 11.42" L x 5.00" W x 1.61" H (290.0mm x 127.0mm x 41.0mm) | CE |
