مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

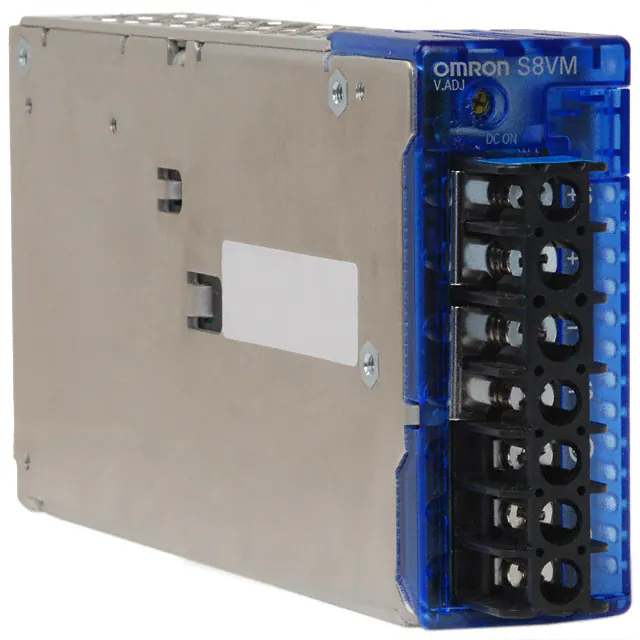

S8VM-10024CAC/DC CONVERTER 24V 100W |
0 |
|
برگه مشخصات |
S8VM (100W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.32" L x 1.12" W x 3.25" H (160.5mm x 28.5mm x 82.5mm) | CE, cULus, cURus, VDE |
|

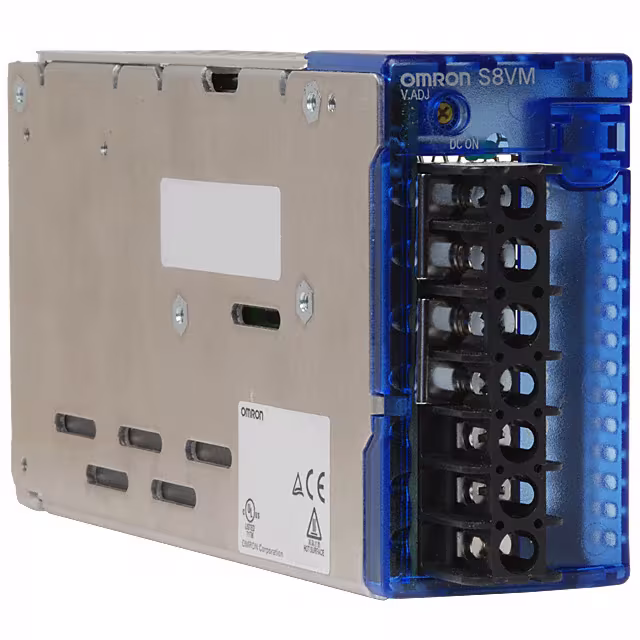

S8VM-15012CAC/DC CONVERTER 12V 150W |
0 |
|
برگه مشخصات |
S8VM (150W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.32" L x 1.48" W x 3.25" H (160.5mm x 37.5mm x 82.5mm) | CE, cULus, cURus, VDE |
|
S8VM-15024AAC/DC CONVERTER 24V 150W |
0 |
|
برگه مشخصات |
S8VM (150W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 7 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 83% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.48" L x 1.73" W x 3.33" H (164.5mm x 44.0mm x 84.5mm) | CE, cULus, cURus, VDE |
|
|
S8VM-15024CAC/DC CONVERTER 24V 150W |
0 |
|
برگه مشخصات |
S8VM (150W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 7 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 83% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.32" L x 1.48" W x 3.25" H (160.5mm x 37.5mm x 82.5mm) | CE, cULus, cURus, VDE |
|
S8VM-01505AC/DC CONVERTER 5V 15W |
0 |
|
برگه مشخصات |
S8VM (15W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 75% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.17" L x 1.06" W x 3.21" H (80.5mm x 27.0mm x 81.5mm) | CE, cULus, cURus, VDE |
|
|
S8VM-01512AC/DC CONVERTER 12V 15W |
0 |
|
برگه مشخصات |
S8VM (15W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 78% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.17" L x 1.06" W x 3.21" H (80.5mm x 27.0mm x 81.5mm) | CE, cULus, cURus, VDE |
|
|
S8VM-01515CAC/DC CONVERTER 15V 15W |
0 |
|
برگه مشخصات |
S8VM (15W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 78% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.17" L x 1.06" W x 3.21" H (80.5mm x 27.0mm x 81.5mm) | CE, cULus, cURus, VDE |
|
|
S8VM-01515AC/DC CONVERTER 15V 15W |
0 |
|
برگه مشخصات |
S8VM (15W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 78% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.17" L x 1.06" W x 3.21" H (80.5mm x 27.0mm x 81.5mm) | CE, cULus, cURus, VDE |
|
|
S8VM-01524AC/DC CONVERTER 24V 15W |
0 |
|
برگه مشخصات |
S8VM (15W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 650 mA | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 80% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.17" L x 1.06" W x 3.21" H (80.5mm x 27.0mm x 81.5mm) | CE, cULus, cURus, VDE |
|
|
S8VM-03005AC/DC CONVERTER 5V 30W |
0 |
|
برگه مشخصات |
S8VM (30W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | 75% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.17" L x 1.06" W x 3.21" H (80.5mm x 27.0mm x 81.5mm) | CE, cULus, cURus, VDE |
|
|
S8VM-03012AC/DC CONVERTER 12V 30W |
0 |
|
برگه مشخصات |
S8VM (30W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.76" L x 1.06" W x 3.25" H (95.5mm x 27.0mm x 82.5mm) | CE, cULus, cURus, VDE |
|
|
S8VM-03015AC/DC CONVERTER 15V 30W |
0 |
|
برگه مشخصات |
S8VM (30W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.76" L x 1.06" W x 3.25" H (95.5mm x 27.0mm x 82.5mm) | CE, cULus, cURus, VDE |
|
|
S8VM-03024AC/DC CONVERTER 24V 30W |
0 |
|
برگه مشخصات |
S8VM (30W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.76" L x 1.06" W x 3.25" H (95.5mm x 27.0mm x 82.5mm) | CE, cULus, cURus, VDE |
|

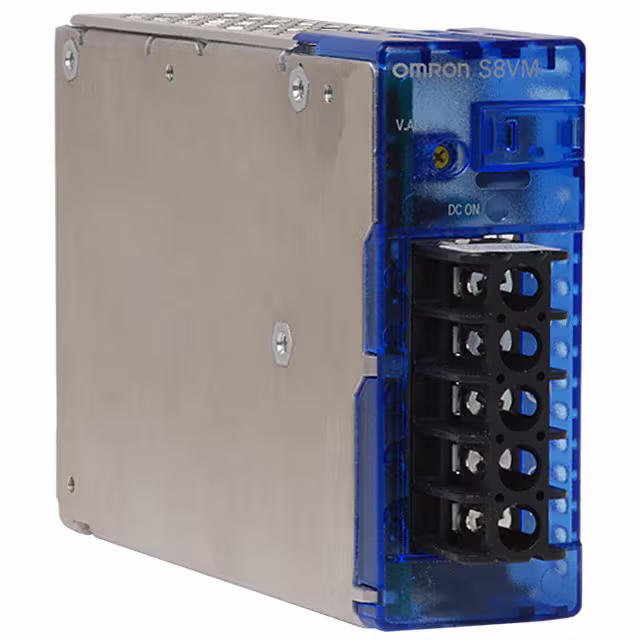

S8VM-05005CAC/DC CONVERTER 5V 50W |
0 |
|
برگه مشخصات |
S8VM (50W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 80% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.74" L x 1.06" W x 3.25" H (120.5mm x 27.0mm x 82.5mm) | CE, cULus, cURus, VDE |
|

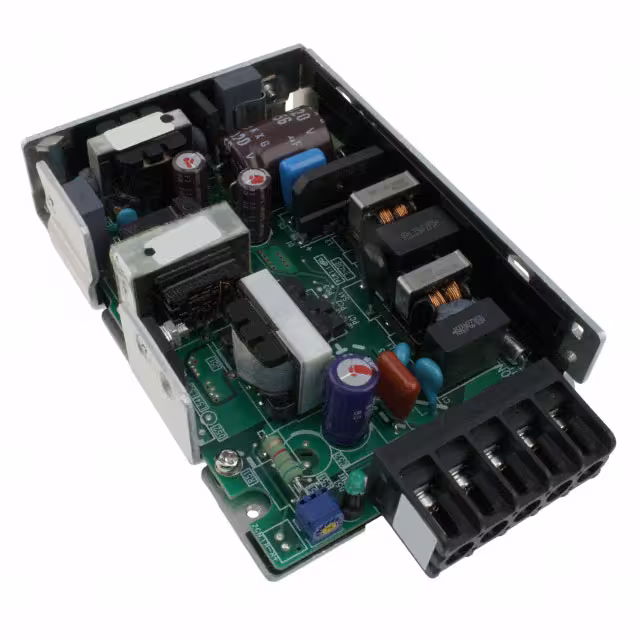

S8VM-05005AC/DC CONVERTER 5V 50W |
0 |
|
برگه مشخصات |
S8VM (50W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 80% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.74" L x 1.06" W x 3.25" H (120.5mm x 27.0mm x 82.5mm) | CE, cULus, cURus, VDE |
|
|
S8VM-05012CAC/DC CONVERTER 12V 50W |
0 |
|
برگه مشخصات |
S8VM (50W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.74" L x 1.06" W x 3.25" H (120.5mm x 27.0mm x 82.5mm) | CE, cULus, cURus, VDE |
|
|
S8VM-05012AC/DC CONVERTER 12V 50W |
0 |
|
برگه مشخصات |
S8VM (50W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.74" L x 1.06" W x 3.25" H (120.5mm x 27.0mm x 82.5mm) | CE, cULus, cURus, VDE |
|
|
S8VM-05015CAC/DC CONVERTER 15V 50W |
0 |
|
برگه مشخصات |
S8VM (50W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 3.5 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.74" L x 1.06" W x 3.25" H (120.5mm x 27.0mm x 82.5mm) | CE, cULus, cURus, VDE |
|
|
S8VM-05015AC/DC CONVERTER 15V 50W |
0 |
|
برگه مشخصات |
S8VM (50W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 3.5 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.74" L x 1.06" W x 3.25" H (120.5mm x 27.0mm x 82.5mm) | CE, cULus, cURus, VDE |
|
|
S8VM-05024AC/DC CONVERTER 24V 50W |
0 |
|
برگه مشخصات |
S8VM (50W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 80% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.74" L x 1.06" W x 3.25" H (120.5mm x 27.0mm x 82.5mm) | CE, cULus, cURus, VDE |
