مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZPT40-51515NAC/DC CONVERTER 5V +/-15V 40W |
0 |
|
برگه مشخصات |
ZP40 (40W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 3.2 A | 1.5 A | 300 mA | - | - | - | 40W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) | CE |
|
ZPT40-52412NAC/DC CONVERTER 5V 24V -12V 40W |
0 |
|
برگه مشخصات |
ZP40 (40W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5V | 24V | -12V | - | - | - | 3.2 A | 1 A | 300 mA | - | - | - | 40W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) | CE |
|
|
ZPT40-5245NAC/DC CONVERTER 5V 24V -5V 40W |
0 |
|
برگه مشخصات |
ZP40 (40W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5V | 24V | -5V | - | - | - | 3.2 A | 1 A | 300 mA | - | - | - | 40W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) | CE |
|

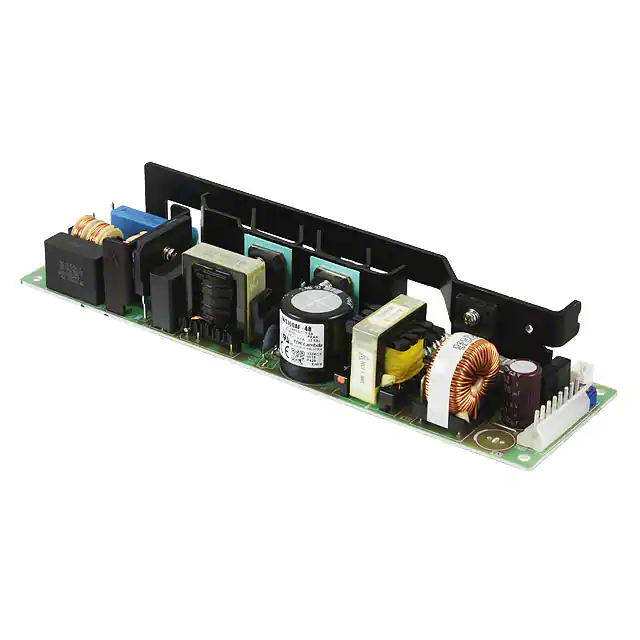

ZWS100AF-12AC/DC CONVERTER 12V 100W |
0 |
|
برگه مشخصات |
ZWS-AF (100W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) | CE |
|
|
ZWS100AF-15AC/DC CONVERTER 15V 100W |
0 |
|
برگه مشخصات |
ZWS-AF (100W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) | CE |
|
|
ZWS100AF-24AC/DC CONVERTER 24V 100W |
0 |
|
برگه مشخصات |
ZWS-AF (100W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) | CE |
|
|
ZWS100AF-3AC/DC CONVERTER 3.3V 100W |
0 |
|
برگه مشخصات |
ZWS-AF (100W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 69% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) | CE |
|
|
ZWS100AF-36AC/DC CONVERTER 36V 100W |
0 |
|
برگه مشخصات |
ZWS-AF (100W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) | CE |
|
|
ZWS100AF-5AC/DC CONVERTER 5V 100W |
0 |
|
برگه مشخصات |
ZWS-AF (100W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 75% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) | CE |
|

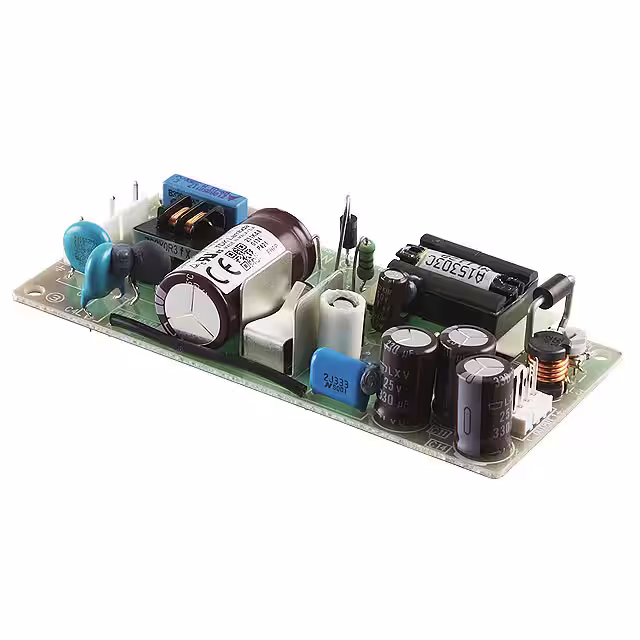

ZWS10-12AC/DC CONVERTER 12V 10W |
0 |
|
برگه مشخصات |
ZWS (10W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 850 mA | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | 70% | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 4.14" L x 1.97" W x 0.83" H (105.1mm x 50.0mm x 21.0mm) | CE, cURus, TUV |
|
|
ZWS10-24AC/DC CONVERTER 24V 10W |
0 |
|
برگه مشخصات |
ZWS (10W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 450 mA | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | 71% | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 4.14" L x 1.97" W x 0.83" H (105.1mm x 50.0mm x 21.0mm) | CE, cURus, TUV |
|
|
ZWS10-5AC/DC CONVERTER 5V 10W |
0 |
|
برگه مشخصات |
ZWS (10W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | 70% | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 4.14" L x 1.97" W x 0.83" H (105.1mm x 50.0mm x 21.0mm) | CE, cURus, TUV |
|

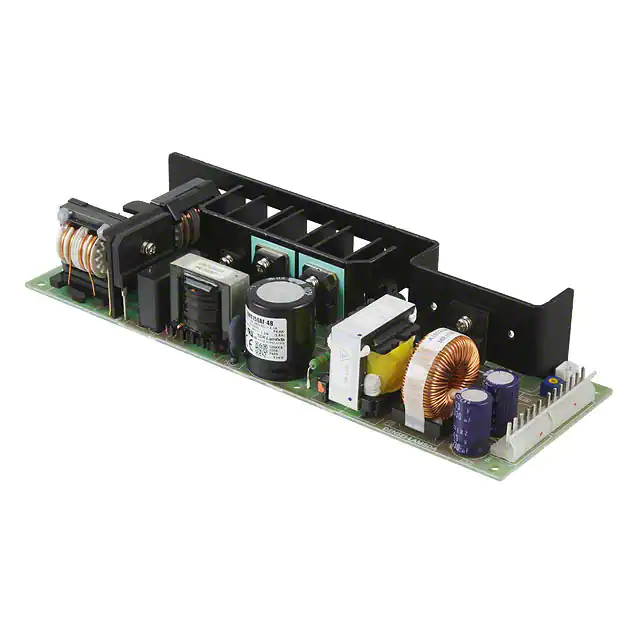

ZWS150AF-12AC/DC CONVERTER 12V 150W |
0 |
|
برگه مشخصات |
ZWS-AF (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.57" H (222.0mm x 75.0mm x 40.0mm) | CE |
|
|
ZWS150AF-15AC/DC CONVERTER 15V 150W |
0 |
|
برگه مشخصات |
ZWS-AF (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.57" H (222.0mm x 75.0mm x 40.0mm) | CE |
|
|
ZWS150AF-24AC/DC CONVERTER 24V 150W |
0 |
|
برگه مشخصات |
ZWS-AF (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.57" H (222.0mm x 75.0mm x 40.0mm) | CE |
|
|
ZWS150AF-36AC/DC CONVERTER 36V 150W |
0 |
|
برگه مشخصات |
ZWS-AF (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.57" H (222.0mm x 75.0mm x 40.0mm) | CE |
|
|
ZWS150AF-48AC/DC CONVERTER 48V 150W |
0 |
|
برگه مشخصات |
ZWS-AF (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.57" H (222.0mm x 75.0mm x 40.0mm) | CE |
|
|
ZWS150AF-5AC/DC CONVERTER 5V 150W |
0 |
|
برگه مشخصات |
ZWS-AF (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 30 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 77% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.57" H (222.0mm x 75.0mm x 40.0mm) | CE |
|
ZWS150PAF-24AC/DC CONVERTER 24V 150W |
0 |
|
برگه مشخصات |
ZWS-PAF (150W) | Bulk | Obsolete | Open Frame | 1 | 88 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.19" L x 3.15" W x 1.46" H (208.0mm x 80.0mm x 37.0mm) | CE |
|
|
ZWS150PAF-36AC/DC CONVERTER 36V 150W |
0 |
|
برگه مشخصات |
ZWS-PAF (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.19" L x 3.15" W x 1.46" H (208.0mm x 80.0mm x 37.0mm) | CE |
