مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSA60-112AC/DC CONVERTER 12V 60W |
0 |
|
برگه مشخصات |
PSA60 (80W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 6.6 A | - | - | - | - | - | 60W (80W Forced Air) | ITE (Commercial) | 2.2 kV | 70% | 0°C ~ 50°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | CE, CSA, TUV, UR |
|
|
PSA60-115AC/DC CONVERTER 15V 60W |
0 |
|
برگه مشخصات |
PSA60 (80W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 5.3 A | - | - | - | - | - | 60W (80W Forced Air) | ITE (Commercial) | 2.2 kV | 70% | 0°C ~ 50°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | CE, CSA, TUV, UR |
|
|
PSA60-124AC/DC CONVERTER 24V 60W |
0 |
|
برگه مشخصات |
PSA60 (80W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 60W (80W Forced Air) | ITE (Commercial) | 2.2 kV | 70% | 0°C ~ 50°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | CE, CSA, TUV, UR |
|
|
PSA60-148AC/DC CONVERTER 48V 60W |
0 |
|
برگه مشخصات |
PSA60 (80W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.4 A | - | - | - | - | - | 60W (80W Forced Air) | ITE (Commercial) | 2.2 kV | 70% | 0°C ~ 50°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | CE, CSA, TUV, UR |
|
|
PSA60-202AC/DC CONVERTER 5V 24V 60W |
0 |
|
برگه مشخصات |
PSA60 (80W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC | 5V | 24V | - | - | - | - | 8 A | 1.8 A | - | - | - | - | 60W (80W Forced Air) | ITE (Commercial) | 2.2 kV | 70% | 0°C ~ 50°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | CE, CSA, TUV, UR |
|
|
PSA60-203AC/DC CONVERTER 5V 12V 60W |
0 |
|
برگه مشخصات |
PSA60 (80W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC | 5V | 12V | - | - | - | - | 6 A | 4.5 A | - | - | - | - | 60W (80W Forced Air) | ITE (Commercial) | 2.2 kV | 70% | 0°C ~ 50°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | CE, CSA, TUV, UR |
|
|
PSA60-301AC/DC CONVERTER 5V +/-12V 80W |
0 |
|
برگه مشخصات |
PSA60 (80W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 6 A | 2 A | 300 mA | - | - | - | 80W (82W Forced Air) | ITE (Commercial) | 2.2 kV | 70% | 0°C ~ 50°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | CE, CSA, TUV, UR |
|
|
PSA60-302AC/DC CONVERTER 5V +/-12V 60W |
0 |
|
برگه مشخصات |
PSA60 (80W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 8 A | 1.8 A | 1.8 A | - | - | - | 60W (80W Forced Air) | ITE (Commercial) | 2.2 kV | 70% | 0°C ~ 50°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | CE, CSA, TUV, UR |
|
|
PSA60-304AC/DC CONVERTER 5V +/-15V 60W |
0 |
|
برگه مشخصات |
PSA60 (80W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 8 A | 2 A | 500 mA | - | - | - | 60W (80W Forced Air) | ITE (Commercial) | 2.2 kV | 70% | 0°C ~ 50°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | CE, CSA, TUV, UR |
|
PSA110-112AC/DC CONVERTER 12V 110W |
0 |
|
برگه مشخصات |
PSA110 (110W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 9 A | - | - | - | - | - | 110W | ITE (Commercial) | - | 70% | 0°C ~ 50°C | Universal Input | Chassis Mount | 6.81" L x 3.70" W x 1.70" H (172.7mm x 93.5mm x 43.6mm) | CE, CSA, TUV, UR |
|
|
PSA110-115AC/DC CONVERTER 15V 110W |
0 |
|
برگه مشخصات |
PSA110 (110W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 110W | ITE (Commercial) | - | 70% | 0°C ~ 50°C | Universal Input | Chassis Mount | 6.81" L x 3.70" W x 1.70" H (172.7mm x 93.5mm x 43.6mm) | CE, CSA, TUV, UR |
|
|
PSA110-124AC/DC CONVERTER 24V 110W |
0 |
|
برگه مشخصات |
PSA110 (110W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 110W | ITE (Commercial) | - | 70% | 0°C ~ 50°C | Universal Input | Chassis Mount | 6.81" L x 3.70" W x 1.70" H (172.7mm x 93.5mm x 43.6mm) | CE, CSA, TUV, UR |
|

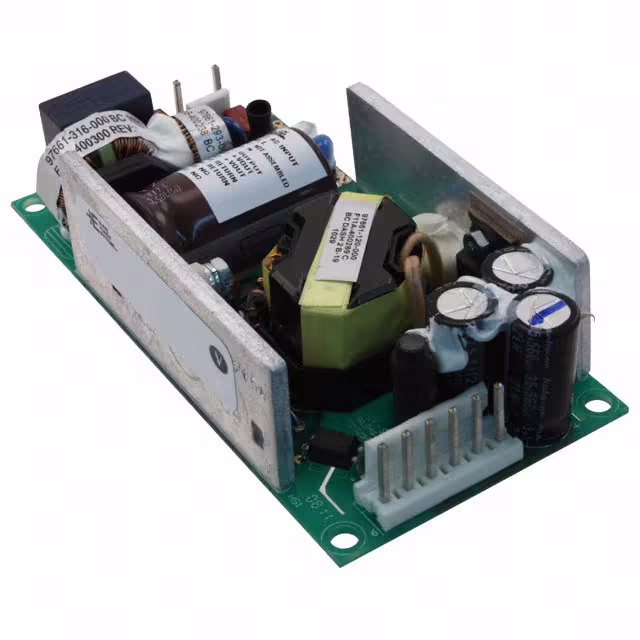

FTA040012AAC/DC CONVERTER 12V 40W |
0 |
|
برگه مشخصات |
FTA040 (40W) | Box | Obsolete | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 40W | ITE (Commercial) | - | 87% | 0°C ~ 70°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.99" H (101.6mm x 50.8mm x 25.2mm) | CB, CE |
|
|
FTA040015AAC/DC CONVERTER 15V 40W |
0 |
|
برگه مشخصات |
FTA040 (40W) | Box | Obsolete | Open Frame | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 40W | ITE (Commercial) | - | 88% | 0°C ~ 70°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.99" H (101.6mm x 50.8mm x 25.2mm) | CB, CE |
|
|
FTA040024AAC/DC CONVERTER 24V 40W |
0 |
|
برگه مشخصات |
FTA040 (40W) | Box | Obsolete | Open Frame | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 40W | ITE (Commercial) | - | 87% | 0°C ~ 70°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.99" H (101.6mm x 50.8mm x 25.2mm) | CB, CE |
|

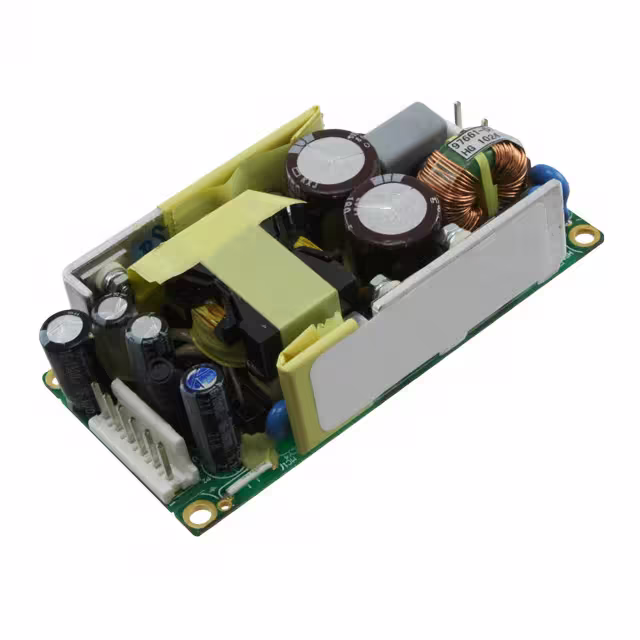

FTB080009AAC/DC CONVERTER 9V 65W |
0 |
|
برگه مشخصات |
FTB080 (65-100W) | Box | Obsolete | Open Frame | 1 | 100 ~ 240 VAC | 9V | - | - | - | - | - | 7.2 A | - | - | - | - | - | 65W (90W Forced Air) | ITE (Commercial) | - | 88% | 0°C ~ 50°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.01" H (101.6mm x 50.8mm x 25.7mm) | CB, CE, cTUVus |
|

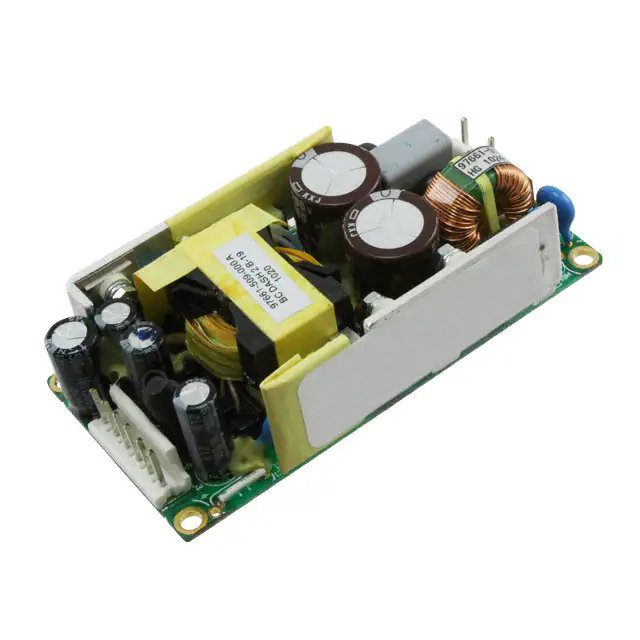

FTB080012AAC/DC CONVERTER 12V 65W |
0 |
|
برگه مشخصات |
FTB080 (65-100W) | Box | Obsolete | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 65W (100W Forced Air) | ITE (Commercial) | - | 90% | 0°C ~ 50°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.01" H (101.6mm x 50.8mm x 25.7mm) | CB, CE, cTUVus |
|
FTB080015AAC/DC CONVERTER 15V 65W |
0 |
|
برگه مشخصات |
FTB080 (65-100W) | Box | Obsolete | Open Frame | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 3.4 A | - | - | - | - | - | 65W (100W Forced Air) | ITE (Commercial) | - | 90% | 0°C ~ 50°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.01" H (101.6mm x 50.8mm x 25.7mm) | CB, CE, cTUVus |
|
FTB080024AAC/DC CONVERTER 24V 65W |
0 |
|
برگه مشخصات |
FTB080 (65-100W) | Box | Obsolete | Open Frame | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 3.4 A | - | - | - | - | - | 65W (100W Forced Air) | ITE (Commercial) | - | 91% | 0°C ~ 50°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.01" H (101.6mm x 50.8mm x 25.7mm) | CB, CE, cTUVus |
|

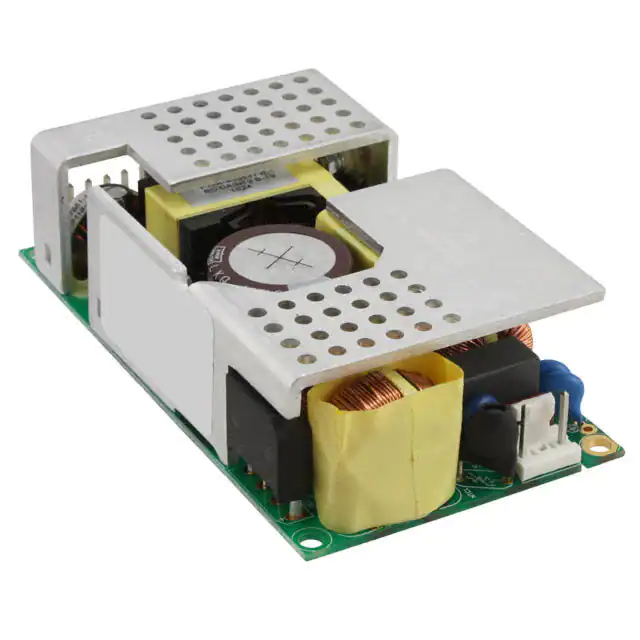

FVA100015AAC/DC CONVERTER 15V 100W |
0 |
|
برگه مشخصات |
FVA100 (100W) | Box | Obsolete | Open Frame | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W (120W Forced Air) | ITE (Commercial) | - | 88% | 0°C ~ 70°C | PFC, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.0mm x 63.5mm x 30.9mm) | CB, CE, cTUVus |
