مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSP-200-27AC/DC CONVERTER 27V 203W |
45 |
|
برگه مشخصات |
RSP-200 (200W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 124 ~ 370 VDC | 27V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 203W | ITE (Commercial) | 3 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | CB, CCC, CE, cURus, TUV |
|

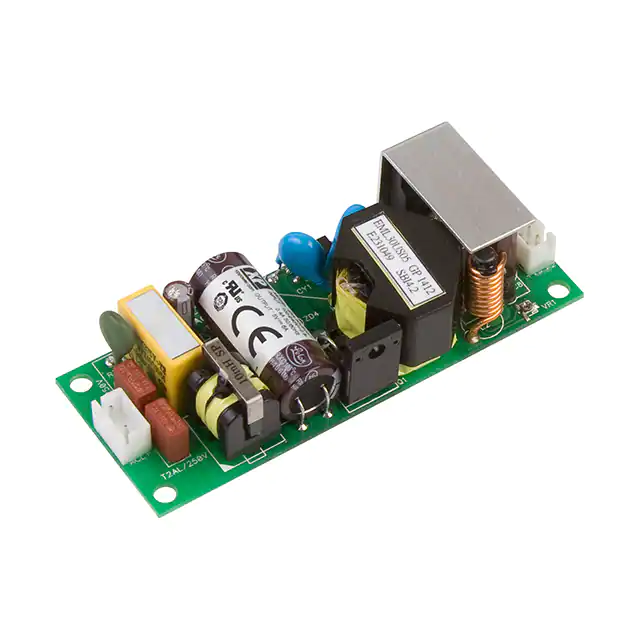

EML30US12-TAC/DC CONVERTER 12V 30W |
30 |
|
برگه مشخصات |
EML30 (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | Medical | 4 kV | 80% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 1.00" H (87.9mm x 34.6mm x 25.4mm) | CB |
|
FSP200-P35-A24AC/DC CONVERTER 24V 150W |
79 |
|
برگه مشخصات |
FSP200-P35 A (200W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 150W (200W Forced Air) | ITE (Commercial) | - | 91% | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.10" H (127.0mm x 76.2mm x 28.0mm) | CB, CE, cURus, CSA, FCC, UL, VCCI |
|
MINT1065D2475K01AC/DC CONVERTER 24V 65W |
82 |
|
برگه مشخصات |
MINT1065 (65W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 65W | Medical | 4 kV | 90% | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.17" H (101.6mm x 50.8mm x 29.7mm) | CE, cURus |
|
HWS15A-12/AAC/DC CONVERTER 12V 15W |
66 |
|
برگه مشخصات |
HWS-A (15W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 15W | Industrial, ITE (Commercial) | 3 kV | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.15" L x 1.24" W x 3.23" H (80.0mm x 31.5mm x 82.0mm) | CE |
|

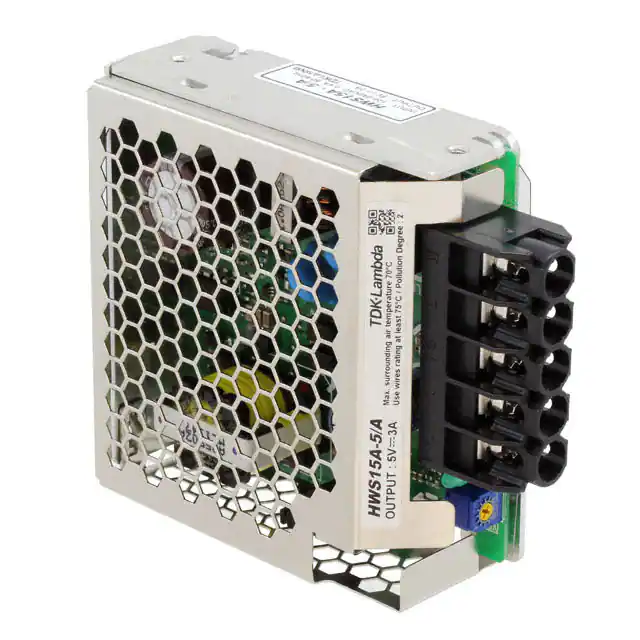

HWS15A-5/AAC/DC CONVERTER 5V 15W |
31 |
|
برگه مشخصات |
HWS-A (15W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | Industrial, ITE (Commercial) | 3 kV | 77% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.15" L x 1.24" W x 3.23" H (80.0mm x 31.5mm x 82.0mm) | CE |
|
RPS-160-24AC/DC CONVERTER 24V 110W |
68 |
|
برگه مشخصات |
RPS-160 (160W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 4.6 A | - | - | - | - | - | 110W (156W Forced Air) | Household Appliances, Medical | 4 kV | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.36" H (127.0mm x 76.2mm x 34.5mm) | CB, CE, cURus, TUV |
|
|
MINT1065A1575C01AC/DC CONVERTER 15V 65W |
80 |
|
برگه مشخصات |
MINT1065 (65W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | 90% | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.02" H (101.6mm x 50.8mm x 26.0mm) | CE, cURus |
|
|
MINT1065A2475C01AC/DC CONVERTER 24V 65W |
27 |
|
برگه مشخصات |
MINT1065 (65W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 2 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | 90% | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.02" H (101.6mm x 50.8mm x 26.0mm) | CE, cURus |
|
EPP-150-12AC/DC CONVERTER 12V 101W |
84 |
|
برگه مشخصات |
EPP-150 (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 101W (150W Forced Air) | ITE (Commercial) | 3 kV | 91.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | CB, CE, cURus, TUV |
|
CUT35-5FF/AAC/DC CONVERTER 5V +/-15V 35W |
12 |
|
برگه مشخصات |
CUT35 (35W) | Bulk | Active | Enclosed | 3 | 85 ~ 265 VAC | 5V | 15V | -15V | - | - | - | 3 A | 1 A | 650 mA | - | - | - | 35W | ITE (Commercial), Medical | 3 kV | 82% | -20°C ~ 60°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.92" L x 2.48" W x 1.42" H (125.0mm x 63.1mm x 36.0mm) | CE |
|
LRS-450-24AC/DC CONVERTER 24V 451W |
4 |
|
برگه مشخصات |
LRS-450 (450W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 255 ~ 370 VDC | 24V | - | - | - | - | - | - | - | - | - | - | - | 451W | ITE (Commercial) | 3 kV | 91% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 10.04" L x 4.88" W x 1.38" H (255.0mm x 124.0mm x 35.0mm) | CB, CE, cURus, EAC, UKCA |
|
ERPF-400-24AC/DC CONVERTER 24V 401W |
16 |
|
برگه مشخصات |
ERPF-400 (400W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 401W | ITE (Commercial) | 3 kV | 90% | -30°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.68" L x 5.12" W x 1.89" H (220.4mm x 130.0mm x 48.0mm) | CCC, CE, cURus, TUV |
|

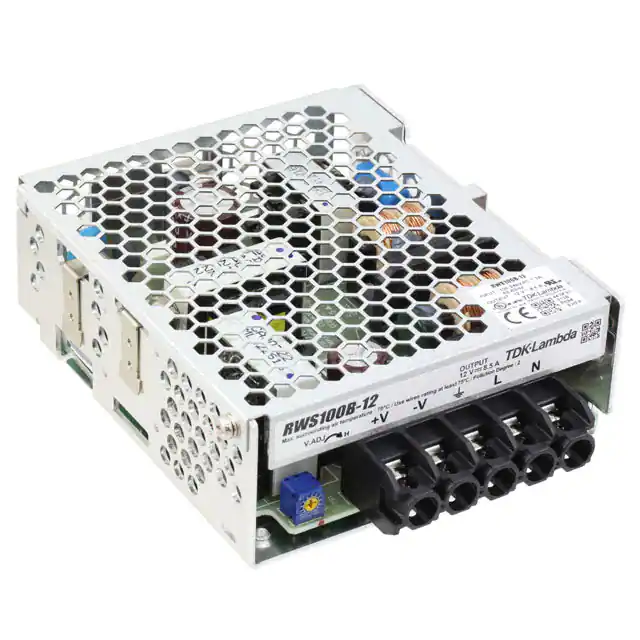

RWS100B-12AC/DC CONVERTER 12V 100W |
25 |
|
برگه مشخصات |
RWS-B (100W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 84% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.25" L x 3.70" W x 1.54" H (108.0mm x 94.0mm x 39.0mm) | CE |
|
CSS65A-24AC/DC CONVERTER 24V 65W |
13 |
|
برگه مشخصات |
CSS65A (65W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 2.71 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | 89% | 0°C ~ 70°C (With Derating) | Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CE |
|
EPP-300-24AC/DC CONVERTER 24V 200W |
17 |
|
برگه مشخصات |
EPP-300 (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 200W (300W Forced Air) | ITE (Commercial) | 3 kV | 92.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) | CB, CE, cURus, TUV |
|
|
LRS-600-24AC/DC CONVERTER 24V 600W |
17 |
|
برگه مشخصات |
- | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 255 ~ 370 VDC | 24V | - | - | - | - | - | - | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | 91% | -20°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 8.86" L x 4.88" W x 1.61" H (225.0mm x 124.0mm x 41.0mm) | CB, CE, cURus, EAC, UKCA |
|
EML30US05-SAC/DC CONVERTER 5V 30W |
20 |
|
برگه مشخصات |
EML30 (30W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W | Medical | 4 kV | 75% | -20°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.78" L x 1.57" W x 1.12" H (96.0mm x 40.0mm x 28.5mm) | CB |
|
|
EML30US12-SAC/DC CONVERTER 12V 30W |
18 |
|
برگه مشخصات |
EML30 (30W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | Medical | 4 kV | 80% | -20°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.78" L x 1.57" W x 1.12" H (96.0mm x 40.0mm x 28.5mm) | CB |
|
RPS-300-48AC/DC CONVERTER 48V 200W |
6 |
|
برگه مشخصات |
RPS-300 (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 200W (300W Forced Air) | Medical | 4 kV | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.37" H (127.0mm x 76.2mm x 34.8mm) | CB, CE, cURus, TUV |
