مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AAD130SD-50AC/DC CONVERTER 15V 80W |
0 |
|
برگه مشخصات |
AAD130SD (130W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 9.5 A | - | - | - | - | - | 80W (130W Forced Air) | ITE (Commercial) | - | 90% | 0°C ~ 50°C | PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.25" H (127.0mm x 79.8mm x 31.8mm) | CE |
|
|
AAD130SD-60AC/DC CONVERTER 24V 80W |
0 |
|
برگه مشخصات |
AAD130SD (130W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 6 A | - | - | - | - | - | 80W (130W Forced Air) | ITE (Commercial) | - | 90% | 0°C ~ 50°C | PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.25" H (127.0mm x 79.8mm x 31.8mm) | CE |
|
|
AAD130SD-90AC/DC CONVERTER 48V 80W |
0 |
|
برگه مشخصات |
AAD130SD (130W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 3 A | - | - | - | - | - | 80W (130W Forced Air) | ITE (Commercial) | - | 90% | 0°C ~ 50°C | PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.25" H (127.0mm x 79.8mm x 31.8mm) | CE |
|
|
AAD160-3464AC/DC CNVRTR 5V 12V 24V -12V 80W |
0 |
|
برگه مشخصات |
AAD160 (160W) | Bulk | Obsolete | Open Frame | 4 | 90 ~ 264 VAC | 5V | 12V | 24V | -12V | - | - | 16 A | 6 A | 1.75 A | 2 A | - | - | 80W (130W Forced Air) | ITE (Commercial) | - | 88% | 0°C ~ 50°C | PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.25" H (127.0mm x 79.8mm x 31.8mm) | CE |
|
|
AAD600S-5AC/DC CONVERTER 15V 600W |
0 |
|
برگه مشخصات |
AAD600S (600W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 36 A | - | - | - | - | - | 600W | ITE (Commercial) | - | 92% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.00" L x 4.00" W x 1.59" H (228.6mm x 101.6mm x 40.4mm) | CE |
|
MVAD065-12AC/DC CONVERTER 12V 60W |
0 |
|
- |
MVAD065 (65W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | 3 kV | 88% | -10°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.1mm) | CB, CE, cURus, VDE |
|

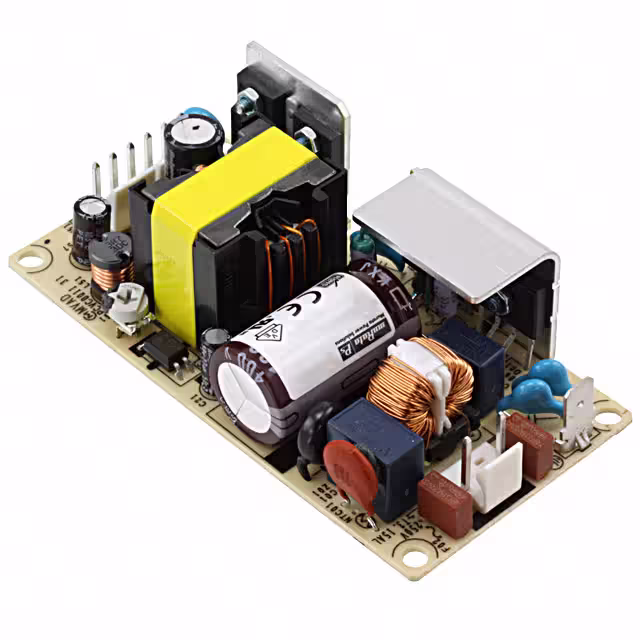

MVAD065-24AC/DC CONVERTER 24V 65W |
0 |
|
- |
MVAD065 (65W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 3 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 3 kV | 89% | -10°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.1mm) | CB, CE, cURus, VDE |
|

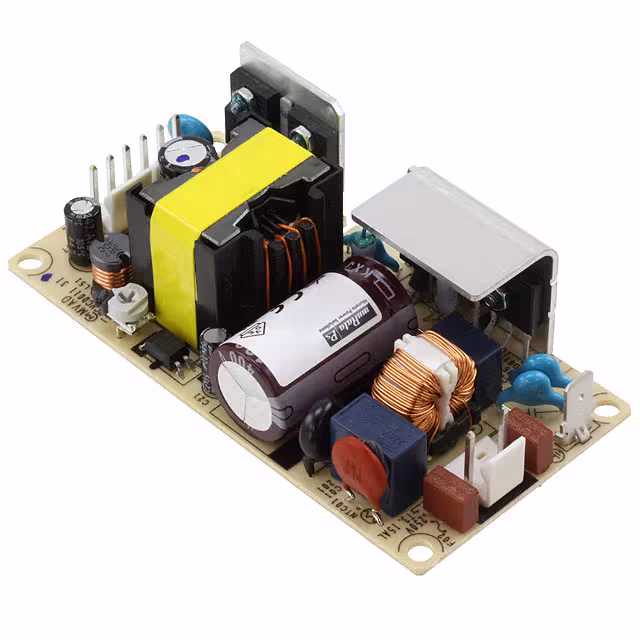

MVAD065-48AC/DC CONVERTER 48V 65W |
0 |
|
- |
MVAD065 (65W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 840 mA | - | - | - | - | - | 65W | ITE (Commercial), Medical | 3 kV | 90% | -10°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.1mm) | CB, CE, cURus, VDE |
|
|
MBC40-1005G-2AC/DC CONVERTER 5.1V 40W |
0 |
|
برگه مشخصات |
MBC40 (40W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 5.1V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W | Medical | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | - |
|
|
MBC40-1015G-2AC/DC CONVERTER 15V 40W |
0 |
|
برگه مشخصات |
MBC40 (40W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 40W | Medical | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | - |
|
|
MBC40-1048G-2AC/DC CONVERTER 48V 40W |
0 |
|
برگه مشخصات |
MBC40 (40W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 830 mA | - | - | - | - | - | 40W | Medical | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | - |
|
|
MBC40-3000G-2AC/DC CNVRTR 5.2V 12.5V -12.8V |
0 |
|
برگه مشخصات |
MBC40 (40W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5.2V | 12.5V | -12.8V | - | - | - | 6 A | 1 A | 500 mA | - | - | - | 40W | Medical | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | - |
|
|
MBC40-3001G-2AC/DC CNVRTR 5.2V 24V -12.8V 40W |
0 |
|
برگه مشخصات |
MBC40 (40W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5.2V | 24V | -12.8V | - | - | - | 6 A | 1 A | 500 mA | - | - | - | 40W | Medical | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | - |
|
|
MBC40-3002G-2AC/DC CNVRTR 5.2V 14.6V -14.8V |
0 |
|
برگه مشخصات |
MBC40 (40W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5.2V | 14.6V | -14.8V | - | - | - | 6 A | 1.5 A | 500 mA | - | - | - | 40W | Medical | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | - |
|
|
MBC40-3003G-2AC/DC CONVERTER 3.3V 5.2V -12.8V |
0 |
|
برگه مشخصات |
MBC40 (40W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 3.3V | 5.2V | -12.8V | - | - | - | 6 A | 3 A | 500 mA | - | - | - | 40W | Medical | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | - |
|
MBC60-3003G-2AC/DC CONVERTER 3.3V 5.2V -12.8V |
0 |
|
برگه مشخصات |
MBC60 (60W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 3.3V | 5.2V | -12.8V | - | - | - | 6 A | 3 A | 500 mA | - | - | - | 60W | Medical | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CE, CSA |
|
|
MBC60-1005G-2AC/DC CONVERTER 5.1V 60W |
0 |
|
برگه مشخصات |
MBC60 (60W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 5.1V | - | - | - | - | - | 10 A | - | - | - | - | - | 60W | Medical | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CE, CSA |
|
|
MBC60-1015G-2AC/DC CONVERTER 15V 60W |
0 |
|
برگه مشخصات |
MBC60 (60W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 4.33 A | - | - | - | - | - | 60W | Medical | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CE, CSA |
|
|
MBC60-1048G-2AC/DC CONVERTER 48V 60W |
0 |
|
برگه مشخصات |
MBC60 (60W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.35 A | - | - | - | - | - | 60W | Medical | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CE, CSA |
|
|
MBC60-3000G-2AC/DC CNVRTR 5.2V 12.5V -12.8V |
0 |
|
برگه مشخصات |
MBC60 (60W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5.2V | 12.5V | -12.8V | - | - | - | 8 A | 3 A | 500 mA | - | - | - | 60W | Medical | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CE, CSA |
