مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

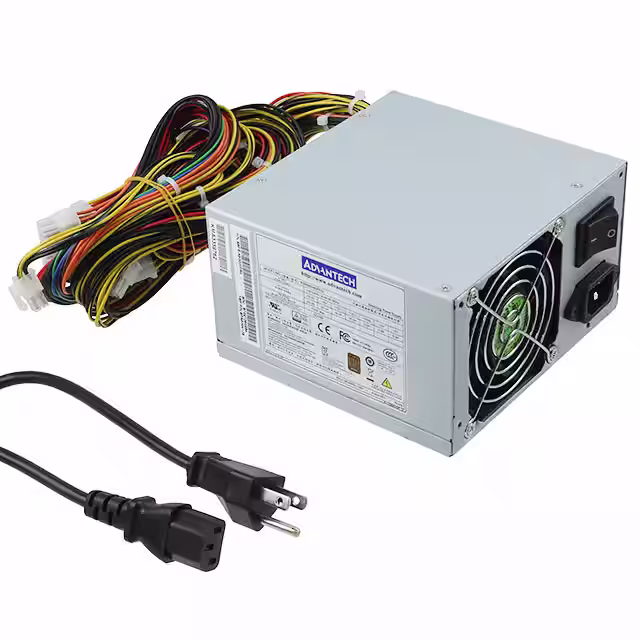

PS8-500ATX-ZEAC/DC CNVT 3.3V 5V 2X12V 2X-12V |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | - | 6 | 100 ~ 240 VAC | 3.3V | 5V | 12V | 12V | -12V | -12V | 24 A | 20 A | 16 A | 16 A | 500 mA | 300 mA | 571W | ITE (Commercial) | - | - | - | Standby Output | Chassis Mount | 5.91" L x 5.51" W x 3.39" H (150.1mm x 140.0mm x 86.1mm) | CB, CCC, TUV, UL |
|

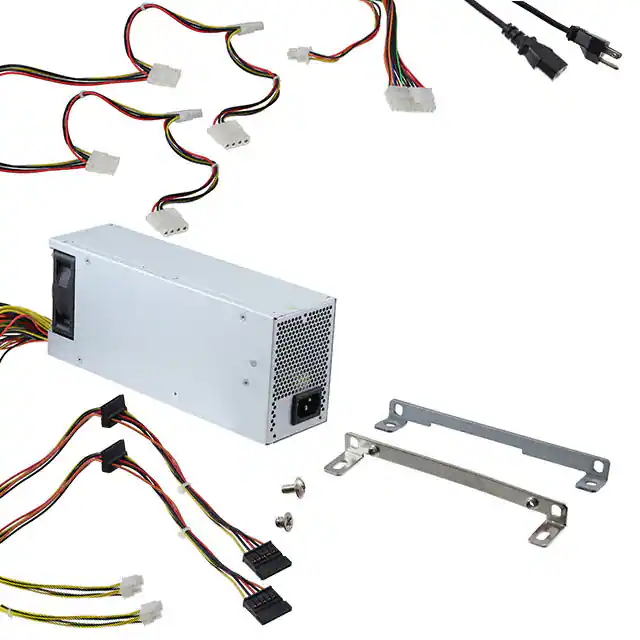

PS8-500U2-XEAC/DC CONVERTER 5V 5X12V 682W |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | - | 5 | 90 ~ 264 VAC | 5V | 12V | 12V | 12V | 12V | 12V | 20 A | 16 A | 16 A | 16 A | 500 mA | - | 682W | ITE (Commercial) | - | 82% | 0°C ~ 50°C | PFC, Standby Output, Universal Input | Chassis Mount | 9.45" L x 3.94" W x 2.76" H (240.0mm x 100.0mm x 70.0mm) | CB, CCC, CE, FCC, KC, TUV, UL |
|

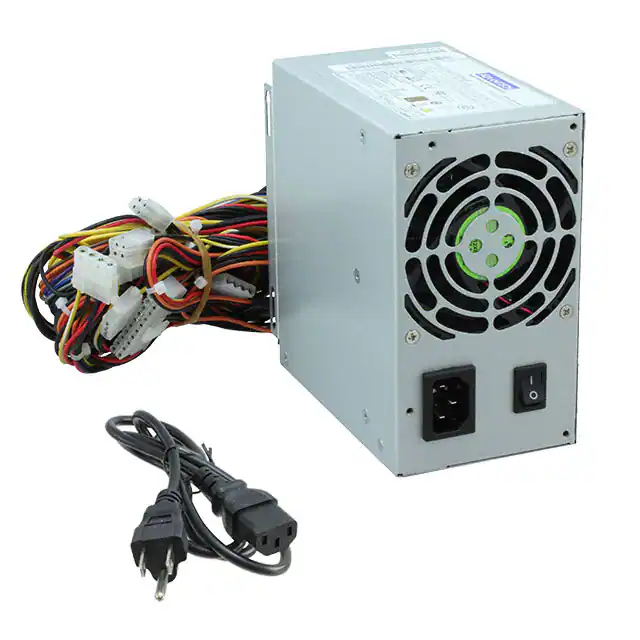

PS8-700ATX-ZEAC/DC CNVT 3.3V 5V 4X12V 1006W |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | - | 9 | 100 ~ 240 VAC | 3.3V | 5V | 12V | 12V | 12V | 12V | 24 A | 30 A | 16 A | 16 A | 16 A | 16 A | 1006W | ITE (Commercial) | - | - | - | Standby Output | Chassis Mount | 5.91" L x 5.51" W x 3.39" H (150.1mm x 140.0mm x 86.1mm) | CB, CCC, TUV, UL |
|

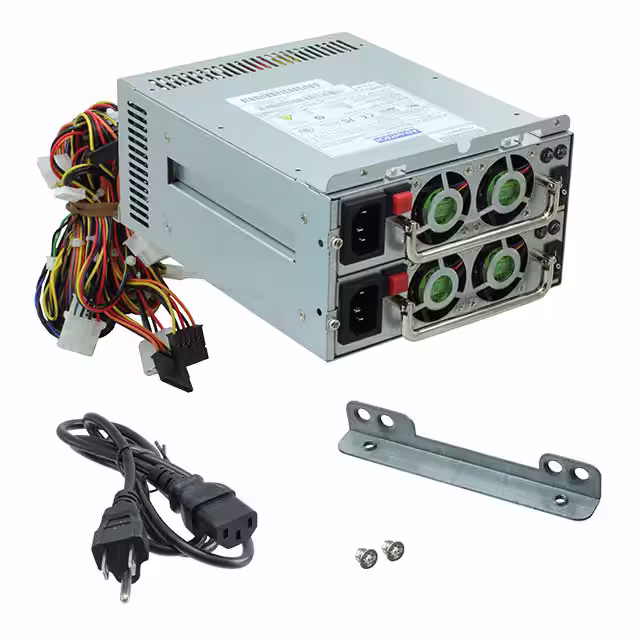

RPS8-350ATX-XEACDC CNVT 3.3V 5V 12V -5V -12V |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | - | 5 | 100 ~ 240 VAC | 3.3V | 5V | 12V | -5V | -12V | - | 20 A | 20 A | 29 A | 300 mA | 500 mA | - | 522W | ITE (Commercial) | - | 88% | 0°C ~ 50°C | PFC, PMBus™, Standby Output | Chassis Mount | 5.91" L x 3.31" W x 7.48" H (150.0mm x 84.0mm x 190.0mm) | CB, CCC, CE, FCC, KC, TUV, UL |
|
|
RPS8-500ATX-XEAC/DC CNVT 3.3V 5V 4X12V 750W |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | - | 7 | 100 ~ 240 VAC | 3.3V | 5V | 12V | 12V | 12V | -12V | 20 A | 20 A | 16 A | 16 A | 16 A | 500 mA | 750W | ITE (Commercial) | - | 84% | 0°C ~ 50°C | PFC, PMBus™, Standby Output | Chassis Mount | 7.48" L x 5.91" W x 3.31" H (190.0mm x 150.0mm x 84.0mm) | CB, CCC, CE, FCC, KC, TUV, UL |
|
RPS8-700U2-XE80PLUS 2U-REDUNDANT 1+1 R 700W |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

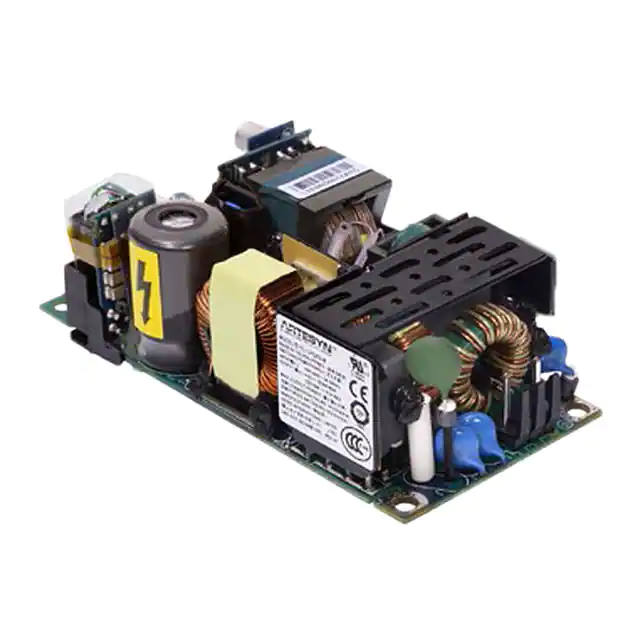

CPS256-MAC/DC CONVERTER 36V 155W |
0 |
|
برگه مشخصات |
CPS250-M (250W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 155W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.29" H (101.6mm x 50.8mm x 32.8mm) | CB, CCC, CE, CSA, UL, TUV |
|
|
LPT83AC/DC CONVERTER 5V +/-15V 60W |
0 |
|
برگه مشخصات |
LPT80 (80W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 8 A | 2.4 A | 700 mA | - | - | - | 60W (85W Forced Air) | ITE (Commercial) | - | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.29" H (127.0mm x 76.2mm x 32.8mm) | CB, CE |
|
|
NFS110-7601JAC/DC CNVRTR 5.1V +/-12V -5V 80W |
0 |
|
برگه مشخصات |
NFS110 (110W) | Bulk | Obsolete | Open Frame | 4 | 85 ~ 264 VAC | 5.1V | 12V | -12V | -5V | - | - | 8 A | 4.5 A | 500 mA | 500 mA | - | - | 80W (110W Forced Air) | ITE (Commercial) | 3 kV | 70% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.80" H (177.8mm x 108.0mm x 45.7mm) | CE |
|
|
NFS110-7612JAC/DC CONVERTER 12V 80W |
0 |
|
برگه مشخصات |
NFS110 (110W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 7 A | - | - | - | - | - | 80W (110W Forced Air) | ITE (Commercial) | 3 kV | 72% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.80" H (177.8mm x 108.0mm x 45.7mm) | CE |
|
|
NFS110-7624JAC/DC CONVERTER 24V 80W |
0 |
|
برگه مشخصات |
NFS110 (110W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.5 A | - | - | - | - | - | 80W (110W Forced Air) | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.80" H (177.8mm x 108.0mm x 45.7mm) | CE |
|
|
NFS110-7912JAC/DC CONVERTER 12V 80W |
0 |
|
برگه مشخصات |
NFS110 (110W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 7 A | - | - | - | - | - | 80W (110W Forced Air) | Medical | 4 kV | 72% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.80" H (177.8mm x 108.0mm x 45.7mm) | - |
|
|
NFS110-7915JAC/DC CONVERTER 15V 80W |
0 |
|
برگه مشخصات |
NFS110 (110W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 80W (110W Forced Air) | Medical | 4 kV | 72% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.80" H (177.8mm x 108.0mm x 45.7mm) | - |
|
|
NFS40-7908JAC/DC CONVERTER 5.1V +/-12V 40W |
0 |
|
برگه مشخصات |
NFS40 (40W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 264 VAC | 5.1V | 12V | -12V | - | - | - | 3 A | 2 A | 350 mA | - | - | - | 40W (50W Forced Air) | Medical | 4 kV | 70% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.20" H (127.0mm x 76.2mm x 30.5mm) | - |
|
|
NFS40-7910JAC/DC CONVERTER 5.1V +/-15V 40W |
0 |
|
برگه مشخصات |
NFS40 (40W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 264 VAC | 5.1V | 15V | -15V | - | - | - | 3 A | 2 A | 350 mA | - | - | - | 40W (50W Forced Air) | Medical | 4 kV | 70% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.20" H (127.0mm x 76.2mm x 30.5mm) | - |
|
|
NFS40-7912JAC/DC CONVERTER 12V 40W |
0 |
|
برگه مشخصات |
NFS40 (40W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 40W (50W Forced Air) | Medical | 4 kV | 70% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.20" H (127.0mm x 76.2mm x 30.5mm) | - |
|
|
NFS40-7915JAC/DC CONVERTER 15V 40W |
0 |
|
برگه مشخصات |
NFS40 (40W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 2.6 A | - | - | - | - | - | 40W (50W Forced Air) | Medical | 4 kV | 70% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.20" H (127.0mm x 76.2mm x 30.5mm) | - |
|
|
NFS40-7924JAC/DC CONVERTER 24V 40W |
0 |
|
برگه مشخصات |
NFS40 (40W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 40W (50W Forced Air) | Medical | 4 kV | 70% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.20" H (127.0mm x 76.2mm x 30.5mm) | - |
|
|
NFS40-7928JAC/DC CONVERTER 5.1V +/-12V 40W |
0 |
|
برگه مشخصات |
NFS40 (40W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 264 VAC | 5.1V | 12V | -12V | - | - | - | 4 A | 350 mA | 350 mA | - | - | - | 40W (50W Forced Air) | Medical | 4 kV | 70% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.20" H (127.0mm x 76.2mm x 30.5mm) | - |
|
|
NFS80-7602JAC/DC CNVRTR 5V 24V +/-12V 80W |
0 |
|
برگه مشخصات |
NFS80 (80W) | Bulk | Obsolete | Open Frame | 4 | 90 ~ 264 VAC | 5V | 24V | 12V | ±12V | - | - | 8 A | 2 A | 2.5 A | 2.5 A | - | - | 80W (110W Forced Air) | ITE (Commercial) | 3 kV | 70% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.80" H (177.8mm x 108.0mm x 45.7mm) | CSA |
