مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VOF-180-58AC/DC CONVERTER 58V 120W |
0 |
|
برگه مشخصات |
VOF-180 (180W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 58V | - | - | - | - | - | 2.07 A | - | - | - | - | - | 120W (180W Forced Air) | ITE (Commercial) | 3 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
|
VOF-180-58-1AC/DC CONVERTER 58V 120W |
0 |
|
برگه مشخصات |
VOF-180 (180W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 58V | - | - | - | - | - | 2.07 A | - | - | - | - | - | 120W (180W Forced Air) | ITE (Commercial) | 3 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
VOF-225A-15AC/DC CONVERTER 15V 120W |
0 |
|
برگه مشخصات |
VOF-225A (225W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 8 A | - | - | - | - | - | 120W (225W Forced Air) | ITE (Commercial) | 3 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
|
VOF-225A-30AC/DC CONVERTER 30V 120W |
0 |
|
برگه مشخصات |
VOF-225A (225W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 30V | - | - | - | - | - | 4 A | - | - | - | - | - | 120W (225W Forced Air) | ITE (Commercial) | 3 kV | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
|
VOF-225A-58AC/DC CONVERTER 58V 120W |
0 |
|
برگه مشخصات |
VOF-225A (225W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 58V | - | - | - | - | - | 2.07 A | - | - | - | - | - | 120W (225W Forced Air) | ITE (Commercial) | 3 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
VOF-275-12-1AC/DC CONVERTER 12V 160W |
0 |
|
برگه مشخصات |
VOF-275 (275W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 13.33 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | 88% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
|
VOF-275-15AC/DC CONVERTER 15V 160W |
0 |
|
برگه مشخصات |
VOF-275 (275W) | Tray | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 10.67 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | 88% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
|
VOF-275-15-1AC/DC CONVERTER 15V 160W |
0 |
|
برگه مشخصات |
VOF-275 (275W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 10.67 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | 88% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
|
VOF-275-24-1AC/DC CONVERTER 24V 160W |
0 |
|
برگه مشخصات |
VOF-275 (275W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
|
VOF-275-30AC/DC CONVERTER 30V 160W |
0 |
|
برگه مشخصات |
VOF-275 (275W) | Tray | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 30V | - | - | - | - | - | 5.33 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
|
VOF-275-30-1AC/DC CONVERTER 30V 160W |
0 |
|
برگه مشخصات |
VOF-275 (275W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 30V | - | - | - | - | - | 5.33 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
|
VOF-275-48-1AC/DC CONVERTER 48V 160W |
0 |
|
برگه مشخصات |
VOF-275 (275W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
|
VOF-275-58AC/DC CONVERTER 58V 160W |
0 |
|
برگه مشخصات |
VOF-275 (275W) | Tray | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 58V | - | - | - | - | - | 2.76 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
|
VOF-275-58-1AC/DC CONVERTER 58V 160W |
0 |
|
برگه مشخصات |
VOF-275 (275W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 58V | - | - | - | - | - | 2.76 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
VOF-350-58AC/DC CONVERTER 58V 200W |
0 |
|
برگه مشخصات |
* | Tray | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 58V | - | - | - | - | - | 6.04 A | - | - | - | - | - | 200W (350W Forced Air) | ITE (Commercial) | 3 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
VMS-225-58-1AC/DC CONVERTER 58V 120W |
0 |
|
برگه مشخصات |
VMS-225 (225W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 58V | - | - | - | - | - | 2.07 A | - | - | - | - | - | 120W (225W Forced Air) | Medical | 4.2 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | CB Scheme, EN, FCC, IEC, TUV, UL |
|

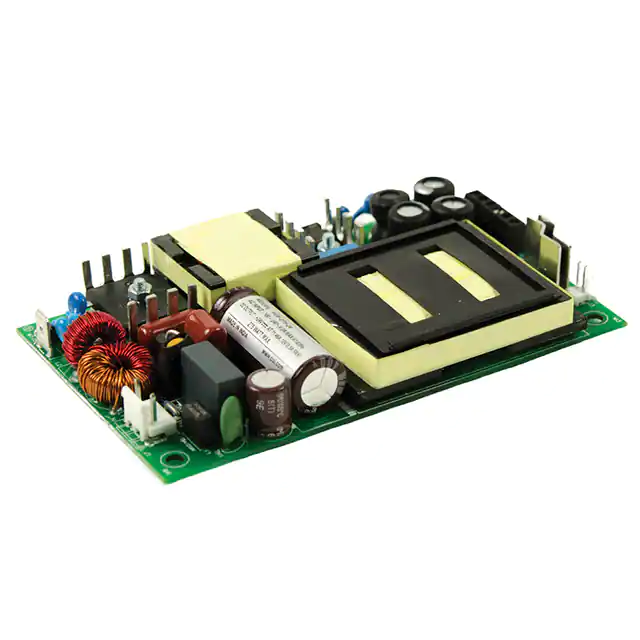

VMS-275-30AC/DC CONVERTER 30V 160W |
0 |
|
برگه مشخصات |
VMS-275 (275W) | Tray | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 30V | - | - | - | - | - | 5.33 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4.2 kV | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB Scheme, EN, FCC, IEC, TUV, UL |
|

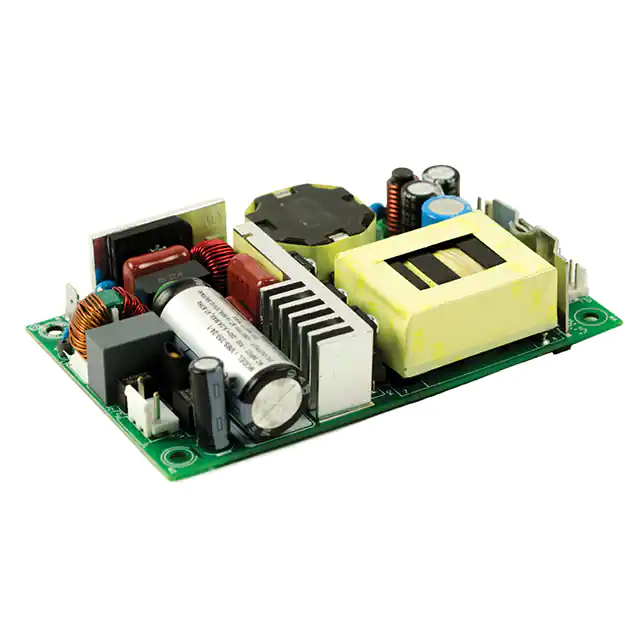

VMS-350-15AC/DC CONVERTER 15V 175W |
0 |
|
برگه مشخصات |
VMS-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 11.67 A | - | - | - | - | - | 175W (350W Forced Air) | Medical | 4.2 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | CB Scheme, EN, FCC, IEC, TUV, UL |
|
|
VMS-350-30AC/DC CONVERTER 30V 175W |
0 |
|
برگه مشخصات |
VMS-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 30V | - | - | - | - | - | 5.83 A | - | - | - | - | - | 175W (350W Forced Air) | Medical | 4.2 kV | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | CB Scheme, EN, FCC, IEC, TUV, UL |
|
|
VOF-180-12AC/DC CONVERTER 12V 120W |
0 |
|
برگه مشخصات |
VOF-180 (180W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 10 A | - | - | - | - | - | 120W (180W Forced Air) | ITE (Commercial) | 3 kV | 88% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
