مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM12S050-TAC/DC CONVERTER 5V 10W |
39 |
|
برگه مشخصات |
CFM12S (12W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | Household Appliances, ITE (Commercial) | 3 kV | 80% | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.15" L x 1.00" W x 0.68" H (54.6mm x 25.4mm x 17.3mm) | CE, cURus, FCC, Nemko |
|
GB20S15K01AC/DC CONVERTER 15V 18W |
56 |
|
برگه مشخصات |
GB20S (20W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 1.2 A | - | - | - | - | - | 18W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.38" L x 1.60" W x 1.00" H (85.9mm x 40.6mm x 25.4mm) | CE, cURus, UL |
|
RAC05-15SK/277/WAC/DC CONVERTER 15V 5W |
73 |
|
برگه مشخصات |
POWERLINE RAC05-K/277 (5W) | Tray | Active | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 330 mA | - | - | - | - | - | 5W | Household Appliances, ITE (Commercial) | 3 kV | 83% | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 1.25" L x 1.05" W x 0.86" H (31.7mm x 26.7mm x 21.8mm) | CB, CE, cURus |
|
LRS-35-48AC/DC CONVERTER 48V 38W |
33 |
|
برگه مشخصات |
LRS-35 (35W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 800 mA | - | - | - | - | - | 38W | Household Appliances, ITE (Commercial) | 4 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CB, CCC, CE, cURus, TUV |
|
LRS-50-36AC/DC CONVERTER 36V 52W |
19 |
|
برگه مشخصات |
LRS-50 (50W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 36V | - | - | - | - | - | 1.45 A | - | - | - | - | - | 52W | Household Appliances, ITE (Commercial) | 4 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CB, CCC, CE, cURus, TUV |
|
RS-50-48AC/DC CONVERTER 48V 53W |
11 |
|
برگه مشخصات |
RS-50 (50W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 125 ~ 373 VDC | 48V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 53W | ITE (Commercial) | 3 kV | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) | CB, CCC, CE, cURus, EAC, TUV |
|
EPS-35-36AC/DC CONVERTER 36V 36W |
81 |
|
برگه مشخصات |
EPS-35 (35W) | Tray | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 1 A | - | - | - | - | - | 36W | ITE (Commercial) | 3 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 24.0mm) | CB, CE, cURus, TUV |
|
RAC20-12SK/W20W AC/DC-CONVERTER 'POWERLINE' |
64 |
|
برگه مشخصات |
POWERLINE RAC20-K | Tray | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | - | - | - | - | - | - | - | Household Appliances, ITE (Commercial) | 4 kV | - | -40°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 2.07" L x 1.08" W x 0.91" H (52.5mm x 27.4mm x 23.0mm) | CE, cURus |
.jpg)
|
GTM43007-A4509-F(R)AC/DC CONVERTER 9V 45W |
76 |
|
برگه مشخصات |
GTM43007-A4509-F | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 9V | - | - | - | - | - | 5 A | - | - | - | - | - | 45W | Household Appliances, ITE (Commercial), Medical | 4 kV | 89% | -10°C ~ 45°C | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.93" H (76.2mm x 50.8mm x 23.6mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO, VCCI |
.jpg)
|

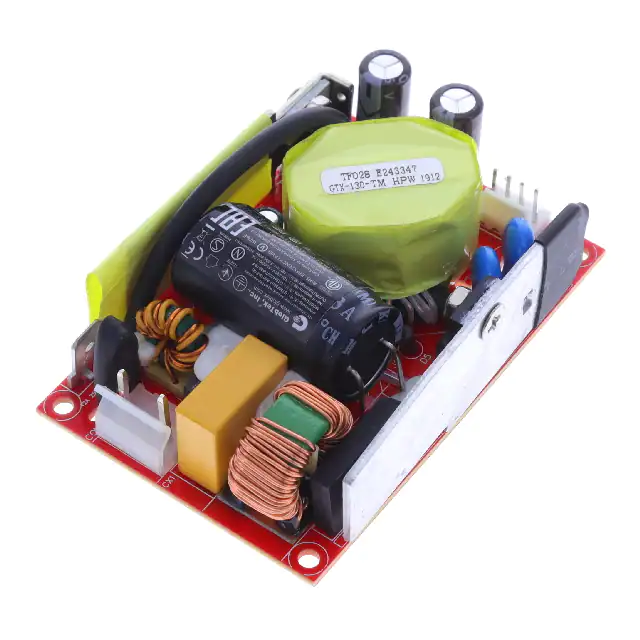

GTM43007-A6018-F(R)AC/DC CONVERTER 18V 60W |
50 |
|
برگه مشخصات |
GTM43007-A6018-F | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 18V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial), Medical | 4 kV | 89% | -10°C ~ 45°C | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.89" H (76.2mm x 50.8mm x 22.5mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO, VCCI |
.jpg)
|
GTM43007-A3005-FW(R)AC/DC CONVERTER 5V 30W |
76 |
|
برگه مشخصات |
GTM43007-AWWVV-FW | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | 89% | -10°C ~ 45°C | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.93" H (76.2mm x 50.8mm x 23.6mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO |
.jpg)
|
GTM43007-A6019-FW(R)AC/DC CONVERTER 19V 60W |
62 |
|
برگه مشخصات |
GTM43007-AWWVV-FW | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 19V | - | - | - | - | - | 3.15 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial), Medical | 4 kV | 89% | -10°C ~ 45°C | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.89" H (76.2mm x 50.8mm x 22.5mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO |
|
CFM21S120-TAC/DC CONVERTER 12V 20W |
11 |
|
برگه مشخصات |
CFM21 (20W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 20W | Household Appliances, ITE (Commercial) | 5.656 kV | 83% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 1.60" W x 0.77" H (76.2mm x 40.6mm x 19.5mm) | CE, cURus, TUV |
|
|
GTM43007-A6015-FW(R)AC/DC CONVERTER 15V 60W |
82 |
|
برگه مشخصات |
GTM43007-AWWVV-FW | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial), Medical | 4 kV | 89% | -10°C ~ 45°C | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.89" H (76.2mm x 50.8mm x 22.5mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO |
|
|
RS-50-3.3AC/DC CONVERTER 3.3V 33W |
45 |
|
برگه مشخصات |
RS-50 (50W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 125 ~ 373 VDC | 3.3V | - | - | - | - | - | 10 A | - | - | - | - | - | 33W | ITE (Commercial) | 3 kV | 78% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) | CB, CCC, CE, cURus, EAC, TUV |
|
PMT-12V50W2BAAC/DC CONVERTER 12V 50W |
14 |
|
برگه مشخصات |
PMT2 (50W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 50W | Household Appliances, ITE (Commercial) | 3.75 kV | 86% | -30°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CB, CCC, CE, cTUVus, TUV |
|
EPS-65-36AC/DC CONVERTER 36V 65W |
43 |
|
برگه مشخصات |
EPS-65 (65W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 36V | - | - | - | - | - | 1.81 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | CB, CE, cURus, TUV |
|
EPS-65S-15AC/DC CONVERTER 15V 65W |
85 |
|
برگه مشخصات |
EPS-65S (65W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 4.34 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 24.0mm) | CB, CE, cURus, TUV |
|

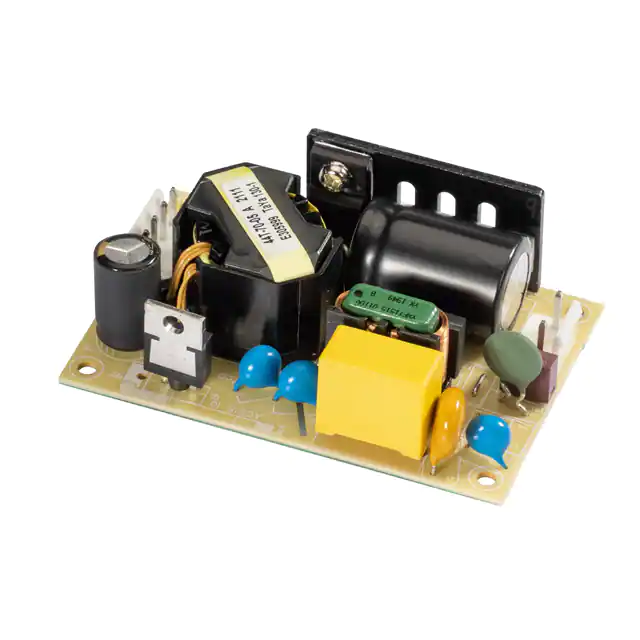

CFM50S120AC/DC CONVERTER 12V 50W |
28 |
|
برگه مشخصات |
CFM50S (50W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 50W | Household Appliances, ITE (Commercial) | 3 kV | 87% | -30°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.07" H (76.2mm x 50.8mm x 27.1mm) | CE, cURus, FCC |
|
RS-75-48AC/DC CONVERTER 48V 77W |
33 |
|
برگه مشخصات |
RS-75 (75W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 125 ~ 373 VDC | 48V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 77W | ITE (Commercial) | 3 kV | 89.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.50" H (129.0mm x 97.0mm x 38.0mm) | CB, CE, cURus, TUV |
