مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPI 180-153-MAC/DC CONVERTER 53V 150W |
4 |
|
برگه مشخصات |
TPI 180-M (180W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 53V | - | - | - | - | - | 3.4 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial) | 3 kV | 93% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.60" L x 2.44" W x 1.75" H (91.4mm x 62.0mm x 44.5mm) | CB, CE, cURus, EAC, UKCA |
|

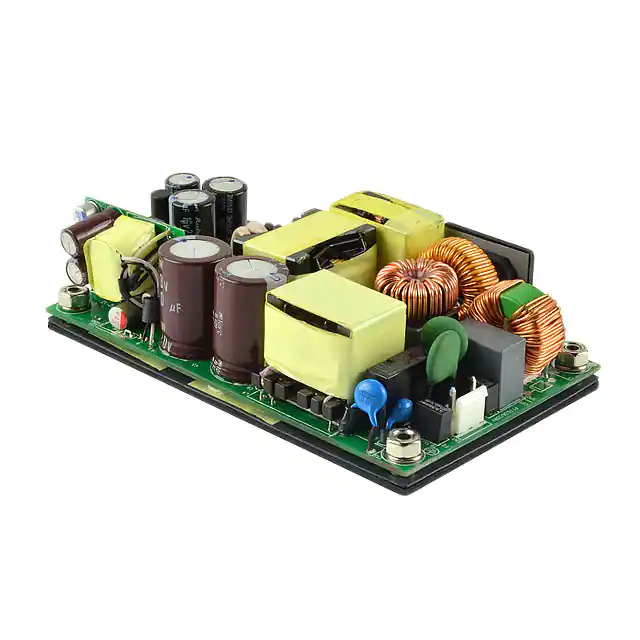

VMS-300A-12AC/DC CONVERTER 12V 200W |
0 |
|
برگه مشخصات |
VMS-300A (300W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 16.67 A | - | - | - | - | - | 200W (300W Forced Air) | Medical | 4 kV | 92.5% | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.1mm) | CB Scheme, EN, IEC, TUV, UL |
|

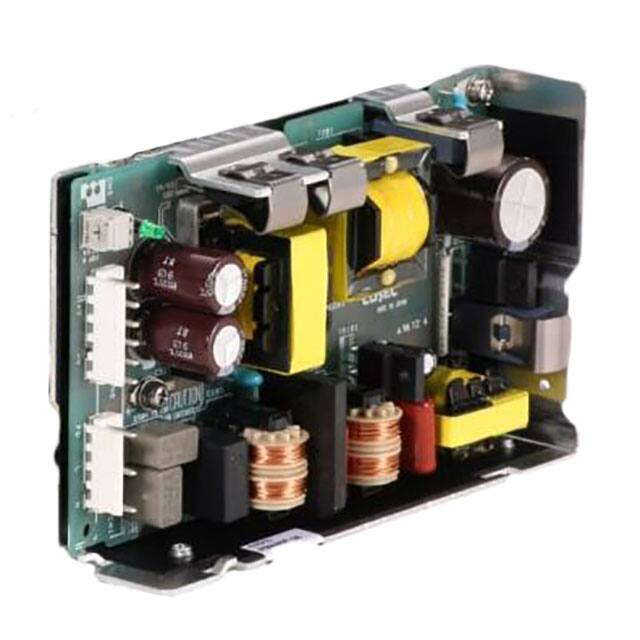

PMA60F-3R3AC/DC CONVERTER 3.3V |
3 |
|
برگه مشخصات |
PMA (60W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 12 A | - | - | - | - | - | - | Medical | 2 kV | 78% | -10°C ~ 70°C | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) | CE, cURus, TUV |
|

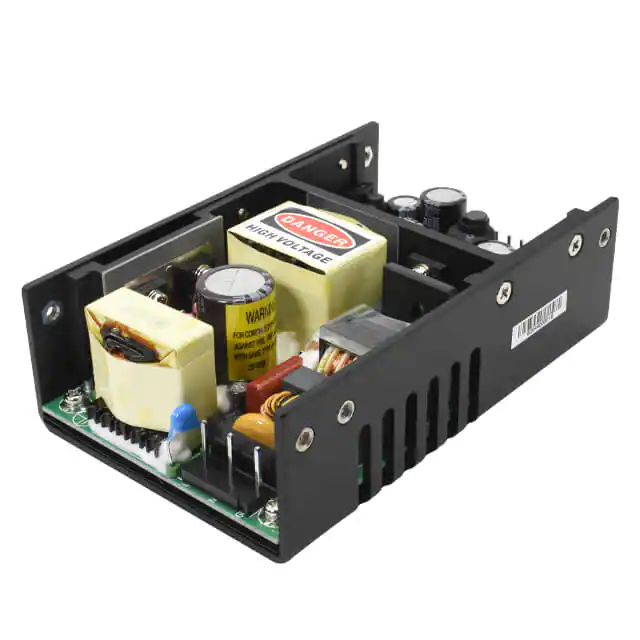

VSUU-120C-T512AAC/DC CONVERTER 5V +/-12V 157W |
24 |
|
برگه مشخصات |
VSUU-120C-T (120W) | Box | Active | Open Frame | 3 | 90 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 15 A | 6 A | 800 mA | - | - | - | 157W | ITE (Commercial) | 4.242 kV | 80% | 0°C ~ 70°C (With Derating) | PFC | Chassis Mount | 5.00" L x 3.21" W x 1.54" H (127.0mm x 81.5mm x 39.1mm) | CE, cURus |
|

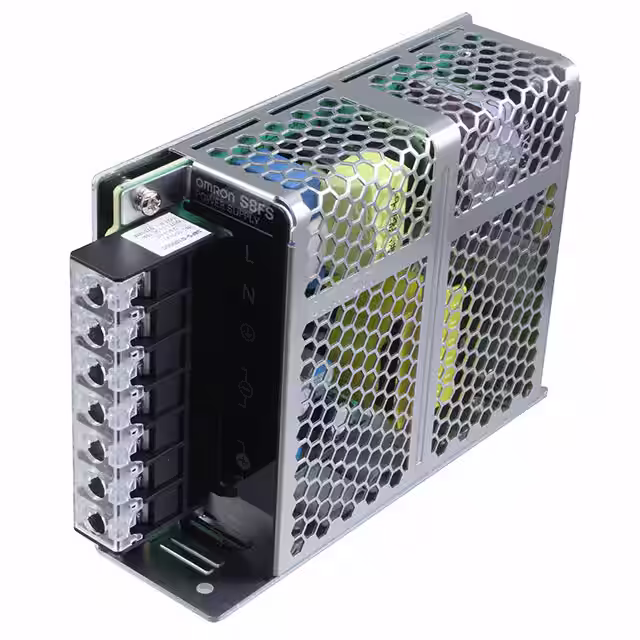

S8FS-G10005CAC/DC CONVERTER 5V 80W |
2 |
|
برگه مشخصات |
S8FS-G (100W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 16 A | - | - | - | - | - | 80W | Industrial, ITE (Commercial) | 3 kV | 81% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 1.50" W x 3.82" H (129.0mm x 38.0mm x 97.0mm) | CE, cURus, TUV, UL |
|
ULP275-1315AC/DC CONVERTER 15V 160W |
21 |
|
برگه مشخصات |
ULP275 (275W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 15V | - | - | - | - | - | 10.66 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | 88% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB, CE, cUL, NEMKO, UL |
|
|
TPI 180-124-MAC/DC CONVERTER 24V 150W |
14 |
|
برگه مشخصات |
TPI 180-M (180W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial) | 3 kV | 94% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.60" L x 2.44" W x 1.75" H (91.4mm x 62.0mm x 44.5mm) | CB, CE, cURus, EAC, UKCA |
|
|
TPI 180-112-MAC/DC CONVERTER 12V 150W |
12 |
|
برگه مشخصات |
TPI 180-M (180W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 15 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial) | 3 kV | 92% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.60" L x 2.44" W x 1.75" H (91.4mm x 62.0mm x 44.5mm) | CB, CE, cURus, EAC, UKCA |
|
PMA60F-5-NAC/DC CONVERTER 5V |
3 |
|
برگه مشخصات |
PMA (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 12 A | - | - | - | - | - | - | Medical | 2 kV | 83% | -10°C ~ 70°C | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) | CE, cURus, TUV |
|
|
PMA60F-12-NAC/DC CONVERTER 12V |
2 |
|
برگه مشخصات |
PMA (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | - | Medical | 2 kV | 82% | -10°C ~ 70°C | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) | CE, cURus, TUV |
|
CLP0212FPEX5Z01CAC/DC CONVERTER 12V 200W |
13 |
|
برگه مشخصات |
CLP0212 (200W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | 89.5% | -40°C ~ 70°C (With Derating) | 80 Plus® Gold, Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.0mm) | - |
|
TPP 180-136-MAC/DC CONVERTER 36V 150W |
19 |
|
برگه مشخصات |
TPP 180-M (180W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 5 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.60" L x 2.44" W x 1.75" H (91.4mm x 62.0mm x 44.5mm) | CB, CE, cURus, EAC, UKCA |
|
CUS250M-24AC/DC CONVERTER 24V 250W |
2 |
|
برگه مشخصات |
CUS250M (250W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 10.41 A | - | - | - | - | - | 250W | ITE (Commercial), Laboratory, Medical | 4 kV | 94% | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.56" H (101.6mm x 50.8mm x 39.5mm) | CE, UKCA |
|
|
CUS250M-12AC/DC CONVERTER 12V 250W |
2 |
|
برگه مشخصات |
CUS250M (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 250W | ITE (Commercial), Laboratory, Medical | 4 kV | 94% | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.56" H (101.6mm x 50.8mm x 39.5mm) | CE, UKCA |
|

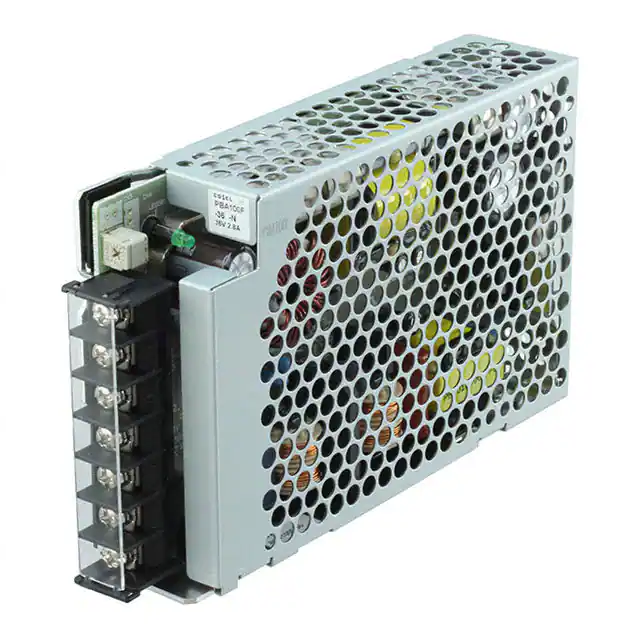

PBA100F-12-NAC/DC CONVERTER 12V 100W |
18 |
|
برگه مشخصات |
PBA (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 100W | ITE (Commercial) | - | 83% | - | DC Input Capable, Universal Input | Chassis Mount | - | CE, cURus, TUV |
|

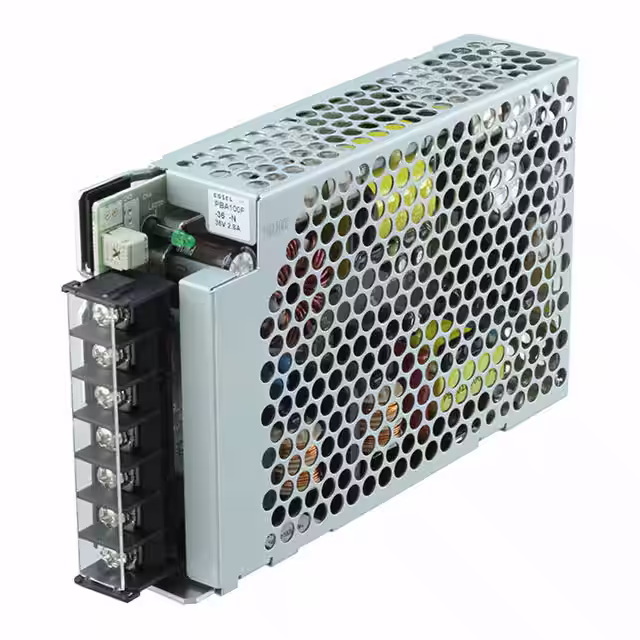

PBA100F-15-NAC/DC CONVERTER 15V 100W |
2 |
|
برگه مشخصات |
PBA (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 100W | ITE (Commercial) | - | 86% | - | DC Input Capable, Universal Input | Chassis Mount | - | CE, cURus, TUV |
|
SMP350PS36AC/DC CONVERTER 36V 349W |
7 |
|
برگه مشخصات |
SMP350 (350W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 9.7 A | - | - | - | - | - | 349W | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 70°C (With Derating) | Remote On/Off | Chassis Mount | 7.00" L x 3.60" W x 1.70" H (177.8mm x 91.4mm x 43.2mm) | CB, CE, TUV, UL |
|
|
TPP 180-115-MAC/DC CONVERTER 15V 150W |
16 |
|
برگه مشخصات |
TPP 180-M (180W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 12 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial), Medical | 4 kV | 92% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.60" L x 2.44" W x 1.75" H (91.4mm x 62.0mm x 44.5mm) | CB, CE, cURus, EAC, UKCA |
|
LMA240F-24-YAC/DC CONVERTER 24V |
4 |
|
برگه مشخصات |
LMA (240W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | - | Medical | 2 kV | 88% | -10°C ~ 70°C | - | Chassis Mount | 7.09" L x 3.31" W x 1.81" H (180.1mm x 84.1mm x 46.0mm) | CE, cURus |
|

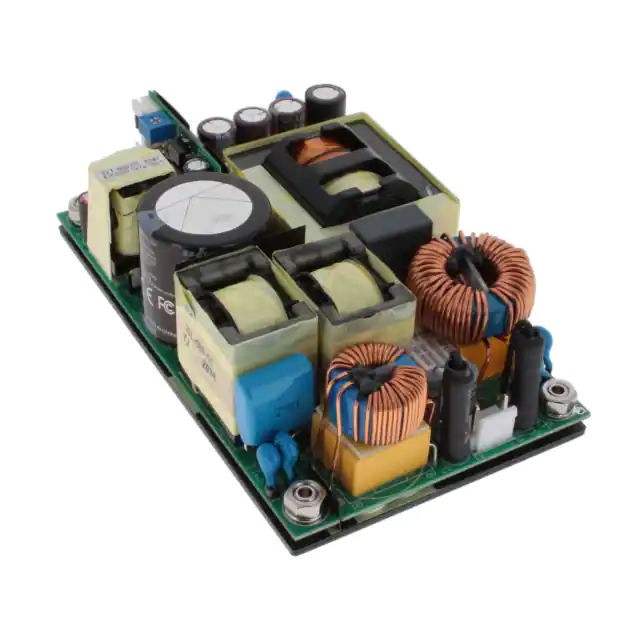

CFM500M480AC/DC CONVERTER 48V 320W |
25 |
|
برگه مشخصات |
CFM500M (500W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 320W (500W Forced Air) | Household Appliances, Medical | 4 kV | 94% | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 76.2mm x 39.1mm) | ANSI/AAMI, ES, IEC |
