مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P39-3TAC-DC POWER MODULE 5VDC OUTPUT |
4 |
|
برگه مشخصات |
P3 | Bulk | Active | Enclosed | 1 | 105 ~ 125 VAC | 3V | - | - | - | - | - | 3 A | - | - | - | - | - | - | ITE (Commercial) | - | - | -25°C ~ 71°C | - | Chassis Mount | 4.10" L x 2.50" W x 2.00" H (104.1mm x 63.5mm x 50.8mm) | CE, cURus, UL |
|
GHA500F-12AC/DC CONVERTER 12V 150W |
16 |
|
برگه مشخصات |
GHA (500W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W (500W Forced Air) | ITE (Commercial), Medical | 4 kV | 89% | -20°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) | CE, cURus, DEMKO |
|
VPS1000-1048AC/DC CONVERTER 48V 1000W |
5 |
|
برگه مشخصات |
VPS1000 (1000W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 390 VDC | 48V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 1000W | ITE (Commercial) | 4 kV | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.51" L x 5.00" W x 1.61" H (241.5mm x 127.0mm x 41.0mm) | CB, CE, cUL, NEMKO, UL |
|

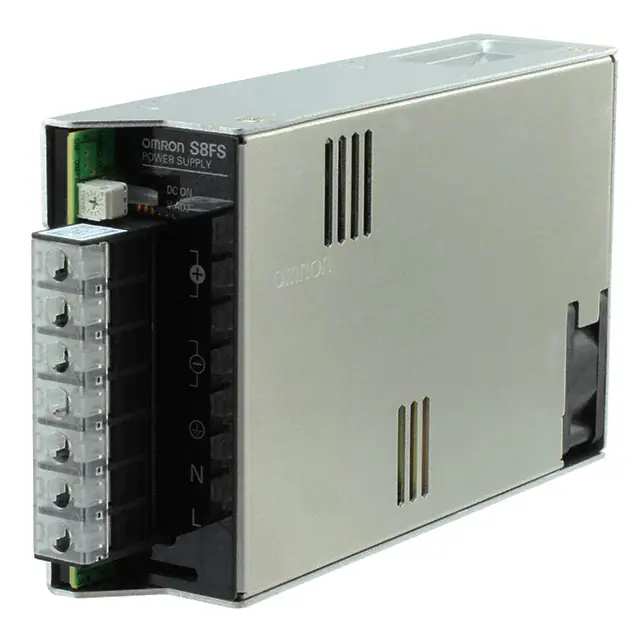

S8FS-G30024CAC/DC CONVERTER 24V 300W |
10 |
|
برگه مشخصات |
S8FS-G (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 14 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 6.69" L x 4.02" W x 1.61" H (170.0mm x 102.0mm x 41.0mm) | CE, cURus, TUV, UL |
|
|
GHA500F-12-R3AC/DC CONVERTER 12V 150W |
3 |
|
برگه مشخصات |
GHA (500W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W (500W Forced Air) | ITE (Commercial), Medical | 4 kV | 89% | -20°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) | CE, cURus, DEMKO |
|
CSS500-12AC/DC CONVERTER 12V 360W |
15 |
|
برگه مشخصات |
CSS500 (500W) | Bulk | Not For New Designs | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 30 A | - | - | - | - | - | 360W (500W Forced Air) | Medical | 4 kV | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.00" L x 4.70" W x 1.63" H (228.6mm x 119.4mm x 41.4mm) | CE |
|
|
CSS500-36AC/DC CONVERTER 36V 360W |
4 |
|
برگه مشخصات |
CSS500 (500W) | Bulk | Not For New Designs | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 10 A | - | - | - | - | - | 360W (500W Forced Air) | Medical | 4 kV | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.00" L x 4.70" W x 1.63" H (228.6mm x 119.4mm x 41.4mm) | CE |
|
|
CSS500-48AC/DC CONVERTER 48V 360W |
2 |
|
برگه مشخصات |
CSS500 (500W) | Bulk | Not For New Designs | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 360W (500W Forced Air) | Medical | 4 kV | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.00" L x 4.70" W x 1.63" H (228.6mm x 119.4mm x 41.4mm) | CE |
|
PCA300F-32AC/DC CONVERTER 32V 320W |
5 |
|
برگه مشخصات |
PCA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 88 ~ 370 VDC | 32V | - | - | - | - | - | 10 A | - | - | - | - | - | 320W | ITE (Commercial), Medical | 4 kV | 91% | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) | CE, CSA, cURus, D-Mark, UL |
|
EMH350PS24-01AC/DC CONVERTER 24V 350W |
6 |
|
برگه مشخصات |
EMH (350W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | 4 kV | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) | CB, CE, TUV, UL |
|
FSP500-70MPEAC/DC CNVT 3.3V 5V 2X12V 2X-5V |
8 |
|
برگه مشخصات |
MPE (500W) | Box | Active | ATX | 6 | 90 ~ 264 VAC | 3.3V | 5V | 12V | 12V | -5V | -5V | 32 A | 30 A | 18 A | 18 A | 200 mA | 800 mA | 698W | ITE (Commercial), Medical | - | 78% | 0°C ~ 50°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 5.91" L x 5.51" W x 3.39" H (150.0mm x 140.0mm x 86.0mm) | CE, cURus, FCC, TUV, VCCI |
|
CCB250PS48AC/DC CONVERTER 48V 250W |
19 |
|
برگه مشخصات |
CCB250 (250W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC | 48V | - | - | - | - | - | 5.2 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | 95% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | CB, TUV, UL |
|
GSP750PS12-EFAC/DC CONVERTER 12V 750W |
16 |
|
برگه مشخصات |
GSP750 (750W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 62.5 A | - | - | - | - | - | 750W | ITE (Commercial), Medical | 4 kV | - | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.00" L x 4.00" W x 1.65" H (254.0mm x 101.6mm x 41.9mm) | CB, CE |
|
EVS36-16R7AC/DC CONVERTER 36V 600W |
8 |
|
برگه مشخصات |
EVS (300/600W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.48" L x 4.72" W x 2.40" H (190.0mm x 120.0mm x 61.0mm) | CE |
|
|
EVS57-10R6AC/DC CONVERTER 57V 600W |
2 |
|
برگه مشخصات |
EVS (300/600W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 57V | - | - | - | - | - | 10.6 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.48" L x 4.72" W x 2.40" H (190.0mm x 120.0mm x 61.0mm) | CE |
|
FSP500-50RDBAC/DC CNVRTR 3.3V 5V +/-12V 672W |
14 |
|
برگه مشخصات |
FSP500-50RDB (500W) | Box | Active | Front End | 4 | 90 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 20 A | 20 A | 41.67 A | 500 mA | - | - | 672W | ITE (Commercial) | - | 80% | 0°C ~ 50°C | Hot Swappable, Standby Output, Universal Input | Rack Mount | 10.24" L x 4.17" W x 1.62" H (260.0mm x 106.0mm x 41.3mm) | CB, CE, cULus, FCC, GS, TUV |
|
TXLN 750-148AC/DC CONVERTER 48V 758W |
12 |
|
برگه مشخصات |
TXLN 750 (750W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 375 VDC | 48V | - | - | - | - | - | 15.8 A | - | - | - | - | - | 758W | ITE (Commercial) | 3 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.83" L x 4.92" W x 2.48" H (275.0mm x 125.0mm x 63.0mm) | CB, CE, cURus |
|
|
TXLN 750-112AC/DC CONVERTER 12V 750W |
9 |
|
برگه مشخصات |
TXLN 750 (750W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 375 VDC | 12V | - | - | - | - | - | 62.5 A | - | - | - | - | - | 750W | ITE (Commercial) | 3 kV | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.83" L x 4.92" W x 2.48" H (275.0mm x 125.0mm x 63.0mm) | CB, CE, cURus |
|
PBA300F-12AC/DC CONVERTER 12V 300W |
4 |
|
برگه مشخصات |
PBA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 27 A | - | - | - | - | - | 300W | ITE (Commercial) | - | 81% | - | DC Input Capable, Universal Input | Chassis Mount | - | CE, cURus, TUV |
|
PJA1000F-48AC/DC CONVERTER 48V 1000W |
23 |
|
برگه مشخصات |
PJA (1000W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 21 A | - | - | - | - | - | 1000W | ITE (Commercial) | 3 kV | 88% | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 9.45" L x 5.91" W x 2.40" H (240.0mm x 150.1mm x 61.0mm) | CE, CSA, cURus, DEMKO, UL |
