مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM130S120AC/DC CONVERTER 12V 100W |
0 |
|
برگه مشخصات |
CFM130S (130W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 8.34 A | - | - | - | - | - | 100W (130W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | 93% | -30°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.20" H (76.2mm x 50.8mm x 30.5mm) | CE, cURus, DEMKO, FCC |
|
TXLN 060-103AC/DC CONVERTER 3.3V 40W |
7 |
|
برگه مشخصات |
TXLN 060 (60W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 125 ~ 375 VDC | 3.3V | - | - | - | - | - | 12 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | 72% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.38" H (99.0mm x 82.0mm x 35.0mm) | CB, CE, cURus |
|
VOF-130-48-BPAC/DC CONVERTER 48V 130W |
16 |
|
برگه مشخصات |
VOF-130-BP (130W) | Tray | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 130W | ITE (Commercial) | 3 kV | 94% | -30°C ~ 70°C (With Derating) | Baseplate, PFC | Chassis Mount | 3.60" L x 2.00" W x 1.30" H (91.4mm x 50.8mm x 33.0mm) | CE, cURus, UKCA |
|
|
VOF-130-36-BPAC/DC CONVERTER 36V 130W |
16 |
|
برگه مشخصات |
VOF-130-BP (130W) | Tray | Active | Open Frame | 1 | 80 ~ 264 VAC | 36V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 130W | ITE (Commercial) | 3 kV | 94% | -30°C ~ 70°C (With Derating) | Baseplate, PFC | Chassis Mount | 3.60" L x 2.00" W x 1.30" H (91.4mm x 50.8mm x 33.0mm) | CE, cURus, UKCA |
|
|
VOF-130-12-BPAC/DC CONVERTER 12V 130W |
14 |
|
برگه مشخصات |
VOF-130-BP (130W) | Tray | Active | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 10.8 A | - | - | - | - | - | 130W | ITE (Commercial) | 3 kV | 93% | -30°C ~ 70°C (With Derating) | Baseplate, PFC | Chassis Mount | 3.60" L x 2.00" W x 1.30" H (91.4mm x 50.8mm x 33.0mm) | CE, cURus, UKCA |
|
|
VOF-130-24-BPAC/DC CONVERTER 24V 130W |
13 |
|
برگه مشخصات |
VOF-130-BP (130W) | Tray | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 5.4 A | - | - | - | - | - | 130W | ITE (Commercial) | 3 kV | 93% | -30°C ~ 70°C (With Derating) | Baseplate, PFC | Chassis Mount | 3.60" L x 2.00" W x 1.30" H (91.4mm x 50.8mm x 33.0mm) | CE, cURus, UKCA |
|
VMS-130-48AC/DC CONVERTER 48V 130W |
25 |
|
برگه مشخصات |
VMS-130 (130W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 130W | Medical | 4 kV | 94% | -30°C ~ 70°C (With Derating) | PFC | Chassis Mount | 3.00" L x 2.00" W x 1.20" H (76.2mm x 50.8mm x 30.5mm) | CE, cURus, UKCA |
|
|
VMS-130-36AC/DC CONVERTER 36V 130W |
23 |
|
برگه مشخصات |
VMS-130 (130W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 36V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 130W | Medical | 4 kV | 94% | -30°C ~ 70°C (With Derating) | PFC | Chassis Mount | 3.00" L x 2.00" W x 1.20" H (76.2mm x 50.8mm x 30.5mm) | CE, cURus, UKCA |
|

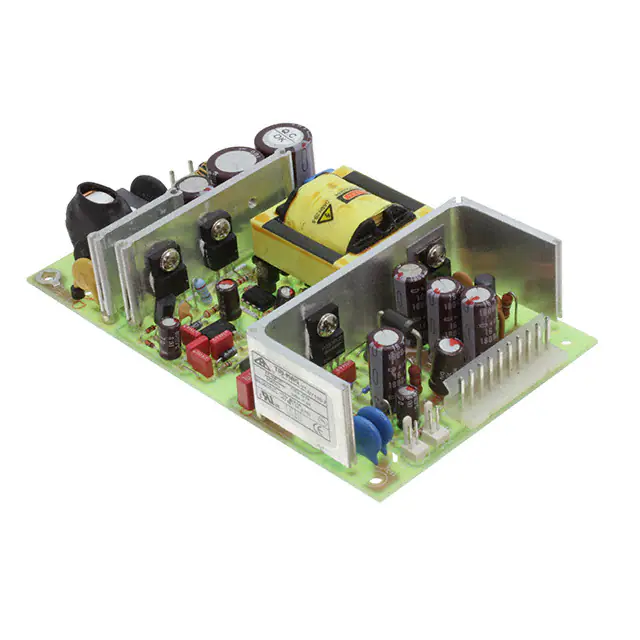

DY110-7AC/DC CONVERTER 12V 5V 110W |
5 |
|
برگه مشخصات |
Tri-Mag, DY110 (110W) | Box | Active | Open Frame | 2 | 90 ~ 264 VAC | 12V | 5V | - | - | - | - | 8.5 A | 1 A | - | - | - | - | 110W | ITE (Commercial) | - | - | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 6.00" L x 3.50" W x 1.42" H (152.4mm x 88.9mm x 36.1mm) | - |
|
LHA75F-36AC/DC CONVERTER 36V 76W |
20 |
|
برگه مشخصات |
LHA (75W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 76W | ITE (Commercial) | 3 kV | 89.5% | -10°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 5.91" L x 1.97" W x 0.93" H (150.1mm x 50.0mm x 23.6mm) | CE, cURus, DEMKO, UL |
|

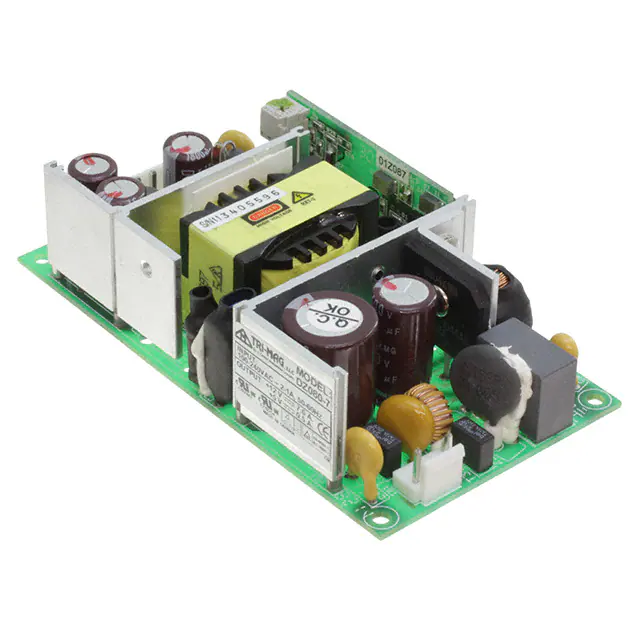

DZ080-7AC/DC CONVERTER 12V 5V 85W |
2 |
|
برگه مشخصات |
Tri-Mag, DZ080 (85W) | Box | Active | Open Frame | 2 | 90 ~ 264 VAC | 12V | 5V | - | - | - | - | 6.5 A | 500 mA | - | - | - | - | 85W | ITE (Commercial) | - | 82% | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.18" H (114.3mm x 63.5mm x 30.0mm) | - |
|
CSS65A-54AC/DC CONVERTER 54V 65W |
8 |
|
برگه مشخصات |
CSS65A (65W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 54V | - | - | - | - | - | 1.21 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | 89% | 0°C ~ 70°C (With Derating) | Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CE |
|
|
CSS65A-48AC/DC CONVERTER 48V 65W |
4 |
|
برگه مشخصات |
CSS65A (65W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.36 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | 89% | 0°C ~ 70°C (With Derating) | Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CE |
|
VOF-130-48-CNFAC/DC CONVERTER 48V 130W |
21 |
|
برگه مشخصات |
VOF-130-CNF(130W) | Tray | Active | Enclosed | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 130W | ITE (Commercial) | 3 kV | 94% | -30°C ~ 70°C (With Derating) | PFC | Chassis Mount | 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm) | CE, cURus, UKCA |
|
|
VOF-130-12-CNFAC/DC CONVERTER 12V 130W |
3 |
|
برگه مشخصات |
VOF-130-CNF(130W) | Tray | Active | Enclosed | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 10.8 A | - | - | - | - | - | 130W | ITE (Commercial) | 3 kV | 93% | -30°C ~ 70°C (With Derating) | PFC | Chassis Mount | 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm) | CE, cURus, UKCA |
|
LFA50F-48AC/DC CONVERTER 48V 50W |
18 |
|
برگه مشخصات |
LFA (50W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 50W | ITE (Commercial) | - | 82.5% | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - | CE, CSA, cURus, TUV, UL |
|

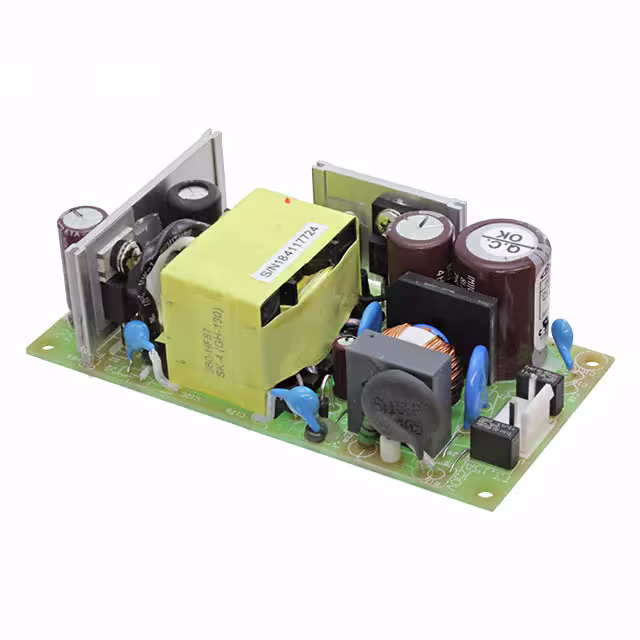

DHF080-7AAC/DC CONVERTER 12V 80W |
5 |
|
برگه مشخصات |
Tri-Mag, DHF080 (80W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 6.66 A | - | - | - | - | - | 80W (100W Forced Air) | ITE (Commercial), Medical | - | 89% | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 4.01" L x 2.00" W x 1.12" H (101.9mm x 50.8mm x 28.5mm) | CB, CE |
|

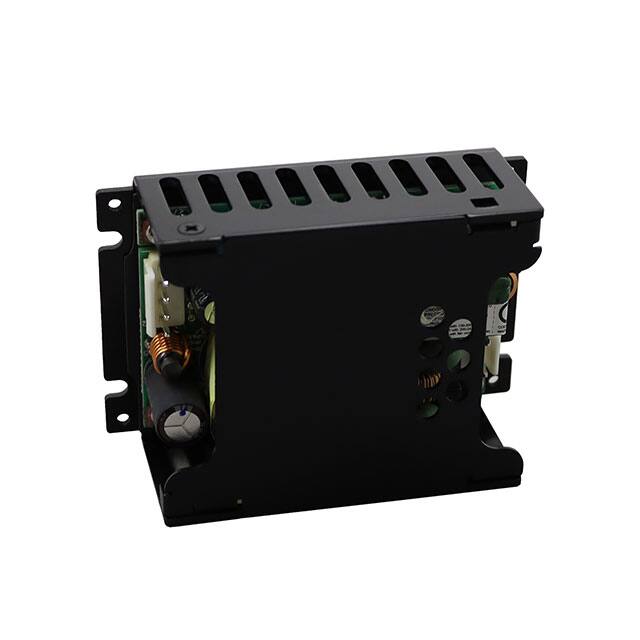

CFM130S480-CAC/DC CONVERTER 48V 101W |
9 |
|
برگه مشخصات |
CFM130S (130W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 101W (130W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | 94% | -30°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm) | CE, cURus, DEMKO, FCC |
|
|
LFA50F-24-YAC/DC CONVERTER 24V |
8 |
|
برگه مشخصات |
LFA (50W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | 83% | -10°C ~ 70°C | - | Chassis Mount | 5.20" L x 1.97" W x 1.04" H (132.1mm x 50.0mm x 26.4mm) | CE, CSA, cURus, TUV, UL |
|
PJA100F-48AC/DC CONVERTER 48V 100W |
9 |
|
برگه مشخصات |
PJA (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 89% | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.29" L x 1.61" W x 3.82" H (109.0mm x 40.9mm x 97.0mm) | CE, CSA, cURus, DEMKO, UL |
