مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM25-23B12-CAC/DC CONVERTER 12V 25W |
39 |
|
برگه مشخصات |
LM25-23Bxx-C (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 25W | ITE (Commercial) | 4 kV | 85% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) | CB, CCC, CE, UL |
|

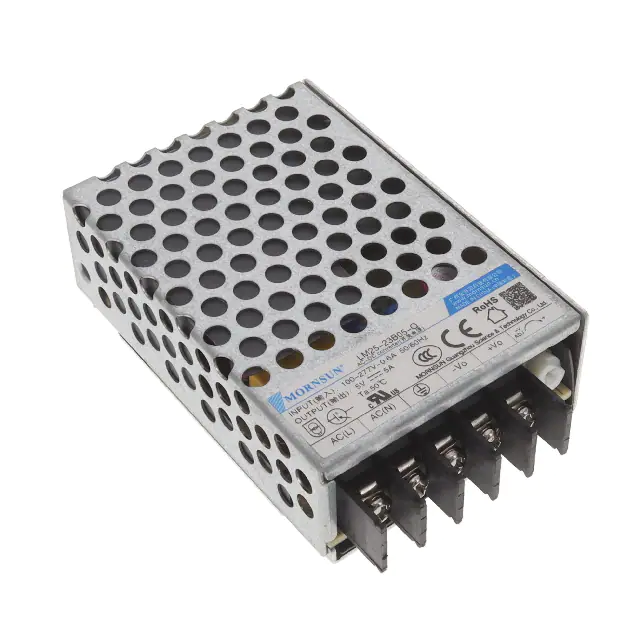

LM25-23B05-QAC/DC CONVERTER 5V 25W |
31 |
|
برگه مشخصات |
LM25-23Bxx-Q (25W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 5 A | - | - | - | - | - | 25W | ITE (Commercial) | 4 kV | 81% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) | CB, CCC, CE, UL |
|
LM25-23B12-QAC/DC CONVERTER 12V 25W |
14 |
|
برگه مشخصات |
LM25-23Bxx-Q (25W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 25W | ITE (Commercial) | 4 kV | 85% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) | CB, CCC, CE, UL |
|
VGS-25W-48AC/DC CONVERTER 48V 27W |
37 |
|
برگه مشخصات |
VGS-25W (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 48V | - | - | - | - | - | 570 mA | - | - | - | - | - | 27W | ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) | CE, cURus, EN, IEC, UL |
|
|
VGS-25W-3AC/DC CONVERTER 3.3V 20W |
9 |
|
برگه مشخصات |
VGS-25W (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 20W | ITE (Commercial) | 4 kV | 78% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) | CE, cURus, UL |
|
|
VGS-25W-15AC/DC CONVERTER 15V 26W |
7 |
|
برگه مشخصات |
VGS-25W (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 26W | ITE (Commercial) | 4 kV | 86% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) | CE, cURus, EN, IEC, UL |
|
LCS50US48AC/DC CONVERTER 48V 53W |
28 |
|
برگه مشخصات |
LCS50 (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 48V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 53W | Household Appliances, ITE (Commercial), Industrial | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CE, TUV, UL |
|
|
LCS50US15AC/DC CONVERTER 15V 51W |
21 |
|
برگه مشخصات |
LCS50 (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 15V | - | - | - | - | - | 3.4 A | - | - | - | - | - | 51W | Household Appliances, ITE (Commercial), Industrial | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CE, TUV, UL |
|
|
LCS50US05AC/DC CONVERTER 5V 50W |
13 |
|
برگه مشخصات |
LCS50 (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | Household Appliances, ITE (Commercial), Industrial | 4 kV | 82% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CE, TUV, UL |
|
LO45-10B09AC/DC CONVERTER 9V 40W |
18 |
|
برگه مشخصات |
LO45-10Bxx (45W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 9V | - | - | - | - | - | 4.44 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | 84% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | CB, CE, cURus |
|
VGS-35C-24AC/DC CONVERTER 24V 36W |
46 |
|
برگه مشخصات |
VGS-35C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 24V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CE, cURus |
|
LM25-23B03-QAC/DC CONVERTER 3.3V 20W |
39 |
|
برگه مشخصات |
LM25-23Bxx-Q (25W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 20W | ITE (Commercial) | 4 kV | 78% | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) | CB, CCC, CE, UL |
|
|
LM25-23B03-CAC/DC CONVERTER 3.3V 20W |
6 |
|
برگه مشخصات |
LM25-23Bxx-C (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 20W | ITE (Commercial) | 4 kV | 78% | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) | CB, CCC, CE, UL |
|
|
30ACO_05S3OPEN FRAME AC DC CONVERTERS 1 OU |
72 |
|
برگه مشخصات |
30ACO_3 (30W) | Retail Package | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 5V | - | - | - | - | - | - | - | - | - | - | - | - | Household Appliances, ITE (Commercial) | 3 kV | 78% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) | CE, cURus, UL |
|
LM35-20B24-CAC/DC CONVERTER 24V 36W |
27 |
|
برگه مشخصات |
LM35-20Bxx-C (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CB, CCC, CE, cURus, UL |
|
LM35-23B24-CAC/DC CONVERTER 24V 36W |
18 |
|
برگه مشخصات |
LM35-23Bxx-C (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CB, CCC, CE, cURus, UL |
|
LM35-23B24-QAC/DC CONVERTER 24V 36W |
10 |
|
برگه مشخصات |
LM35-23Bxx-Q (35W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CB, CCC, CE, cURus, UL |
|
|
Switching Power Supply ALRS24V4R2ATAC/DC CONVERTER 24V 100W |
22 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | - | ITE (Commercial) | 1.5 kV | 83% | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.86" W x 1.50" H (159.0mm x 98.0mm x 38.0mm) | - |
|
|
30ACO_24S3OPEN FRAME AC DC CONVERTERS 1 OU |
70 |
|
برگه مشخصات |
30ACO_3 (30W) | Retail Package | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | - | - | - | - | - | - | - | Household Appliances, ITE (Commercial) | 3 kV | 87% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) | CE, cURus, UL |
|
|
30ACO_48S3OPEN FRAME AC DC CONVERTERS 1 OU |
69 |
|
برگه مشخصات |
30ACO_3 (30W) | Retail Package | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 48V | - | - | - | - | - | - | - | - | - | - | - | - | Household Appliances, ITE (Commercial) | 3 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) | CE, cURus, UL |
