مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

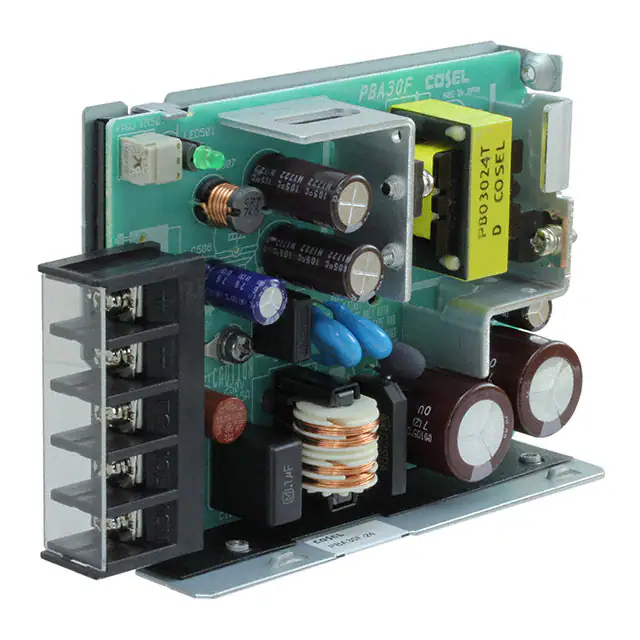

PBA30F-12AC/DC CONVERTER 12V 30W |
476 |
|
برگه مشخصات |
PBA (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial) | - | 78% | - | DC Input Capable, Universal Input | Chassis Mount | - | CE, cURus, TUV |
|
|
PBA30F-24AC/DC CONVERTER 24V 30W |
128 |
|
برگه مشخصات |
PBA (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 30W | ITE (Commercial) | - | 81% | - | DC Input Capable, Universal Input | Chassis Mount | - | CE, cURus, TUV |
|
ECS60US15AC/DC CONVERTER 15V 60W |
906 |
|
برگه مشخصات |
ECS (60W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) | CB |
|
CUT35-522/AAC/DC CONVERTER 5V +/-12V 35W |
50 |
|
برگه مشخصات |
CUT35 (35W) | Bulk | Active | Enclosed | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 3 A | 1.2 A | 850 mA | - | - | - | 35W | ITE (Commercial), Medical | 3 kV | 81% | -20°C ~ 60°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.92" L x 2.48" W x 1.42" H (125.0mm x 63.1mm x 36.0mm) | CE |
|
RACM30-12SER/WAC/DC CONVERTER 12V 30W |
103 |
|
برگه مشخصات |
MEDLINE RACM30-ER/W (30W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4.4 kV | 89% | -20°C ~ 70°C (With Derating) | IP68, Universal Input | Chassis Mount | 2.09" L x 2.00" W x 1.34" H (53.0mm x 51.0mm x 34.0mm) | CE |
|
CFM150S280AC/DC CONVERTER 28V 120W |
119 |
|
برگه مشخصات |
CFM150S (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 4.28 A | - | - | - | - | - | 120W | Household Appliances, ITE (Commercial) | 3 kV | 94% | -30°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 28.0mm) | CE, cURus, DEMKO, FCC |
|
|
CFM150S360AC/DC CONVERTER 36V 120W |
76 |
|
برگه مشخصات |
CFM150S (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 120W | Household Appliances, ITE (Commercial) | 3 kV | 94% | -30°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 28.0mm) | CE, cURus, DEMKO, FCC |
|
|
CFM150S480AC/DC CONVERTER 48V 120W |
40 |
|
برگه مشخصات |
CFM150S (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W | Household Appliances, ITE (Commercial) | 3 kV | 94% | -30°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 28.0mm) | CE, cURus, DEMKO, FCC |
|
|
CFM150S120AC/DC CONVERTER 12V 120W |
32 |
|
برگه مشخصات |
CFM150S (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 10 A | - | - | - | - | - | 120W | Household Appliances, ITE (Commercial) | 3 kV | 93% | -30°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 28.0mm) | CE, cURus, DEMKO, FCC |
|
RSP-200-36AC/DC CONVERTER 36V 200W |
122 |
|
برگه مشخصات |
RSP-200 (200W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 124 ~ 370 VDC | 36V | - | - | - | - | - | 5.56 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | CB, CCC, CE, cURus, TUV |
|

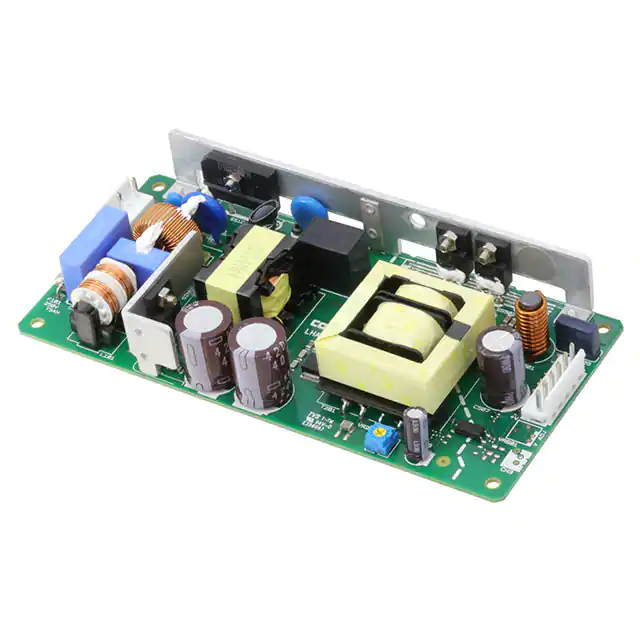

LHA150F-36AC/DC CONVERTER 36V 151W |
39 |
|
برگه مشخصات |
LHA (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 151W | ITE (Commercial) | 3 kV | 92.5% | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 6.30" L x 2.95" W x 0.93" H (160.0mm x 74.9mm x 23.6mm) | CE, cURus, DEMKO, TUV, UL |
|
CFM130S240AC/DC CONVERTER 24V 101W |
94 |
|
برگه مشخصات |
CFM130S (130W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 101W (130W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | 93% | -30°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.20" H (76.2mm x 50.8mm x 30.5mm) | CE, cURus, DEMKO, FCC |
|
|
RACM30-24SER/WAC/DC CONVERTER 24V 30W |
54 |
|
برگه مشخصات |
MEDLINE RACM30-ER/W (30W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4.4 kV | 89% | -20°C ~ 70°C (With Derating) | IP68, Universal Input | Chassis Mount | 2.09" L x 2.00" W x 1.34" H (53.0mm x 51.0mm x 34.0mm) | CE |
|
PSC-160B-CAC/DC CONVERTER 27.6V 27.6V 160W |
149 |
|
برگه مشخصات |
PSC-160 (160W) | Box | Active | Enclosed | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 27.6V | 27.6V | - | - | - | - | 3.8 A | 2 A | - | - | - | - | 160W | ITE (Commercial) | 3 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.12" L x 3.35" W x 1.46" H (155.4mm x 85.0mm x 37.0mm) | CB, CE, cURus, TUV |
|
LFWLT40-3000AC/DC CNVT 5.2V 12.5V -12.8V 63W |
222 |
|
برگه مشخصات |
WLT40 (40W) | Bulk | Active | Open Frame | 3 | 90 ~ 264 VAC | 5.2V | 12.5V | -12.8V | - | - | - | 6 A | 2 A | 500 mA | - | - | - | 63W | ITE (Commercial) | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CE, cUL, Nemko, UL |
|

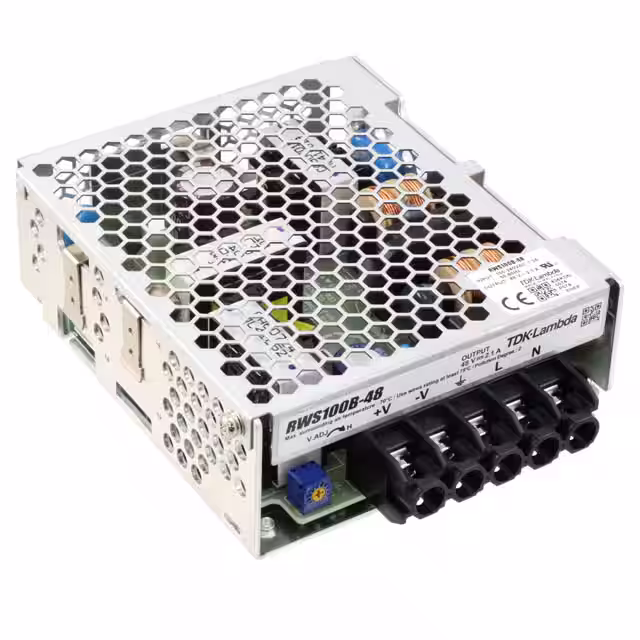

RWS100B-48AC/DC CONVERTER 48V 100W |
34 |
|
برگه مشخصات |
RWS-B (100W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.25" L x 3.70" W x 1.54" H (108.0mm x 94.0mm x 39.0mm) | CE |
|
RPS-160-12AC/DC CONVERTER 12V 109W |
72 |
|
برگه مشخصات |
RPS-160 (160W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 9.1 A | - | - | - | - | - | 109W (155W Forced Air) | Household Appliances, Medical | 4 kV | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.36" H (127.0mm x 76.2mm x 34.5mm) | CB, CE, cURus, TUV |
|
LHA75F-12AC/DC CONVERTER 12V 76W |
85 |
|
برگه مشخصات |
LHA (75W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 76W | ITE (Commercial) | 3 kV | 86.5% | -10°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 5.91" L x 1.97" W x 0.93" H (150.1mm x 50.0mm x 23.6mm) | CE, cURus, DEMKO, UL |
|
LHA75F-3R3-YAC/DC CONVERTER 3.3V 40W |
72 |
|
برگه مشخصات |
LHA (75W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 12 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | 75% | -10°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 5.91" L x 1.97" W x 0.93" H (150.1mm x 50.0mm x 23.6mm) | CE, cURus, DEMKO, UL |
|
|
LHA75F-24AC/DC CONVERTER 24V 77W |
47 |
|
برگه مشخصات |
LHA (75W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | ITE (Commercial) | 3 kV | 88% | -10°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 5.91" L x 1.97" W x 0.93" H (150.1mm x 50.0mm x 23.6mm) | CE, cURus, DEMKO, UL |
