مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPP 150-124A-JAC/DC CONVERTER 24V 150W |
145 |
|
برگه مشخصات |
TPP 150A-J (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 150W | ITE (Commercial), Medical | 4 kV | 92% | -25°C ~ 80°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.16" H (101.6mm x 50.8mm x 29.5mm) | CB, CE, cURus |
|

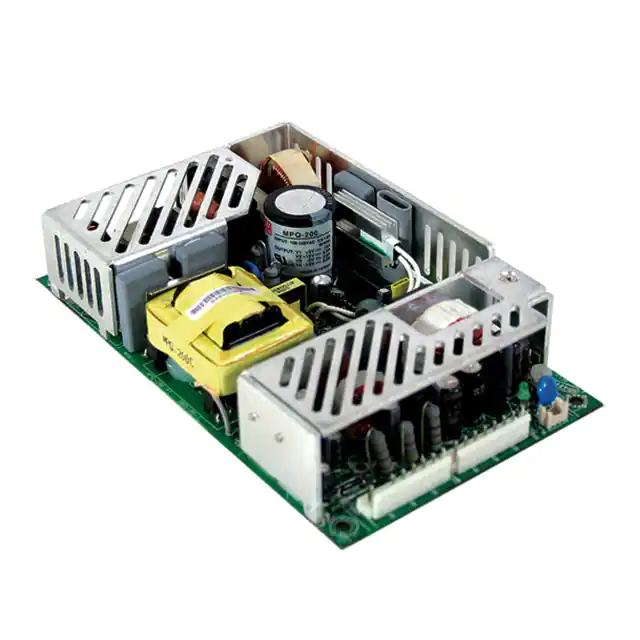

MPQ-200DAC/DC CNVRTR 5V 24V +/-12V 139W |
51 |
|
برگه مشخصات |
MPQ-200 (200W) | Box | Active | Open Frame | 4 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 24V | 12V | -12V | - | - | 12 A | 2.3 A | 1 A | 1 A | - | - | 139W (171W Forced Air) | Medical | 4 kV | 79% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.22" W x 1.40" H (177.8mm x 107.2mm x 35.6mm) | CB, CE, cURus, TUV |
|

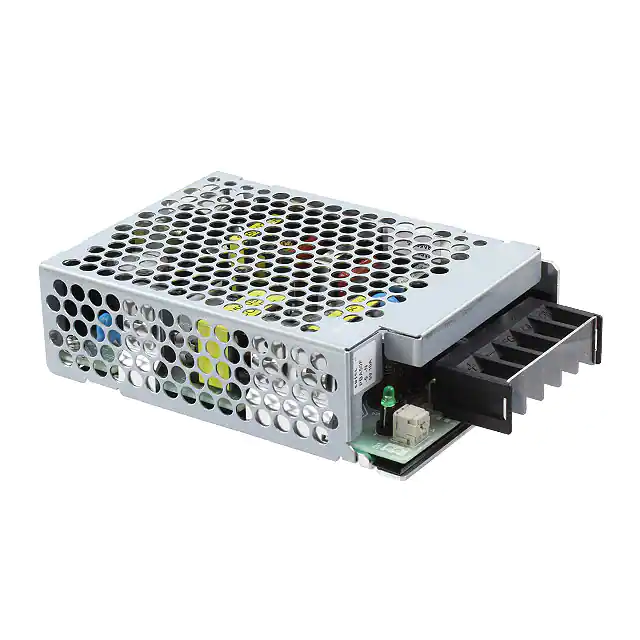

PBA50F-24-NAC/DC CONVERTER 24V 50W |
48 |
|
برگه مشخصات |
PBA (50W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 50W | ITE (Commercial) | - | 84% | - | DC Input Capable, Universal Input | Chassis Mount | - | CE, cURus, TUV |
|
SE-600-15AC/DC CONVERTER 15V 600W |
298 |
|
برگه مشخصات |
SE-600 (600W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | 15V | - | - | - | - | - | 40 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | 84% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 9.72" L x 5.00" W x 2.50" H (247.0mm x 127.0mm x 63.5mm) | cURus |
|
VSBU-120-36AC/DC CONVERTER 36V 120W |
40 |
|
برگه مشخصات |
VSBU-120 (120W) | Box | Not For New Designs | Open Frame | 1 | 90 ~ 260 VAC | 36V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 80% | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|

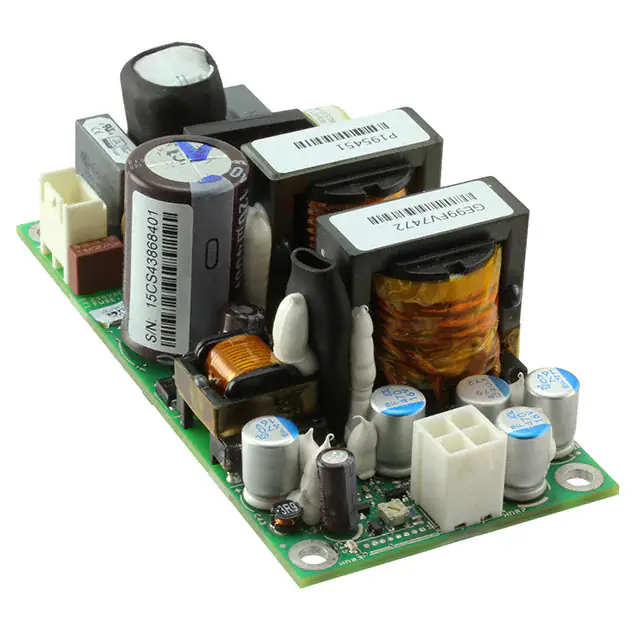

CLP0212FPEX5Z03CAC/DC CONVERTER 12V 200W |
58 |
|
برگه مشخصات |
CLP0212 (200W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | 89.5% | -40°C ~ 70°C (With Derating) | 80 Plus® Gold, Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.0mm) | - |
|
TXLN 200-112AC/DC CONVERTER 12V 200W |
35 |
|
برگه مشخصات |
TXLN 200 (200W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 375 VDC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | 86% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.35" L x 4.53" W x 1.18" H (212.0mm x 115.0mm x 30.0mm) | CB, CE, cURus |
|

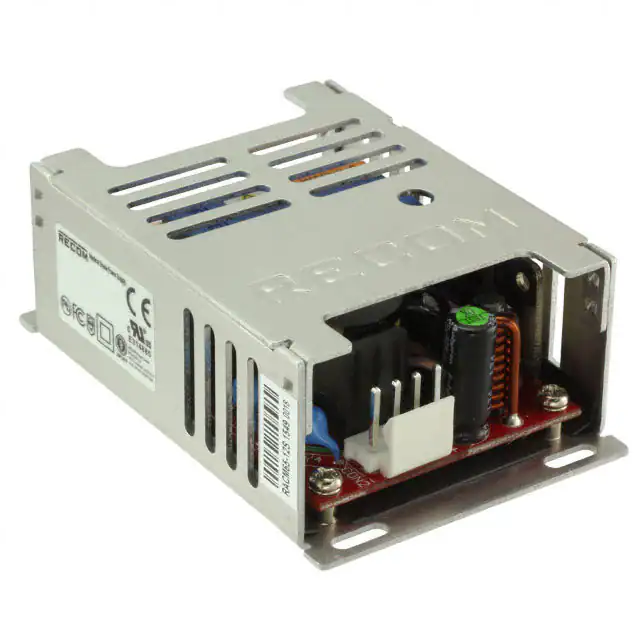

RACM40-12SAC/DC CONVERTER 12V 40W |
27 |
|
برگه مشخصات |
MEDLINE RACM40 (40W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 3.34 A | - | - | - | - | - | 40W | Medical | 4 kV | 92% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.60" L x 2.38" W x 1.31" H (91.4mm x 60.5mm x 33.3mm) | CE, cURus |
|
HRPG-300-5AC/DC CONVERTER 5V 300W |
56 |
|
برگه مشخصات |
HRPG-300 (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 60 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | 82% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.83" L x 4.13" W x 1.61" H (199.0mm x 105.0mm x 41.0mm) | CB, CE, cURus, TUV |
|
VSBU-120C-36AC/DC CONVERTER 36V 120W |
108 |
|
برگه مشخصات |
VSBU-120C (120W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 82% | 0°C ~ 70°C (With Derating) | PFC | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) | CE, cURus |
|
TPI 180-112A-MAC/DC CONVERTER 12V 150W |
27 |
|
برگه مشخصات |
TPI 180A-M (180W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 15 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial) | 3 kV | 92% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.24" H (76.2mm x 50.8mm x 31.5mm) | CB, CE, cURus, EAC, UKCA |
|
CFM300S360AC/DC CONVERTER 36V 300W |
63 |
|
برگه مشخصات |
CFM300S (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 8.34 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | 93.5% | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.1mm) | CE, cURus, FCC, TUV |
|
|
VSBU-120-15AC/DC CONVERTER 15V 120W |
34 |
|
برگه مشخصات |
VSBU-120 (120W) | Box | Not For New Designs | Open Frame | 1 | 90 ~ 260 VAC | 15V | - | - | - | - | - | 8 A | - | - | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 80% | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
GCS180PS48AC/DC CONVERTER 48V 150W |
227 |
|
برگه مشخصات |
GCS (180W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 3.1 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) | CB, CE |
|

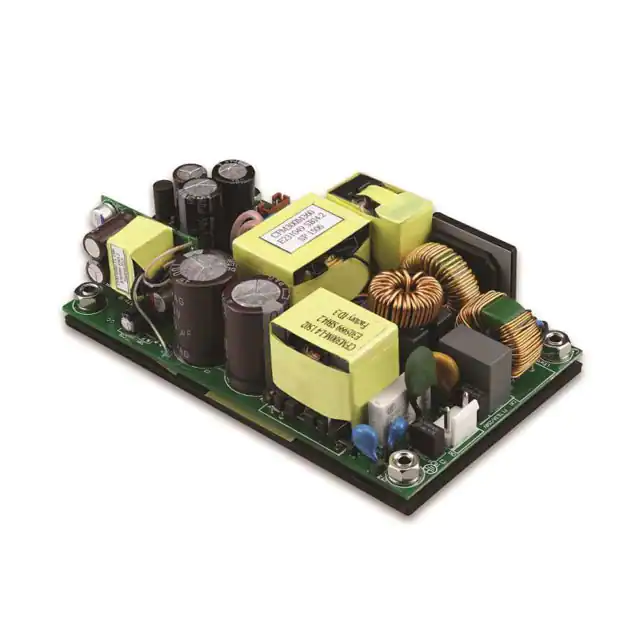

CFM300M120AC/DC CONVERTER 12V 300W |
122 |
|
برگه مشخصات |
CFM300M (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4 kV | 92.5% | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.1mm) | CE, cURus, FCC, TUV |
|
|
CFM300M480AC/DC CONVERTER 48V 300W |
27 |
|
برگه مشخصات |
CFM300M (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.1mm) | CE, cURus, FCC, TUV |
|
|
PBA75F-24-NAC/DC CONVERTER 24V 75W |
212 |
|
برگه مشخصات |
PBA (75W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 75W | ITE (Commercial) | - | 85% | - | DC Input Capable, Universal Input | Chassis Mount | - | CE, cURus, TUV |
|
EPL225PS12AC/DC CONVERTER 12V 150W |
69 |
|
برگه مشخصات |
EPL225 (225W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | 93% | -20°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.3mm) | CB, CE, UL |
|
TPP 180-124A-MAC/DC CONVERTER 24V 150W |
54 |
|
برگه مشخصات |
TPP 180A-M (180W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.24" H (76.2mm x 50.8mm x 31.5mm) | CB, CE, cURus, EAC, UKCA |
|
PQC250-12AC/DC CONVERTER 12V 250W |
47 |
|
برگه مشخصات |
PQC250 (250W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | 95% | -10°C ~ 70°C (With Derating) | Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.1mm) | BMSI, CB, CCC, cCSAus, CE, TUV |
