AC DC رومیزی، آداپتورهای برق دیواری
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | منطقه مورد استفاده | فرم | نوع ورودی | ولتاژ - ورودی | ولتاژ - خروجی | جریان - خروجی (حداکثر) | توان (وات) | بدون بار مصرف برق | قطبی شدن | برنامه های کاربردی | کارایی | دمای عملیاتی | کانکتور خروجی | طول سیم | رابط ورودی | ویژگی ها | اندازه / ابعاد | آژانس تایید | شماره استاندارد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SGAS06U15-P1JPWR SUPP, BATT & COND |
47 |
|
برگه مشخصات |
SGAS06U (6W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | 400mA | 6 W | 100mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.8" (1.80m) | NEMA 1-15P | - | 1.65" L x 1.29" W x 0.94" H (41.8mm x 32.8mm x 23.8mm) | CB, cULus, FCC | 62368-1 |
|
KTPS18-05030WA-VI-P1AC/DC WALL MOUNT ADAPTER 5V 15W |
23 |
|
- |
KTPS18 (18W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 3A | 15 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 2.05" H (72.0mm x 34.0mm x 52.0mm) | IEC | 60950-1 |
|
RR9KX750T00NAIMR6BAC/DC DSKTP/WALL MT ADPT 48V 36W |
47 |
|
برگه مشخصات |
GTM96300-36VV-R2 | Bulk | Active | International | Desktop, Wall Mount (Class II) | Cord (Sold Separately), Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 48V | 750mA | 36 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2" (1.20m) | IEC 320-C8, Multi-Blade (Single Blade Included) | - | 4.00" L x 1.83" W x 1.50" H (101.7mm x 46.5mm x 38.2mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | 1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 62368-1 |
|
RR9KB3865T00NAIMR6BACDC DSKTP/WALL MT ADP 5.95V 23W |
43 |
|
برگه مشخصات |
GTM96300-36VV-R2 | Bulk | Active | International | Desktop, Wall Mount (Class II) | Cord (Sold Separately), Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 5.95V | 3.86A | 23 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2" (1.20m) | IEC 320-C8, Multi-Blade (Single Blade Included) | - | 4.00" L x 1.83" W x 1.50" H (101.7mm x 46.5mm x 38.2mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | 1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 62368-1 |
|
TR9KC3000T00NAIMR6BAC/DC DESKTOP ADAPTER 7.5V 23W |
37 |
|
برگه مشخصات |
GTM96300-36VV-T2 | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 7.5V | 3A | 23 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2" (1.20m) | IEC 320-C8 | - | 4.13" L x 1.97" W x 1.40" H (105.0mm x 50.0mm x 35.5mm) | CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI | 1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 62368-1 |
|
GE18I07-P1JAC/DC WALL MNT ADAPTER 7.5V 13W |
52 |
|
برگه مشخصات |
GE18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 7.5V | 1.73A | 13 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -10°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | Multi-Blade (Sold Separately) | - | 3.19" L x 1.69" W x 1.59" H (81.0mm x 43.0mm x 40.5mm) | CCC, CE, cULus, GS, RCM | - |
|
|
GE18I15-P1JAC/DC WALL MOUNT ADAPTER 15V 18W |
52 |
|
برگه مشخصات |
GE18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 15V | 1.2A | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -10°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 3.19" L x 1.69" W x 1.59" H (81.0mm x 43.0mm x 40.5mm) | CCC, CE, cULus, GS, RCM | - |
|
|
GE18I48-P1JAC/DC WALL MOUNT ADAPTER 48V 18W |
52 |
|
برگه مشخصات |
GE18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 48V | 375mA | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -10°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 3.19" L x 1.69" W x 1.59" H (81.0mm x 43.0mm x 40.5mm) | CCC, CE, cULus, GS, RCM | - |
|
MENB1010A1203F01AC/DC DESKTOP ADAPTER 12V 12W |
0 |
|
برگه مشخصات |
MENB1010 (10W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 12V | 1A | 12 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.30" L x 1.85" W x 1.26" H (84.0mm x 47.0mm x 32.0mm) | CE, cURus | - |
|
IPD2024-760AC/DC DESKTOP ADAPTER 24V 19W |
87 |
|
برگه مشخصات |
IPD20 (20W) | Box | Active | North America | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 800mA | 19 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cTUVus | - |
|

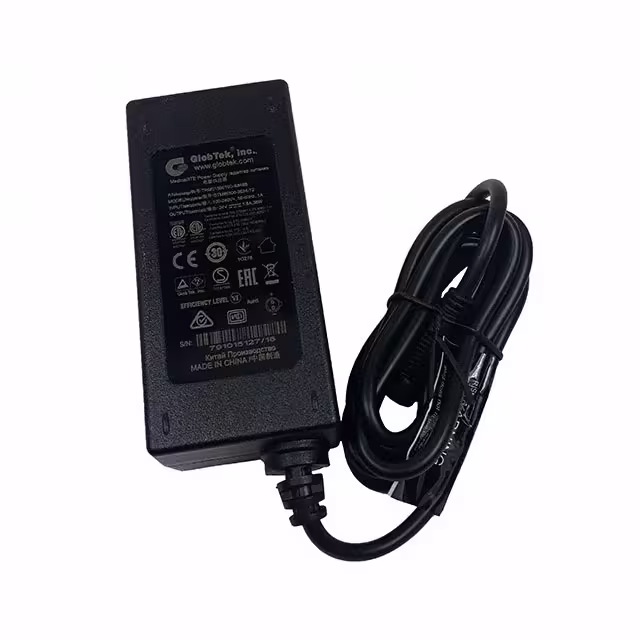

TR9KI1500T00-IMR6BAC/DC DESKTOP ADAPTER 24V 36W |
41 |
|
برگه مشخصات |
GTM96300-36VV-T2 | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 59" (1.50m) | IEC 320-C8 | - | 4.13" L x 1.97" W x 1.40" H (105.0mm x 50.0mm x 35.5mm) | CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI | 1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 62368-1 |
|
|
SGAS15B05-P1JAC/DC DESKTOP ADAPTER 5V 12W |
61 |
|
برگه مشخصات |
SGAS15B (15W) | Box | Obsolete | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 75mW | Positive Center | ITE (Commercial) | 79% | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47" (1.20m) | IEC 320-C8 | - | 3.15" L x 1.54" W x 1.09" H (80.0mm x 39.0mm x 27.7mm) | CB, CE, cULus, EAC, FCC, GS, TUV, UKCA | 62368-1 |
|
|
SGAS15B12-P1JAC/DC DESKTOP ADAPTER 12V 15W |
57 |
|
برگه مشخصات |
SGAS15B (15W) | Box | Obsolete | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 1.25A | 15 W | 75mW | Positive Center | ITE (Commercial) | 85% | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47" (1.20m) | IEC 320-C8 | - | 3.15" L x 1.54" W x 1.09" H (80.0mm x 39.0mm x 27.7mm) | CB, CE, cULus, EAC, FCC, GS, TUV, UKCA | 62368-1 |
|
|
SGAS15B15-P1JAC/DC DESKTOP ADAPTER 15V 15W |
56 |
|
برگه مشخصات |
SGAS15B (15W) | Box | Obsolete | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 15V | 1A | 15 W | 75mW | Positive Center | ITE (Commercial) | 85% | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47" (1.20m) | IEC 320-C8 | - | 3.15" L x 1.54" W x 1.09" H (80.0mm x 39.0mm x 27.7mm) | CB, CE, cULus, EAC, FCC, GS, TUV, UKCA | 62368-1 |
|
PW170KB0503F01AC/DC DESKTOP ADAPTER 5V 10W |
0 |
|
برگه مشخصات |
PW170KB (10-15W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 5V | 2A | 10 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.30" L x 1.85" W x 1.27" H (84.0mm x 47.0mm x 32.3mm) | CE, cULus | - |
|
GEM18I12-P1JAC/DC WALL MOUNT ADAPTER 12V 18W |
94 |
|
برگه مشخصات |
GEM18I (18W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 12V | 1.5A | 18 W | 75mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | Multi-Blade (Sold Separately) | - | 2.97" L x 1.54" W x 2.21" H (75.5mm x 39.1mm x 56.2mm) | CB, CE, cRUus, TUV | - |
|
|
GEM18I09-P1JAC/DC WALL MOUNT ADAPTER 9V 18W |
17 |
|
برگه مشخصات |
GEM18I (18W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 9V | 2A | 18 W | 75mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | Multi-Blade (Sold Separately) | - | 2.97" L x 1.54" W x 2.21" H (75.5mm x 39.1mm x 56.2mm) | CB, CE, cRUus, TUV | - |
|
6A-201DB05-066AC/DC DESKTOP ADAPTER 5V 20W |
46 |
|
برگه مشخصات |
6A-201DB05 (20W) | Book | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C14 | - | 3.15" L x 1.97" W x 1.22" H (80.0mm x 50.0mm x 31.0mm) | AS/NZS, CB, CCC, CSA, FCC, IEC, PSE, RCM, UKCA, UL | 60950-1; 62368-1 |
|
25HK-AW-120A125-CPAC/DC WALL MOUNT ADAPTER 12V 15W |
56 |
|
- |
- | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 1.25A | 15 W | 100mW (Max) | - | ITE (Commercial) | 84.13% | 0°C ~ 40°C | Power DIN, 2 Pin | 72" (1.83m) | Multi-Blade (Included) | - | 2.81" L x 1.61" W x 1.35" H (71.4mm x 41.0mm x 34.3mm) | CB, CE, cUL, FCC, GS, RCM, TUV, UL | 60950-1 |
|
SMI6-5-V-P5RAC/DC WALL MOUNT ADAPTER 5V 6W |
19 |
|
برگه مشخصات |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 1.2A | 6 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3; 62368-1 |
