AC DC رومیزی، آداپتورهای برق دیواری
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | منطقه مورد استفاده | فرم | نوع ورودی | ولتاژ - ورودی | ولتاژ - خروجی | جریان - خروجی (حداکثر) | توان (وات) | بدون بار مصرف برق | قطبی شدن | برنامه های کاربردی | کارایی | دمای عملیاتی | کانکتور خروجی | طول سیم | رابط ورودی | ویژگی ها | اندازه / ابعاد | آژانس تایید | شماره استاندارد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

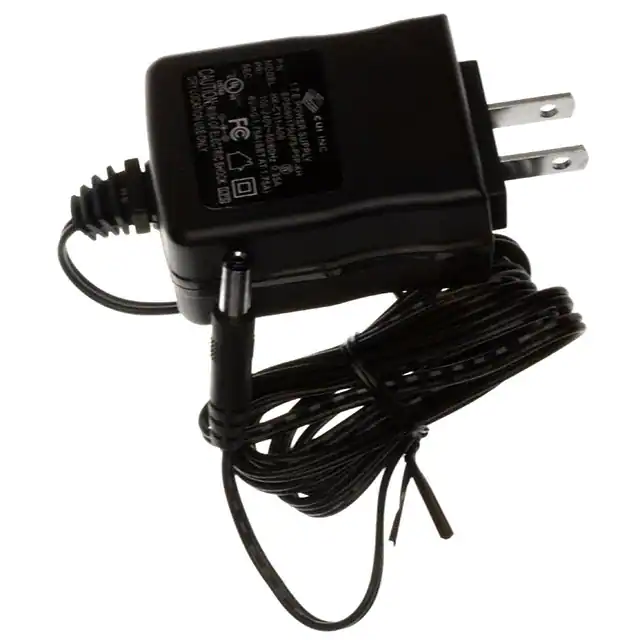

EPS060175UPS-P5P-KHAC/DC WALL MOUNT ADAPTER 6V 11W |
0 |
|
برگه مشخصات |
WALL PLUG (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 6V | 1.75A | 11 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 1.18" L x 1.77" W x 2.43" H (30.0mm x 45.5mm x 61.8mm) | cULus | - |
|

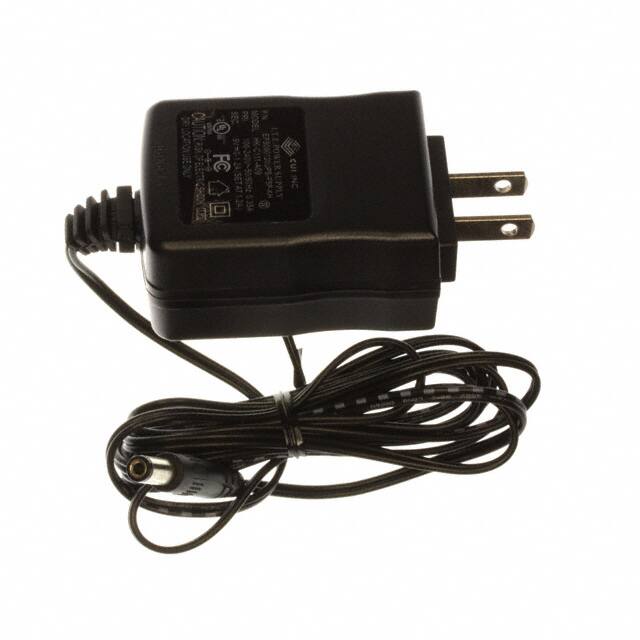

EPS090120UPS-P5P-KHAC/DC WALL MOUNT ADAPTER 9V 11W |
0 |
|
برگه مشخصات |
WALL PLUG (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.2A | 11 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 1.18" L x 1.77" W x 2.43" H (30.0mm x 45.5mm x 61.8mm) | cULus | - |
|
EPS120100UPS-P5P-KHAC/DC WALL MOUNT ADAPTER 12V 12W |
0 |
|
برگه مشخصات |
WALL PLUG (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 1.18" L x 1.77" W x 2.43" H (30.0mm x 45.5mm x 61.8mm) | cULus | - |
|
EPS120100UPS-P5RP-KHAC/DC WALL MOUNT ADAPTER 12V 12W |
0 |
|
برگه مشخصات |
WALL PLUG (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 1.18" L x 1.77" W x 2.43" H (30.0mm x 45.5mm x 61.8mm) | cULus | - |
|
EPS150080UPS-P5P-KHAC/DC WALL MOUNT ADAPTER 15V 12W |
0 |
|
برگه مشخصات |
WALL PLUG (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 800mA | 12 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 1.18" L x 1.77" W x 2.43" H (30.0mm x 45.5mm x 61.8mm) | cULus | - |
|
EPS240050UPS-P5P-KHAC/DC WALL MOUNT ADAPTER 24V 12W |
0 |
|
برگه مشخصات |
WALL PLUG (12W) | Bag | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 500mA | 12 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 1.18" L x 1.77" W x 2.43" H (30.0mm x 45.5mm x 61.8mm) | cULus | - |
|

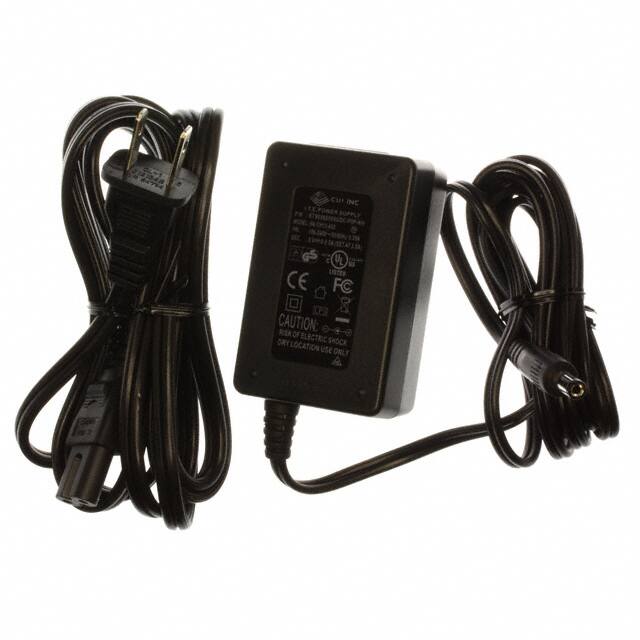

ETS050250SUDC-P5P-KHAC/DC DESKTOP ADAPTER 5V 13W |
0 |
|
برگه مشخصات |
ETS DESKTOP (12W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 255 VAC | 5V | 2.5A | 13 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | IEC 320-C6 | - | 4.23" L x 2.20" W x 1.33" H (107.5mm x 56.0mm x 33.7mm) | CB, CE | - |
|
ETS120100SUDC-P5P-KHAC/DC DESKTOP ADAPTER 12V 12W |
0 |
|
برگه مشخصات |
ETS DESKTOP (12W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 1A | 12 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C6 | - | 2.91" L x 1.83" W x 1.18" H (74.0mm x 46.5mm x 30.0mm) | CB, CE | - |
|

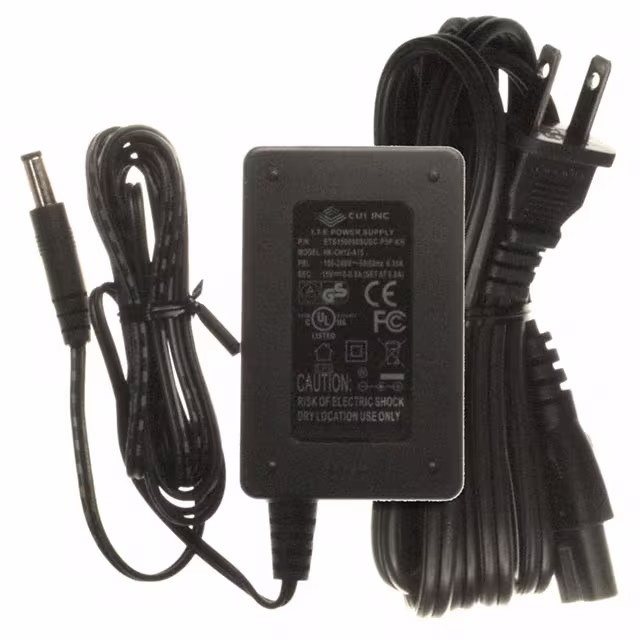

ETS150080SUDC-P5P-KHAC/DC DESKTOP ADAPTER 15V 12W |
0 |
|
برگه مشخصات |
ETS DESKTOP (12W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 800mA | 12 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C6 | - | 2.91" L x 1.83" W x 1.18" H (74.0mm x 46.5mm x 30.0mm) | CB, CE | - |
|
ETS240050SUDC-P5P-KHAC/DC DESKTOP ADAPTER 24V 12W |
0 |
|
برگه مشخصات |
ETS DESKTOP (12W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 500mA | 12 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C6 | - | 2.91" L x 1.83" W x 1.18" H (74.0mm x 46.5mm x 30.0mm) | CB, CE | - |
|
PW153KB1503F01AC/DC DESKTOP ADAPTER 15V 41W |
0 |
|
برگه مشخصات |
PW153KB (40W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 15V | 2.7A | 41 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | IEC 320-C14 | - | 3.98" L x 2.40" W x 1.34" H (101.0mm x 61.0mm x 34.0mm) | CE, cULus | - |
|
CENT1120A1551F01AC/DC DESKTOP ADAPTER 15V 110W |
0 |
|
برگه مشخصات |
CENT1120 (120W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 15V | 7.33A | 110 W | 300mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 40°C | Rectangular, 6 Position | 70.9" (1.80m) | IEC 320-C14 | - | 3.31" L x 1.85" W x 1.27" H (84.0mm x 47.0mm x 32.3mm) | CE, cULus | - |
|
|
CENT1120A1851F01AC/DC DESKTOP ADAPTER 18V 120W |
0 |
|
برگه مشخصات |
CENT1120 (120W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 18V | 6.67A | 120 W | 300mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 40°C | Rectangular, 6 Position | 70.9" (1.80m) | IEC 320-C14 | - | 3.31" L x 1.85" W x 1.27" H (84.0mm x 47.0mm x 32.3mm) | CE, cULus | - |
|
PW156RA1503N01AC/DC DESKTOP ADAPTER 15V 75W |
0 |
|
برگه مشخصات |
PW156 (75W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 15V | 5A | 75 W | - | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 5.44" L x 2.19" W x 1.32" H (138.2mm x 55.6mm x 33.5mm) | CE, cULus, TUVgs | - |
|
|
PW156RA1803N01AC/DC DESKTOP ADAPTER 18V 76W |
0 |
|
برگه مشخصات |
PW156 (75W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 18V | 4.2A | 76 W | - | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 5.44" L x 2.19" W x 1.32" H (138.2mm x 55.6mm x 33.5mm) | CE, cULus, TUVgs | - |
|
PW170KB0603F01AC/DC DESKTOP ADAPTER 6V 10W |
0 |
|
برگه مشخصات |
PW170KB (10-15W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 6V | 1.67A | 10 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.30" L x 1.85" W x 1.27" H (84.0mm x 47.0mm x 32.3mm) | CE, cULus | - |
|
|
PW170KB1503F01AC/DC DESKTOP ADAPTER 15V 15W |
0 |
|
برگه مشخصات |
PW170KB (10-15W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 15V | 1A | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | IEC 320-C14 | - | 3.30" L x 1.85" W x 1.27" H (84.0mm x 47.0mm x 32.3mm) | CE, cULus | - |
|
|
PW170KB1803F01AC/DC DESKTOP ADAPTER 18V 15W |
0 |
|
برگه مشخصات |
PW170KB (10-15W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 18V | 840mA | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | IEC 320-C14 | - | 3.30" L x 1.85" W x 1.27" H (84.0mm x 47.0mm x 32.3mm) | CE, cULus | - |
|
|
PW170KB4803F01AC/DC DESKTOP ADAPTER 48V 15W |
0 |
|
برگه مشخصات |
PW170KB (10-15W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 48V | 320mA | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | IEC 320-C14 | - | 3.30" L x 1.85" W x 1.27" H (84.0mm x 47.0mm x 32.3mm) | CE, cULus | - |
|
PW170KB1503B01AC/DC WALL MOUNT ADAPTER 15V 15W |
0 |
|
برگه مشخصات |
PW170KB (10-15W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 15V | 1A | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.27" L x 1.85" W x 1.50" H (83.0mm x 47.0mm x 38.0mm) | CE, cULus | - |
