آلارم، زنگ و آژیر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار راننده | نوع ورودی | ولتاژ - نامی | محدوده ولتاژ | فرکانس | تکنولوژی | حالت عملیاتی | مدت زمان | سطح فشار صدا (SPL) | جاری - عرضه | موقعیت بندر | دمای عملیاتی | آژانس تایید | رتبه بندی ها | حفاظت از ورود | نوع نصب | فسخ | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC110DBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2kHz | Piezo | Single Tone | - | 60dB @ 30V, 61cm | 6 ~ 21mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
SC250DBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2kHz | Piezo | Single Tone | - | 60dB @ 60V, 61cm | 5 ~ 16mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
SC110JWRBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.3kHz | Piezo | Warble, Slow | 0.5 ~ 2 PPS | 68dB @ 30V, 61cm | 4mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
|
SC616JU-1BUZZER PIEZO 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pin Selectable | 0.5 ~ 2 PPS | 68dB @ 6V, 61cm | 2 ~ 12mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.809" (45.96mm) |
|
|
SC110FKBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Short | 1.2 PPS | 55dB @ 30V, 61cm | 4 ~ 13mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
|
SCE016XD3CR1SBUZZER 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SC | Bulk | Active | - | DC | - | 6 ~ 16V | 2.9kHz | - | Pulse, Medium | - | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminals | 1.687" Dia (42.85mm) | 1.360" (34.54mm) |
|
|
SC110FPBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 55dB @ 30V, 61cm | 4 ~ 13mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
|
SC110FJBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 55dB @ 30V, 61cm | 4 ~ 13mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
|
STA22702WBUZZER PIEZO 83X51MM BRACKET |
0 |
|
برگه مشخصات |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 24V | 1.25kHz | Piezo | Pulse, Slow | - | 107dB @ 12V, 122cm | 1A | User Defined | -40°C ~ 85°C | CE, cUL, SAE, UL | - | - | Bracket Mount | Screw Terminals | 3.268" L x 2.008" W (83.00mm x 51.00mm) | 3.268" (83.00mm) |
|
|
SC110HBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 4.5kHz | Piezo | Single Tone | - | 68dB @ 30V, 61cm | 6 ~ 21mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|

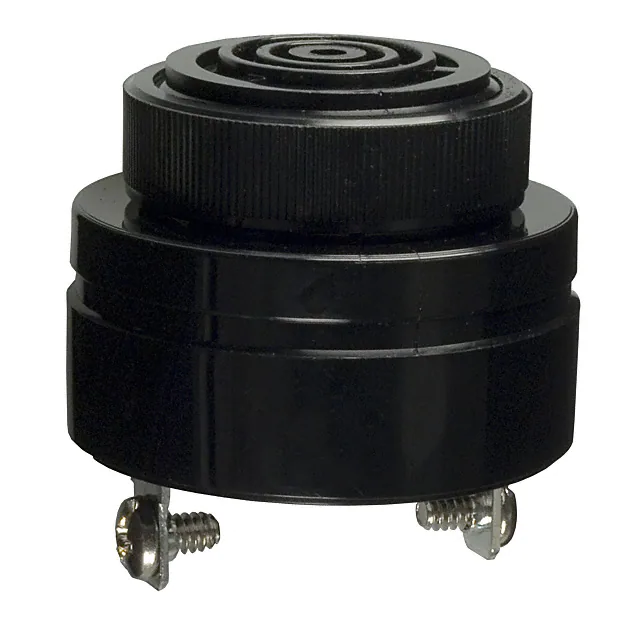

SC616MNBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 60V, 61cm | 6 ~ 22mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.809" (45.96mm) |
|
|
1.30.249.002/0000BUZZER 12V 22.3MM PNL MNT |
0 |
|
- |
RAFIX 22 QR | Bulk | Active | - | DC | 12 V | - | 2.75kHz | - | Pulse | - | 70dB @ 12V, 100cm | 25mA | Side | - | - | - | IP65 | Panel Mount | Solder Pads | 0.878" Dia (22.30mm) | 0.949" (24.10mm) |
|
|
SCE120SA2CT1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SCE | Bulk | Active | Indicator, Internally Driven | AC | - | 48 ~ 120V | 2kHz | Piezo | Single Tone | - | 65dB @ 48V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | 1.511" (38.39mm) |
|
|
SC616NDRBUZZER 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SC | Bulk | Active | - | DC | - | 6 ~ 16V | 2kHz | - | Single Tone | - | 95dB @ 6V, 61cm | 3 ~ 20mA | Top | -30°C ~ 65°C | - | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminals | 1.687" Dia (42.85mm) | 1.910" (48.51mm) |
|
|
SCE028MA2CT1BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
برگه مشخصات |
SCE | Bulk | Active | Indicator, Internally Driven | AC | - | 16 ~ 28V | 2kHz | Piezo | Single Tone | - | 75dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | 1.511" (38.39mm) |
|
SBS12GLHCTPCBUZZER MAGNETIC 44.45MM TH |
0 |
|
برگه مشخصات |
SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 150Hz ~ 4kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 200mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.590" (14.99mm) |
|
SBS12CMHCTPCBUZZER MAGNETIC 44.45MM TH |
0 |
|
برگه مشخصات |
SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.590" (14.99mm) |
|
|
SBS12PLMMPPCBUZZER MAGNETIC 44.45MM TH |
0 |
|
برگه مشخصات |
SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 250mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.590" (14.99mm) |
|
|
SBS12PMHMPPCBUZZER MAGNETIC 44.45MM TH |
0 |
|
برگه مشخصات |
SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 250mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.590" (14.99mm) |
|
|
SBS12PMHSPPCBUZZER MAGNETIC 44.45MM TH |
0 |
|
برگه مشخصات |
SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 250mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) | 0.590" (14.99mm) |
