آلارم، زنگ و آژیر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار راننده | نوع ورودی | ولتاژ - نامی | محدوده ولتاژ | فرکانس | تکنولوژی | حالت عملیاتی | مدت زمان | سطح فشار صدا (SPL) | جاری - عرضه | موقعیت بندر | دمای عملیاتی | آژانس تایید | رتبه بندی ها | حفاظت از ورود | نوع نصب | فسخ | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZT028LACM1R3022MM ALARM+LED;20-28 VAC/DC; 85 |
0 |
|
برگه مشخصات |
- | Retail Package | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.9kHz | - | Chime | Repeating every 3 Sec | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZT028LACM1R1522MM ALARM+LED;20-28 VAC/DC; 85 |
0 |
|
برگه مشخصات |
- | Retail Package | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.9kHz | - | Chime | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
3SU12006LB101AA0BUZZER 24V 22.3MM PNL MNT |
0 |
|
برگه مشخصات |
3SU1 | Box | Active | - | AC, DC | 24 V | - | 4.5kHz | - | Single Tone | - | 75dB @ 24V, 10cm | 28mA | Side | -25°C ~ 70°C | - | - | IP20, IP66, IP67, IP69 | Panel Mount | Screw Terminals | 0.878" Dia (22.30mm) | 0.449" (11.40mm) |
|

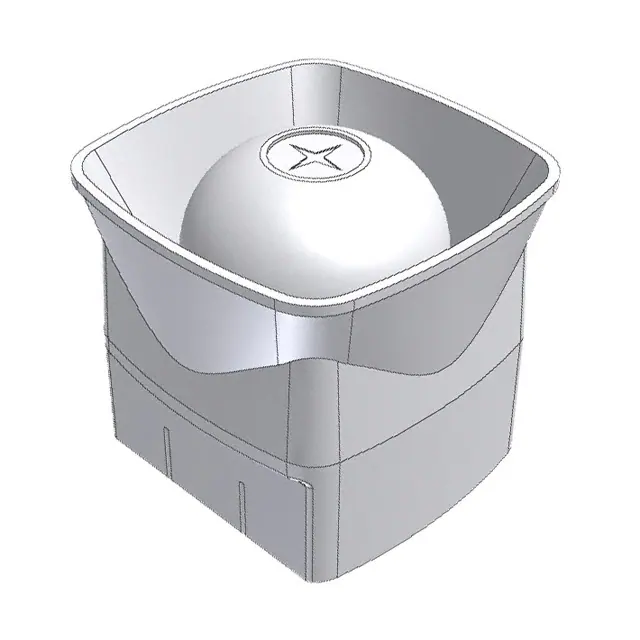

AW-30SBWBUZZER PIEZO 24V 109X109MM BASE |
0 |
|
برگه مشخصات |
AW | Bulk | Obsolete | Indicator, Internally Driven | DC | 24 V | 9 ~ 28V | Multiple | Piezo | Pin Selectable | Variable | 108dB @ 24V, 100cm | 191 ~ 260mA | Top | -25°C ~ 55°C | - | - | IP42 | Base Mount | - | 4.291" L x 4.291" W (109.00mm x 109.00mm) | 3.760" (95.50mm) |
|
|
SC628MHPBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
برگه مشخصات |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 4.5kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 70dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.946" (49.43mm) |
|
|
EB3P-ZUN12CN30MM BUZZER INTRINSICALLY-SAFE |
0 |
|
برگه مشخصات |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
15300060BUZZER SIREN BWM 115-230V |
0 |
|
برگه مشخصات |
- | Box | Active | - | - | - | 115 ~ 230V | - | - | Siren, Alternating Continuous Tone | - | - | - | - | -25°C ~ 50°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - | - |
|
|
XVSV9MBNBUZZER 105MMX105MM DIN RAIL |
0 |
|
برگه مشخصات |
Harmony XVS | Box | Active | - | AC | - | 90 ~ 264V | - | - | - | - | - | 100mA | User Defined | 0°C ~ 50°C | CE | - | IP20, IP65 | DIN Rail | Wire Leads | 4.134" L x 4.134" W (105.00mm x 105.00mm) | 1.972" (50.10mm) |
|
|
XVSV9BWNBUZZER 105MMX105MM DIN RAIL |
0 |
|
برگه مشخصات |
Harmony XVS | Box | Active | - | DC | - | 10 ~ 30V | - | - | - | - | - | 160mA | User Defined | -10°C ~ 55°C | CE | - | IP20, IP65 | DIN Rail | Wire Leads | 4.134" L x 4.134" W (105.00mm x 105.00mm) | 1.972" (50.10mm) |
|
|
XVSV9MWNBUZZER 105MMX105MM DIN RAIL |
0 |
|
برگه مشخصات |
Harmony XVS | Box | Active | - | AC | - | 90 ~ 264V | - | - | - | - | - | 100mA | User Defined | 0°C ~ 50°C | CE | - | IP20, IP65 | DIN Rail | Wire Leads | 4.134" L x 4.134" W (105.00mm x 105.00mm) | 1.972" (50.10mm) |
|
|
XVSV9BBPBUZZER 105MMX105MM DIN RAIL |
0 |
|
برگه مشخصات |
Harmony XVS | Box | Active | - | DC | - | 10 ~ 30V | - | - | - | - | - | 160mA | User Defined | -10°C ~ 55°C | CE | - | IP20, IP65 | DIN Rail | Wire Leads | 4.134" L x 4.134" W (105.00mm x 105.00mm) | 1.972" (50.10mm) |
|
|
SCH416RBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 4 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 66dB @ 4V, 61cm | 4 ~ 14mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.330" (33.77mm) |
|
|
SCH105RBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 1 ~ 5V | 2.9kHz | Piezo | Single Tone | - | 73dB @ 1V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.330" (33.77mm) |
|
|
SCH648RBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 48V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 10V, 61cm | 5 ~ 22mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.330" (33.77mm) |
|
|
VAZ-HORN-70MM-0..100DBA-8TONEAS-INTERFACE (EXCLUDING SENSORS) |
0 |
|
برگه مشخصات |
- | Box | Active | Indicator, Internally Driven | AC, DC | 24 V | - | 900Hz, 2.8kHz | Magnetic | - | - | 82dB | 32mA | Top | -20°C ~ 50°C | - | - | IP65 - Dust Tight, Water Resistant | Base Mount | Terminal Block | 2.756" Dia (70.00mm) | 2.126" (54.00mm) |
|
|
SCH628DRBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
برگه مشخصات |
SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2kHz | Piezo | Single Tone | - | 67dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.330" (33.77mm) |
|
14400068BUZZER 230V |
0 |
|
برگه مشخصات |
- | Box | Active | - | - | 230 V | - | - | - | Multiple Tone | - | - | - | - | -30°C ~ 50°C | - | - | IP65 - Dust Tight, Water Resistant | - | Spring Terminal | - | - |
|
|

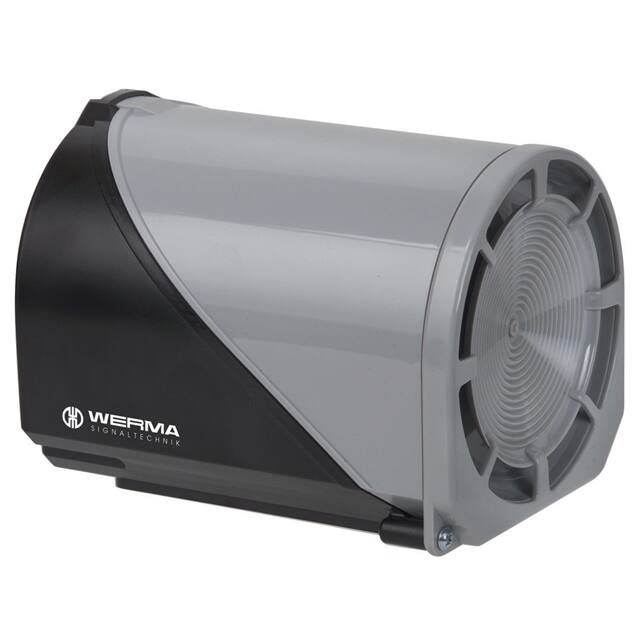

14400067BUZZER 115V |
0 |
|
برگه مشخصات |
- | Box | Active | - | - | 115 V | - | - | - | Multiple Tone | - | - | - | - | -30°C ~ 50°C | - | - | IP65 - Dust Tight, Water Resistant | - | Spring Terminal | - | - |
|
|
VSB110-1BUZZER PIEZO 110V 42.85MM PNL MT |
0 |
|
برگه مشخصات |
VSB | Bulk | Active | Indicator, Internally Driven | AC | 110 V | 30 ~ 120V | 800Hz, 1.2kHz | Piezo | Cuckoo | Repeating every 1.5 Sec | 80dB @ 110V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 3.642" (92.50mm) |
|
VSB110-2BUZZER PIEZO 110V 42.85MM PNL MT |
0 |
|
برگه مشخصات |
VSB | Bulk | Active | Indicator, Internally Driven | AC | 110 V | 30 ~ 120V | 2kHz | Piezo | Chirp | Repeating every 1 Sec | 80dB @ 110V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 3.642" (92.50mm) |
