آلارم، زنگ و آژیر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار راننده | نوع ورودی | ولتاژ - نامی | محدوده ولتاژ | فرکانس | تکنولوژی | حالت عملیاتی | مدت زمان | سطح فشار صدا (SPL) | جاری - عرضه | موقعیت بندر | دمای عملیاتی | آژانس تایید | رتبه بندی ها | حفاظت از ورود | نوع نصب | فسخ | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

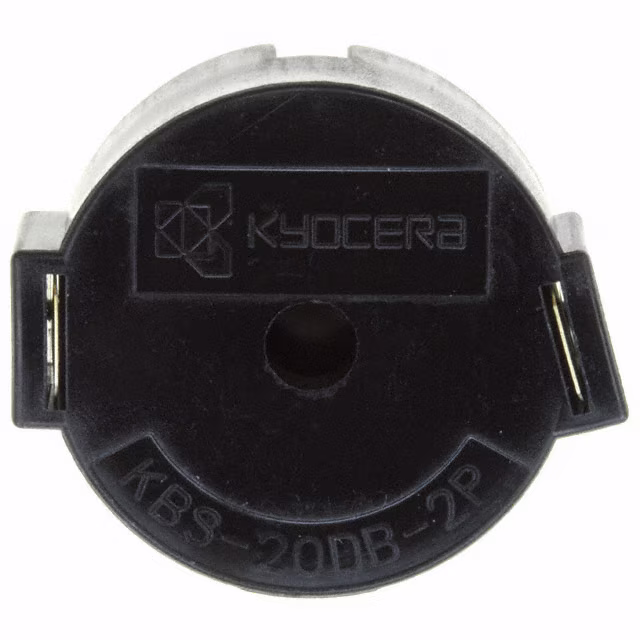

KBS-20DB-2P-10BUZZER PIEZO 10V26.7X23MM TH |
0 |
|
برگه مشخصات |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | - | 2.048kHz | Piezo | Single Tone | - | 75dB @ 10V, 30cm | - | Top | - | - | - | - | Through Hole | PC Pins | 1.051" L x 0.906" W (26.70mm x 23.00mm) | 0.354" (9.00mm) |
|

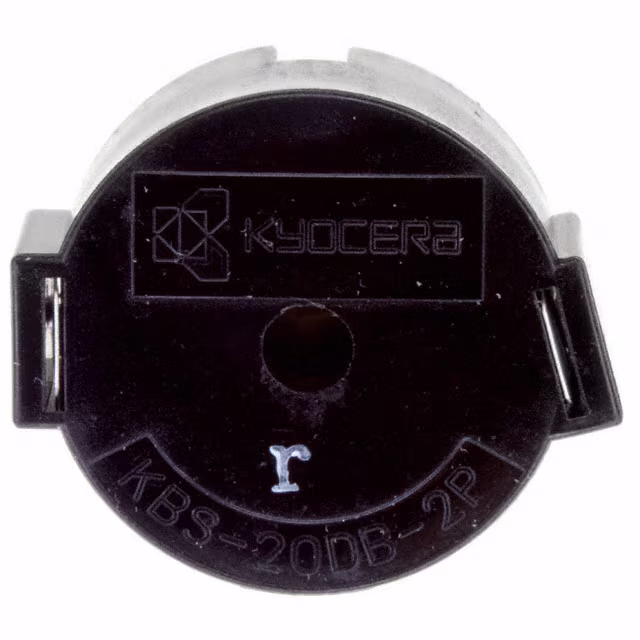

KBS-20DB-2P-9BUZZER PIEZO 10V26.7X23MM TH |
0 |
|
برگه مشخصات |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | - | 2.048kHz | Piezo | Single Tone | - | 75dB @ 10V, 30cm | - | Top | - | - | - | - | Through Hole | PC Pins | 1.051" L x 0.906" W (26.70mm x 23.00mm) | 0.354" (9.00mm) |
|
KBS-20DB-4A-22BUZZER PIEZO 10V 23.00MM FLANGE |
0 |
|
برگه مشخصات |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | - | 4kHz | Piezo | Single Tone | - | 70dB @ 10V, 30cm | - | Top | - | - | - | - | Panel Mount, Flange | Wire Leads | 0.906" Dia (23.00mm) | 0.173" (4.40mm) |
|
|
KBS-20DB-4P-0BUZZER PIEZO 10V 22.00MM TH |
0 |
|
برگه مشخصات |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | - | 4.096kHz | Piezo | Single Tone | - | 77dB @ 10V, 30cm | - | Top | - | - | - | - | Through Hole | PC Pins | 0.866" Dia (22.00mm) | 0.256" (6.50mm) |
|

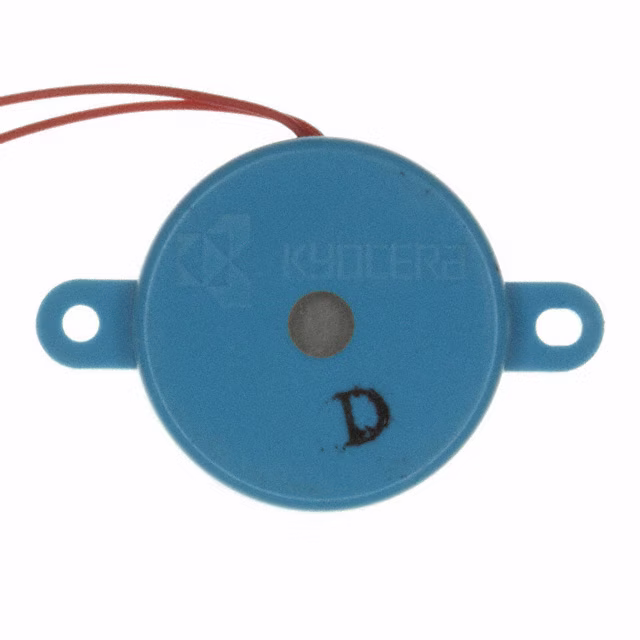

KBS-20DB-5ABUZZER PIEZO 10V 23.00MM FLANGE |
0 |
|
برگه مشخصات |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | - | 5kHz | Piezo | Single Tone | - | 75dB @ 10V, 30cm | - | Top | - | - | - | - | Panel Mount, Flange | Wire Leads | 0.906" Dia (23.00mm) | 0.173" (4.40mm) |
|
KBS-27DB-3ABUZZER PIEZO 10V 30.00MM FLANGE |
0 |
|
برگه مشخصات |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | - | 3kHz | Piezo | Single Tone | - | 75dB @ 10V, 30cm | - | Top | - | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) | 0.185" (4.70mm) |
|

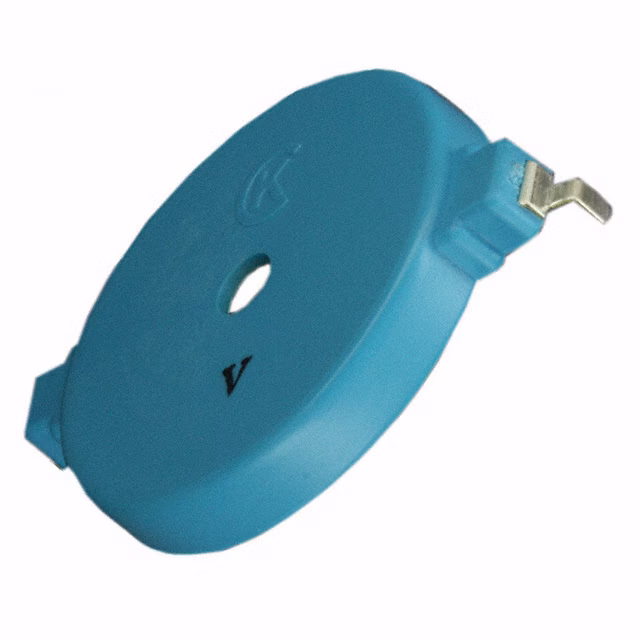

KBS-27DB-3TBUZZER PIEZO 10V 29.00MM TH |
0 |
|
برگه مشخصات |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | - | 3kHz | Piezo | Single Tone | - | 75dB @ 10V, 30cm | - | Top | - | - | - | - | Through Hole | PC Pins | 1.142" Dia (29.00mm) | 0.177" (4.50mm) |
|
|
KBS-30DB-1A-20BUZZER PIEZO 20V 39.00MM FLANGE |
0 |
|
برگه مشخصات |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 20 V | - | 1.25kHz | Piezo | Single Tone | - | 70dB @ 20V, 30cm | - | Top | - | - | - | - | Panel Mount, Flange | Wire Leads | 1.535" Dia (39.00mm) | 0.512" (13.00mm) |
|
AI-4228-P-C250-RBUZZER PIEZO 220V 42.5MM PNL MNT |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | AC, DC | 220 V | 60 ~ 250V | 2.8kHz | Piezo | Single Tone | - | 94dB @ 18V, 10cm | 18mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) | 1.673" (42.50mm) |
|

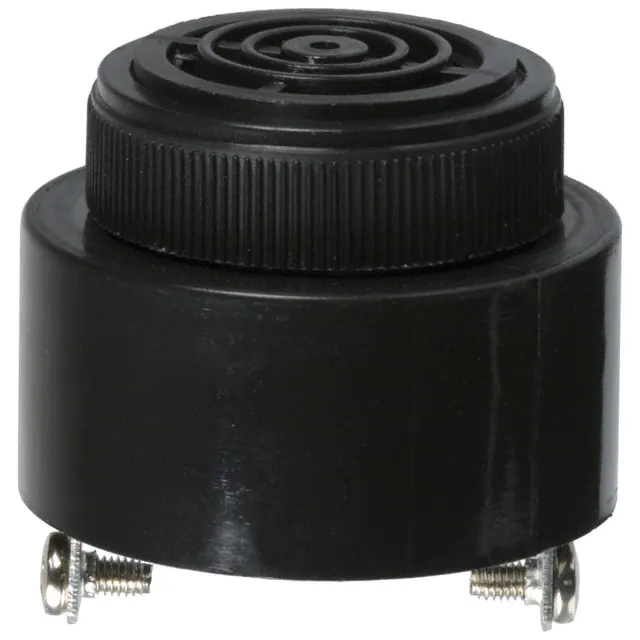

AI-4228-P-C28D-RBUZZER PIEZO 12V 42.5MM PNL MNT |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 12 V | 6 ~ 28V | 2.8kHz | Piezo | Single Tone | - | 90dB @ 12V, 10cm | 10mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) | 1.299" (33.00mm) |
|
|
AI-4228-P-FP120-RBUZZER PIEZO 110V 42.5MM PNL MNT |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 110 V | 30 ~ 120V | 2.8kHz | Piezo | Pulse, Fast | 3 PPS | 92dB @ 110V, 10cm | 20mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) | 1.299" (33.00mm) |
|
|
AI-4228-P-SP28D-RBUZZER PIEZO 12V 42.5MM PNL MNT |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 12 V | 6 ~ 28V | 2.8kHz | Piezo | Pulse, Slow | 1.2 PPS | 90dB @ 12V, 10cm | 10mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) | 1.299" (33.00mm) |
|
|
AI-4228-P-SP28-RBUZZER PIEZO 12V 42.5MM PNL MNT |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 12 V | 6 ~ 28V | 2.8kHz | Piezo | Pulse, Slow | 1.2 PPS | 88dB @ 12V, 10cm | 6mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) | 1.299" (33.00mm) |
|
AI-1450-TW-LW80-WP-RBUZZER PIEZO 12V 14MM CUSTOM |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 12 V | 9 ~ 16V | 5kHz | Piezo | Single Tone | - | 90dB @ 12V, 10cm | 35mA | Top | -30°C ~ 85°C | - | - | - | Custom | Wire Leads | 0.551" Dia (14.00mm) | 0.394" (10.00mm) |
|

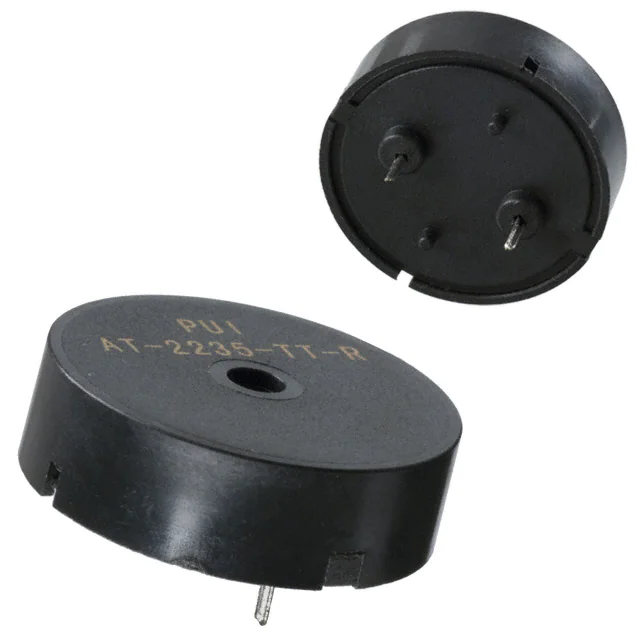

AT-2235-TT-RBUZZER PIEZO 3V 20.4MM TH |
0 |
|
- |
AT | Tray | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 30V | 3.5kHz | Piezo | Single Tone | - | 75dB @ 3V, 10cm | 3mA | Top | -40°C ~ 90°C | - | - | - | Through Hole | PC Pins | 0.803" Dia (20.40mm) | 0.343" (8.70mm) |
|

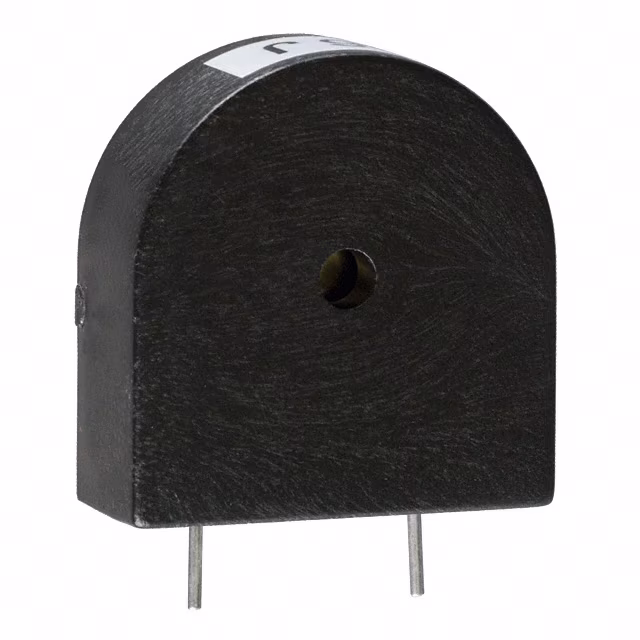

AT-2532-ST-RBUZZER PIEZO 10V 24X10MM TH |
0 |
|
- |
AT | Tray | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 5 ~ 24V | 3.2kHz | Piezo | Single Tone | - | 90dB @ 10V, 10cm | 10mA | Side | -30°C ~ 115°C | - | - | - | Through Hole | PC Pins | 0.945" L x 0.394" W (24.00mm x 10.00mm) | 1.004" (25.50mm) |
|
CS-3224BUZZER MAGN 24V 22.5X16.7MM TH |
0 |
|
برگه مشخصات |
CS | Bulk | Obsolete | Indicator, Internally Driven | DC | 24 V | 20 ~ 28V | - | Magnetic | Single Tone | - | 76dB @ 24V, 30cm | 20mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.886" L x 0.657" W (22.50mm x 16.70mm) | 0.630" (16.00mm) |
|
|
AI-1027-TWT-12V-RBUZZER MAGNETIC 12V 9.5MM TH |
0 |
|
- |
AI | Tray | Obsolete | Indicator, Internally Driven | DC | 12 V | 7 ~ 15V | 2.7kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 60mA | Top | -20°C ~ 80°C | - | - | - | Through Hole | PC Pins | 0.374" Dia (9.50mm) | 0.217" (5.50mm) |
|
|
AI-2304-TF-LW120-RBUZZER MAGN 24V 32X17 FLANG |
0 |
|
برگه مشخصات |
AI | Tray | Obsolete | Indicator, Internally Driven | DC | 24 V | 20 ~ 28V | 400Hz | Electromechanical/Magnetic | Single Tone | - | 86dB @ 24V, 10cm | 24mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.260" L x 0.669" W (32.00mm x 17.00mm) | 0.632" (16.05mm) |
|

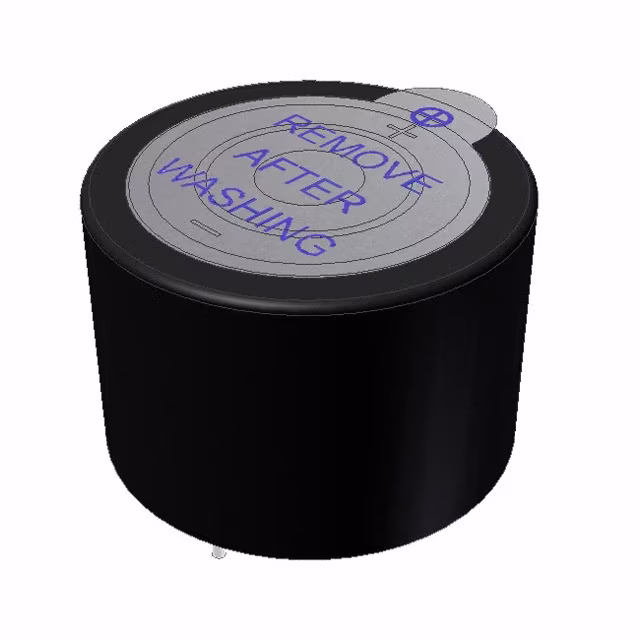

AI-2429-TWT-12V-4-RBUZZER PIEZO 12V 23.8MM TH |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 12 V | 3 ~ 20V | 2.9kHz | Piezo | Single Tone | - | 95dB @ 12V, 10cm | 8mA | Top | -20°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.937" Dia (23.80mm) | 0.650" (16.50mm) |
