خازن های الکترولیتی آلومینیومی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | سری | بسته بندی | وضعیت محصول | ظرفیت | تحمل | ولتاژ - نامی | ESR (مقاومت سری معادل) | طول عمر @ Temp. | دمای عملیاتی | قطبی شدن | رتبه بندی ها | برنامه های کاربردی | جریان ریپل با فرکانس پایین | جریان ریپل با فرکانس بالا | امپدانس | فاصله سرب | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) | اندازه زمین کوه سطحی | نوع نصب |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FC0J123CAP ALUM 12000UF 20% 6.3V RADIAL |
481 |
|
برگه مشخصات |
FC | Bulk | Active | 12000 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3.09 A @ 120 Hz | 3.635 A @ 100 kHz | 16 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
UCZ1V142MNQ1MSCAP ALUM 1400UF 20% 35V SMD |
270 |
|
برگه مشخصات |
UCZ | Tape & Reel (TR) | Not For New Designs | 1400 µF | ±20% | 35 V | 45mOhm @ 100kHz | 3500 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
URZ1E472MHDCAP ALUM 4700UF 20% 25V RADIAL |
252 |
|
برگه مشخصات |
URZ | Bulk | Active | 4700 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | 1.6905 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|

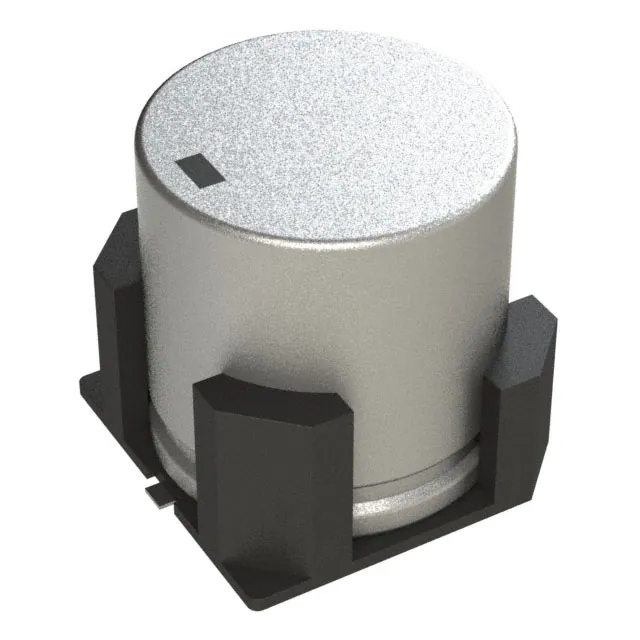

EEE-FK1A472AVCAP ALUM 4700UF 20% 10V SMD |
216 |
|
برگه مشخصات |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 4700 µF | ±20% | 10 V | 35mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.673" (17.10mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
LGU2F820MELYCAP ALUM 82UF 20% 315V SNAP TH |
211 |
|
برگه مشخصات |
LGU | Bulk | Active | 82 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 915.2 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ESMG250ELL332ML25SCAP ALUM 3300UF 20% 25V RADIAL |
160 |
|
برگه مشخصات |
SMG | Bulk | Active | 3300 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.975 A @ 120 Hz | 2.133 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UCZ1J561MNS1MSCAP ALUM 560UF 20% 63V SMD |
5,398 |
|
برگه مشخصات |
UCZ | Tape & Reel (TR) | Active | 560 µF | ±20% | 63 V | 70mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 1.25 A @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.886" (22.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
UBX2G100MHL1TOCAP ALUM 10UF 20% 400V RADIAL TH |
421 |
|
برگه مشخصات |
UBX | Cut Tape (CT) | Active | 10 µF | ±20% | 400 V | - | 1000 Hrs @ 150°C | -25°C ~ 150°C | Polar | - | Automotive | 105 mA @ 120 Hz | 189 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UBC1C102MNS1MSCAP ALUM 1000UF 20% 16V SMD |
374 |
|
برگه مشخصات |
UBC | Tape & Reel (TR) | Not For New Designs | 1000 µF | ±20% | 16 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 569.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
EEV-TG1K221MCAP ALUM 220UF 20% 80V SMD |
339 |
|
برگه مشخصات |
TG | Tape & Reel (TR) | Active | 220 µF | ±20% | 80 V | 280mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 260 mA @ 120 Hz | 400 mA @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
EEV-TG1C332MCAP ALUM 3300UF 20% 16V SMD |
301 |
|
برگه مشخصات |
TG | Tape & Reel (TR) | Active | 3300 µF | ±20% | 16 V | 75mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 845 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
UCA2D151MHD6TNCAP ALUM 150UF 20% 200V RADIAL |
274 |
|
برگه مشخصات |
UCA | Cut Tape (CT) | Not For New Designs | 150 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 1.36 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
MAL215050102E3CAP ALUM 1000UF 20% 35V RADIAL |
1,261 |
|
برگه مشخصات |
150 RMI | Cut Tape (CT) | Active | 1000 µF | ±20% | 35 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.268 A @ 100 Hz | - | 29 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEV-TG1E102UMCAP ALUM 1000UF 20% 25V SMD |
1,221 |
|
برگه مشخصات |
TG | Tape & Reel (TR) | Active | 1000 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 715 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
500HXW39MEFR12.5X35CAP ALUM 39UF 20% 500V RADIAL TH |
480 |
|
برگه مشخصات |
HXW | Bulk | Active | 39 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UPM1V272MHDCAP ALUM 2700UF 20% 35V RADIAL |
295 |
|
برگه مشخصات |
UPM | Bulk | Not For New Designs | 2700 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.79 A @ 120 Hz | 3.11 A @ 10 kHz | 18 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
EKYB6R3ELL123MM25SCAP ALUM 12000UF 20% 6.3V RADIAL |
285 |
|
برگه مشخصات |
KYB | Bulk | Active | 12000 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.0005 A @ 120 Hz | 3.53 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
ESMH350VSN472MP30SCAP ALUM 4700UF 20% 35V SNAP TH |
203 |
|
برگه مشخصات |
SMH | Bulk | Active | 4700 µF | ±20% | 35 V | 88mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.41 A @ 120 Hz | 2.6028 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
420HXW56MEFR16X20CAP ALUM 56UF 20% 420V RADIAL TH |
170 |
|
برگه مشخصات |
HXW | Bulk | Active | 56 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 1.056 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UVK1V332MHDCAP ALUM 3300UF 20% 35V RADIAL |
251 |
|
برگه مشخصات |
UVK | Bulk | Active | 3300 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 2.415 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole |
