خازن های الکترولیتی آلومینیومی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | سری | بسته بندی | وضعیت محصول | ظرفیت | تحمل | ولتاژ - نامی | ESR (مقاومت سری معادل) | طول عمر @ Temp. | دمای عملیاتی | قطبی شدن | رتبه بندی ها | برنامه های کاربردی | جریان ریپل با فرکانس پایین | جریان ریپل با فرکانس بالا | امپدانس | فاصله سرب | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) | اندازه زمین کوه سطحی | نوع نصب |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41570A8479Q000CAP ALUM 47000UF 63V SCREW CHAS |
0 |
|
برگه مشخصات |
B41570 | Bulk | Obsolete | 47000 µF | -10%, +30% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 26 A @ 100 Hz | - | 6 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
B41570A9229Q000CAP ALUM 22000UF 100V SCREW CHAS |
0 |
|
برگه مشخصات |
B41570 | Bulk | Obsolete | 22000 µF | -10%, +30% | 100 V | 11mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 19 A @ 100 Hz | - | 9 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41570A9339Q000CAP ALUM 33000UF 100V SCREW CHAS |
0 |
|
برگه مشخصات |
B41570 | Bulk | Obsolete | 33000 µF | -10%, +30% | 100 V | 9mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 23 A @ 100 Hz | - | 8 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
|
B41570E4150Q000CAP ALUM 150000UF 16V SCREW CHAS |
0 |
|
برگه مشخصات |
B41570 | Bulk | Obsolete | 150000 µF | -10%, +30% | 16 V | 10mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 22 A @ 100 Hz | - | 10 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41570E5100Q000CAP ALUM 100000UF 25V SCREW CHAS |
0 |
|
برگه مشخصات |
B41570 | Bulk | Obsolete | 100000 µF | -10%, +30% | 25 V | 9mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 21 A @ 100 Hz | - | 8 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41570E7689Q000CAP ALUM 68000UF 40V SCREW CHAS |
0 |
|
برگه مشخصات |
B41570 | Bulk | Obsolete | 68000 µF | -10%, +30% | 40 V | 9mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 21 A @ 100 Hz | - | 7 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B41570E8339Q000CAP ALUM 33000UF 63V SCREW CHAS |
0 |
|
برگه مشخصات |
B41570 | Bulk | Obsolete | 33000 µF | -10%, +30% | 63 V | 8mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 21 A @ 100 Hz | - | 8 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
B41580A7220M003CAP ALUM 220000UF 20% 40V SCREW |
0 |
|
برگه مشخصات |
B41580 | Bulk | Active | 220000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24 A @ 100 Hz | - | 5.4 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis, Stud Mount | |
|
B41580A8689M003CAP ALUM 68000UF 20% 63V SCREW |
0 |
|
برگه مشخصات |
B41580 | Bulk | Obsolete | 68000 µF | ±20% | 63 V | 5mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19 A @ 100 Hz | - | 7.8 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.201" (106.70mm) | - | Chassis, Stud Mount | |
|
B43454A5278M000CAP ALUM 2700UF 20% 450V SCREW |
0 |
|
برگه مشخصات |
B43454 | Bulk | Active | 2700 µF | ±20% | 450 V | 69mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.8 A @ 100 Hz | - | 55 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B43454A5478M000CAP ALUM 4700UF 20% 450V SCREW |
0 |
|
برگه مشخصات |
B43454 | Bulk | Obsolete | 4700 µF | ±20% | 450 V | 44mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.4 A @ 100 Hz | - | 35 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B43454A9478M000CAP ALUM 4700UF 20% 400V SCREW |
0 |
|
برگه مشخصات |
B43454 | Bulk | Obsolete | 4700 µF | ±20% | 400 V | 42mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12 A @ 100 Hz | - | 34 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
|
B43454A9688M000CAP ALUM 6800UF 20% 400V SCREW |
0 |
|
برگه مشخصات |
B43454 | Bulk | Obsolete | 6800 µF | ±20% | 400 V | 32mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.1 A @ 100 Hz | - | 25 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 6.681" (169.70mm) | - | Chassis Mount | |
|
|
B43455A0338M000CAP ALUM 3300UF 20% 400V SCREW |
0 |
|
برگه مشخصات |
B43455 | Bulk | Active | 3300 µF | ±20% | 400 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B43455A0338M003CAP ALUM 3300UF 20% 400V SCREW |
0 |
|
برگه مشخصات |
B43455 | Bulk | Obsolete | 3300 µF | ±20% | 400 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
B43455A4338M000CAP ALUM 3300UF 20% 350V SCREW |
0 |
|
برگه مشخصات |
B43455 | Bulk | Obsolete | 3300 µF | ±20% | 350 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|

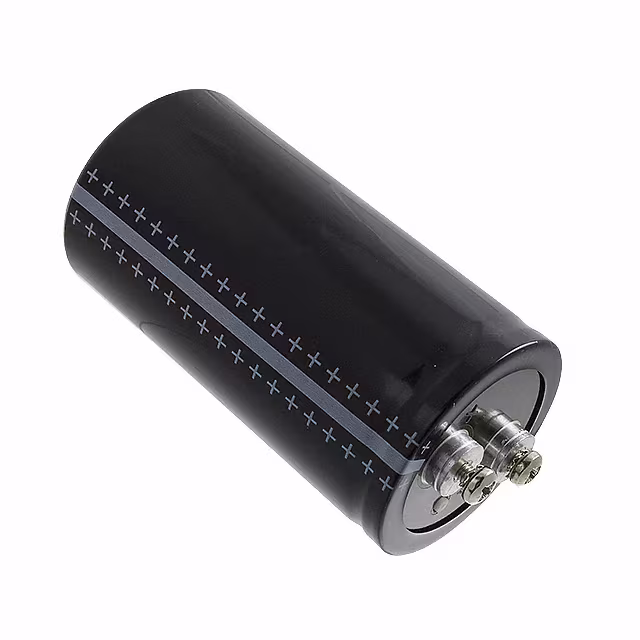

B43455A4688M000CAP ALUM 6800UF 20% 350V SCREW |
0 |
|
برگه مشخصات |
B43455 | Bulk | Active | 6800 µF | ±20% | 350 V | 18mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.8 A @ 100 Hz | - | 22 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
|
B43455A0478M000CAP ALUM 4700UF 20% 400V SCREW |
0 |
|
برگه مشخصات |
B43455 | Bulk | Active | 4700 µF | ±20% | 400 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
|
B43455A0478M003CAP ALUM 4700UF 20% 400V SCREW |
0 |
|
برگه مشخصات |
B43455 | Bulk | Obsolete | 4700 µF | ±20% | 400 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
|
B43455A5338M000CAP ALUM 3300UF 20% 450V SCREW |
0 |
|
برگه مشخصات |
B43455 | Bulk | Active | 3300 µF | ±20% | 450 V | 54mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.1 A @ 100 Hz | - | - | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis Mount |
