خازن های الکترولیتی آلومینیومی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | سری | بسته بندی | وضعیت محصول | ظرفیت | تحمل | ولتاژ - نامی | ESR (مقاومت سری معادل) | طول عمر @ Temp. | دمای عملیاتی | قطبی شدن | رتبه بندی ها | برنامه های کاربردی | جریان ریپل با فرکانس پایین | جریان ریپل با فرکانس بالا | امپدانس | فاصله سرب | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) | اندازه زمین کوه سطحی | نوع نصب |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UVR1H470MED1TLCAP ALUM 47UF 20% 50V RADIAL TH |
0 |
|
برگه مشخصات |
UVR | Cut Tape (CT) | Obsolete | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 155 mA @ 120 Hz | 310 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPM1V820MED1TDCAP ALUM 82UF 20% 35V RADIAL TH |
0 |
|
برگه مشخصات |
UPM | Cut Tape (CT) | Obsolete | 82 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 265 mA @ 120 Hz | 415 mA @ 10 kHz | 190 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | - | Through Hole | |
|
500LSU2700MNB64X139CAP ALUM 2700UF 20% 500V SCREW |
0 |
|
برگه مشخصات |
LSU | Bulk | Obsolete | 2700 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.6 A @ 120 Hz | 13.44 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 5.591" (142.00mm) | - | Chassis Mount | |
|
500LSU4700MNB77X151CAP ALUM 4700UF 20% 500V SCREW |
0 |
|
برگه مشخصات |
LSU | Bulk | Obsolete | 4700 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14.8 A @ 120 Hz | 19.24 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 6.063" (154.00mm) | - | Chassis Mount | |
|
25LSQ68000MNB51X83CAP ALUM 68000UF 20% 25V SCREW |
0 |
|
برگه مشخصات |
LSQ | Bulk | Obsolete | 68000 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.3 A @ 120 Hz | 10.044 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 3.386" (86.00mm) | - | Chassis Mount | |
|
50LSQ100000MNB64X119CAP ALUM 100000UF 20% 50V SCREW |
0 |
|
برگه مشخصات |
LSQ | Bulk | Obsolete | 100000 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.2 A @ 120 Hz | 15.336 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.803" (122.00mm) | - | Chassis Mount | |
|

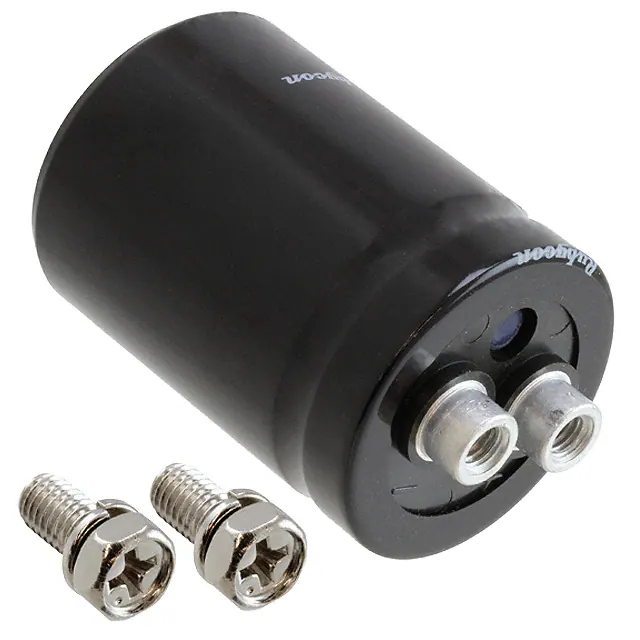

63LSQ6800MNB36X50CAP ALUM 6800UF 20% 63V SCREW CH |
0 |
|
برگه مشخصات |
LSQ | Bulk | Obsolete | 6800 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 3.52 A @ 10 kHz | - | 0.500" (12.70mm) | 1.417" Dia (36.00mm) | 2.126" (54.00mm) | - | Chassis Mount | |
|
63LSQ10000MNB36X83CAP ALUM 10000UF 20% 63V SCREW |
0 |
|
برگه مشخصات |
LSQ | Bulk | Obsolete | 10000 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 4.51 A @ 10 kHz | - | 0.500" (12.70mm) | 1.417" Dia (36.00mm) | 3.386" (86.00mm) | - | Chassis Mount | |
|
|
63LSQ68000MNB64X119CAP ALUM 68000UF 20% 63V SCREW |
0 |
|
برگه مشخصات |
LSQ | Bulk | Obsolete | 68000 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15 A @ 120 Hz | 16.5 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.803" (122.00mm) | - | Chassis Mount | |
|
80LSQ100000MNB77X141CAP ALUM 100000UF 20% 80V SCREW |
0 |
|
برگه مشخصات |
LSQ | Bulk | Obsolete | 100000 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.5 A @ 120 Hz | 23.65 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
100LSQ4700MNB36X83CAP ALUM 4700UF 20% 100V SCREW |
0 |
|
برگه مشخصات |
LSQ | Bulk | Obsolete | 4700 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 3.85 A @ 10 kHz | - | 0.500" (12.70mm) | 1.417" Dia (36.00mm) | 3.386" (86.00mm) | - | Chassis Mount | |
|
100LSQ22000MNB51X118CAP ALUM 22000UF 20% 100V SCREW |
0 |
|
برگه مشخصات |
LSQ | Bulk | Obsolete | 22000 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.2 A @ 120 Hz | 11.22 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 4.803" (122.00mm) | - | Chassis Mount | |
|
63LSW47000MNB64X119CAP ALUM 47000UF 20% 63V SCREW |
0 |
|
برگه مشخصات |
LSW | Bulk | Obsolete | 47000 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12.9 A @ 120 Hz | 14.19 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.803" (122.00mm) | - | Chassis Mount | |
|
100LSW10000MNB51X98CAP ALUM 10000UF 20% 100V SCREW |
0 |
|
برگه مشخصات |
LSW | Bulk | Obsolete | 10000 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.7 A @ 120 Hz | 7.37 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 3.976" (101.00mm) | - | Chassis Mount | |
|
250LSW6800MNB77X121CAP ALUM 6800UF 20% 250V SCREW |
0 |
|
برگه مشخصات |
LSW | Bulk | Obsolete | 6800 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 7.6 A @ 120 Hz | 8.968 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
400LSW2200MNB64X119CAP ALUM 2200UF 20% 400V SCREW |
0 |
|
برگه مشخصات |
LSW | Bulk | Obsolete | 2200 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.803" (122.00mm) | - | Chassis Mount | |
|
400LSW2200MNB77X101CAP ALUM 2200UF 20% 400V SCREW |
0 |
|
برگه مشخصات |
LSW | Bulk | Obsolete | 2200 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 4.838 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 4.094" (104.00mm) | - | Chassis Mount | |
|
450LSU4700MNB77X141CAP ALUM 4700UF 20% 450V SCREW |
0 |
|
برگه مشخصات |
LSU | Bulk | Obsolete | 4700 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 17 A @ 120 Hz | 23.8 A @ 10 kHz | - | 1.236" (31.40mm) | 3.032" Dia (77.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
500LSU1200MNBTI51X98CAP ALUM 1200UF 20% 500V SCREW |
0 |
|
برگه مشخصات |
LSU | Bulk | Obsolete | 1200 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.6 A @ 120 Hz | 7.28 A @ 10 kHz | - | 0.858" (21.80mm) | 2.008" Dia (51.00mm) | 3.976" (101.00mm) | - | Chassis Mount | |
|
500LSU2200MNB64X119CAP ALUM 2200UF 20% 500V SCREW |
0 |
|
برگه مشخصات |
LSU | Bulk | Obsolete | 2200 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.5 A @ 120 Hz | 11.05 A @ 10 kHz | - | 1.110" (28.20mm) | 2.520" Dia (64.00mm) | 4.803" (122.00mm) | - | Chassis Mount |
