خازن های الکترولیتی آلومینیومی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | سری | بسته بندی | وضعیت محصول | ظرفیت | تحمل | ولتاژ - نامی | ESR (مقاومت سری معادل) | طول عمر @ Temp. | دمای عملیاتی | قطبی شدن | رتبه بندی ها | برنامه های کاربردی | جریان ریپل با فرکانس پایین | جریان ریپل با فرکانس بالا | امپدانس | فاصله سرب | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) | اندازه زمین کوه سطحی | نوع نصب |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41895A5688M000CAP ALUM 6800UF 20% 25V RADIAL |
0 |
|
برگه مشخصات |
B41895 | Bulk | Active | 6800 µF | ±20% | 25 V | 19mOhm @ 10kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 4.23 A @ 100 kHz | 16 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
B41895A7478M000CAP ALUM 4700UF 20% 35V RADIAL |
0 |
|
برگه مشخصات |
B41895 | Bulk | Active | 4700 µF | ±20% | 35 V | 19mOhm @ 10kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 4.23 A @ 100 kHz | 16 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

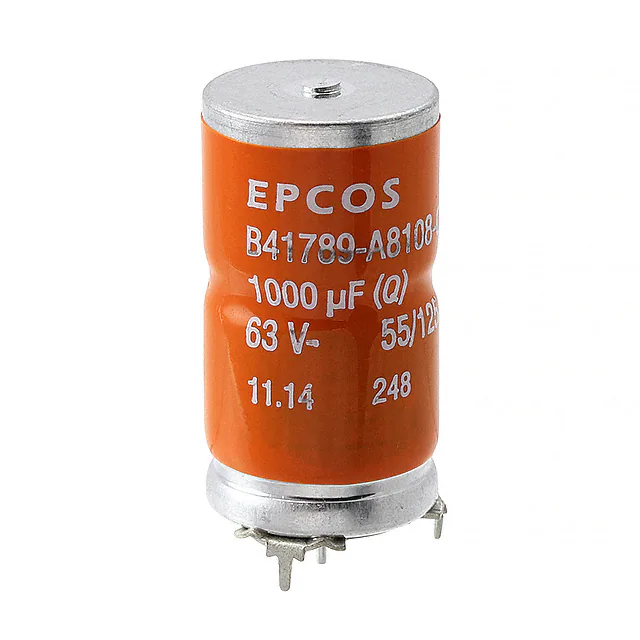

B41789A8108Q001CAP ALUM 1000UF 63V SNAP TH |
0 |
|
برگه مشخصات |
B41789 | Bulk | Obsolete | 1000 µF | -10%, +30% | 63 V | 61mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 7.5 A @ 10 kHz | 18 mOhms | 0.846" (21.50mm) | 0.827" Dia (21.00mm) | 1.535" (39.00mm) | - | Through Hole | |
|
B41895A6687MCAP ALUM 680UF 20% 50V RADIAL TH |
0 |
|
برگه مشخصات |
B41895 | Bulk | Active | 680 µF | ±20% | 50 V | 37mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.28 A @ 100 kHz | 33 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B41895B7128M000CAP ALUM 1200UF 20% 35V RADIAL |
0 |
|
برگه مشخصات |
B41895 | Bulk | Active | 1200 µF | ±20% | 35 V | 37mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.28 A @ 100 kHz | 34 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
B41895B5278MCAP ALUM 2700UF 20% 25V RADIAL |
0 |
|
برگه مشخصات |
B41895 | Bulk | Active | 2700 µF | ±20% | 25 V | 29mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.86 A @ 100 kHz | 26 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
B41895C5278MCAP ALUM 2700UF 20% 25V RADIAL |
0 |
|
برگه مشخصات |
B41895 | Bulk | Active | 2700 µF | ±20% | 25 V | 35mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.49 A @ 100 kHz | 32 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
B41895C6128MCAP ALUM 1200UF 20% 50V RADIAL |
0 |
|
برگه مشخصات |
B41895 | Bulk | Active | 1200 µF | ±20% | 50 V | 27mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.01 A @ 100 kHz | 24 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B41895B5338MCAP ALUM 3300UF 20% 25V RADIAL |
0 |
|
برگه مشخصات |
B41895 | Bulk | Active | 3300 µF | ±20% | 25 V | 25mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.16 A @ 100 kHz | 21 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
B41895A6158MCAP ALUM 1500UF 20% 50V RADIAL |
0 |
|
برگه مشخصات |
B41895 | Bulk | Active | 1500 µF | ±20% | 50 V | 23mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.59 A @ 100 kHz | 20 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
B41895A5478MCAP ALUM 4700UF 20% 25V RADIAL |
0 |
|
برگه مشخصات |
B41895 | Bulk | Active | 4700 µF | ±20% | 25 V | 25mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.39 A @ 100 kHz | 22 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
B41689A5108Q001CAP ALUM 1000UF 25V AXIAL TH |
0 |
|
برگه مشخصات |
B41689 | Bulk | Active | 1000 µF | -10%, +30% | 25 V | 565mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 3.5 A @ 10 kHz | 50 mOhms | - | 0.630" Dia x 0.984" L (16.00mm x 25.00mm) | - | - | Through Hole | |
|
|
B41689A7567Q001CAP ALUM 560UF 40V AXIAL TH |
0 |
|
برگه مشخصات |
B41689 | Bulk | Active | 560 µF | -10%, +30% | 40 V | 587mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 3.5 A @ 10 kHz | 50 mOhms | - | 0.630" Dia x 0.984" L (16.00mm x 25.00mm) | - | - | Through Hole | |
|
|
B41895A6278M000CAP ALUM 2700UF 20% 50V RADIAL |
0 |
|
برگه مشخصات |
B41895 | Bulk | Active | 2700 µF | ±20% | 50 V | 19mOhm @ 10kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 4.23 A @ 100 kHz | 16 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41689A8397Q001CAP ALUM 390UF 63V AXIAL TH |
0 |
|
برگه مشخصات |
B41689 | Bulk | Obsolete | 390 µF | -10%, +30% | 63 V | 602mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 3.6 A @ 10 kHz | 51 mOhms | - | 0.709" Dia x 0.984" L (18.00mm x 25.00mm) | - | - | Through Hole | |
|
|
B41689K5108Q001CAP ALUM 1000UF 25V AXIAL TH |
0 |
|
برگه مشخصات |
B41689 | Bulk | Active | 1000 µF | -10%, +30% | 25 V | 565mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 3.6 A @ 10 kHz | 50 mOhms | - | 0.630" Dia x 0.984" L (16.00mm x 25.00mm) | - | - | Through Hole | |
|
|
B41689K7567Q001CAP ALUM 560UF 40V AXIAL TH |
0 |
|
برگه مشخصات |
B41689 | Bulk | Active | 560 µF | -10%, +30% | 40 V | 587mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 3.6 A @ 10 kHz | 50 mOhms | - | 0.630" Dia x 0.984" L (16.00mm x 25.00mm) | - | - | Through Hole | |
|
|
B41689A5128Q001CAP ALUM 1200UF 25V AXIAL TH |
0 |
|
برگه مشخصات |
B41689 | Bulk | Active | 1200 µF | -10%, +30% | 25 V | 470mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 4.2 A @ 10 kHz | 41 mOhms | - | 0.709" Dia x 0.984" L (18.00mm x 25.00mm) | - | - | Through Hole | |
|
|
B41689A8477Q001CAP ALUM 470UF 63V AXIAL TH |
0 |
|
برگه مشخصات |
B41689 | Bulk | Obsolete | 470 µF | -10%, +30% | 63 V | 497mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 4.6 A @ 10 kHz | 41 mOhms | - | 0.630" Dia x 1.378" L (16.00mm x 35.00mm) | - | - | Through Hole | |
|
|
B41689A8567Q001CAP ALUM 560UF 63V AXIAL TH |
0 |
|
برگه مشخصات |
B41689 | Bulk | Obsolete | 560 µF | -10%, +30% | 63 V | 420mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 4.5 A @ 10 kHz | 37 mOhms | - | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole |
