آلومینیوم - خازن های پلیمری
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | ظرفیت | تحمل | ولتاژ - نامی | ESR (مقاومت سری معادل) | طول عمر @ Temp. | دمای عملیاتی | رتبه بندی ها | برنامه های کاربردی | ویژگی ها | جریان ریپل با فرکانس پایین | جریان ریپل با فرکانس بالا | امپدانس | فاصله سرب | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) | اندازه زمین کوه سطحی | نوع نصب | بسته / مورد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RNL1C182MDSBSQCAP ALUM POLY 1.8MF 20% 16V TH |
1,200 |
|
برگه مشخصات |
FPCAP, RNL | Tape & Reel (TR) | Active | Polymer | 1.8 mF | ±20% | 16 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 770 mA @ 120 Hz | 7.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | Radial, Can |
|
|
RPF1014101M080KCAP ALUM POLY 100UF 20% 80V TH |
557 |
|
برگه مشخصات |
RPF | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 80 V | 38mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.591" (15.00mm) | - | Through Hole | Radial, Can |
|
APSC6R3ETD152MJB5SCAP ALUM POLY 1500UF 20% 6.3V TH |
344 |
|
برگه مشخصات |
NPCAP™-PSC | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.56 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
|
35PKV390M10X10.5CAP ALUMHYB 390UF 20% 35V SMD |
1,397 |
|
برگه مشخصات |
PKV | Tape & Reel (TR) | Active | Hybrid | 390 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
HHXF630GRA151MJH0GCAP ALUMHYB 150UF 20% 63V SMD |
200 |
|
برگه مشخصات |
HXF | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 63 V | 13mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | Anti-Vibration | 530 mA @ 120 Hz | 5.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
EEF-TX0E221RECAP ALUM POLY 220UF 20% 2.5V SMD |
3,500 |
|
برگه مشخصات |
SP-Cap TX | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 9mOhm | 5500 Hrs @ 135°C | -55°C ~ 135°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
RHA1011221M035KCAP ALUM HYBRID 220UF 20% 35V TH |
533 |
|
برگه مشخصات |
RHA | Cut Tape (CT) | Active | Hybrid | 220 µF | ±20% | 35 V | 17mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 100 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
|
RPF1017271M063KCAP ALUM POLY 270UF 20% 63V TH |
458 |
|
برگه مشخصات |
RPF | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 63 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | - | Through Hole | Radial, Can |
|
|
PCM1E101MCL1GSCAP ALUM POLY 100UF 20% 25V SMD |
1,970 |
|
برگه مشخصات |
PCM | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 41mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.295" (7.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
PCM1E101MCL4GSCAP ALUM POLY 100UF 20% 25V SMD |
1,477 |
|
برگه مشخصات |
PCM | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 27mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.335" (8.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
EEF-KX0G151RFCAP ALUM POLY 150UF 20% 4V SMD |
3,494 |
|
برگه مشخصات |
SP-Cap KX | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 15mOhm | 5500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
PCM1D151MCL1GSCAP ALUM POLY 150UF 20% 20V SMD |
2,000 |
|
برگه مشخصات |
PCM | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 39mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.295" (7.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
PCM1D151MCL4GSCAP ALUM POLY 150UF 20% 20V SMD |
1,490 |
|
برگه مشخصات |
PCM | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 25mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.335" (8.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|

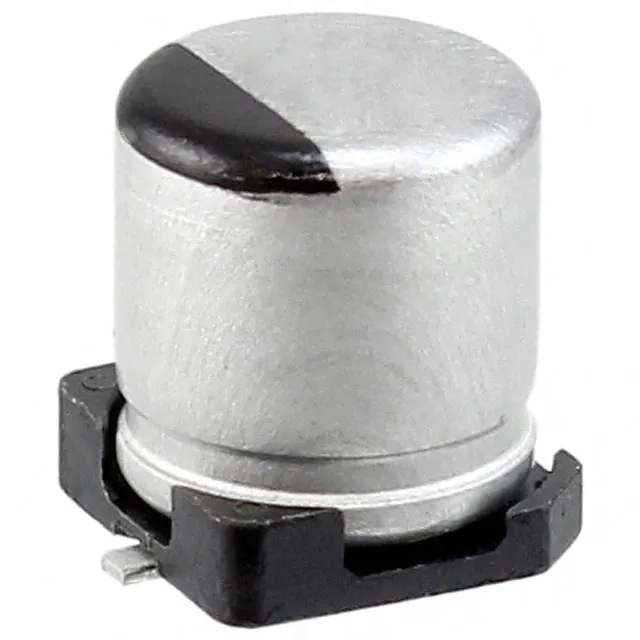

HZA336M025C12T-FCAP ALUM HYBRID 33UF 20% 25V SMD |
999 |
|
برگه مشخصات |
HZA | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 25 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 90 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
|
HZA226M035C12T-FCAP ALUM HYBRID 22UF 20% 35V SMD |
949 |
|
برگه مشخصات |
HZA | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 35 V | 100mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 90 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
|
RHA1009150M080KCAP ALUM HYBRID 15UF 20% 80V TH |
599 |
|
برگه مشخصات |
RHA | Cut Tape (CT) | Active | Hybrid | 15 µF | ±20% | 80 V | 70mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 80 mA @ 100 Hz | 1.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | - | Through Hole | Radial, Can |
|
|
EEF-TX0D331RECAP ALUM POLY 330UF 20% 2V SMD |
3,500 |
|
برگه مشخصات |
SP-Cap TX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2 V | 9mOhm | 5500 Hrs @ 135°C | -55°C ~ 135°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
RHA1009100M100KCAP ALUM HYBRID 10UF 20% 100V TH |
576 |
|
برگه مشخصات |
RHA | Cut Tape (CT) | Active | Hybrid | 10 µF | ±20% | 100 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 70 mA @ 100 Hz | 1.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | - | Through Hole | Radial, Can |
|
|
870575375004CAP ALUM HYBRID 470UF 20% 16V TH |
1,183 |
|
برگه مشخصات |
WCAP-HTG5 | Cut Tape (CT) | Active | Hybrid | 470 µF | ±20% | 16 V | 21mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 100 Hz | 2.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.453" (11.50mm) | - | Through Hole | Radial, Can |
|
|
A798V477M002APE4R5CAP ALUM POLY 470UF 20% 2V SMD |
900 |
|
برگه مشخصات |
AO-Cap A798 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 4.5mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 9.54 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount | 2917 (7343 Metric) |
