آلومینیوم - خازن های پلیمری
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | ظرفیت | تحمل | ولتاژ - نامی | ESR (مقاومت سری معادل) | طول عمر @ Temp. | دمای عملیاتی | رتبه بندی ها | برنامه های کاربردی | ویژگی ها | جریان ریپل با فرکانس پایین | جریان ریپل با فرکانس بالا | امپدانس | فاصله سرب | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) | اندازه زمین کوه سطحی | نوع نصب | بسته / مورد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25SVPD10MCAP ALUM POLY 10UF 20% 25V SMD |
988 |
|
برگه مشخصات |
OS-CON™, SVPD | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 25 V | 65mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 23.7 mA @ 120 Hz | 474 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|

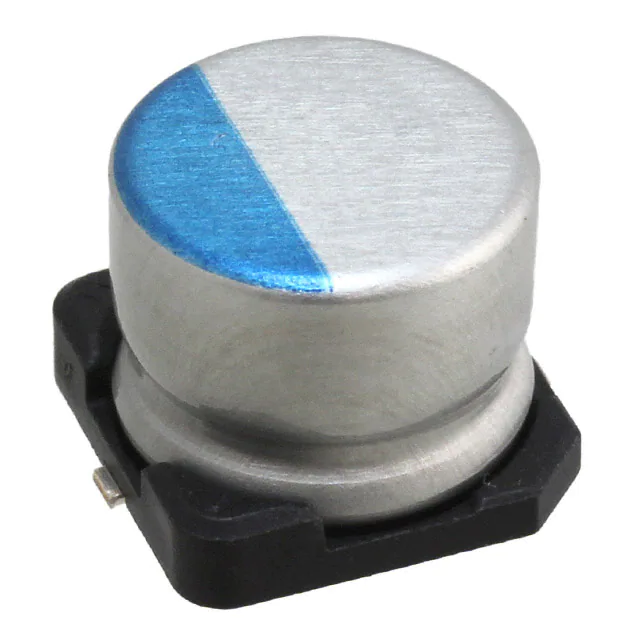

PCS1A151MCL9GSCAP ALUM POLY 150UF 20% 10V SMD |
13,265 |
|
برگه مشخصات |
PCS | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZA1E330RCAP ALUM HYBRID 33UF 20% 25V SMD |
12,378 |
|
برگه مشخصات |
ZA | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 25 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 90 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
EEF-ST0D331RCAP ALUM POLY 330UF 20% 2V SMD |
7,791 |
|
برگه مشخصات |
SP-Cap ST | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
A700V337M2R5ATE4R5CAP ALUM POLY 330UF 20% 2.5V SMD |
6,076 |
|
برگه مشخصات |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 4.5mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 7.75 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
6SVPC220MVCAP ALUM POLY 220UF 20% 6.3V SMD |
1,975 |
|
برگه مشخصات |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 158 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
RSA1E101MCN1GSCAP ALUM POLY 100UF 20% 25V SMD |
1,753 |
|
برگه مشخصات |
FPCAP, RSA | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 310 mA @ 120 Hz | 3.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
875105645005CAP ALUM POLY 47UF 20% 35V SMD |
7,656 |
|
برگه مشخصات |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 35 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
875115645012CAP ALUM POLY 27UF 20% 35V SMD |
1,816 |
|
برگه مشخصات |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 27 µF | ±20% | 35 V | 60mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 70 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|

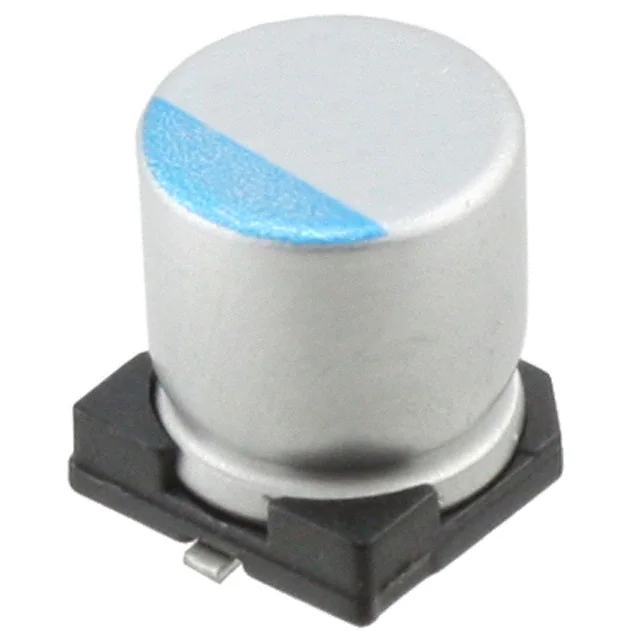

APXE100ARA470ME61GCAP ALUM POLY 47UF 20% 10V SMD |
1,670 |
|
برگه مشخصات |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 10 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.31 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
50SVPF18MCAP ALUM POLY 18UF 20% 50V SMD |
12,591 |
|
برگه مشخصات |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 18 µF | ±20% | 50 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 135 mA @ 120 Hz | 2.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
APXE6R3ARA121ME61GCAP ALUM POLY 120UF 20% 6.3V SMD |
5,841 |
|
برگه مشخصات |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 6.3 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
RL81C331MDN1KXCAP ALUM POLY 330UF 20% 16V TH |
3,073 |
|
برگه مشخصات |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | Radial, Can |
|
RNU1A122MDN1PHCAP ALUM POLY 1200UF 20% 10V TH |
975 |
|
برگه مشخصات |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 1200 µF | ±20% | 10 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 620 mA @ 120 Hz | 6.2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | Radial, Can |
|
|
APXE6R3ARA101ME61GCAP ALUM POLY 100UF 20% 6.3V SMD |
438 |
|
برگه مشخصات |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
6SVP220MXCAP ALUM POLY 220UF 20% 6.3V SMD |
7,910 |
|
برگه مشخصات |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 128 mA @ 120 Hz | 2.56 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
GYA1J220MCW1GSCAP ALUM HYBRID 22UF 20% 63V SMD |
4,656 |
|
برگه مشخصات |
GYA | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 63 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 135 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.343" (8.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
RSA1C101MCN1GSCAP ALUM POLY 100UF 20% 16V SMD |
3,165 |
|
برگه مشخصات |
FPCAP, RSA | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 270 mA @ 120 Hz | 2.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount | Radial, Can - SMD |
|
A782MS227M1VLAS020CAP ALUMHYB 220UF 20% 35V SMD |
2,085 |
|
برگه مشخصات |
A782 | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 1.78 A @ 100 Hz | 4.45 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
A700V476M006ATE028CAP ALUM POLY 47UF 20% 6.3V SMD |
1,890 |
|
برگه مشخصات |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 6.3 V | 28mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
