آلومینیوم - خازن های پلیمری
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | ظرفیت | تحمل | ولتاژ - نامی | ESR (مقاومت سری معادل) | طول عمر @ Temp. | دمای عملیاتی | رتبه بندی ها | برنامه های کاربردی | ویژگی ها | جریان ریپل با فرکانس پایین | جریان ریپل با فرکانس بالا | امپدانس | فاصله سرب | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) | اندازه زمین کوه سطحی | نوع نصب | بسته / مورد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UUL1C151MP26306CAP ALUM POLY 150UF 20% 16V TH |
0 |
|
برگه مشخصات |
UUL | Active | Polymer | 150 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.22 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.276" (7.00mm) | - | Through Hole | Radial, Can | |
|
6SW220MXCAP ALUM POLY 220UF 20% 6.3V SMD |
0 |
|
برگه مشخصات |
PC-CON, SW | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | - | Surface Mount | 2917 (7343 Metric) |
|
A700X107M010ATE0107280CAP ALUM POLY 100UF 20% 10V SMD |
0 |
|
برگه مشخصات |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 10 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
A700D226M016ATE025CAP ALUM POLY 22UF 20% 16V SMD |
0 |
|
برگه مشخصات |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 16 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
PCR1H181MCSANAGSCAP ALUM POLY 560UF 20% 20V SMD |
0 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PCS0G561MCL1GSCAP ALUM POLY 560UF 20% 4V SMD |
0 |
|
برگه مشخصات |
PCS | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 4 V | 18mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
PCJ0G271MCL1GSCAP ALUM POLY 270UF 20% 4V SMD |
0 |
|
برگه مشخصات |
PCJ | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
PCJ0G391MCL1GSCAP ALUM POLY 390UF 20% 4V SMD |
0 |
|
برگه مشخصات |
PCJ | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 4 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.47 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
PCJ0J271MCL1GSCAP ALUM POLY 270UF 20% 6.3V SMD |
0 |
|
برگه مشخصات |
PCJ | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 6.3 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.47 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
MAL218497366E3CAP ALUM POLY 2200UF 20% 4V SMD |
0 |
|
- |
184 CPNS | Box | Active | Polymer | 2200 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | Radial, Can - SMD |
|
|
A700X107M008ATE0107280CAP ALUM POLY 100UF 20% 8V SMD |
0 |
|
برگه مشخصات |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 8 V | 10mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
APXA4R0ARA122MJC0GCAP ALUM POLY 1200UF 20% 4V SMD |
0 |
|
برگه مشخصات |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 1200 µF | ±20% | 4 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.480" (12.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
|
MAL218497004E3CAP ALUM POLY 150UF 20% 35V SMD |
0 |
|
- |
184 CPNS | Box | Active | Polymer | 150 µF | ±20% | 35 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 190 mA @ 120 Hz | 3.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
MAL218597105E3CAP ALUM POLY 33UF 20% 50V SMD |
0 |
|
- |
185 CPNZ | Box | Active | Polymer | 33 µF | ±20% | 50 V | 42mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | - | Surface Mount | Radial, Can - SMD |
|
|
A720V107M016APE015CAP ALUM POLY 100UF 20% 16V SMD |
0 |
|
برگه مشخصات |
AO-Cap A720 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount | 2917 (7343 Metric) |
|

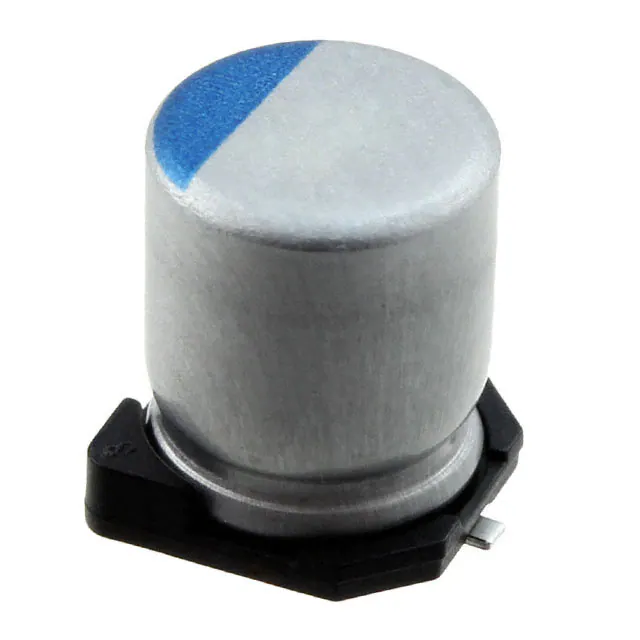

PCR1V680MCL4GSCAP ALUM POLY 68UF 20% 35V SMD |
0 |
|
برگه مشخصات |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 35 V | 31mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
PLF0E102MDO1TDCAP ALUM POLY 1000UF 20% 2.5V TH |
0 |
|
برگه مشخصات |
PLF | Cut Tape (CT) | Active | Polymer | 1000 µF | ±20% | 2.5 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
|
PLF0E122MDO1TDCAP ALUM POLY 1200UF 20% 2.5V TH |
0 |
|
برگه مشخصات |
PLF | Cut Tape (CT) | Active | Polymer | 1200 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
|
PLF0E152MDO1TDCAP ALUM POLY 1500UF 20% 2.5V TH |
0 |
|
برگه مشخصات |
PLF | Cut Tape (CT) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
|
PLF0G102MDO1TDCAP ALUM POLY 1000UF 20% 4V TH |
0 |
|
برگه مشخصات |
PLF | Cut Tape (CT) | Active | Polymer | 1000 µF | ±20% | 4 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.64 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
