رله های خودرو
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع کویل | جریان سیم پیچ | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | ویژگی ها | نوع نصب | سبک خاتمه | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

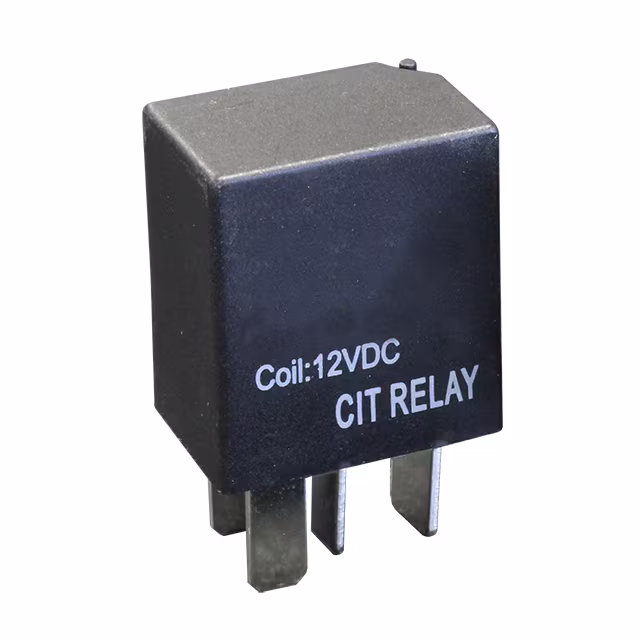

A11ASQ12VDC1.5DRELAY AUTOMOTIVE SPST 30A 12V |
94 |
|
برگه مشخصات |
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|
A31CCQ12VDC1RRELAY AUTOMOTIVE SPDT 60A 12V |
40 |
|
برگه مشخصات |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A2M1ASQ24VDC1.6RELAY AUTOMOTIVE SPST 40A 24V |
97 |
|
برگه مشخصات |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2S1ASQ24VDC1.6DRELAY AUTOMOTIVE SPST 40A 24V |
29 |
|
برگه مشخصات |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

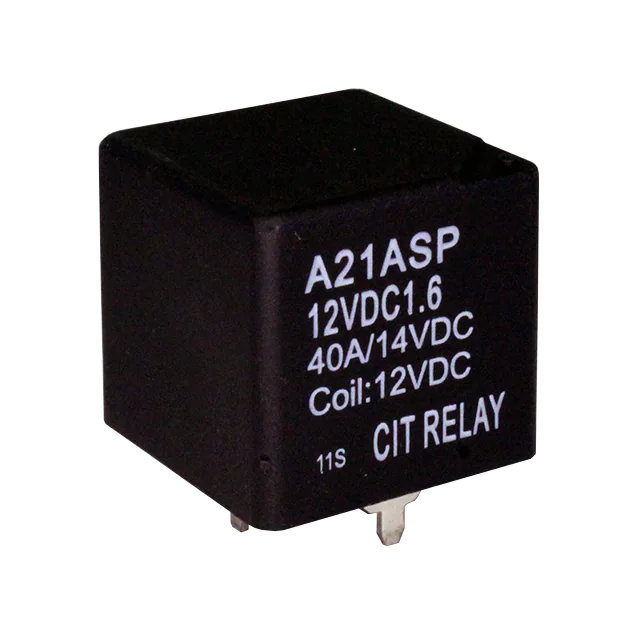

A21ASP12VDC1.6RELAY AUTOMOTIVE SPST 40A 12V |
79 |
|
برگه مشخصات |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

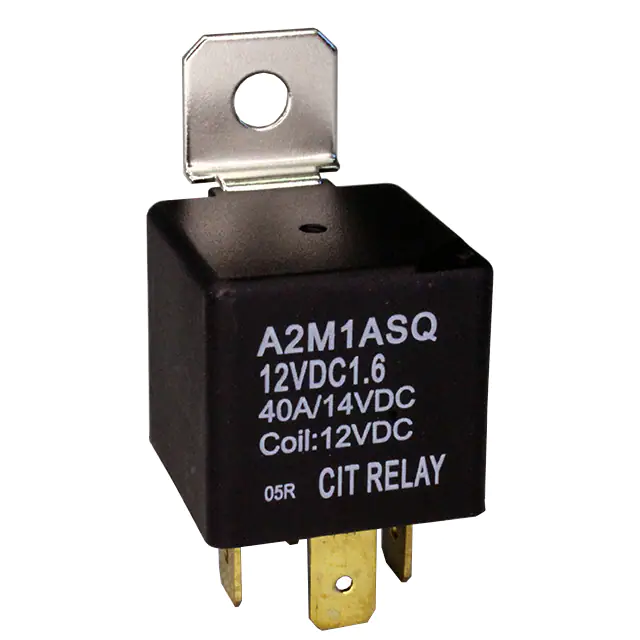

A2M1ASQ12VDC1.6RELAY AUTOMOTIVE SPST 40A 12V |
46 |
|
برگه مشخصات |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A61CS12VDC.9RRELAY AUTOMOTIVE SPDT 30A 12V |
56 |
|
برگه مشخصات |
A6 | Tray | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

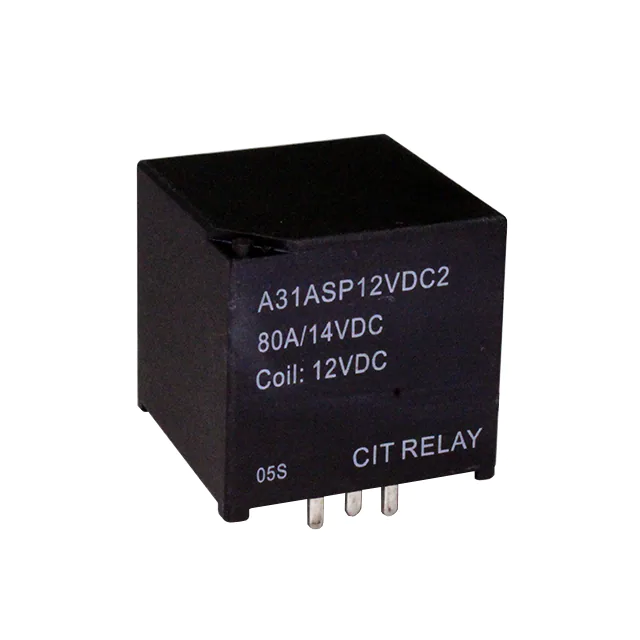

A31ASP12VDC2DRELAY AUTOMOTIVE SPST 80A 12V |
55 |
|
برگه مشخصات |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

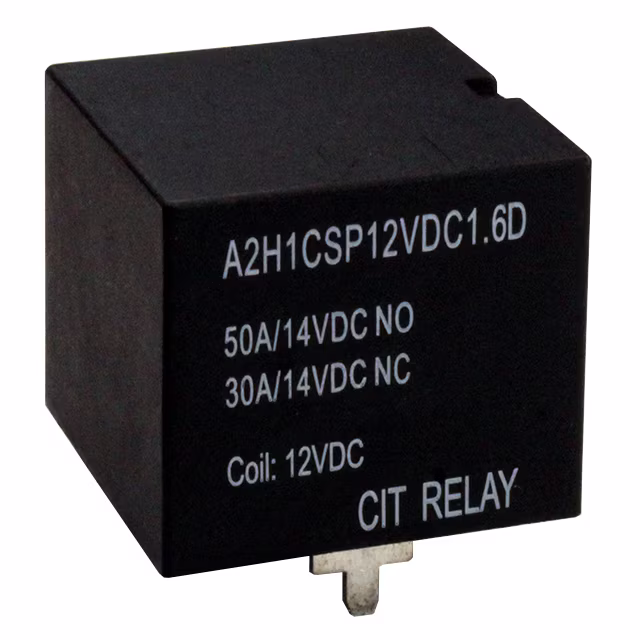

A2H1CSP12VDC1.6DRELAY AUTOMOTIVE SPDT 50A 12V |
47 |
|
برگه مشخصات |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode | Through Hole | PC Pin | -40°C ~ 125°C |
|
A61CS12VDC1.3DRELAY AUTOMOTIVE SPDT 30A 12V |
74 |
|
برگه مشخصات |
A6 | Tray | Active | Non Latching | 110.1 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

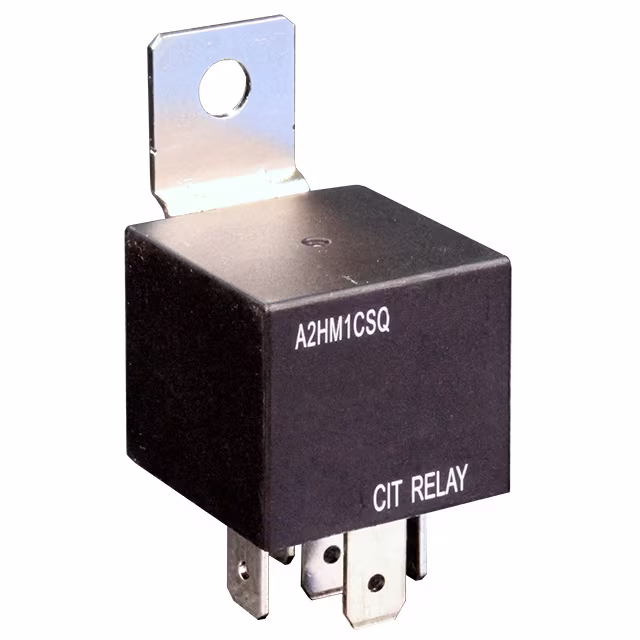

A2HM1CSQ24VDC1.6DRELAY AUTOMOTIVE SPDT 50A 24V |
97 |
|
برگه مشخصات |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2M1CSQ6VDC1.6RRELAY AUTOMOTIVE SPDT 40A 6V |
57 |
|
برگه مشخصات |
A2 | Tray | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A61CS24VDC1.3DRELAY AUTOMOTIVE SPDT 30A 24V |
81 |
|
برگه مشخصات |
A6 | Tray | Active | Non Latching | 55 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A21CSQ6VDC1.6DRELAY AUTOMOTIVE SPDT 40A 6V |
44 |
|
برگه مشخصات |
A2 | Tray | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2M1CSQ48VDC1.6RELAY AUTOMOTIVE SPDT 40A 48V |
91 |
|
برگه مشخصات |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A3F1ASQ24VDC2RELAY AUTOMOTIVE SPST 80A 24V |
88 |
|
برگه مشخصات |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A3F1ASQ12VDC2RELAY AUTOMOTIVE SPST 80A 12V |
50 |
|
برگه مشخصات |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A3F1ASQ24VDC2DRELAY AUTOMOTIVE SPST 80A 24V |
32 |
|
برگه مشخصات |
A3F | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
ACNM3112MIDDLE LOAD RELAY FOR SMART J/B |
50 |
|
برگه مشخصات |
ACNM | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
CB1AF-P-12VRELAY AUTOMOTIVE SPST 40A 12V |
50 |
|
برگه مشخصات |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
