دستگیره های کابل و سیم
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | تایپ کنید | قطر کابل خارجی (حداقل) | قطر کابل خارجی (حداکثر) | اندازه موضوع | طول نخ | اندازه هاب مجرا | اندازه سوراخ پانل | مواد | شامل می شود | رنگ | حفاظت از ورود | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

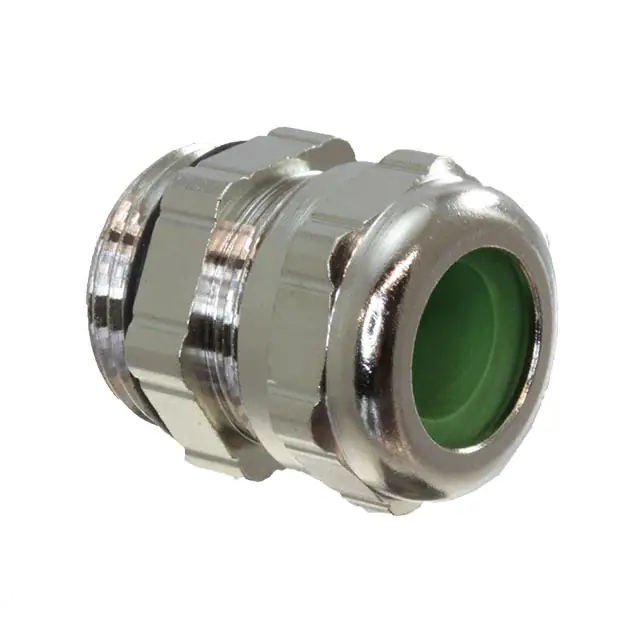

21657.6CABLE GLAND 6.86-10.41MM PG13.5 |
19 |
|
برگه مشخصات |
Cable Gland | 0.270" (6.86mm) | 0.410" (10.41mm) | PG13.5 | 0.260" (6.60mm) | - | 0.810" (20.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
96576.0CABLE FEED 35.05-41.91MM M50 |
21 |
|
برگه مشخصات |
Cable Feedthrough | 1.380" (35.05mm) | 1.650" (41.91mm) | M50x1.5 | 0.390" (9.91mm) | - | 1.969" (50.0mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
1300980164CABLE GRIP 20.63-23.8MM 1" NPT |
0 |
|
برگه مشخصات |
Cable Grip | 0.812" (20.63mm) | 0.937" (23.80mm) | 1" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
97139.6CABLE GLAND 6.86-10.41MM M20 |
41 |
|
برگه مشخصات |
Cable Gland | 0.270" (6.86mm) | 0.410" (10.41mm) | M20x1.5 | 0.240" (6.10mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
45035CABLE GLAND M25 PC |
26 |
|
برگه مشخصات |
Cable Gland | - | - | M25x1.5 | - | - | - | Polycarbonate (PC) | - | Gray | IP54 - Dust Protected, Water Resistant | - | |
|
1300980044CABLE GRP RA 3.18-4.75MM 1/2"NPT |
0 |
|
برگه مشخصات |
Cable Grip - 90° | 0.125" (3.18mm) | 0.187" (4.75mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
PPG-42CABLE GLAND 30-38MM PG42 |
27 |
|
برگه مشخصات |
Cable Gland | 1.181" (30.00mm) | 1.496" (38.00mm) | PG42 | 0.512" (13.00mm) | - | 2.126" (54.0mm) | Polyamide (PA6), Nylon 6 | Locknut | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
MC3CG-S7CABLE GRIP 23-25.5MM ZINC |
0 |
|
برگه مشخصات |
Cable Grip | 0.906" (23.00mm) | 1.004" (25.50mm) | - | 0.492" (12.50mm) | - | - | Zinc, Nickel Plated | EMI Shielding Ring, Gasket, Nut, Seal | Gray | IP67 - Dust Tight, Waterproof | -20°C ~ 130°C | |
|
|
1300980187CABLE GRIP RA 5.54-10.47MM 1/2" |
0 |
|
برگه مشخصات |
Cable Grip, Oval Hole - 90° | 0.218" (5.54mm) | 0.412" (10.47mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Light Gray | - | - | |
|
|
1300980035CABLE GRP RA 9.53-11.1MM 3/8"NPT |
0 |
|
برگه مشخصات |
Cable Grip - 90° | 0.375" (9.53mm) | 0.437" (11.10mm) | 3/8" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
97023.6CABLE GLAND 7.87-10.92MM M20 |
50 |
|
برگه مشخصات |
Cable Gland | 0.310" (7.87mm) | 0.430" (10.92mm) | M20x1.5 | 0.390" (9.91mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
1300980204CABLE GRIP 4.75MM 1/2" NPT |
0 |
|
برگه مشخصات |
Cable Grip, Multi-Hole | - | 0.187" (4.75mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
CD36AA-GYCABLE GLAND 22.1-32MM PG36 |
17 |
|
برگه مشخصات |
Cable Gland | 0.870" (22.10mm) | 1.260" (32.00mm) | PG36 | 0.510" (12.95mm) | - | 1.850" (47.0mm) | Polyamide (PA66), Nylon 6/6 | - | Gray | IP68/IP69K - Dust Tight, Water Resistant, Waterproof; NEMA 6 | -40°C ~ 100°C | |
|

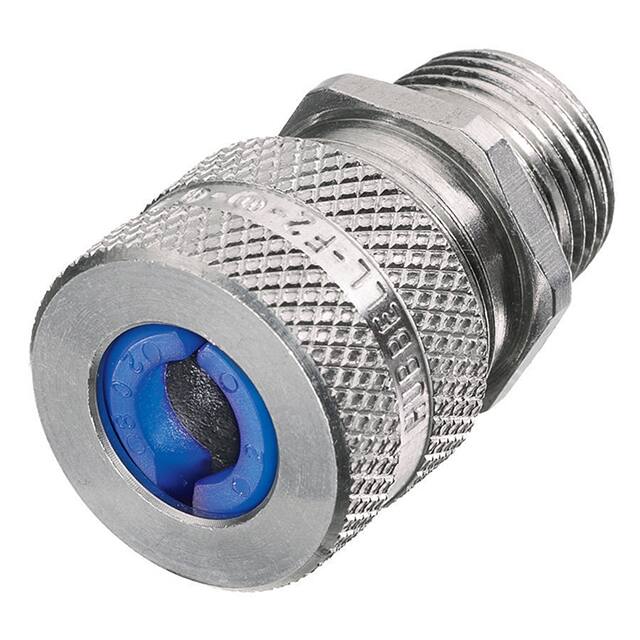

SHC1039CABLE GLAND 9.65-12.7MM 1" NPT |
10 |
|
- |
Cable Gland | 0.380" (9.65mm) | 0.500" (12.70mm) | 1" NPT | - | - | - | Aluminum | - | Silver | - | -34°C ~ 107°C | |
|
97276.6CABLE GLAND 6.86-10.41MM M16 |
44 |
|
برگه مشخصات |
Cable Gland | 0.270" (6.86mm) | 0.410" (10.41mm) | M16x1.5 | 0.240" (6.10mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|
EM2-12CABLE GLAND 3-6.5MM M12 BRASS |
43 |
|
برگه مشخصات |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.236" (6.00mm) | - | 0.472" (12.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
PPG-48CABLE GLAND 34-44MM PG48 |
22 |
|
برگه مشخصات |
Cable Gland | 1.339" (34.00mm) | 1.732" (44.00mm) | PG48 | 0.552" (14.02mm) | - | 2.338" (59.3mm) | Polyamide (PA6), Nylon 6 | Locknut | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
PPB-48CABLE GLAND 34-44MM PG48 |
20 |
|
برگه مشخصات |
Cable Gland | 1.339" (34.00mm) | 1.732" (44.00mm) | PG48 | 0.552" (14.02mm) | - | 2.338" (59.3mm) | Polyamide (PA6), Nylon 6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
1300980197CABLE GRIP 6.35MM 1/2" NPT |
0 |
|
برگه مشخصات |
Cable Grip, Multi-Hole | - | 0.250" (6.35mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
EP2-13CABLE GLAND 6-12.01MM PG13.5 |
94 |
|
برگه مشخصات |
Cable Gland | 0.236" (6.00mm) | 0.473" (12.01mm) | PG13.5 | 0.256" (6.50mm) | - | 0.803" (20.4mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C |
