دستگیره های کابل و سیم
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | تایپ کنید | قطر کابل خارجی (حداقل) | قطر کابل خارجی (حداکثر) | اندازه موضوع | طول نخ | اندازه هاب مجرا | اندازه سوراخ پانل | مواد | شامل می شود | رنگ | حفاظت از ورود | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
5308 943/SETCABLE GLAND 9-18.01MM M25 |
0 |
|
برگه مشخصات |
Cable Gland | 0.354" (9.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.394" (10.00mm) | - | 0.984" (25.0mm) | Polyamide (PA6), Nylon 6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
19000005181CABLE GLAND 5-9MM M20 POLYAMIDE |
0 |
|
برگه مشخصات |
Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | M20 | - | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
PNS3/8 BK080CABLE GLAND 5-10MM 3/8" NPT |
13 |
|
برگه مشخصات |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | 3/8" NPT | 0.591" (15.00mm) | - | 0.673" (17.1mm) | Polyamide (PA), Nylon | Gasket, Nut, Strain Relief | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
50.620 M-LCABLE GLAND 9-13MM M20 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.013CABLE GLAND 6-12MM PG13.5 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | PG13.5 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

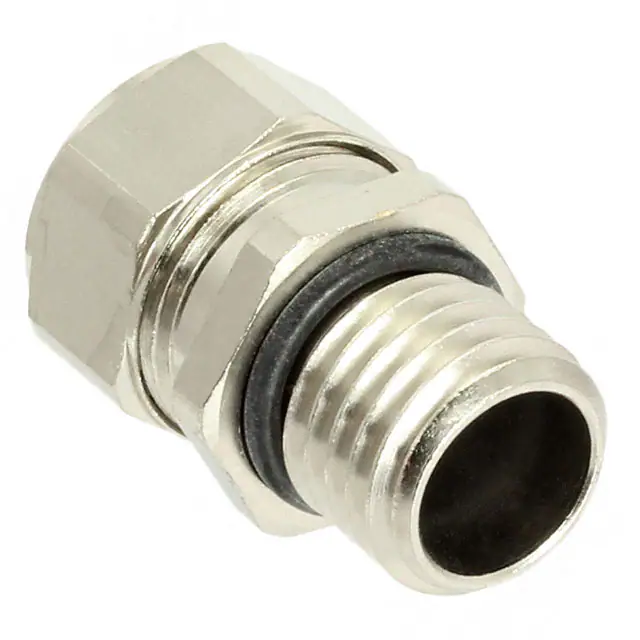

A1100.12.065CABLE GLAND 5-6.5MM M12 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.197" (5.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.394" (10.00mm) | - | 0.472" (12.0mm) | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
K150-1012-00CABLE GLAND 3-8MM M12 BRASS |
14 |
|
برگه مشخصات |
Cable Gland | 0.118" (3.00mm) | 0.315" (8.00mm) | M12x1.5 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
PNS1/2 BK080CABLE GLAND 6-12MM 1/2" NPT |
0 |
|
برگه مشخصات |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | 0.840" (21.3mm) | Polyamide (PA), Nylon | Gasket, Nut, Strain Relief | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
PMS20 BK080CABLE GLAND 10-14MM M20 POLYAMID |
20 |
|
برگه مشخصات |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M20x1.5 | 0.394" (10.00mm) | - | 0.787" (20.0mm) | Polyamide (PA), Nylon | Gasket, Nut, Strain Relief | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
A1100.10.040CABLE GLAND 3-4MM M10 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.118" (3.00mm) | 0.157" (4.00mm) | M10x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
52015790CABLE GLAND 3-7MM PG11 BRASS |
22 |
|
برگه مشخصات |
Cable Gland | 0.118" (3.00mm) | 0.276" (7.00mm) | PG11 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; Nema 6P | -40°C ~ 100°C | |
|

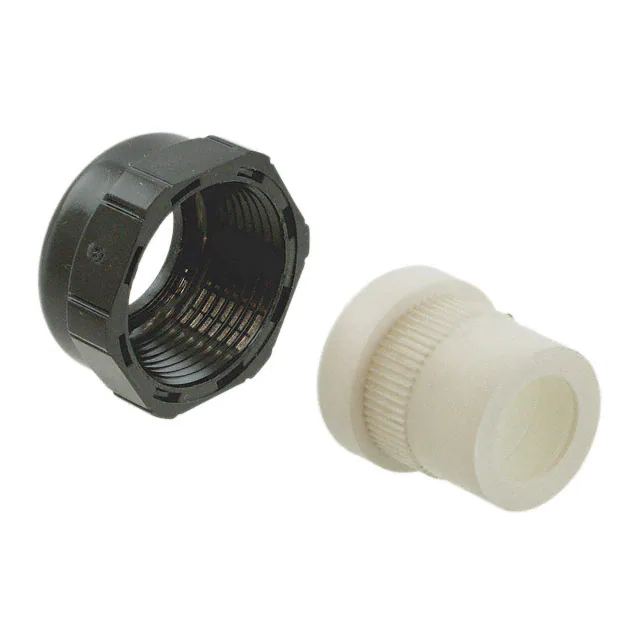

09000005059CABLE GLAND 11.5-15.5MM PG16 |
0 |
|
برگه مشخصات |
Cable Gland | 0.453" (11.50mm) | 0.610" (15.50mm) | PG16 | - | - | - | Thermoplastic | - | - | IP65 - Dust Tight, Water Resistant | -40°C ~ 100°C | |
|
50.632 M/EMVCABLE GLAND 14-20MM M32 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.551" (14.00mm) | 0.787" (20.00mm) | M32x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
50.620 M/EMVDCABLE GLAND 9-13MM M20 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
RT0L-14CG-NS1CABLE GRP 6.5-10MM 13/16-20 ZINC |
1 |
|
برگه مشخصات |
Cable Grip | 0.256" (6.50mm) | 0.394" (10.00mm) | 13/16-20 | - | - | - | Zinc Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|
|
RT0L-16CG-NS1CABLE GRIP 10-14MM 15/16-20 ZINC |
0 |
|
برگه مشخصات |
Cable Grip | 0.394" (10.00mm) | 0.551" (14.00mm) | 15/16-20 | - | - | - | Zinc Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|
S1629CABLE GLAND 9-23MM M40 POLYAMIDE |
0 |
|
برگه مشخصات |
Cable Gland | 0.354" (9.00mm) | 0.906" (23.00mm) | M40x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|

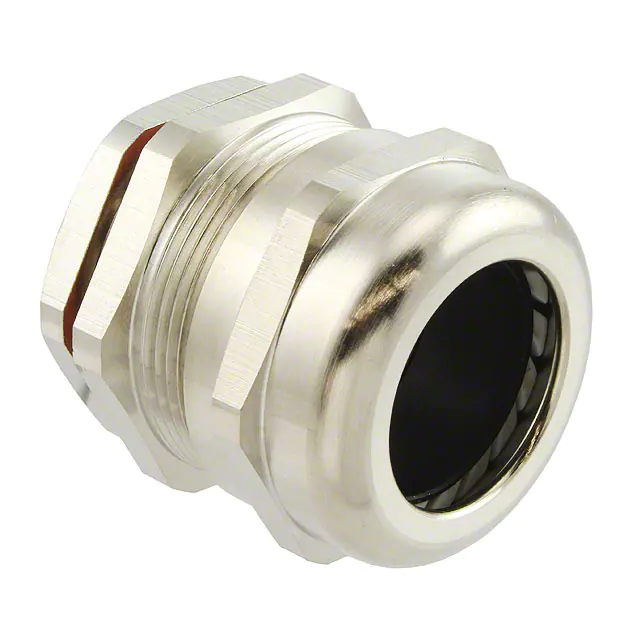

AIO-CSJM32CABLE GLAND 18.01-25MM M32 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | M32x1.5 | 0.394" (10.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
S1136CABLE GLAND 24-32MM PG36 |
0 |
|
برگه مشخصات |
Cable Gland | 0.945" (24.00mm) | 1.260" (32.00mm) | PG36 | 0.512" (13.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|

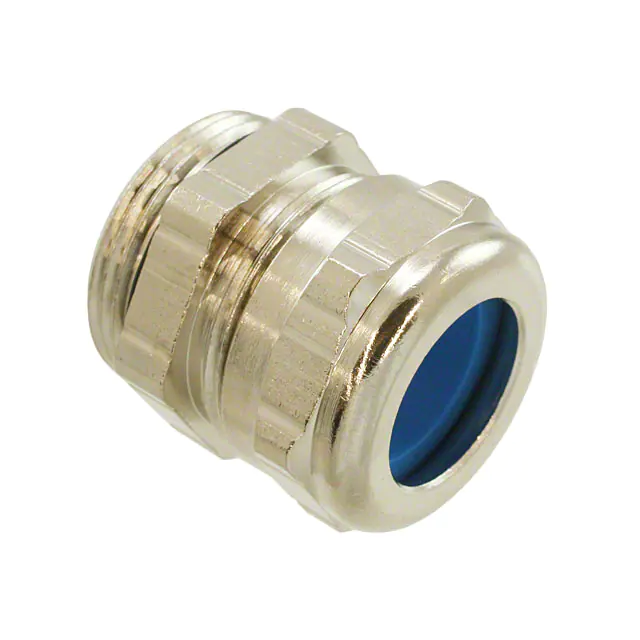

09000005093CABLE GLND 14-18.01MM PG21 METAL |
0 |
|
برگه مشخصات |
Cable Gland | 0.551" (14.00mm) | 0.709" (18.01mm) | PG21 | - | - | - | Metal | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C |
