دستگیره های کابل و سیم
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | تایپ کنید | قطر کابل خارجی (حداقل) | قطر کابل خارجی (حداکثر) | اندازه موضوع | طول نخ | اندازه هاب مجرا | اندازه سوراخ پانل | مواد | شامل می شود | رنگ | حفاظت از ورود | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50.616 M/EMVDCABLE GLAND 5-9MM M16 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | M16x1.5 | 0.197" (5.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
97176.6CABLE GLAND 6.6-9.4MM M16 BRASS |
2 |
|
برگه مشخصات |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | M16x1.5 | 0.240" (6.10mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
96577.1CABLE FEEDTHROUGH 45.97-54.1MM |
2 |
|
برگه مشخصات |
Cable Feedthrough | 1.810" (45.97mm) | 2.130" (54.10mm) | M63x1.5 | 0.390" (9.91mm) | - | 2.480" (63.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
MES20 NC080CABLE GLAND 6-12MM M20 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.315" (8.00mm) | - | 0.787" (20.0mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
50.632 MCABLE GLAND 14-20MM M32 BRASS |
2 |
|
برگه مشخصات |
Cable Gland | 0.551" (14.00mm) | 0.787" (20.00mm) | M32x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
CG-M40-1-BKCABLE GLAND 16-28MM M40 POLYAMID |
1 |
|
برگه مشخصات |
Cable Gland | 0.630" (16.00mm) | 1.102" (28.00mm) | M40 | 0.394" (10.00mm) | - | 1.583" (40.2mm) | Polyamide (PA), Nylon | Inner and Outer Sealing Gland, Sealing Nut, Sealing Washer | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
5309 763CABLE GLAND 26-39MM M63 POLYAMID |
3 |
|
برگه مشخصات |
Cable Gland | 1.024" (26.00mm) | 1.535" (39.00mm) | M63x1.5 | 0.472" (12.00mm) | - | 2.480" (63.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
50.650 PA/SWCABLE GLAND 27-35MM M50 POLYAMID |
3 |
|
برگه مشخصات |
Cable Gland | 1.063" (27.00mm) | 1.378" (35.00mm) | M50x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
S2629CABLE GLAND 9-23MM M40 POLYAMIDE |
2 |
|
برگه مشخصات |
Cable Gland | 0.354" (9.00mm) | 0.906" (23.00mm) | M40x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
96577.0CABLE FEEDTHROUGH 45.97-54.1MM |
5 |
|
- |
Cable Feedthrough | 1.810" (45.97mm) | 2.130" (54.10mm) | M63x1.5 | 0.390" (9.91mm) | - | 2.480" (63.0mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|

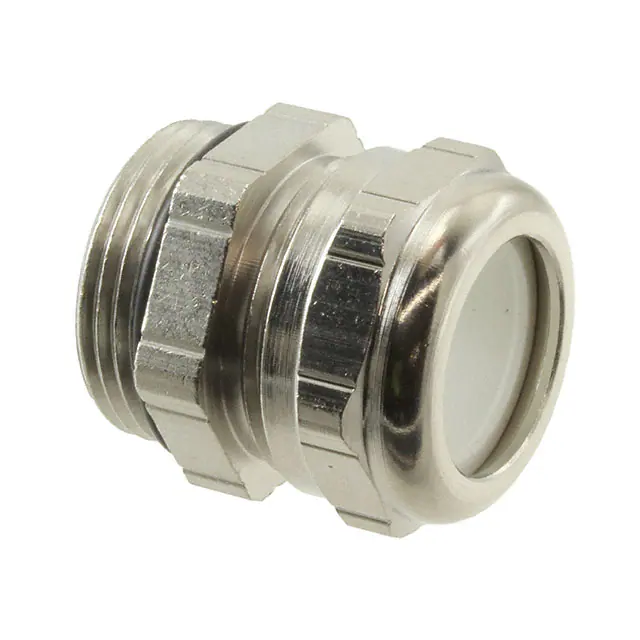

09000005089CABLE GLAND 11.5-15.5MM PG16 MET |
0 |
|
برگه مشخصات |
Cable Gland | 0.453" (11.50mm) | 0.610" (15.50mm) | PG16 | - | - | - | Metal | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|

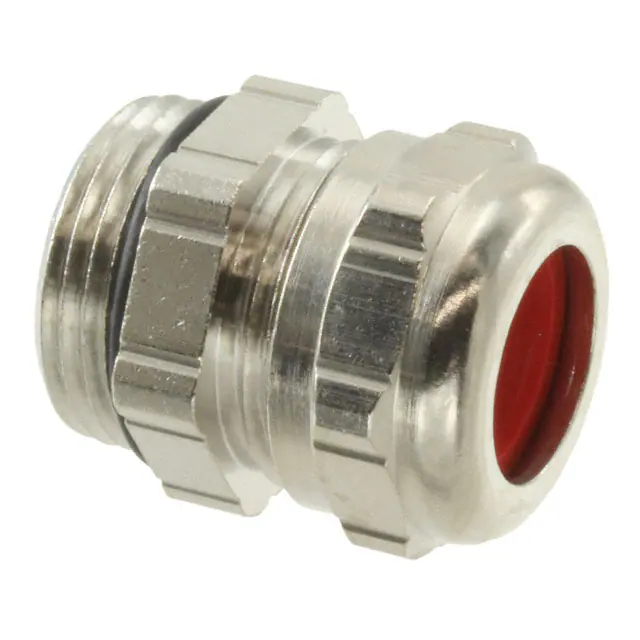

09000005085CABLE GLAND 9-13MM PG13.5 METAL |
5 |
|
برگه مشخصات |
Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | PG13.5 | - | - | - | Metal | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|

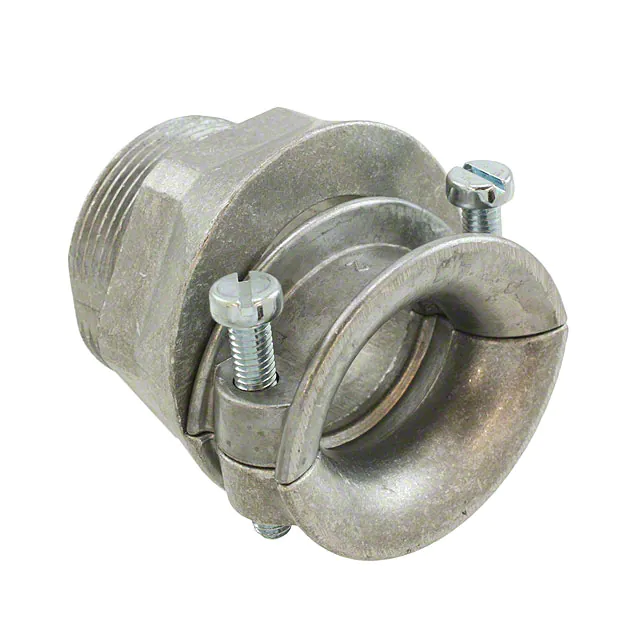

09000005106CABLE GLAND PG29 |
2 |
|
برگه مشخصات |
Cable Gland | - | - | PG29 | 0.512" (13.00mm) | - | - | - | - | - | - | - | |
|

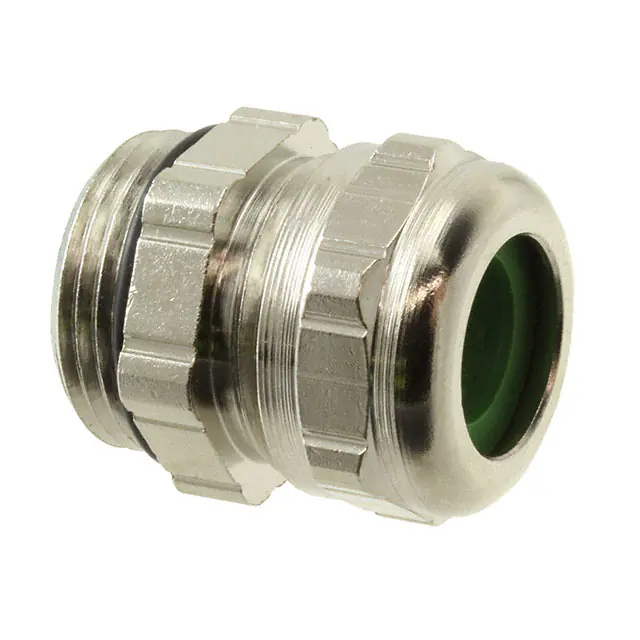

09000005084CABLE GLND 7-10.5MM PG13.5 METAL |
3 |
|
برگه مشخصات |
Cable Gland | 0.276" (7.00mm) | 0.413" (10.50mm) | PG13.5 | - | - | - | Metal | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|
1300980155CABLE GRIP 19.05-22.23MM 1" NPT |
4 |
|
برگه مشخصات |
Cable Grip | 0.750" (19.05mm) | 0.875" (22.23mm) | 1" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
MNPT3/8 NC080CABLE GLAND 4-8MM 3/8" NPT BRASS |
5 |
|
برگه مشخصات |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | 3/8" NPT | 0.453" (11.50mm) | - | 0.673" (17.1mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
K155-1016-00CABLE GLAND 5-10.5MM M16 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.197" (5.00mm) | 0.413" (10.50mm) | M16x1.5 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP67/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 200°C | |
|
|
RT0S-14CG-NS2CABLE GRP 9-12.5MM 13/16-20 ZINC |
0 |
|
برگه مشخصات |
Cable Grip | 0.354" (9.00mm) | 0.492" (12.50mm) | 13/16-20 | - | - | - | Zinc Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|
IPG-22263CABLE GLAND 41.91-50.04MM PG63 |
1 |
|
برگه مشخصات |
Cable Gland | 1.650" (41.91mm) | 1.970" (50.04mm) | PG63 | 1.060" (26.92mm) | - | 2.760" (70.1mm) | Polyamide (PA), Nylon | Gasket | Black | IP66 - Dust Tight, Water Resistant | -20°C ~ 65°C | |
|
09000005169CABLE GLAND PG29 THERMOPL |
4 |
|
برگه مشخصات |
Cable Gland | - | - | PG29 | 0.512" (13.00mm) | - | - | Thermoplastic | - | Gray | IP68 - Dust Tight, Waterproof | - |
