دستگیره های کابل و سیم
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | تایپ کنید | قطر کابل خارجی (حداقل) | قطر کابل خارجی (حداکثر) | اندازه موضوع | طول نخ | اندازه هاب مجرا | اندازه سوراخ پانل | مواد | شامل می شود | رنگ | حفاظت از ورود | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50.042 PACABLE GLAND 30-38MM PG42 |
0 |
|
برگه مشخصات |
Cable Gland | 1.181" (30.00mm) | 1.496" (38.00mm) | PG42 | 0.512" (13.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
95432.4CABLE GLAND 6.6-9.4MM M25 PVDF |
0 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | M25x1.5 | - | - | 0.980" (24.9mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
95433.4CABLE GLND 7.11-10.41MM M25 PVDF |
0 |
|
- |
Cable Gland | 0.280" (7.11mm) | 0.410" (10.41mm) | M25x1.5 | - | - | 0.980" (24.9mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
95434.4CABLE GLND 8.89-12.95MM M25 PVDF |
0 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | M25x1.5 | - | - | 0.980" (24.9mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
95745.4CABLE GLAND 13.97-18.03MM M20 |
0 |
|
- |
Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | M20x1.5 | 0.430" (10.92mm) | - | 0.790" (20.1mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
95746.4CABLE GLAND 17.02-20.57MM M20 |
0 |
|
- |
Cable Gland | 0.670" (17.02mm) | 0.810" (20.57mm) | M20x1.5 | 0.430" (10.92mm) | - | 0.790" (20.1mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20129.5CABLE GLAND 7.11-10.41MM PG21 |
0 |
|
- |
Cable Gland | 0.280" (7.11mm) | 0.410" (10.41mm) | PG21 | 0.410" (10.41mm) | - | 1.120" (28.4mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20130.5CABLE GLAND 8.89-12.95MM PG21 |
0 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | PG21 | 0.410" (10.41mm) | - | 1.120" (28.4mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20131.5CABLE GLAND 11.43-15.5MM PG21 |
0 |
|
- |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | PG21 | 0.410" (10.41mm) | - | 1.120" (28.4mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20132.5CABLE GLAND 13.97-18.03MM PG21 |
0 |
|
- |
Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | PG21 | 0.410" (10.41mm) | - | 1.120" (28.4mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20133.5CABLE GLAND 17.02-20.57MM PG21 |
0 |
|
- |
Cable Gland | 0.670" (17.02mm) | 0.810" (20.57mm) | PG21 | 0.410" (10.41mm) | - | 1.120" (28.4mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
96868.6CABLE GLAND 8-10.5MM M25 BRASS |
0 |
|
- |
Cable Gland - Flat Cables | 0.315" (8.00mm) | 0.413" (10.50mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 300°C | |
|
|
98038CABLE GLAND 5-9MM M20 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | M20x1.5 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
K161-1016-00WADI RAIL EMC-CABLE GLAND M16 NI |
0 |
|
برگه مشخصات |
Cable Gland | 0.197" (5.00mm) | 0.413" (10.50mm) | M16x1.5 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP66/IP67/IP69 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 100°C | |
|

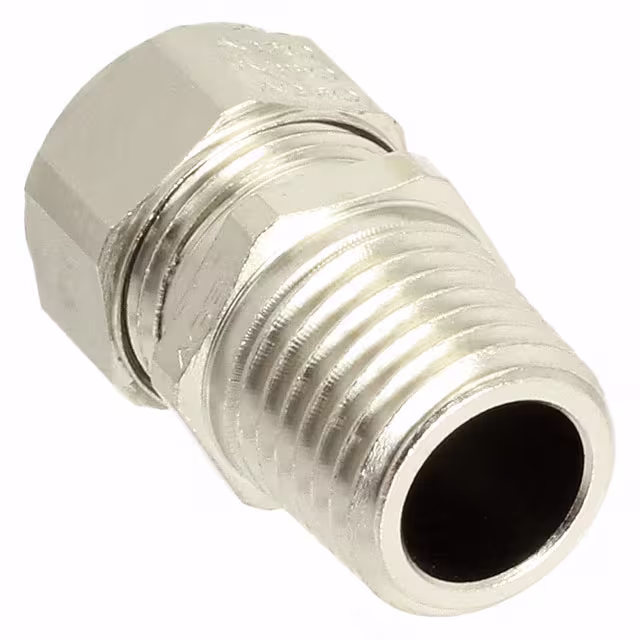

A1000.1/4NPT.065CABLE GLAND 5-6.5MM 1/4" NPT |
0 |
|
برگه مشخصات |
Cable Gland | 0.197" (5.00mm) | 0.256" (6.50mm) | 1/4" NPT | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
26111.6CABLE GLAND M32 |
0 |
|
- |
Cable Gland | - | - | M32x1.5 | - | - | - | - | - | - | - | - | |
|
|
21525.6CABLE GLAND 4.06-6.1MM PG9 BRASS |
0 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.240" (6.10mm) | PG9 | 0.240" (6.10mm) | - | 0.610" (15.5mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
21734.6CABLE GLAND PG16 |
0 |
|
- |
Cable Gland | - | - | PG16 | - | - | - | - | - | - | - | - | |
|
|
22236.2CABLE GLAND PG36 |
0 |
|
- |
Cable Gland - Flat Cables | - | - | PG36 | - | - | - | - | - | - | - | - | |
|
|
22230.2CABLE GLAND PG36 POLYAMIDE |
0 |
|
- |
Cable Gland - Flat Cables | - | - | PG36 | 0.510" (12.95mm) | - | 1.870" (47.5mm) | Polyamide (PA), Nylon | - | Light Gray | IP55 - Dust Protected, Water Resistant | - |
