دستگیره های کابل و سیم
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | تایپ کنید | قطر کابل خارجی (حداقل) | قطر کابل خارجی (حداکثر) | اندازه موضوع | طول نخ | اندازه هاب مجرا | اندازه سوراخ پانل | مواد | شامل می شود | رنگ | حفاظت از ورود | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
98339.1CABLE GLAND 11.94-20.07MM 1 1/4" |
0 |
|
- |
Cable Gland | 0.470" (11.94mm) | 0.790" (20.07mm) | 1 1/4" NPT | 0.710" (18.03mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | - | |
|
|
98333.2CABLE GLAND 11.94-20.07MM 1 1/4" |
0 |
|
- |
Cable Gland | 0.470" (11.94mm) | 0.790" (20.07mm) | 1 1/4" NPT | 0.710" (18.03mm) | - | - | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof | - | |
|
|
S1321CABLE GLAND 13-18.01MM PG21 |
0 |
|
برگه مشخصات |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -20°C ~ 80°C | |
|
|
S2321CABLE GLAND 13-18.01MM PG21 |
0 |
|
برگه مشخصات |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -20°C ~ 80°C | |
|
|
53112005CABLE GLAND 3.5-7MM M12 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.138" (3.50mm) | 0.276" (7.00mm) | M12x1.5 | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C | |
|

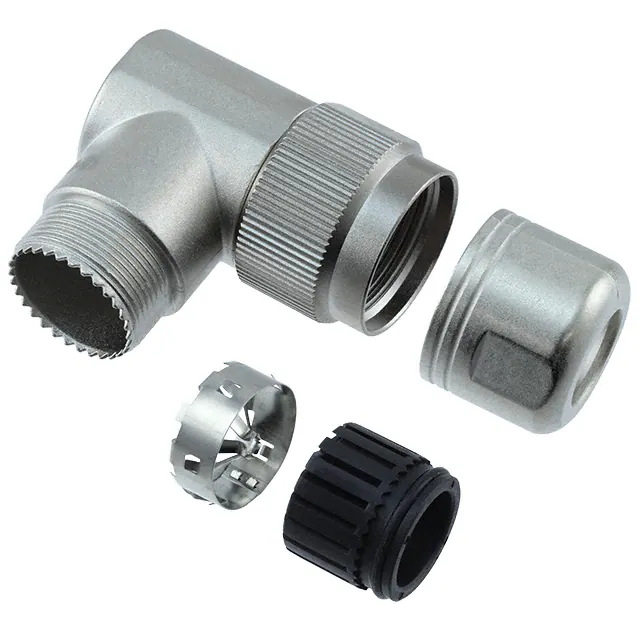

RT0B-14CG-S2CABLE GRIP RA 8-12.5MM 13/16-20 |
0 |
|
برگه مشخصات |
Cable Grip - 90° | 0.315" (8.00mm) | 0.492" (12.50mm) | 13/16-20 | - | - | - | Zinc | EMC Grounding Ring, Gasket, Nut, Seal | Gray | IP67 - Dust Tight, Waterproof | - | |
|
|
53015160CABLE GLAND 11-20MM PG29 |
0 |
|
برگه مشخصات |
Cable Gland | 0.433" (11.00mm) | 0.787" (20.00mm) | PG29 | 0.421" (10.70mm) | - | - | Polyamide | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
52115710CABLE GLAND 4-8MM PG9 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
53015360CABLE GLAND 11-20MM PG29 |
0 |
|
برگه مشخصات |
Cable Gland | 0.433" (11.00mm) | 0.787" (20.00mm) | PG29 | 0.421" (10.70mm) | - | - | Polyamide | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
96215.4.1CABLE GLAND M32 PVDF |
0 |
|
- |
Cable Gland | - | - | M32x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | - | - | - | |
|
|
4248409CABLE GLAND PG16 BRASS |
0 |
|
- |
Cable Gland | - | - | PG16 | 0.256" (6.50mm) | - | 0.276" (7.0mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 120°C | |
|
|
4249643CABLE GLAND M25 BRASS |
0 |
|
- |
Cable Gland | - | - | M25x1.5 | 0.315" (8.00mm) | - | 0.236" (6.0mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 120°C | |
|
|
20448.6CABLE GLAND PG29 BRASS |
0 |
|
- |
Cable Gland | - | - | PG29 | - | - | - | Brass, Nickel Plated | - | Silver | - | - | |
|
|
20824.5CABLE GLND 6.6-9.4MM PG13.5 PVDF |
0 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | PG13.5 | 0.260" (6.60mm) | - | 0.810" (20.6mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Black | IP65 - Dust Tight, Water Resistant; NEMA 4X | -40°C ~ 150°C | |
|
|
20169.6CABLE GLAND 7.11-10.41MM PG21 |
0 |
|
- |
Cable Gland | 0.280" (7.11mm) | 0.410" (10.41mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
20170.6CABLE GLAND 8.89-12.95MM PG21 |
0 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
20171.6CABLE GLAND 11.43-15.5MM PG21 |
0 |
|
- |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
20172.6CABLE GLAND 13.97-18.03MM PG21 |
0 |
|
- |
Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
20173.6CABLE GLAND 17.02-20.57MM PG21 |
0 |
|
- |
Cable Gland | 0.670" (17.02mm) | 0.810" (20.57mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
20660.4CABLE GLAND 5.59-12.95MM PG21 |
0 |
|
- |
Cable Gland | 0.220" (5.59mm) | 0.510" (12.95mm) | PG21 | - | - | 1.120" (28.4mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 150°C |
