دستگیره های کابل و سیم
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | تایپ کنید | قطر کابل خارجی (حداقل) | قطر کابل خارجی (حداکثر) | اندازه موضوع | طول نخ | اندازه هاب مجرا | اندازه سوراخ پانل | مواد | شامل می شود | رنگ | حفاظت از ورود | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
21140.5CABLE GLAND 7-20MM PG21 PVDF |
0 |
|
- |
Cable Gland - Flat Cables | 0.276" (7.00mm) | 0.787" (20.00mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 150°C | |
|
|
97611.6CABLE GLAND 11.94-14.99MM M20 |
0 |
|
- |
Cable Gland | 0.470" (11.94mm) | 0.590" (14.99mm) | M20x1.5 | 0.240" (6.10mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|
|
26179.6M25X1.5 PULL |
0 |
|
- |
- | - | - | M25x1.5 | - | - | - | - | - | - | - | - | |
|
|
4264016CABLE GLAND 10-14.5MM PG16 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.394" (10.00mm) | 0.571" (14.50mm) | PG16 | - | - | 0.614" (15.6mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 120°C | |
|
50.640 M-LCABLE GLAND 19-27MM M40 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.748" (19.00mm) | 1.063" (27.00mm) | M40x1.5 | 0.512" (13.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
20901.6CABLE GLAND 7.11-10.41MM 3/8" |
0 |
|
- |
Cable Gland | 0.280" (7.11mm) | 0.410" (10.41mm) | 3/8" NPT | 0.510" (12.95mm) | - | 0.675" (17.2mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
20344.4CABLE GLAND 8.89-12.95MM PG21 |
0 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | PG21 | 0.410" (10.41mm) | - | 1.120" (28.4mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20345.4CABLE GLAND 7.11-10.41MM PG21 |
0 |
|
- |
Cable Gland | 0.280" (7.11mm) | 0.410" (10.41mm) | PG21 | 0.410" (10.41mm) | - | 1.120" (28.4mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20363.4CABLE GLAND 11.43-15.5MM PG21 |
0 |
|
- |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | PG21 | 0.410" (10.41mm) | - | 1.120" (28.4mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
98235.1CABLE GLAND 22.1-32MM PG36 |
0 |
|
- |
Cable Gland | 0.870" (22.10mm) | 1.260" (32.00mm) | PG36 | 0.550" (13.97mm) | - | 1.860" (47.2mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | - | |
|
|
98215.2CABLE GLAND 22.1-32MM PG36 |
0 |
|
- |
Cable Gland | 0.870" (22.10mm) | 1.260" (32.00mm) | PG36 | 0.550" (13.97mm) | - | 1.860" (47.2mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof | - | |
|

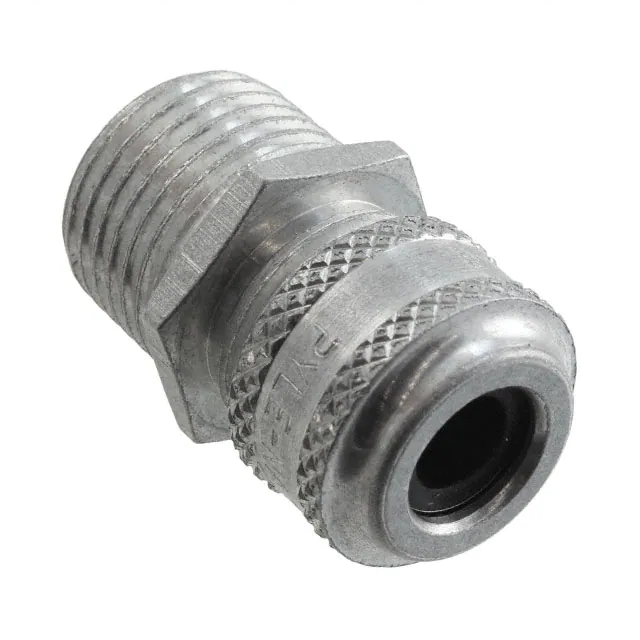

DB-3516CABLE GRIP 6.35-7.93MM ALUMINUM |
0 |
|
برگه مشخصات |
Cable Grip | 0.250" (6.35mm) | 0.312" (7.93mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Aluminum | Compression Nut, Strain Relief | Silver | - | - | |
|
|
50.650PA/SW/VPERFECT CABLE GLAND POLYAMIDE WI |
0 |
|
برگه مشخصات |
Cable Gland | - | - | M50x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
98605.6.1CABLE GLAND 8.89-17.02MM M24 |
0 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.670" (17.02mm) | M24x1.5 | 0.940" (23.88mm) | - | 0.940" (23.9mm) | Brass | - | Copper | IP68 - Dust Tight, Waterproof | - | |
|
|
98503.6CABLE GLAND 8.89-20.07MM M25 |
0 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.790" (20.07mm) | M25x1.5 | 0.280" (7.11mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | - | Silver | IP65 - Dust Tight, Water Resistant | - | |
|
|
98454.6CABLE FEEDTHROUGH 14.99-25.91MM |
0 |
|
- |
Cable Feedthrough | 0.590" (14.99mm) | 1.020" (25.91mm) | M32x1.5 | 0.510" (12.95mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | - | Silver | IP54 - Dust Protected, Water Resistant | - | |
|
|
5318402CABLE GLAND MULT M32 POLYAMIDE |
0 |
|
- |
Cable Gland - Multiple Openings | - | - | M32x1.5 | 0.472" (12.00mm) | - | 0.472" (12.0mm) | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 120°C | |
|
50.640 M/RCABLE GLAND 16-27MM M40 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.630" (16.00mm) | 1.063" (27.00mm) | M40x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
90775CABLE GLND 13-18.01MM PG21 BRASS |
0 |
|
برگه مشخصات |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.283" (7.20mm) | - | - | Brass | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
50.650 PA/VPERFECT CABLE GLAND POLYAMIDE WI |
0 |
|
برگه مشخصات |
Cable Gland | - | - | M50x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA6), Nylon 6 | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
