دستگیره های کابل و سیم
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | تایپ کنید | قطر کابل خارجی (حداقل) | قطر کابل خارجی (حداکثر) | اندازه موضوع | طول نخ | اندازه هاب مجرا | اندازه سوراخ پانل | مواد | شامل می شود | رنگ | حفاظت از ورود | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
98076.7CABLE GLAND 2.03-6.1MM M16 |
0 |
|
- |
Cable Gland | 0.080" (2.03mm) | 0.240" (6.10mm) | M16x1.5 | 0.200" (5.08mm) | - | 0.630" (16.0mm) | Stainless Steel | - | Silver | IP68 - Dust Tight, Waterproof | - | |
|
|
DB-790CABLE GRIP RA 3.18-6.35MM METAL |
0 |
|
برگه مشخصات |
Cable Grip - 90° | 0.125" (3.18mm) | 0.250" (6.35mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Metal Alloy | Compression Nut, Strain Relief | Silver | - | - | |
|

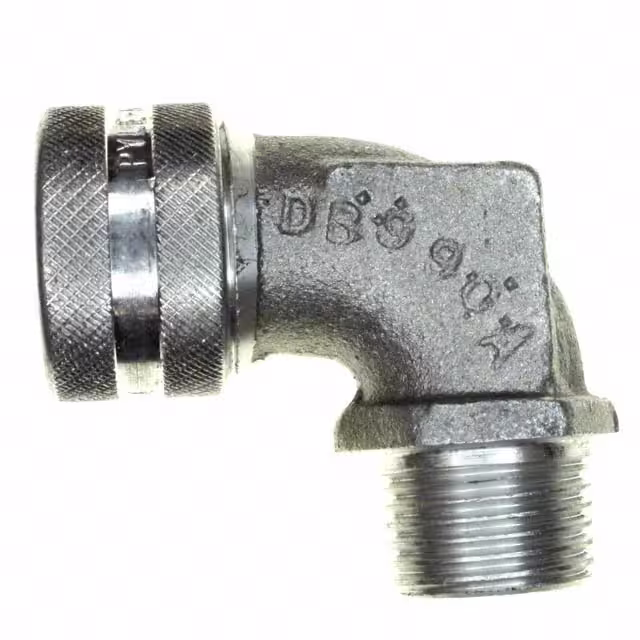

DB-990CABLE GRIP RA 9.53-12.7MM METAL |
0 |
|
برگه مشخصات |
Cable Grip - 90° | 0.375" (9.53mm) | 0.500" (12.70mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Metal Alloy | Compression Nut, Strain Relief | Silver | - | - | |
|
|
186D32CABLE GLND 26.92-32MM PG36 BRASS |
0 |
|
- |
Cable Gland | 1.060" (26.92mm) | 1.260" (32.00mm) | PG36 | 0.590" (14.99mm) | - | 1.850" (47.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
186D34CABLE GLAND 28.96-34.04MM PG36 |
0 |
|
- |
Cable Gland | 1.140" (28.96mm) | 1.340" (34.04mm) | PG36 | 0.590" (14.99mm) | - | 1.850" (47.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
186D36CABLE GLND 32-36.07MM PG36 BRASS |
0 |
|
- |
Cable Gland | 1.260" (32.00mm) | 1.420" (36.07mm) | PG36 | 0.590" (14.99mm) | - | 1.850" (47.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
95135.7CABLE GLAND M20 S STEEL |
0 |
|
- |
Cable Gland | - | - | M20x1.5 | - | - | - | Stainless Steel | Sealing Ring | Silver | - | -60°C ~ 500°C | |
|
|
96443.5CABLE GLAND MULT M50 PVDF |
0 |
|
- |
Cable Gland - Multiple Openings | - | - | M50x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Black | - | - | |
|
|
96444.5CABLE GLAND MULT M50 PVDF |
0 |
|
- |
Cable Gland - Multiple Openings | - | - | M50x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Black | - | - | |
|
|
98447.6CABLE FEEDTHROUGH 35.05-45.97MM |
0 |
|
- |
Cable Feedthrough | 1.380" (35.05mm) | 1.810" (45.97mm) | M63x1.5 | 0.390" (9.91mm) | - | 2.480" (63.0mm) | Brass, Nickel Plated | - | Silver | IP54 - Dust Protected, Water Resistant | - | |
|
|
18409.6CABLE GLAND 16-20.07MM 1" NPT |
0 |
|
- |
Cable Gland | 0.630" (16.00mm) | 0.790" (20.07mm) | 1" NPT | 0.790" (20.07mm) | - | 1.311" (33.3mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|
|
18410.6CABLE GLAND 20.07-23.88MM 1" NPT |
0 |
|
- |
Cable Gland | 0.790" (20.07mm) | 0.940" (23.88mm) | 1" NPT | 0.790" (20.07mm) | - | 1.311" (33.3mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|
|
18411.6CABLE GLAND 23.11-26.92MM 1" NPT |
0 |
|
- |
Cable Gland | 0.910" (23.11mm) | 1.060" (26.92mm) | 1" NPT | 0.790" (20.07mm) | - | 1.311" (33.3mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|
|
DB-890CABLE GRIP RA 6.35-9.53MM METAL |
0 |
|
برگه مشخصات |
Cable Grip - 90° | 0.250" (6.35mm) | 0.375" (9.53mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Metal Alloy | Compression Nut, Strain Relief | Silver | - | - | |
|
|
21610.6CABLE GLAND 13.97-18.03MM PG21 |
0 |
|
- |
Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | PG21 | 0.430" (10.92mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
20508.7CABLE GLAND 4.06-6.6MM PG13.5 |
0 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | PG13.5 | 0.260" (6.60mm) | - | 0.810" (20.6mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
|
20509.7CABLE GLAND 5.08-7.87MM PG13.5 |
0 |
|
- |
Cable Gland | 0.200" (5.08mm) | 0.310" (7.87mm) | PG13.5 | 0.260" (6.60mm) | - | 0.810" (20.6mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
|
20510.7CABLE GLAND 6.6-9.4MM PG13.5 |
0 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | PG13.5 | 0.260" (6.60mm) | - | 0.810" (20.6mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
|
20511.7CABLE GLAND 7.11-10.41MM PG13.5 |
0 |
|
- |
Cable Gland | 0.280" (7.11mm) | 0.410" (10.41mm) | PG13.5 | 0.260" (6.60mm) | - | 0.810" (20.6mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
|
20512.7CABLE GLAND 8.89-12.95MM PG13.5 |
0 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | PG13.5 | 0.260" (6.60mm) | - | 0.810" (20.6mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C |
