دستگیره های کابل و سیم
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | تایپ کنید | قطر کابل خارجی (حداقل) | قطر کابل خارجی (حداکثر) | اندازه موضوع | طول نخ | اندازه هاب مجرا | اندازه سوراخ پانل | مواد | شامل می شود | رنگ | حفاظت از ورود | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1569080000CABLE GLAND 5-10MM PG11 BRASS |
37 |
|
برگه مشخصات |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP54/IP66/IP67/IP68/IP69K - Dust Protected, Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
1411175CABLE GLND 13-18.01MM PG21 BRASS |
33 |
|
برگه مشخصات |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.283" (7.20mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
S2129CABLE GLAND 14-25MM PG29 |
68 |
|
برگه مشخصات |
Cable Gland | 0.551" (14.00mm) | 0.984" (25.00mm) | PG29 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
IPG-22242CABLE GLAND 29.97-38.1MM PG42 |
35 |
|
برگه مشخصات |
Cable Gland | 1.180" (29.97mm) | 1.500" (38.10mm) | PG42 | 0.570" (14.48mm) | - | 2.130" (54.1mm) | Polyamide (PA), Nylon | Gasket | Black | IP66 - Dust Tight, Water Resistant | -20°C ~ 65°C | |
|
50.114 PA/SWCABLE GLAND 22-32MM 1 1/4" NPT |
50 |
|
برگه مشخصات |
Cable Gland | 0.866" (22.00mm) | 1.260" (32.00mm) | 1 1/4" NPT | 0.709" (18.01mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

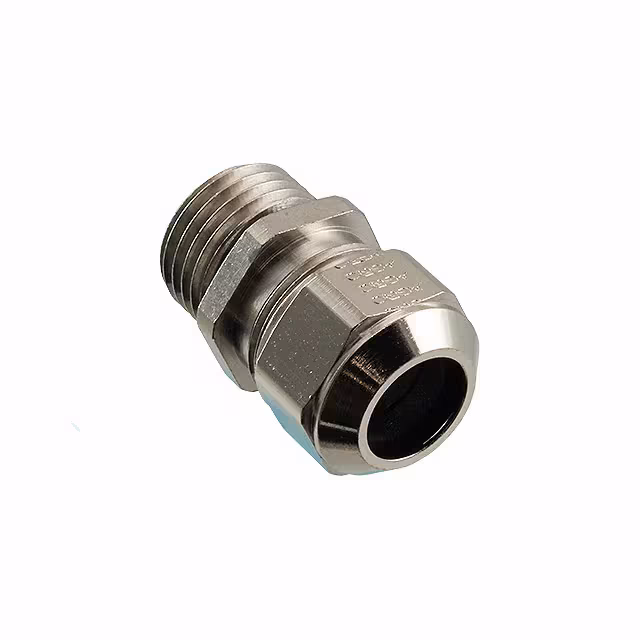

A1100.17.105CABLE GLAND 8-10.5MM M16 BRASS |
39 |
|
برگه مشخصات |
Cable Gland | 0.315" (8.00mm) | 0.413" (10.50mm) | M16x1.5 | 0.394" (10.00mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
1411189CABLE GLAND 9-13MM M20 BRASS |
65 |
|
برگه مشخصات |
Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | M20 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
5308 955CABLE GLAND 18.01-32MM M40 |
53 |
|
برگه مشخصات |
Cable Gland | 0.709" (18.01mm) | 1.260" (32.00mm) | M40x1.5 | 0.394" (10.00mm) | - | 1.575" (40.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
CG-NPT-1-1-BKCABLE GLAND 12-20MM 1" NPT |
27 |
|
برگه مشخصات |
Cable Gland | 0.472" (12.00mm) | 0.787" (20.00mm) | 1" NPT | 0.709" (18.01mm) | - | 1.350" (34.3mm) | Polyamide (PA), Nylon | O-Ring, Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
M3206CABLE GRIP 20-25.91MM PG36 |
48 |
|
برگه مشخصات |
Cable Grip | 0.787" (20.00mm) | 1.020" (25.91mm) | PG36 | 0.470" (11.94mm) | - | 1.880" (47.8mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
53112884CABLE GLAND 9-16.99MM M25 |
86 |
|
برگه مشخصات |
Cable Gland | 0.354" (9.00mm) | 0.669" (16.99mm) | M25 | 0.315" (8.00mm) | - | 0.996" (25.3mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
S2229CABLE GLAND 11-20MM PG29 |
35 |
|
برگه مشخصات |
Cable Gland | 0.433" (11.00mm) | 0.787" (20.00mm) | PG29 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
S2201CABLE GLAND 14-25MM 1" NPT |
51 |
|
برگه مشخصات |
Cable Gland | 0.551" (14.00mm) | 0.984" (25.00mm) | 1" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
53112928CABLE GLAND 7-15MM M32 POLYAMIDE |
50 |
|
برگه مشخصات |
Cable Gland | 0.276" (7.00mm) | 0.591" (15.00mm) | M32 | 1.272" (32.31mm) | - | 1.272" (32.3mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
1411187CABLE GLAND 3-6.5MM M12 BRASS |
61 |
|
برگه مشخصات |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|

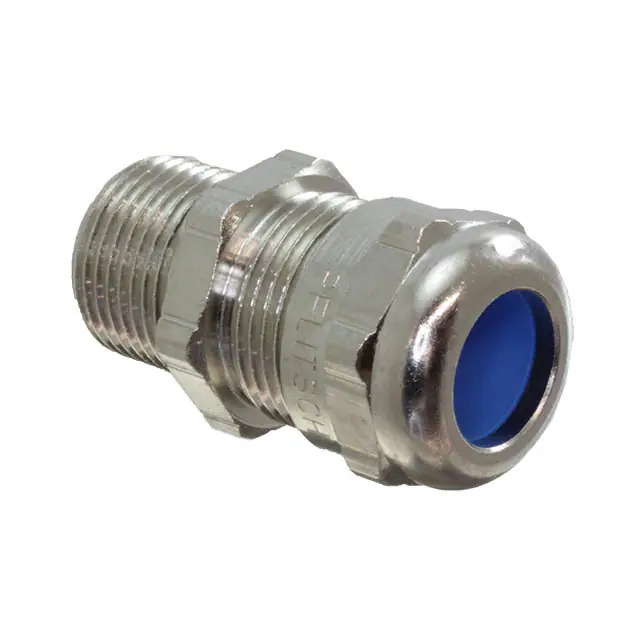

96190.6/15CABLE GLAND 8.89-13.97MM M20 |
68 |
|
برگه مشخصات |
Cable Gland | 0.350" (8.89mm) | 0.550" (13.97mm) | M20x1.5 | 0.260" (6.60mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

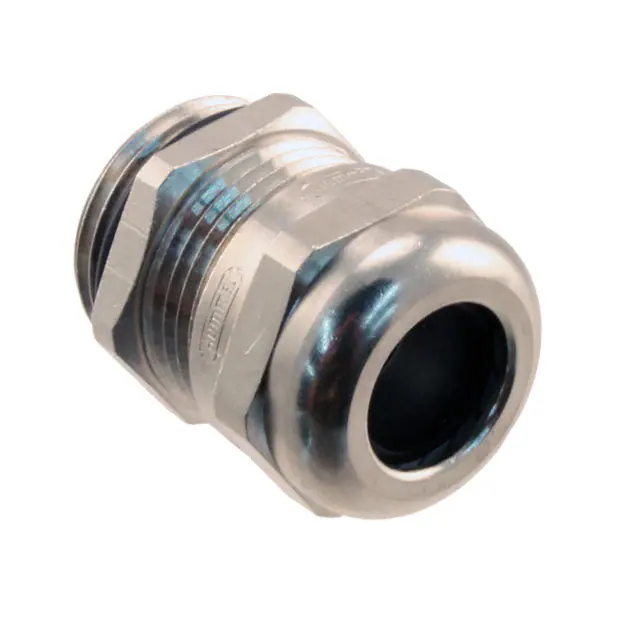

19000005082CABLE GLAND 6-12MM M20 BRASS |
86 |
|
برگه مشخصات |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | M20 | - | - | - | Brass | Clamping Ring | - | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
S1101CABLE GLAND 19-25.4MM 1" NPT |
66 |
|
برگه مشخصات |
Cable Gland | 0.748" (19.00mm) | 1.000" (25.40mm) | 1" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
1411176CABLE GLND 18.01-25MM PG29 BRASS |
37 |
|
برگه مشخصات |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | PG29 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|

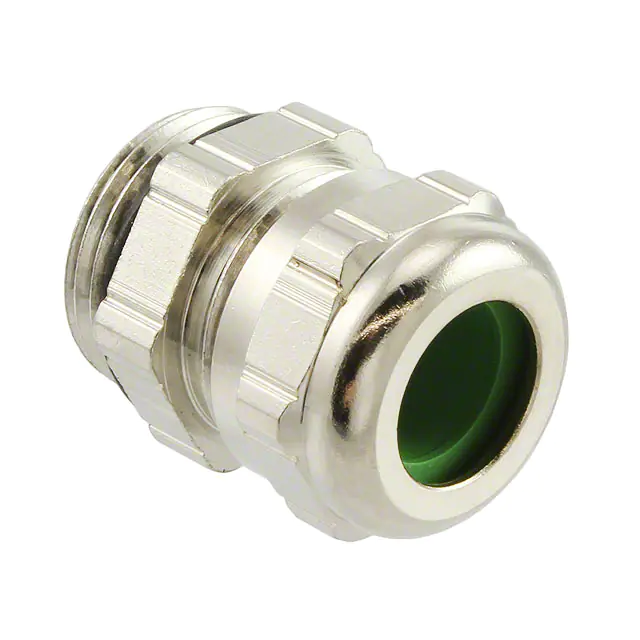

09000005082CABLE GLAND 7-10.5MM PG11 METAL |
16 |
|
برگه مشخصات |
Cable Gland | 0.276" (7.00mm) | 0.413" (10.50mm) | PG11 | - | - | - | Metal | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C |
