دستگیره های کابل و سیم
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | تایپ کنید | قطر کابل خارجی (حداقل) | قطر کابل خارجی (حداکثر) | اندازه موضوع | طول نخ | اندازه هاب مجرا | اندازه سوراخ پانل | مواد | شامل می شود | رنگ | حفاظت از ورود | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
96822.1PCCABLE GLAND M40 POLYAMIDE |
10 |
|
برگه مشخصات |
Cable Gland | - | - | M40x1.5 | - | - | - | Polyamide (PA), Nylon | - | Black | - | -20°C ~ 100°C | |
|
97141.6CABLE GLAND 4.06-6.6MM M25 BRASS |
35 |
|
برگه مشخصات |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21.725MCABLE GLAND RA 8.5-15MM M25 ZINC |
61 |
|
برگه مشخصات |
Cable Gland - 90° | 0.335" (8.50mm) | 0.591" (15.00mm) | M25x1.5 | 0.650" (16.50mm) | - | - | Zinc, Nickel Plated | Locknut, O-Ring, Seal | Silver | IP55 - Dust Protected, Water Resistant | -20°C ~ 100°C | |
|

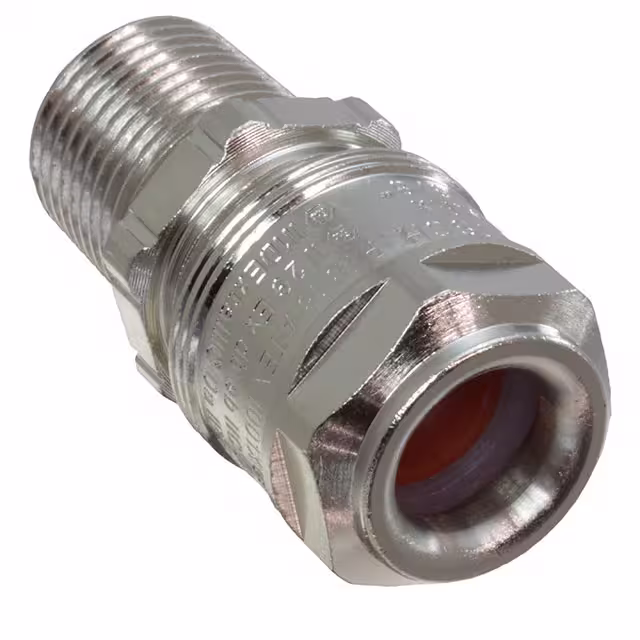

LEX3038MSHTSCABLE GLND 7-11MM 3/8" NPT BRASS |
24 |
|
برگه مشخصات |
Cable Gland | 0.276" (7.00mm) | 0.433" (11.00mm) | 3/8" NPT | 0.630" (16.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|

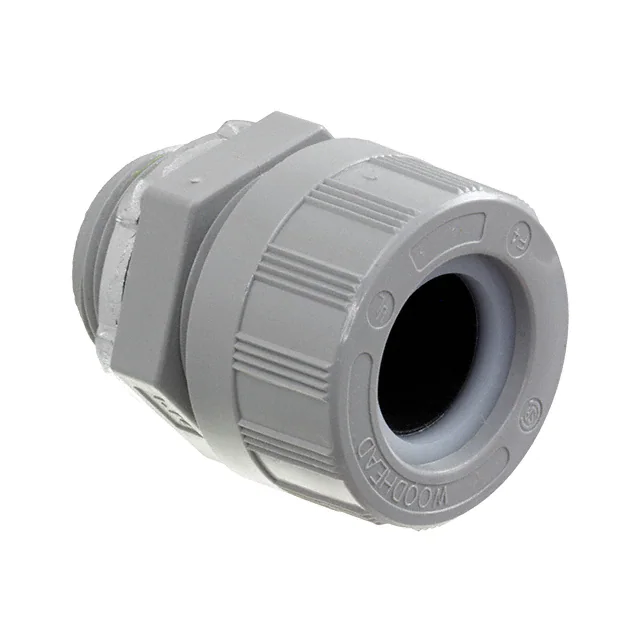

1300980157CABLE GRIP 19.05-22.23MM 1" NPT |
1 |
|
برگه مشخصات |
Cable Grip | 0.750" (19.05mm) | 0.875" (22.23mm) | 1" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
21621.6CABLE GLAND 7.87-10.92MM M16 |
23 |
|
برگه مشخصات |
Cable Gland | 0.310" (7.87mm) | 0.430" (10.92mm) | M16x1.5 | 0.390" (9.91mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
1300980225CABLE GRIP 9.53-11.1MM 3/4" NPT |
26 |
|
برگه مشخصات |
Cable Grip | 0.375" (9.53mm) | 0.437" (11.10mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
EM-SGL-PG21-MET-CCABLE GLND 13-18.01MM PG21 BRASS |
50 |
|
برگه مشخصات |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.283" (7.20mm) | - | - | Brass, Nickel Plated | Locknut, Seal | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
97143.6/15CABLE GLAND 6.6-9.4MM M25 BRASS |
10 |
|
برگه مشخصات |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
1300980205CABLE GRIP 4.75MM 1/2" NPT |
5 |
|
برگه مشخصات |
Cable Grip, Multi-Hole | - | 0.187" (4.75mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
97021.6CABLE GLAND 4.06-6.6MM M20 BRASS |
49 |
|
برگه مشخصات |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M20x1.5 | 0.390" (9.91mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

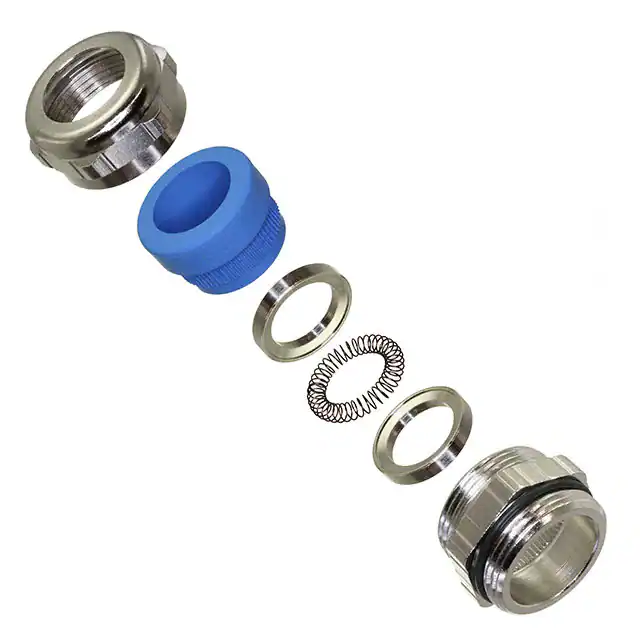

21665.6CABLE GLAND 13.97-18.03MM PG21 |
19 |
|
برگه مشخصات |
Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
97179.6.1CABLE GLAND 5-8MM M20 BRASS |
42 |
|
برگه مشخصات |
Cable Gland | 0.197" (5.00mm) | 0.315" (8.00mm) | M20x1.5 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | - | |
|
LEX220MSHTSCABLE GLAND 8-14MM M20 BRASS |
37 |
|
برگه مشخصات |
Cable Gland | 0.315" (8.00mm) | 0.551" (14.00mm) | M20x1.5 | 0.630" (16.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
97616.6CABLE GLAND 16-20.07MM M25 BRASS |
45 |
|
برگه مشخصات |
Cable Gland | 0.630" (16.00mm) | 0.790" (20.07mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|

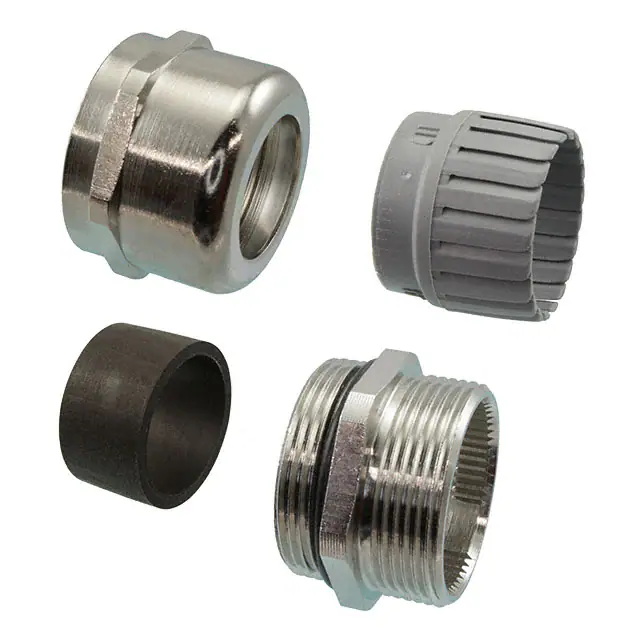

1909930000CABLE GLAND 15-21MM M32 BRASS |
11 |
|
برگه مشخصات |
Cable Gland | 0.591" (15.00mm) | 0.827" (21.00mm) | M32x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP54/IP66/IP67/IP68/IP69K - Dust Protected, Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
21792.6CABLE GLAND 6.86-10.41MM 1/2" |
17 |
|
برگه مشخصات |
Cable Gland | 0.270" (6.86mm) | 0.410" (10.41mm) | 1/2" NPT | 0.630" (16.00mm) | - | 0.840" (21.3mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
EM-SGL-NPT34-MET-BCABLE GLAND 13-18.01MM 3/4" NPT |
55 |
|
برگه مشخصات |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.512" (13.00mm) | - | - | Brass, Nickel Plated | Locknut, Seal | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
21686.6CABLE GLAND 11.43-15.5MM PG16 |
22 |
|
برگه مشخصات |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | PG16 | 0.260" (6.60mm) | - | 0.890" (22.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21668.6CABLE GLAND 17.02-20.57MM PG29 |
9 |
|
برگه مشخصات |
Cable Gland | 0.670" (17.02mm) | 0.810" (20.57mm) | PG29 | 0.310" (7.87mm) | - | 1.460" (37.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C |
