فرآیند، دما
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | محدوده ورودی | نوع خروجی | روش کنترل | ارتباطات | تعداد کاراکترها در هر ردیف | نوع نمایشگر | نمایش شخصیت ها - ارتفاع | ولتاژ - منبع تغذیه | ابعاد برش پانل | نوع نصب | سبک خاتمه | حفاظت از ورود | ویژگی ها |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E5GN-RTD AC/DC24CONTROL TEMP RELAY OUT 24V |
0 |
|
برگه مشخصات |
E5GN | Bulk | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 24VAC/DC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5GN-C1T AC100-240CONTROL TEMP 100-240V PANEL MT |
0 |
|
برگه مشخصات |
E5GN | Box | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Analog, Relay | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5GN-Q101T-C-FLK AC100-240CONTROL TEMP 100-240V PANEL MT |
0 |
|
برگه مشخصات |
E5GN | Box | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | RS-232C (CompoWay/F) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5GN-Q103L-FLK AC100-240CONTROL PROC 100-240V PANEL MT |
0 |
|
برگه مشخصات |
E5GN | Box | Obsolete | Process Controller | 0 ~ 20mA, 0 ~ 10VDC | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5GN-Q103T-C-FLK AC100-240CONTROL TEMP 100-240V PANEL MT |
0 |
|
برگه مشخصات |
E5GN | Box | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5GN-Q103T-FLK AC100-240CONTROL TEMP 100-240V PANEL MT |
0 |
|
برگه مشخصات |
E5GN | Box | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5GN-Q1BT AC100-240CONTROL TEMP 100-240V PANEL MT |
0 |
|
برگه مشخصات |
E5GN | Box | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input |
|
|
E5GN-Q203T-C-FLK AC100-240CONTROL TEMP 100-240V PANEL MT |
0 |
|
برگه مشخصات |
E5GN | Box | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5GN-Q203T-FLK AC100-240CONTROL TEMP 100-240V PANEL MT |
0 |
|
برگه مشخصات |
E5GN | Box | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5GN-C103T-FLK AC100-240CONTROL TEMP 100-240V PANEL MT |
0 |
|
برگه مشخصات |
E5GN | Box | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Analog, Relay | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5GN-R103LD-FLK AC/DC24CONTROL PROCESS RELAY OUT 24V |
0 |
|
برگه مشخصات |
E5GN | Bulk | Obsolete | Process Controller | 0 ~ 20mA, 0 ~ 10VDC | Relay (2) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 24VAC/DC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5GN-R2T AC100-240CONTROL TEMP RELAY OUT 100-240V |
0 |
|
برگه مشخصات |
E5GN | Bulk | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay (3) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5GN-Q2HTD AC/DC24CONTROL TEMP RELAY/VOLT OUT 24V |
0 |
|
برگه مشخصات |
E5GN | Bulk | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 24VAC/DC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Heater Fault Detection |
|
|
E5GN-R2TD AC/DC24CONTROL TEMP RELAY OUT 24V |
0 |
|
برگه مشخصات |
E5GN | Bulk | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay (3) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 24VAC/DC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5GN-R203T-FLK AC100-240CONTROL TEMP RELAY OUT 100-240V |
0 |
|
برگه مشخصات |
E5GN | Bulk | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay (3) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5GN-R203T-C-FLK AC100-240CONTROL TEMP RELAY OUT 100-240V |
0 |
|
برگه مشخصات |
E5GN | Bulk | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay (3) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5GN-R101T-C-FLK AC100-240CONTROL TEMP RELAY OUT 100-240V |
0 |
|
برگه مشخصات |
E5GN | Bulk | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay (2) | On/Off, Proportional (PID) | RS-232C (CompoWay/F) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.295" (7.50mm), 0.142" (3.60mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|

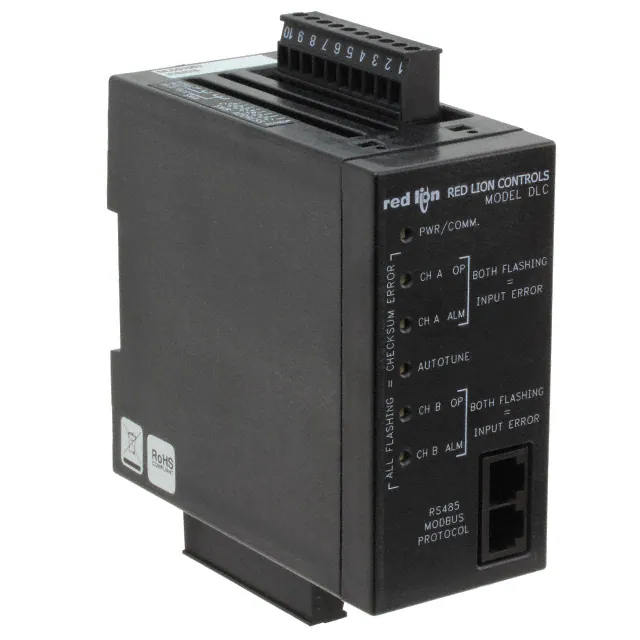

DLC00001CONTROL TEMP/PROCESS 24V 18-36V |
0 |
|
برگه مشخصات |
DLC | Box | Obsolete | Process, Temperature Controller (RTD, Type B, C, E, J, K, N, R, S, T) | -200°C ~ 2315°C, 0 ~ 20mA, 0 ~ 10VDC, -5 ~ 56mV | Analog, Solid State (2) | On/Off, Proportional (PID) | RS-485 (Modbus) | - | - | - | 24VAC, 18 ~ 36VDC | - | DIN Rail | Screw Terminal | - | Excitation Supply |
|
|
DLC11001CONTROL TEMP/PROCESS 24V 18-36V |
0 |
|
برگه مشخصات |
DLC | Box | Obsolete | Process, Temperature Controller (RTD, Type B, C, E, J, K, N, R, S, T) | -200°C ~ 2315°C, 0 ~ 20mA, 0 ~ 10VDC, -5 ~ 56mV | Analog (3), Solid State (2) | On/Off, Proportional (PID) | RS-485 (Modbus) | - | - | - | 24VAC, 18 ~ 36VDC | - | DIN Rail | Screw Terminal | - | Excitation Supply |
|

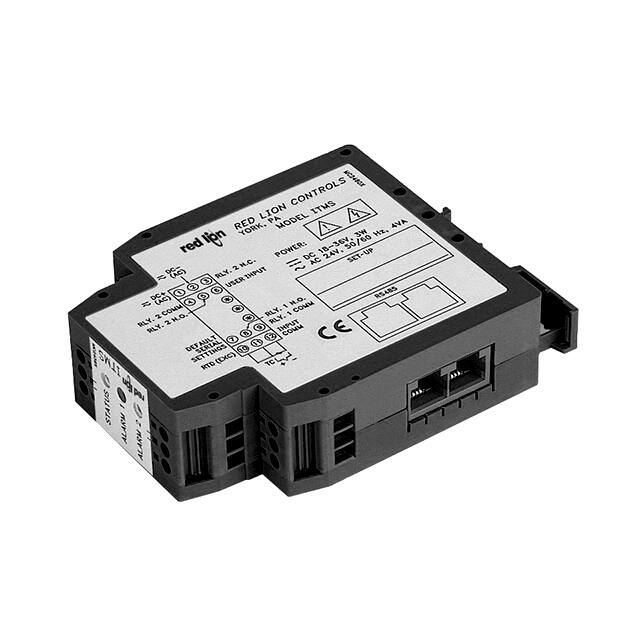

ITMS4037CONTROL TEMP REL OUT 24V 18-36V |
0 |
|
برگه مشخصات |
ITMS | Box | Obsolete | Temperature Controller (RTD, Type B, C, E, J, K, N, R, S, T) | -200°C ~ 2315°C, -10mV ~ 65mV | Relay (2) | On/Off, Proportional (PID) | RS-485 (Modbus) | - | - | - | 24VAC, 18 ~ 36VDC | - | DIN Rail | Screw Terminal | - | - |
