فرآیند، دما
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | محدوده ورودی | نوع خروجی | روش کنترل | ارتباطات | تعداد کاراکترها در هر ردیف | نوع نمایشگر | نمایش شخصیت ها - ارتفاع | ولتاژ - منبع تغذیه | ابعاد برش پانل | نوع نصب | سبک خاتمه | حفاظت از ورود | ویژگی ها |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

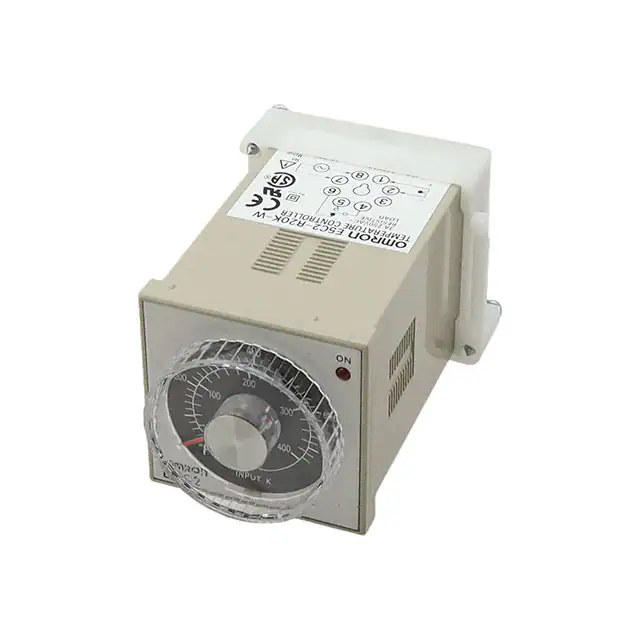

E5C2-R20KW AC100240 32752CONTROL TEMP RELAY OUT 100-240V |
1 |
|
برگه مشخصات |
E5C2 | Bulk | Active | Temperature Controller (Type K) | 0°C ~ 300°C, 32°F ~ 752°F | Relay | On/Off | - | - | Analog Dial | - | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 8 Pin (Octal) | IP40 | Sensor Fault Detection |
|
E5EC-RX2ABM-000CONTROL TEMP/PROCESS 100-240V |
1 |
|
برگه مشخصات |
E5EC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3) | On/Off, Proportional (PID) | - | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.710" (18.00mm), 0.433" (11.00mm), 0.307" (7.80mm) | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5DC-QX2DBM-000CNTRL TEMP SSR OUT DIN 24VAC/VDC |
1 |
|
برگه مشخصات |
E5DC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.334" (8.50mm), 0.314" (8.00mm) | 24VAC/DC | - | DIN Rail | Spring Terminal | IP20 | - |
|

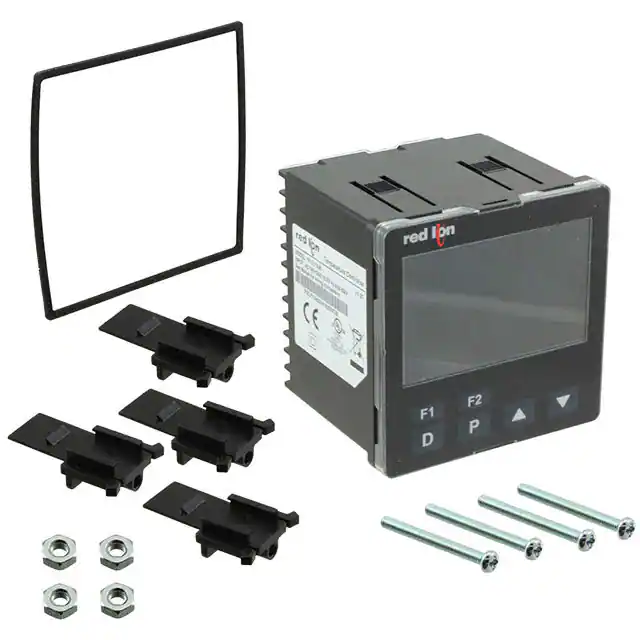

PXU11A50CNTRL TEMP/PROC REL OUT 100-240V |
1 |
|
برگه مشخصات |
PXU | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 4 ~ 20mA, 0 ~ 10VDC | Relay (4) | On/Off, Proportional (PID) | RS-485 | 4, 4 | LCD - Dual Color Characters, Backlight | 0.870" (22.00mm), 0.550" (14.00mm) | 100 ~ 240VAC | Square - 91.00mm x 91.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Excitation Supply, Sensor Fault Detection |
|
E5GC-QX1ACM-308CONTROL TEMP/PROC RELAY/VOLT OUT |
0 |
|
برگه مشخصات |
E5GC | Box | Active | Process, Temperature Controller (RTD, Type B, C, E, J, K, L, N, PLII, R, S, T, U, W) | 0 ~ 20mA, 0 ~ 10V | Solid State | - | - | - | - | - | 100 ~ 240VAC | - | - | Screw Terminal | - | - |
|

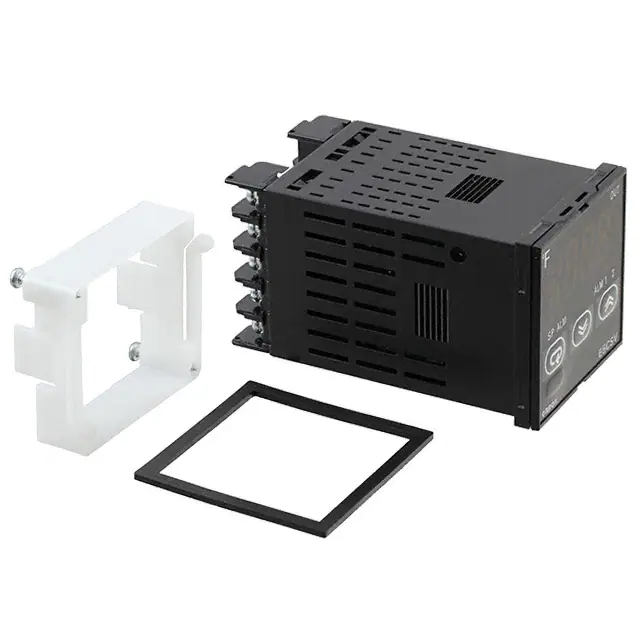

E5CSV-R2T-F AC100-240CONTROL TEMP RELAY OUT 100-240V |
1 |
|
برگه مشخصات |
E5CSV | Bulk | Active | Temperature Controller (RTD, Type J, K, L, N, R, T, U) | -99°C ~ 1700°C | Relay (3) | On/Off, Proportional (PID) | - | 3.5 | LED - Red Characters | 0.531" (13.50mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Sensor Fault Detection |
|
E5GC-QX1ACM-000CONTROL TEMP/PROC RELAY/VOLT OUT |
1 |
|
برگه مشخصات |
E5GC | Box | Active | Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.413" (10.50mm), 0.197" (5.00mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5DC-QX2ASM-000CONTROL TEMP/PROC RELAY/VOLT OUT |
1 |
|
برگه مشخصات |
E5DC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.334" (8.50mm), 0.314" (8.00mm) | 100 ~ 240VAC | - | DIN Rail | Screw Terminal | IP20 | - |
|
E5CC-QX2ABM-001CONTROL TEMP/PROCESS 100-240V |
1 |
|
برگه مشخصات |
E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | Event Input, Heater Fault Detection |
|
|
E5CC-QX2DUM-000CONTROL TEMP/PROC 24V PANEL MT |
0 |
|
برگه مشخصات |
E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-QX2ABM-000CONTROL TEMP/PROCESS 100-240V |
1 |
|
برگه مشخصات |
E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-RW1AUM-000CONTROL TEMP/PROCESS 100-240V |
0 |
|
برگه مشخصات |
E5CC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-RX2DBM-000CONTROL TEMP/PROCESS RELAY 24V |
1 |
|
برگه مشخصات |
E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-QX2ABM-800CONTROL TEMP/PROCESS 100-240V |
1 |
|
برگه مشخصات |
E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-RX2ABM-000CONTROL TEMP/PROCESS 100-240V |
1 |
|
برگه مشخصات |
E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-RW0AUM-000CONTROL TEMP/PROCESS 100-240V |
1 |
|
برگه مشخصات |
E5CC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-QX0AUM-000CONTROL TEMP/PROCESS 100-240V |
1 |
|
برگه مشخصات |
E5CC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant | - |
|
|
E5DC-QX2DSM-017CONTROL TEMP/PROC 24V DIN RAIL |
1 |
|
برگه مشخصات |
E5DC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.334" (8.50mm), 0.314" (8.00mm) | 24VAC/DC | - | DIN Rail | Screw Terminal | IP20 | Event Input, Heater Fault Detection |
|
E5CSV-Q1TD-F AC/DC24CONTROL TEMP RELAY/VOLT OUT 24V |
1 |
|
برگه مشخصات |
E5CSV | Box | Active | Temperature Controller (RTD, Type J, K, L, N, R, T, U) | -99°C ~ 1700°C | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | - | 3.5 | LED - Red Characters | 0.531" (13.50mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Sensor Fault Detection |
|

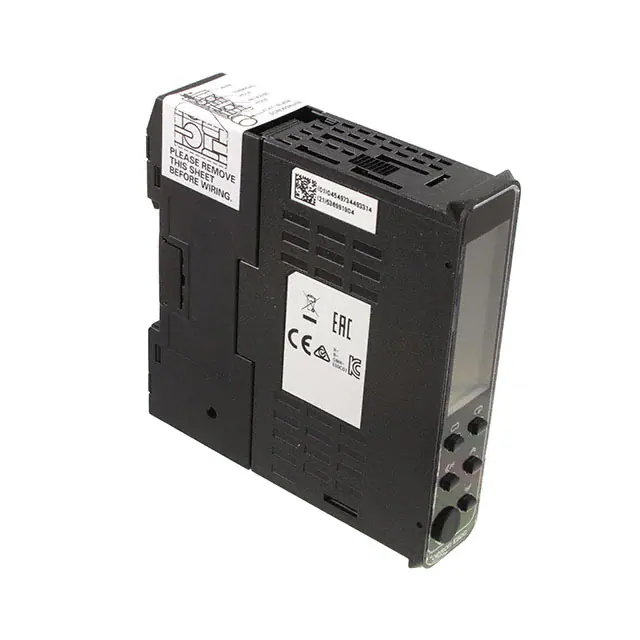

E5DC-RX2DBM-002CNTRL TEMP SSR OUT DIN 24VAC/VDC |
1 |
|
برگه مشخصات |
E5DC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.334" (8.50mm), 0.314" (8.00mm) | 24VAC/DC | - | DIN Rail | Spring Terminal | IP20 | - |
