سنسورهای جریان
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | برای اندازه گیری | نوع سنسور | جریان - حس کردن | تعداد کانال ها | خروجی | حساسیت | فرکانس | خطی بودن | دقت | ولتاژ - منبع تغذیه | زمان پاسخگویی | فعلی - عرضه (حداکثر) | دمای عملیاتی | درجه | صلاحیت | قطبی شدن | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FG-R04-4BASENSOR CURRENT FLUX 40A IEC VRT |
147 |
|
برگه مشخصات |
FG | Module | Box | Active | AC/DC | Flux Gate, Open Loop | 50mA | 1 | Ratiometric, Voltage | 40V/A | DC ~ 55Hz | - | - | 4.75V ~ 5.25V | 250ms (AC), 1s (DC) | 13mA (Typ) | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
|
FG-R05-4BASENSOR CURRENT FLUX 40A IEC VRT |
110 |
|
برگه مشخصات |
FG | Module, Single Pass Through | Box | Active | AC/DC | Flux Gate, Open Loop | 50mA | 1 | Ratiometric, Voltage | 40V/A | DC ~ 55Hz | - | - | 4.75V ~ 5.25V | 250ms (AC), 1s (DC) | 13mA (Typ) | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
|
LZSR 200-TP/SP1CLOSED-LOOP CURRENT SENSOR 200A |
136 |
|
برگه مشخصات |
LZSR-TP/SP1 | Module | Bulk | Active | AC/DC | Closed Loop | 200A | 1 | Voltage | 3.125mV/A | DC ~ 200kHz | ±0.18% | - | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|
|
RCM01-02RESIDUAL CURRENT MONITOR, 6MA DC |
320 |
|
برگه مشخصات |
- | Module, Single Pass Through | Tray | Active | DC | Current Sensor | 6mA | 1 | - | - | 50Hz/60Hz | - | - | 10.8V ~ 13.2V | - | 14.5mA | -40°C ~ 85°C | - | - | - | Through Hole | - |
|
|
RCM14-03_SYS_HRCM14-03 SYSTEM, CONSISTS OF 901 |
560 |
|
- |
- | Module, Single Pass Through | Tray | Active | DC | Current Sensor | 6mA | 1 | - | - | 50Hz/60Hz | - | - | 10.8V ~ 13.2V | - | 14.5mA | -40°C ~ 85°C | - | - | - | Through Hole | - |
|
|
RCM14-01_SYS_HRCM14-01 SYSTEM, CONSISTS OF 901 |
560 |
|
- |
- | Module, Single Pass Through | Tray | Active | DC | Current Sensor | 6mA | 1 | - | - | 50Hz/60Hz | - | - | 10.8V ~ 13.2V | - | 14.5mA | -40°C ~ 85°C | - | - | - | Chassis Mount | - |
|
|
RCM14-01_SYS_VRCM14-01 SYSTEM, CONSISTS OF 901 |
560 |
|
برگه مشخصات |
- | Module, Single Pass Through | Tray | Active | DC | Current Sensor | 6mA | 1 | - | - | 50Hz/60Hz | - | - | 10.8V ~ 13.2V | - | 14.5mA | -40°C ~ 85°C | - | - | - | Chassis Mount | - |
|
|
RCM14-03RESIDUAL CURRENT MONITOR, 6MA DC |
155 |
|
برگه مشخصات |
- | Module, Single Pass Through | Tray | Active | DC | Current Sensor | 6mA | 1 | - | - | DC ~ 60Hz | - | - | 10.8V ~ 13.2V | - | 40mA | -40°C ~ 85°C | - | - | - | Chassis Mount | - |
|
|
RCM14-03_SYS_VRCM14-03 SYSTEM, CONSISTS OF 901 |
555 |
|
برگه مشخصات |
- | Module, Single Pass Through | Tray | Active | DC | Current Sensor | 6mA | 1 | - | - | DC ~ 60Hz | - | - | 10.8V ~ 13.2V | - | 40mA | -40°C ~ 85°C | - | - | - | Through Hole | - |
|
|
HCSP-1BS-0900AUTOMOTIVE OPEN LOOP CURRENT SEN |
106 |
|
برگه مشخصات |
- | Module | Bulk | Active | AC/DC | Hall Effect, Open Loop | 900A | 1 | Ratiometric, Voltage | 2.22mV/A | 70kHz ~ 250kHz | - | - | 4.5V ~ 5.5V | 3µs | 14mA | -40°C ~ 125°C | - | - | Bidirectional | Chassis Mount | - |
|
|
RCM20-03RESIDUAL CURRENT MONITOR, 6MA DC |
185 |
|
برگه مشخصات |
- | Module, Single Pass Through | Tray | Active | DC | Current Sensor | 6mA | 1 | - | - | 50Hz/60Hz | - | - | 10.8V ~ 13.2V | - | 14.5mA | -40°C ~ 85°C | - | - | - | Chassis Mount | - |
|
|
RCM20-01RESIDUAL CURRENT MONITOR, 6MA DC |
182 |
|
برگه مشخصات |
- | Module, Single Pass Through | Tray | Active | DC | Current Sensor | 6mA | 1 | - | - | 50Hz/60Hz | - | - | 12V ~ 24V | - | 13mA | -40°C ~ 85°C | - | - | - | Chassis Mount | - |
|
|
HAH3DR 800-S0ETRANSDUCER |
69 |
|
برگه مشخصات |
HAH3DR | Module | Bulk | Active | AC/DC | Hall Effect, Open Loop | 800A | 1 | Ratiometric, Voltage | 2.5mV/A | DC ~ 40kHz | ±1% | ±3.5% | 4.75V ~ 5.25V | 6µs | 60mA | -40°C ~ 125°C | - | - | Unidirectional | Chassis Mount | - |
|
|
CSNV500M-125CSNV500 SERIES HALL-BASED CLOSED |
56 |
|
برگه مشخصات |
CSNV500 | Module | Box | Active | AC/DC | Hall Effect, Closed Loop | 25A | 3 | CAN Bus | - | DC ~ 200kHz | ±0.1% | ±0.24% | 4.75V ~ 5.25V | 200ns | 12mA | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
|
|
CSNV500M-124CSNV500 SERIES HALL-BASED CLOSED |
54 |
|
برگه مشخصات |
CSNV500 | Module | Box | Active | AC/DC | Hall Effect, Closed Loop | 25A | 3 | CAN Bus | - | DC ~ 200kHz | ±0.1% | ±0.24% | 4.75V ~ 5.25V | 200ns | 12mA | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
|
|
CSNV500N-154CSNV500 SERIES HALL-BASED CLOSED |
36 |
|
برگه مشخصات |
CSNV500 | Module | Box | Active | AC/DC | Hall Effect, Closed Loop | 25A | 3 | CAN Bus | - | DC ~ 200kHz | ±0.1% | ±0.24% | 4.75V ~ 5.25V | 200ns | 12mA | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
|
|
CSNV500M-354MCSNV500 SERIES HALL-BASED CLOSED |
40 |
|
برگه مشخصات |
CSNV500 | Module, Single Pass Through | Box | Active | AC/DC | Hall Effect, Closed Loop | 500A | 1 | CAN Bus | - | - | ±0.1% | ±0.5% | 7V ~ 18V | - | 250mA | -40°C ~ 85°C | - | - | Bidirectional | Chassis Mount | - |
|
|
RCM14-04_SYSRCM14-04 SYSTEM, CONSISTS OF 901 |
547 |
|
برگه مشخصات |
- | Module, Single Pass Through | Tray | Active | DC | Current Sensor | 56mA | 1 | - | - | DC ~ 60Hz | - | - | 12V ~ 24V | - | 25mA | -40°C ~ 85°C | - | - | - | Through Hole | - |
|
|
RC05-150-1000-STRANSF CURR SENSE 150MV/KA 50HZ |
48 |
|
برگه مشخصات |
RC05-SSSS-LLLL-O | Module, Single Pass Through | Tray | Active | AC/DC | Rogowski Coil | 8000A | 1 | - | 0.15mV/A | 50kHz | - | - | - | - | - | -20°C ~ 80°C | - | - | - | Free Hanging | - |
|

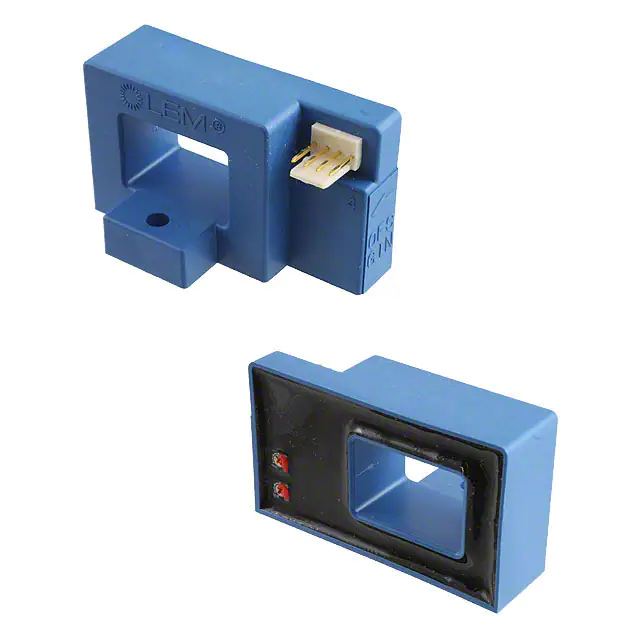

HAC 200-SSENSOR CURRENT HALL 200A AC/DC |
40 |
|
برگه مشخصات |
HAC | Module | Bulk | Not For New Designs | AC/DC | Hall Effect, Open Loop | 200A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±1% | ±1% | ±15V | 7µs | 18mA | -10°C ~ 80°C | - | - | Bidirectional | Chassis Mount | - |
