مبدل های DC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | ولتاژ - ورودی (حداقل) | ولتاژ - ورودی (حداکثر) | تعداد خروجی ها | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | جریان - خروجی (حداکثر) | توان (وات) | ولتاژ - جداسازی | برنامه های کاربردی | کارایی | دمای عملیاتی | نوع نصب | اندازه / ابعاد | آژانس تایید | شماره استاندارد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010636CHCODC2-110-4005CHCO |
50 |
|
برگه مشخصات |
DC2-110 (110W) | Box | Active | Enclosed | 18V | 36V | 4 | 5V | -5V | 15V | -15V | 10A, 6A, 2A, 2A | 110W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|

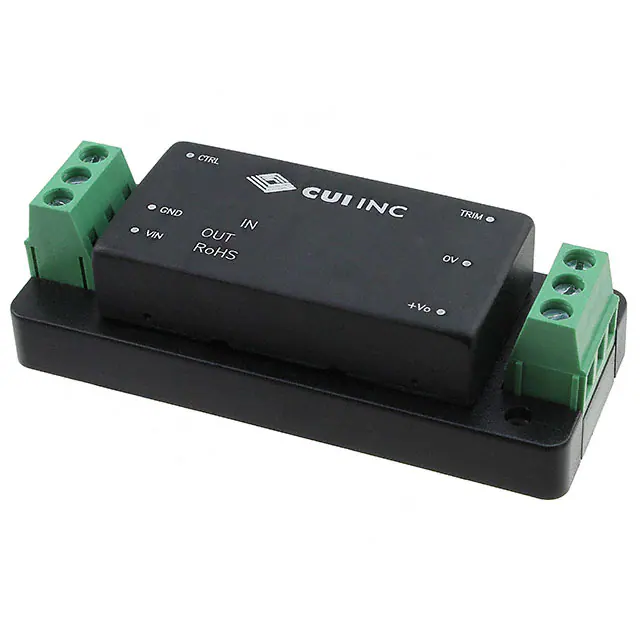

PQA50-D48-S15-TDC/DC CONVERTER 15V 50W |
0 |
|
برگه مشخصات |
PQA50-T (50W) | Tray | Obsolete | Enclosed | 36V | 75V | 1 | 15V | - | - | - | 3.33A | 50W | 1.5 kV | - | 91% | -40°C ~ 85°C | Chassis Mount | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) | - | - |
|
1010672DC2-150-2004 |
50 |
|
برگه مشخصات |
DC2-150 (150W) | Box | Active | Open Frame | 18V | 36V | 2 | 12V | -12V | - | - | 7.5A, 5A | 147W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010695DC4-150-2005 |
50 |
|
برگه مشخصات |
DC4-150 (150W) | Box | Active | Open Frame | 36V | 72V | 2 | 15V | -15V | - | - | 5A, 5A | 150W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010671DC2-150-2003 |
50 |
|
برگه مشخصات |
DC2-150 (150W) | Box | Active | Open Frame | 18V | 36V | 2 | 5V | 24V | - | - | 15A, 3A | 147W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010693DC4-150-2003 |
50 |
|
برگه مشخصات |
DC4-150 (150W) | Box | Active | Open Frame | 36V | 72V | 2 | 5V | 24V | - | - | 15A, 3A | 147W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|

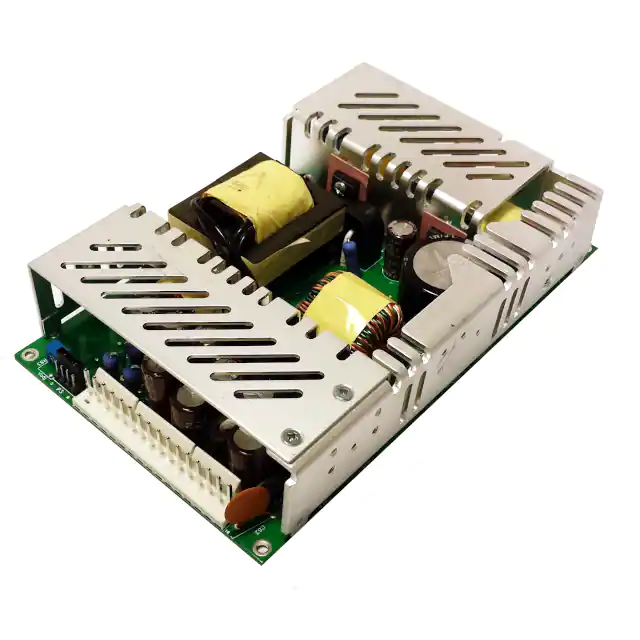

1010760DC2-185-1001 |
50 |
|
برگه مشخصات |
DC2-185 (185W) | Box | Active | Open Frame | 18V | 36V | 1 | 2.5V | - | - | - | 37A | 93W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010735DC4-185-1002 |
50 |
|
برگه مشخصات |
DC4-185 (185W) | Box | Active | Open Frame | 36V | 72V | 1 | 3.3V | - | - | - | 37A | 122W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010740DC4-185-1007 |
50 |
|
برگه مشخصات |
DC4-185 (185W) | Box | Active | Open Frame | 36V | 72V | 1 | 28V | - | - | - | 6.6A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010737DC4-185-1004 |
50 |
|
برگه مشخصات |
DC4-185 (185W) | Box | Active | Open Frame | 36V | 72V | 1 | 12V | - | - | - | 15.4A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010762DC2-185-1003 |
50 |
|
برگه مشخصات |
DC2-185 (185W) | Box | Active | Open Frame | 18V | 36V | 1 | 5V | - | - | - | 37A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010739DC4-185-1006 |
50 |
|
برگه مشخصات |
DC4-185 (185W) | Box | Active | Open Frame | 36V | 72V | 1 | 24V | - | - | - | 7.7A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010736DC4-185-1003 |
50 |
|
برگه مشخصات |
DC4-185 (185W) | Box | Active | Open Frame | 36V | 72V | 1 | 5V | - | - | - | 37A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010763DC2-185-1004 |
50 |
|
برگه مشخصات |
DC2-185 (185W) | Box | Active | Open Frame | 18V | 36V | 1 | 12V | - | - | - | 15.4A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010766DC2-185-1007 |
50 |
|
برگه مشخصات |
DC2-185 (185W) | Box | Active | Open Frame | 18V | 36V | 1 | 28V | - | - | - | 6.6A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010738DC4-185-1005 |
50 |
|
برگه مشخصات |
DC4-185 (185W) | Box | Active | Open Frame | 36V | 72V | 1 | 15V | - | - | - | 12.3A | 185W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010761DC2-185-1002 |
50 |
|
برگه مشخصات |
DC2-185 (185W) | Box | Active | Open Frame | 18V | 36V | 1 | 3.3V | - | - | - | 37A | 122W | - | ITE (Commercial), Medical | 84% | 0°C ~ 70°C (With Derating) | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
PYB30-Q48-S15-UDC/DC CONVERTER 15V 30W |
0 |
|
برگه مشخصات |
PYB30-U (30W) | Tube | Obsolete | Enclosed | 18V | 75V | 1 | 15V | - | - | - | 2A | 30W | - | - | 89% | -40°C ~ 85°C | Chassis Mount | 2.66" L x 2.16" W x 0.75" H (67.5mm x 55.0mm x 19.1mm) | EN, IEC | - |
|

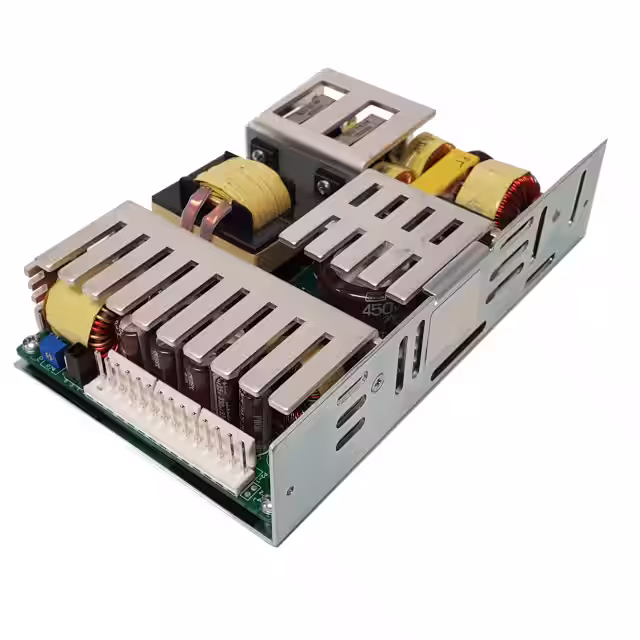

1010672CHDC2-150-2004CH |
50 |
|
برگه مشخصات |
DC2-150 (150W) | Box | Active | Chassis | 18V | 36V | 2 | 12V | -12V | - | - | 7.5A, 5A | 147W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010695CHDC4-150-2005CH |
50 |
|
برگه مشخصات |
DC4-150 (150W) | Box | Active | Chassis | 36V | 72V | 2 | 15V | -15V | - | - | 5A, 5A | 150W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
