سوئیچ های DIP
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار | تعداد موقعیت ها | رتبه فعلی (آمپر) | رتبه بندی ولتاژ | نوع محرک | سطح محرک | مواد تماس | با Finish تماس بگیرید | ارتفاع بالای تخته | نوع نصب | سبک خاتمه | زمین | قابل شستشو | ویژگی ها | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRD16RM0ABSWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
برگه مشخصات |
CRD | Tube | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
A6A-10CWSW ROTARY DIP BCD COMP 0.1A 28V |
16 |
|
برگه مشخصات |
A6A | Tray | Active | BCD Complement | 10 | 100mA | 28VDC | Rotary with Knob | Raised | - | - | 0.531" (13.49mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|
CRD10CM0SBSW ROTARY DIP BCD COMP 0.4VA 20V |
5 |
|
برگه مشخصات |
CRD | Tube | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.271" (6.88mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|

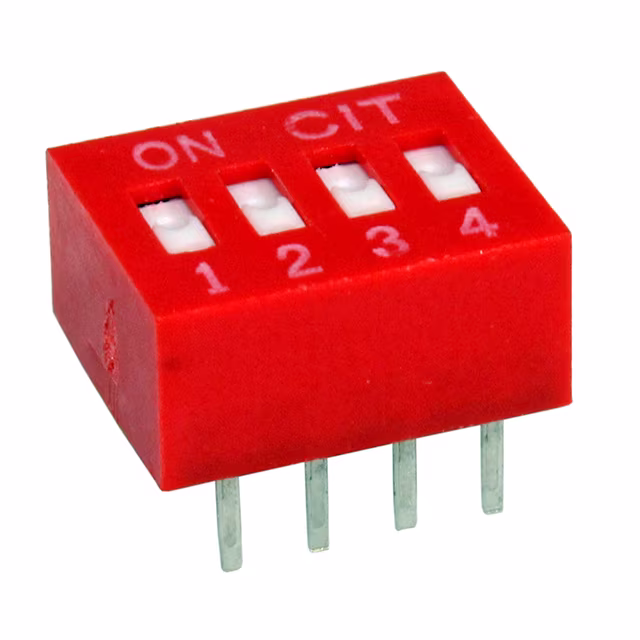

KG04RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KG01RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KG02RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KG04RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

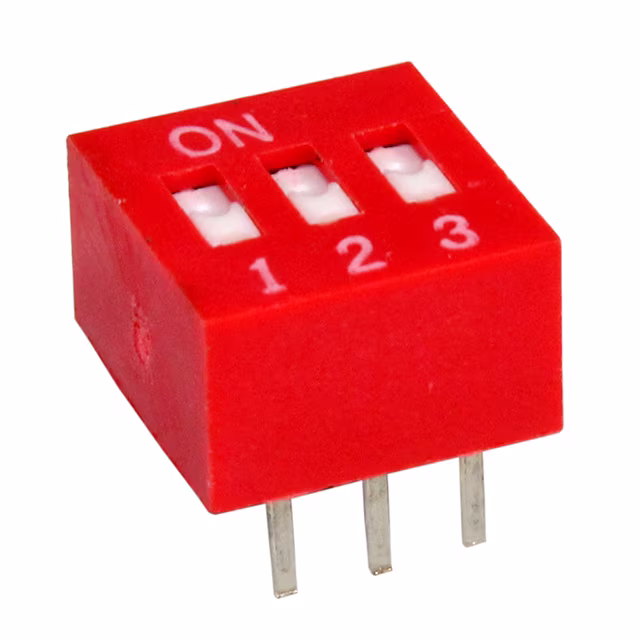

KG03RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KG02RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KG03RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KG05RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KG05RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KG06RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KG06RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KG07RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KG08RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KG07RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KG08RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KG09RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KG10RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
برگه مشخصات |
KG | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
