سوئیچ های DIP
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار | تعداد موقعیت ها | رتبه فعلی (آمپر) | رتبه بندی ولتاژ | نوع محرک | سطح محرک | مواد تماس | با Finish تماس بگیرید | ارتفاع بالای تخته | نوع نصب | سبک خاتمه | زمین | قابل شستشو | ویژگی ها | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SA-5071DEWSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
- |
SA-5000 | Tray | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.433" (11.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 75°C |
|
|
SA-5071B1ESW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
- |
SA-5000 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.433" (11.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 75°C |
|
|
SA-5011CEWSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
- |
SA-5000 | Tray | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.433" (11.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 75°C |
|
|
RRD16C3.3KSW ROTARY DIP HEX COMP 0.4VA 20V |
0 |
|
برگه مشخصات |
RRD | Tube | Obsolete | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
79A10STSWITCH SLIDE DIP 10PST 0.125A 6V |
0 |
|
برگه مشخصات |
79A | Tube | Active | 10PST | 10 | 125mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.250" (6.35mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
IKN0800000SWITCH SLIDE DIP SPST 0.1A 24V |
0 |
|
برگه مشخصات |
IKN | Tube | Obsolete | SPST | 8 | 100mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.157" (4.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 100°C |
|
|
94RB08CTSW ROTARY DIP OCTAL 0.03A 30V |
0 |
|
برگه مشخصات |
94R | Tube | Active | Octal | 8 | 30mA | 30VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.480" (12.19mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94RB10CTSWITCH ROTARY DIP BCD 0.03A 30V |
0 |
|
برگه مشخصات |
94R | Tube | Active | BCD | 10 | 30mA | 30VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.480" (12.19mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94RB16CTSWITCH ROTARY DIP HEX 0.03A 30V |
0 |
|
برگه مشخصات |
94R | Tube | Active | Hexadecimal | 16 | 30mA | 30VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.480" (12.19mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94RC08CTSW ROTARY DIP OCT COMP 0.03A 30V |
0 |
|
برگه مشخصات |
94R | Tube | Active | Octal Complement | 8 | 30mA | 30VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.480" (12.19mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|

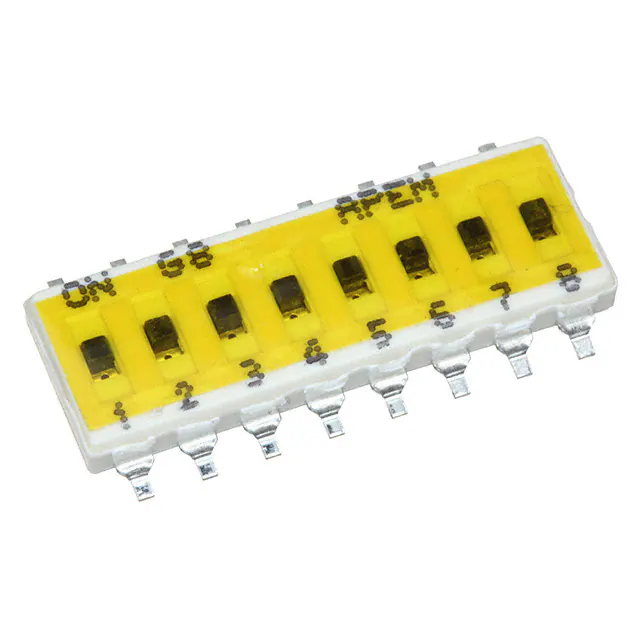

IKN0803000SWITCH SLIDE DIP SPST 0.1A 24V |
0 |
|
برگه مشخصات |
IKN | Tube | Obsolete | SPST | 8 | 100mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.112" (2.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 100°C |
|
|
2-5161390-5SWITCH SLIDE DIP SPST 0.025A 50V |
0 |
|
برگه مشخصات |
DIP | Box | Active | SPST | 25 | 25mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.335" (8.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
|
RV3AF10RVBDIP ROTARY SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
435470-2SW ROCKER DIP SPDT 0.025A 24V |
0 |
|
برگه مشخصات |
7000 | Tube | Active | SPDT | 3 | 25mA | 24VDC | Rocker | Raised | Copper Alloy | Gold | 0.360" (9.14mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
5-435470-3SWITCH STANDARD DIP SPDT |
0 |
|
برگه مشخصات |
7000 | Bulk | Active | SPDT | 8 | - | - | Standard | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
|
D5R2PUSHWHEEL SH6 |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CR-UGD4MINI-NRSWITCH DIP DELTA ROBOT MIN 230V |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CR-UGD4-RSWITCH DIP DELTA ROBOT ROT 230V |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

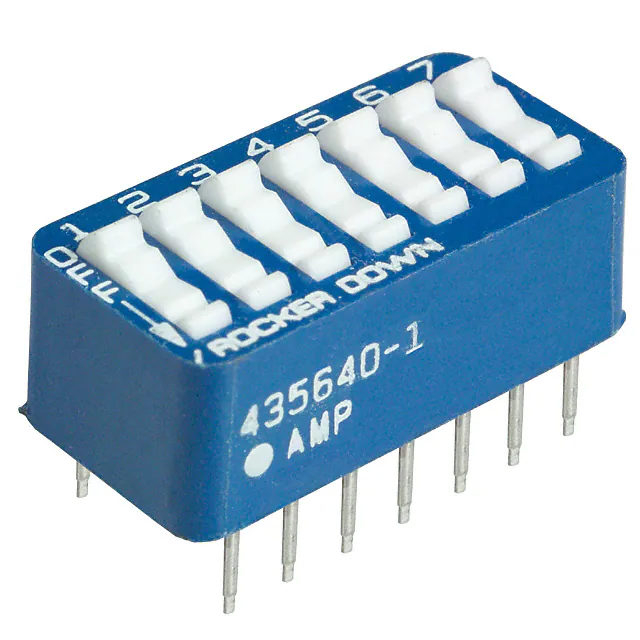

435640-1SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
برگه مشخصات |
7100 | Tube | Obsolete | SPST | 7 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|

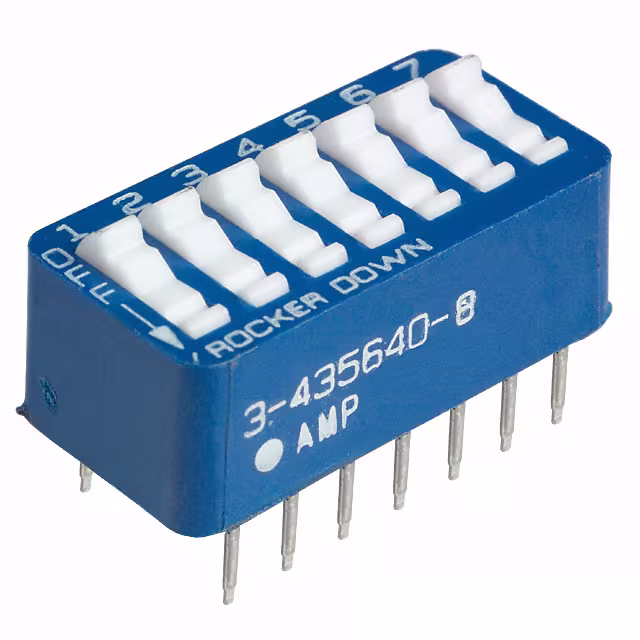

3-435640-8SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
برگه مشخصات |
7100 | Bulk | Obsolete | SPST | 7 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
