محرک/سیلندرهای الکتریکی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | نوع موتور | طول سکته مغزی | نیروی بار (دینامیک) | نیروی بارگذاری (استاتیک) | سرعت | چرخه وظیفه | ولتاژ - نامی | ساخت و ساز | دقت | شتاب | ویژگی ها | نسبت کاهش دنده | نوع بازخورد | سبک خاتمه | دمای عملیاتی | حفاظت از ورود | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R88L-EA-AF-1115-2078-0005LINAXIS 1115X2078MM STKREN |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R88L-EA-AF-1115-2174LINAXIS 1115X2174MM STK STD |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R88L-EA-AF-1115-2174-0005LINAXIS 1115X2174MM STKREN |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
80910003MOTOR DC LINEAR .0167 MM-STEP PO |
0 |
|
- |
80910 | Bulk | Active | Linear Actuator | Stepper, Unipolar | 0.394" (10.00mm) | 8.54lbf (38.0N) | 22.48lbf (100.0N) | - | - | 12.7VDC | Ball Screw | - | - | - | - | - | Wire Leads | -5°C ~ 75°C | - | - |
|

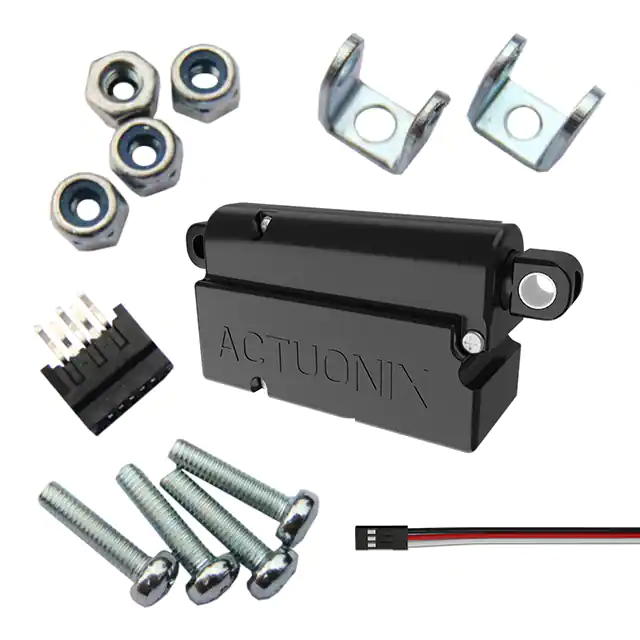

PQ12-100-6-RPQ12-R MICRO LINEAR SERVO |
0 |
|
برگه مشخصات |
PQ12 | Bulk | Active | Linear Actuator | Brushed | 0.787" (20.00mm) | 11.24lbf (50.0N) | - | 0.39 in/s (10.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.10mm | - | RC Linear Servo | 100 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
L12-30-210-6-RL12 -R MICRO LINEAR SERVO |
0 |
|
برگه مشخصات |
L12 | Bulk | Active | Linear Actuator | Brushed | 1.181" (30.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 6VDC | Ball Screw | ±0.20mm | - | RC Linear Servo | 210 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
S20-50-30-BSTEPPER MTR HYB LINEAR ACT 3.9V |
0 |
|
برگه مشخصات |
S20 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 1.969" (50.00mm) | - | - | - | 100% | 3.9VDC | Ball Screw | - | - | - | - | - | Wire Leads with Connector | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
|
S20-30-30-BSTEPPER MTR HYB LINEAR ACT 3.9V |
0 |
|
برگه مشخصات |
S20 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 1.181" (30.00mm) | - | - | - | 100% | 3.9VDC | Ball Screw | - | - | - | - | - | Wire Leads with Connector | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
|
S20-15-30-BSTEPPER MTR HYB LINEAR ACT 3.9V |
0 |
|
برگه مشخصات |
S20 | Retail Package | Active | Linear Actuator | Stepper, Bipolar | 0.591" (15.00mm) | - | - | - | 100% | 3.9VDC | Ball Screw | - | - | - | - | - | Wire Leads with Connector | -10°C ~ 40°C | IP54 - Dust Protected, Water Resistant | - |
|
PQ12-30-12-SPQ12-S MICRO LINEAR ACTUATOR |
0 |
|
برگه مشخصات |
PQ12 | Retail Package | Active | Linear Actuator | Brushed | 0.787" (20.00mm) | 4.05lbf (18.0N) | - | 1.10 in/s (28.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.10mm | - | Limit Switches | 30 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
-30.jpg)
|
PFL35T-48W4(048)-30Linear step motor 24 steps 5V |
0 |
|
برگه مشخصات |
PFL35T | Box | Active | Linear Actuator | Stepper, Bipolar | 1.181" (30.00mm) | - | - | - | - | 5VDC | Ball Screw | - | - | - | - | - | Wire Leads | -10°C ~ 50°C | - | - |
|
|
XLA-5-125-1250Micro actuator - evaluation kit |
0 |
|
برگه مشخصات |
XLA | Retail Package | Active | Linear Actuator | Piezoelectric | 3.543" (90.00mm) | 1.123lbf (5.0N) | 1.123lbf (5.0N) | 15.75 in/s (400.0 mm/s) | 50% | 12 ~ 48V | Rack and Pinion | ±5µm | - | Submicron Precision | - | Incremental Encoder | Connector | -30°C ~ 70°C | - | - |
|
|
XLA-1-80-1250Micro actuator - evaluation kit |
0 |
|
برگه مشخصات |
XLA | Retail Package | Active | Linear Actuator | Piezoelectric | 2.559" (65.00mm) | 0.225lbf (1.0N) | 0.225lbf (1.0N) | 15.75 in/s (400.0 mm/s) | 50% | 12 ~ 48V | Rack and Pinion | ±5µm | - | Submicron Precision | - | Incremental Encoder | Connector | -30°C ~ 70°C | - | - |
