ریزپردازنده ها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | سری | بسته بندی | وضعیت محصول | پردازنده اصلی | تعداد هسته / عرض گذرگاه | سرعت | Co-Processors/DSP | کنترلرهای RAM | شتاب گرافیکی | نمایشگر و کنترلرهای رابط | اترنت | SATA | USB | ولتاژ - I/O | دمای عملیاتی | درجه | صلاحیت | ویژگی های امنیتی | نوع نصب | بسته دستگاه تامین کننده | رابط های اضافی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPC8315CVRAGDAIC MPU MPC83XX 400MHZ 620HBGA |
0 |
|
برگه مشخصات |
620-BBGA Exposed Pad | MPC83xx | Tray | Active | PowerPC e300c3 | 1 Core, 32-Bit | 400MHz | - | DDR, DDR2 | No | - | 10/100/1000Mbps (2) | SATA 3Gbps (2) | USB 2.0 + PHY (1) | 1.8V, 2.5V, 3.3V | -40°C ~ 105°C (TA) | - | - | - | Surface Mount | 620-HBGA (29x29) | DUART, I2C, PCI, SPI, TDM |
|
AM5748ABZXEAIC MPU SITARA 1.5GHZ 760FCBGA |
60 |
|
برگه مشخصات |
760-LFBGA, FCBGA | Sitara™ | Tray | Active | ARM® Cortex®-A15 | 1 Core, 32-Bit | 1.5GHz | ARM® Cortex®-M4, C66x | DDR3, DDR3L | Yes | HDMI, LCD, Video | GbE (2) | SATA 3Gbps (1) | USB 2.0 (2), USB 3.0 (2) | 1.35V, 1.5V, 1.8V, 3.3V | -40°C ~ 105°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, Secure JTAG, Secure RTC | Surface Mount | 760-FCBGA (23x23) | CAN, HDQ/1-Wire, I2C, McASP, MMC/SD/SDIO, QSPI, SPI, SD/SDIO, UART |
|
MIMX8UX6AVLFZACI.MX8 DX 21X21 |
362 |
|
برگه مشخصات |
609-BFBGA | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 609-FBGA (21x21) | - |
|
MPC8248VRTIEAIC MPU MPC82XX 400MHZ PBGA516 |
110 |
|
برگه مشخصات |
516-BBGA | MPC82xx | Tray | Active | PowerPC G2_LE | 1 Core, 32-Bit | 400MHz | Communications; RISC CPM, Security; SEC | DRAM, SDRAM | No | - | 10/100Mbps (2) | - | USB 2.0 (1) | 3.3V | 0°C ~ 105°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 516-PBGA (27x27) | I2C, SCC, SMC, SPI, UART, USART |
|
LS1046ASN8MQAIC MPU QORIQ 1.2GHZ 780FCPBGA |
101 |
|
برگه مشخصات |
780-FBGA, FCBGA | QorIQ® Layerscape | Tray | Active | ARM® Cortex®-A72 | 4 Core, 64-Bit | 1.2GHz | - | DDR4 | - | - | 10GbE (2), 2.5GbE (1), 1GbE (4) | SATA 6Gbps (1) | USB 3.0 (3) + PHY | - | 0°C ~ 105°C | - | - | Secure Boot, TrustZone® | Surface Mount | 780-FCPBGA (23x23) | - |
|
MPC5200VR400IC MPU MPC52XX 400MHZ 272BGA |
200 |
|
برگه مشخصات |
272-BBGA | MPC52xx | Tray | Not For New Designs | PowerPC G2_LE | 1 Core, 32-Bit | 400MHz | - | DDR, SDRAM | No | - | 10/100Mbps (1) | - | USB 1.1 (2) | 2.5V, 3.3V | 0°C ~ 70°C (TA) | - | - | - | Surface Mount | 272-PBGA (27x27) | AC97, CAN, J1850, I2C, I2S, IrDA, PCI, PSC, SPI, UART |
|
|
MPC8248VRPIEAIC MPU MPC82XX 300MHZ PBGA516 |
40 |
|
برگه مشخصات |
516-BBGA | MPC82xx | Tray | Active | PowerPC G2_LE | 1 Core, 32-Bit | 300MHz | Communications; RISC CPM, Security; SEC | DRAM, SDRAM | No | - | 10/100Mbps (2) | - | USB 2.0 (1) | 3.3V | 0°C ~ 105°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 516-PBGA (27x27) | I2C, SCC, SMC, SPI, UART, USART |
|
|
AM5748ABZXIC MPU SITARA 1.5GHZ 760FCBGA |
60 |
|
برگه مشخصات |
760-LFBGA, FCBGA | Sitara™ | Tray | Active | ARM® Cortex®-A15 | 1 Core, 32-Bit | 1.5GHz | ARM® Cortex®-M4, C66x | DDR3, DDR3L | Yes | HDMI, LCD, Video | GbE (2) | SATA 3Gbps (1) | USB 2.0 (2), USB 3.0 (2) | 1.35V, 1.5V, 1.8V, 3.3V | 0°C ~ 90°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, Secure JTAG, Secure RTC | Surface Mount | 760-FCBGA (23x23) | CAN, HDQ/1-Wire, I2C, McASP, MMC/SD/SDIO, QSPI, SPI, SD/SDIO, UART |
|

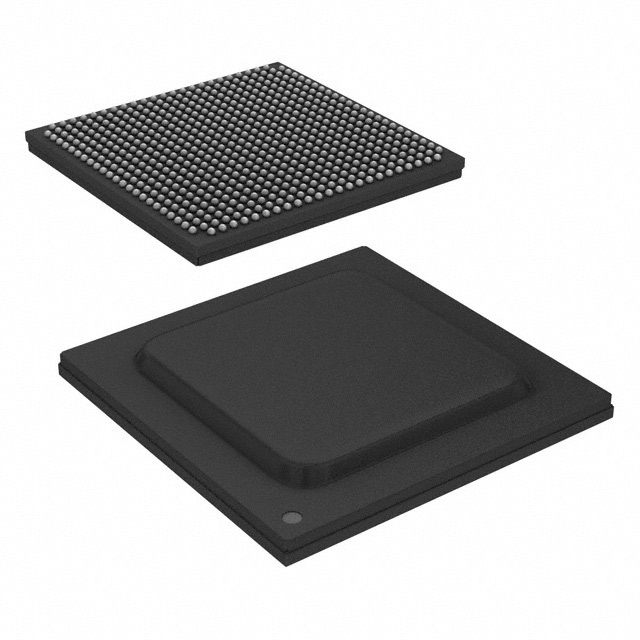

LS1043ASE7MNLBIC MPU QORIQ 1.2GHZ 621FCPBGA |
100 |
|
برگه مشخصات |
621-FBGA, FCBGA | QorIQ® Layerscape | Tray | Active | ARM® Cortex®-A53 | 4 Core, 64-Bit | 1.2GHz | - | DDR3L, DDR4 | - | - | 1GbE (7) or 10GbE (1) & 1GbE (5) | SATA 6Gbps (1) | USB 3.0 (3) + PHY | - | 0°C ~ 105°C | - | - | Secure Boot, TrustZone® | Surface Mount | 621-FCPBGA (21x21) | - |
|
MCIMX6D6AVT10ADRIC MPU I.MX6D 1.0GHZ 624FCBGA |
854 |
|
برگه مشخصات |
624-FBGA, FCBGA | i.MX6D | Tape & Reel (TR) | Not For New Designs | ARM® Cortex®-A9 | 2 Core, 32-Bit | 1.0GHz | Multimedia; NEON™ SIMD | LPDDR2, LVDDR3, DDR3 | Yes | Keypad, LCD | 10/100/1000Mbps (1) | SATA 3Gbps (1) | USB 2.0 + PHY (4) | 1.8V, 2.5V, 2.8V, 3.3V | -40°C ~ 125°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | Surface Mount | 624-FCBGA (21x21) | CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
|
MCIMX6DP7CVT8ABIC MPU I.MX6DP 800MHZ 624FCBGA |
300 |
|
برگه مشخصات |
624-FBGA, FCBGA | i.MX6DP | Tray | Active | ARM® Cortex®-A9 | 2 Core, 32-Bit | 800MHz | Multimedia; NEON™ SIMD | LPDDR2, DDR3L, DDR3 | Yes | HDMI, Keypad, LCD, LVDS, MIPI/DSI, Parallel | 10/100/1000Mbps (1) | SATA 3Gbps (1) | USB 2.0 + PHY (3), USB 2.0 OTG + PHY (1) | 1.8V, 2.5V, 2.8V, 3.3V | -40°C ~ 105°C (TA) | - | - | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS | Surface Mount | 624-FCBGA (21x21) | CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, S/PDIF, UART |
|
R8A77430HA02BG#UAIC MPU RZ/G/G1M 1.5GHZ |
32 |
|
برگه مشخصات |
- | RZ/G/G1M | Tray | Active | - | - | 1.5GHz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R8A77420HA02BG#UAIC MPU RZ/G/G1H |
80 |
|
برگه مشخصات |
- | RZ/G/G1H | Tray | Active | Quad ARM® Cortex®-A7, Quad ARM® Cortex®-A15 | - | - | - | - | - | - | - | SATA 3Gbps (2) | USB 2.0 (2), USB 3.0 (1) | - | - | - | - | - | - | - | - |
|
|
LS1043ASN8QQBIC MPU QORIQ 1.6GHZ 780FCPBGA |
46 |
|
برگه مشخصات |
780-FBGA, FCBGA | QorIQ® Layerscape | Tray | Active | ARM® Cortex®-A53 | 4 Core, 64-Bit | 1.6GHz | - | DDR3L, DDR4 | - | - | 1GbE (7) or 10GbE (1) & 1GbE (5) | SATA 6Gbps (1) | USB 3.0 (3) + PHY | - | 0°C ~ 105°C | - | - | Secure Boot, TrustZone® | Surface Mount | 780-FCPBGA (23x23) | - |
|
|
AM6546BACDXAIC MPU SITARA 1.1GZ/400MZ 784BGA |
207 |
|
برگه مشخصات |
784-LFBGA, FCBGA | Sitara™ | Tray | Active | ARM® Cortex®-A53, Arm® Cortex®-R5F | 6 Core, 32-Bit | 1.1GHz, 400MHz | GPU PowerVR SGX544-MP1 3D | DDR3, DDR4, LPDDR4 | Yes | LVDS, MIPI-CSI | 10/100/1000Mbps (2) | - | USB 2.0 (1), USB 3.1 (1) | 1.2V, 1.35V, 1.8V, 3.3V | -40°C ~ 105°C (TJ) | - | - | 3DES, AES, DRBG, MD5, PKA, SHA | Surface Mount | 784-FCBGA (23x23) | CANbus, I2C, I2S, MMC/SD/SDIO, McASP, McSPI, QSPI, TDM, UART |
|
|
MCIMX6DP6AVT1ABRIC MPU I.MX6DP 1GHZ 624FCBGA |
500 |
|
برگه مشخصات |
624-FBGA, FCBGA | i.MX6DP | Tape & Reel (TR) | Active | ARM® Cortex®-A9 | 2 Core, 32-Bit | 1GHz | Multimedia; NEON™ SIMD | DDR3, DDR3L, LPDDR2 | Yes | HDMI, Keypad, LCD, LVDS, MIPI/CSI, MIPI/DSI | 10/100/1000Mbps (1) | SATA 3Gbps (1) | USB 2.0 + PHY (3), USB 2.0 OTG + PHY (1) | 1.8V, 2.5V, 2.8V, 3.3V | -40°C ~ 125°C (TJ) | - | - | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS | Surface Mount | 624-FCBGA (21x21) | CANbus, EBI/EMI, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, S/PDIF, UART |
|
|
LS1043AXE8QQBIC MPU QORIQ 1.6GHZ 780FCPBGA |
0 |
|
برگه مشخصات |
780-FBGA, FCBGA | QorIQ® Layerscape | Tray | Active | ARM® Cortex®-A53 | 4 Core, 64-Bit | 1.6GHz | - | DDR3L, DDR4 | - | - | 1GbE (7) or 10GbE (1) & 1GbE (5) | SATA 6Gbps (1) | USB 3.0 (3) + PHY | - | -40°C ~ 105°C | - | - | Secure Boot, TrustZone® | Surface Mount | 780-FCPBGA (23x23) | - |
|
MPC8271CVRTIEAIC MPU MPC82XX 400MHZ PBGA516 |
38 |
|
برگه مشخصات |
516-BBGA | MPC82xx | Tray | Active | PowerPC G2_LE | 1 Core, 32-Bit | 400MHz | Communications; RISC CPM | DRAM, SDRAM | No | - | 10/100Mbps (2) | - | USB 2.0 (1) | 3.3V | -40°C ~ 105°C (TA) | - | - | - | Surface Mount | 516-PBGA (27x27) | I2C, SCC, SMC, SPI, UART, USART |
|
|
LS1048ASE7MQAIC MPU QORIQ 1.2GHZ 780FBGA |
60 |
|
برگه مشخصات |
780-BFBGA, FCBGA | QorIQ® Layerscape | Tray | Active | ARM® Cortex®-A53 | 4 Core, 64-Bit | 1.2GHz | - | DDR4 | - | - | 10GbE (2), 1GbE (8) | SATA 6Gbps (1) | USB 3.0 (2) + PHY | - | 0°C ~ 105°C | - | - | Secure Boot, TrustZone® | Surface Mount | 780-FBGA (23x23) | - |
|
|
MPC8272VRTMFAIC MPU MPC82XX 400MHZ PBGA516 |
40 |
|
برگه مشخصات |
516-BBGA | MPC82xx | Tray | Active | PowerPC G2_LE | 1 Core, 32-Bit | 400MHz | Communications; RISC CPM, Security; SEC | DRAM, SDRAM | No | - | 10/100Mbps (2) | - | USB 2.0 (1) | 3.3V | 0°C ~ 105°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 516-PBGA (27x27) | I2C, SCC, SMC, SPI, UART, USART |
